The CNC Nesting Boring and Milling Machine is a high performance solution for processing engineered wood panels, executing versatile functions such as profile milling, nesting cuts, and surface drilling.
Detailed Introduction of the CNC Nesting Boring and Milling Machine
Key Features of the CNC Nesting Boring and Milling Machine

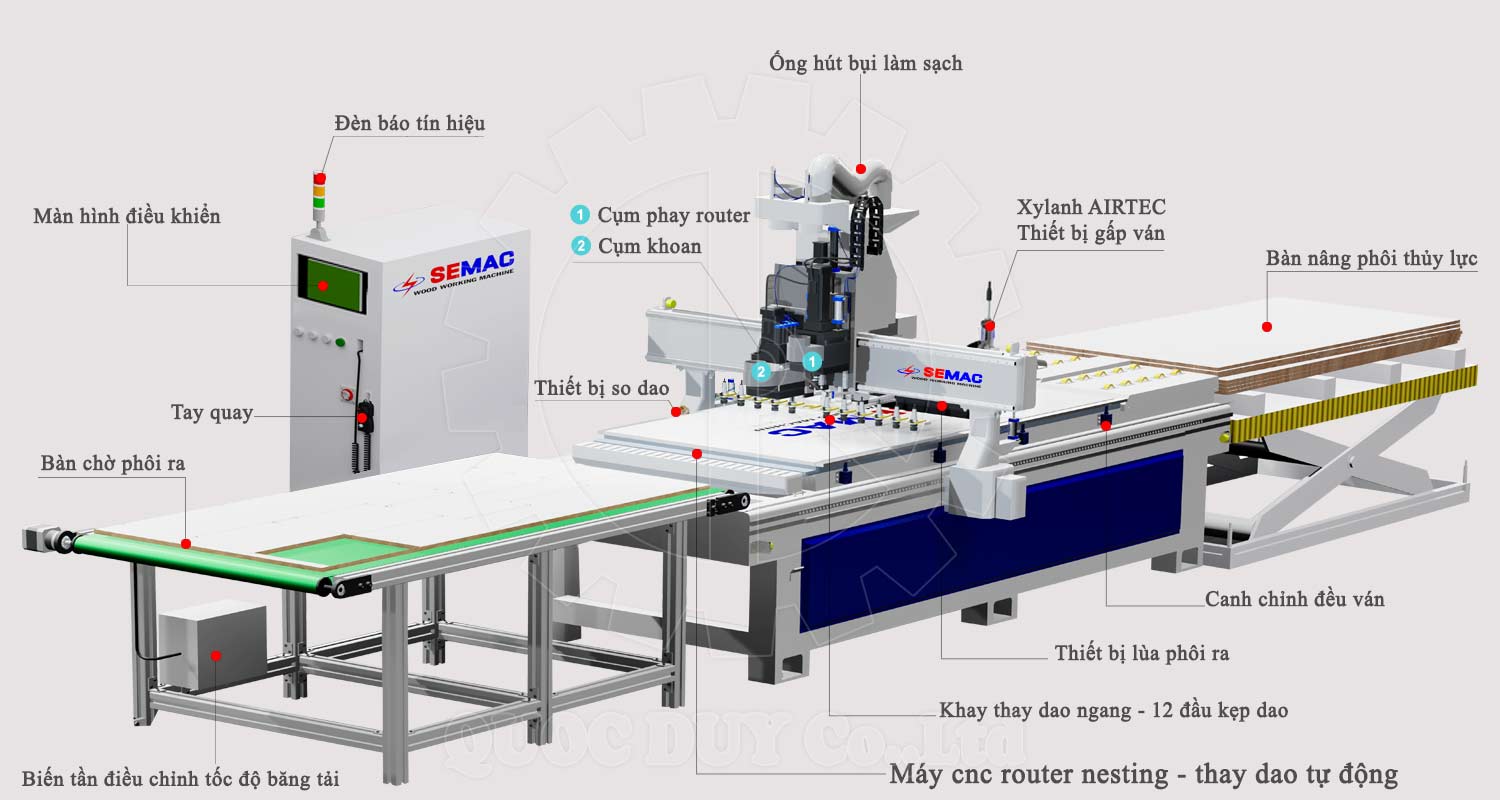

The CNC Nesting Boring and Milling Machine features an integrated three-in-one automated cell configuration, consisting of:
Automatic Tool Changer Drilling Machine
Hydraulic Lifting Table System
Unloading Conveyor Belt
This combination forms a fully automated ATC CNC nesting production line. It establishes a seamless hands-free workflow, from loading raw panels via the hydraulic lifting table to discharging finished workpieces onto the unloading conveyor. With this completely automated process, this nesting machine stands out as a smart, reliable choice for modern furniture manufacturing enterprises.
Technical Specifications

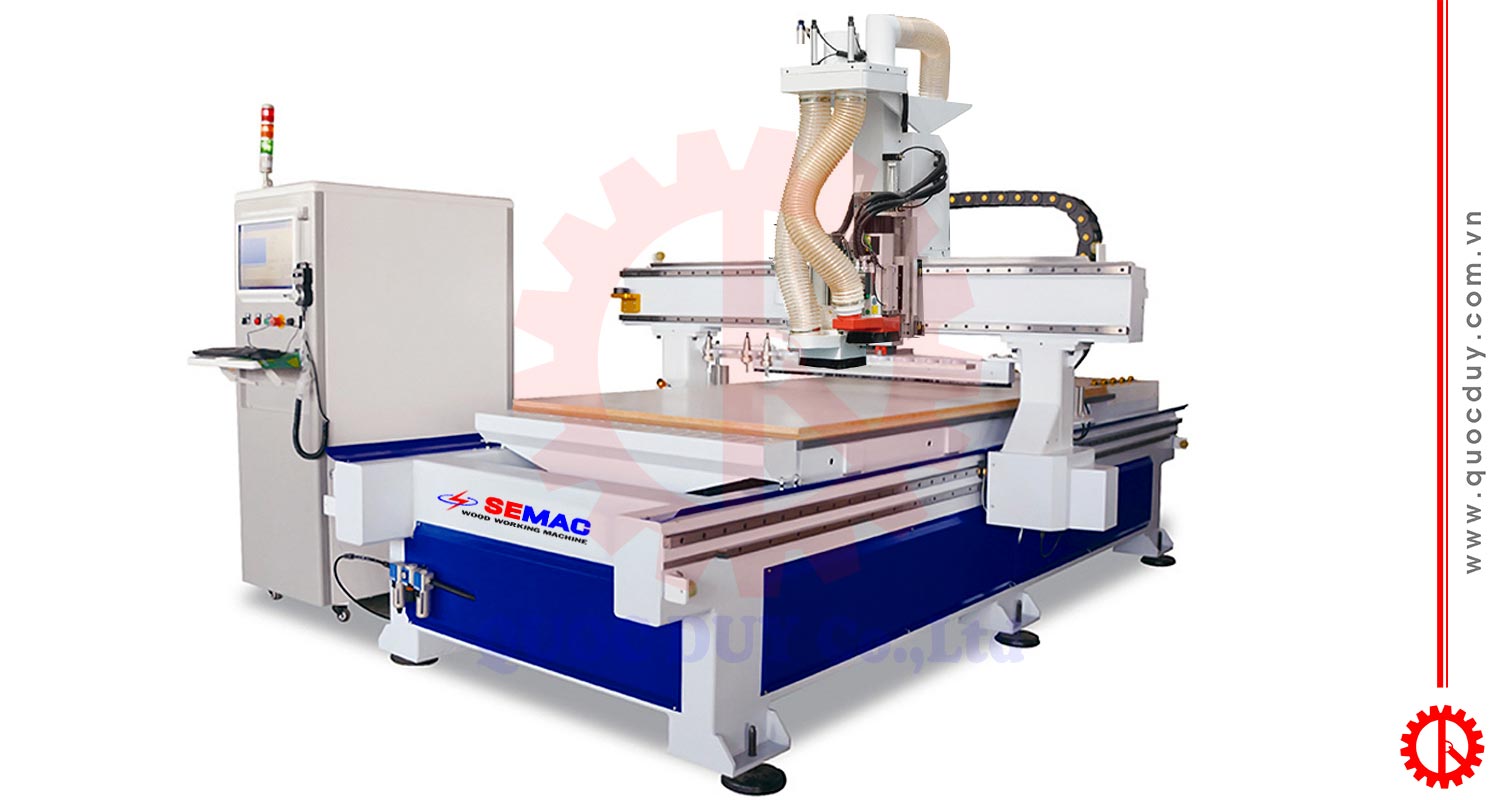

1. Automatic Tool Changer CNC Machine
| X-axis travel | 1300 mm |
| Y-axis travel | 2500 mm |
| Z-axis travel | 220 mm |
| Maximum rapid speed | 0 – 35 m/min |
| Main spindle power | 9 kW |
| Drilling block spindle power | 2.2 kW |
| Accuracy | ± 0.05 mm |
| Command code | G-code |
| Voltage | 380V / 50Hz |
| Spindle speed | 6000 – 24,000 RPM |
| Machine dimensions | 3500 x 2550 x 2380 mm |
| Origin | Semac – Quoc Duy |

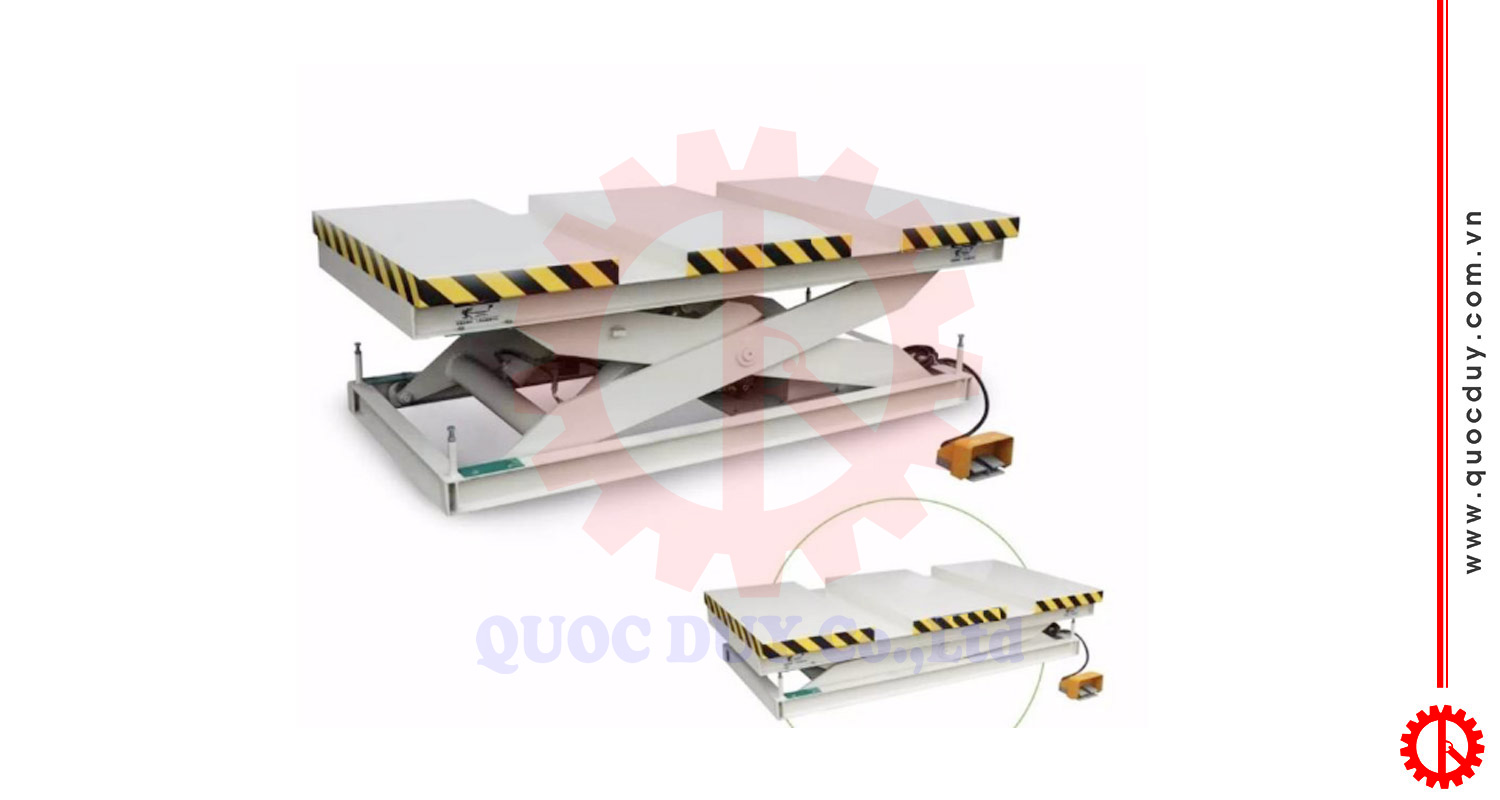

2. Hydraulic Lifting Table
| Maximum load capacity | 2 tons |
| Maximum lifting height | 1200 mm |
| Hydraulic pump motor | 2 HP |
| Dimensions | 2200 × 1000 × 500 mm |
| Weight | 800 kg |

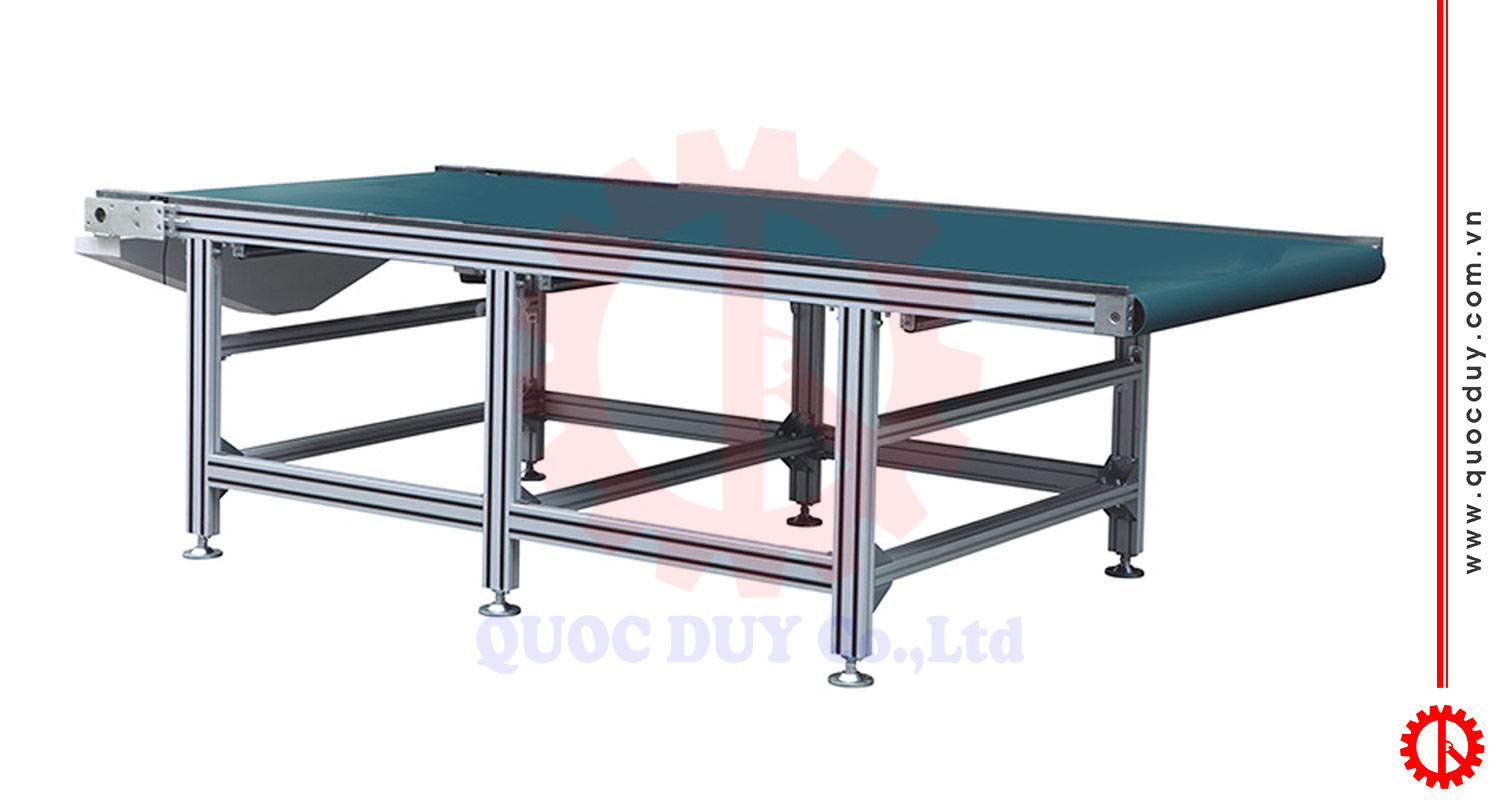

3. Unloading Conveyor Belt
| Workpiece feeding width | 1300 mm |
| Workpiece feeding length | 2500 mm |
| Maximum workpiece weight | 50 kg |
video about CNC Nesting Boring and Milling Machine
Other Recommended CNC Router Nesting Lines

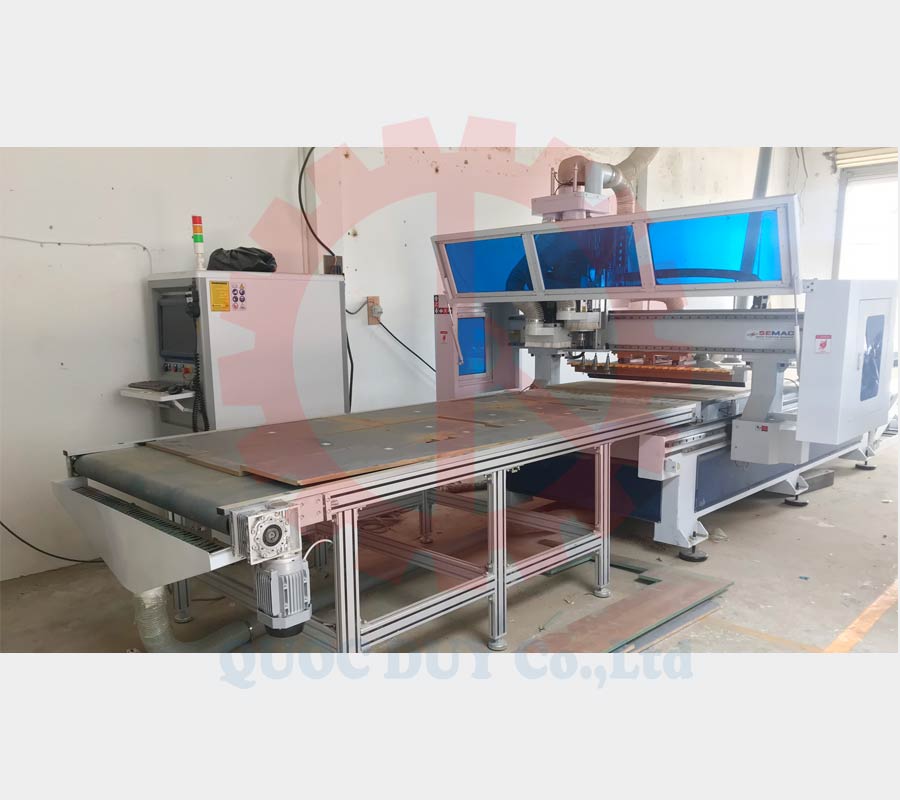

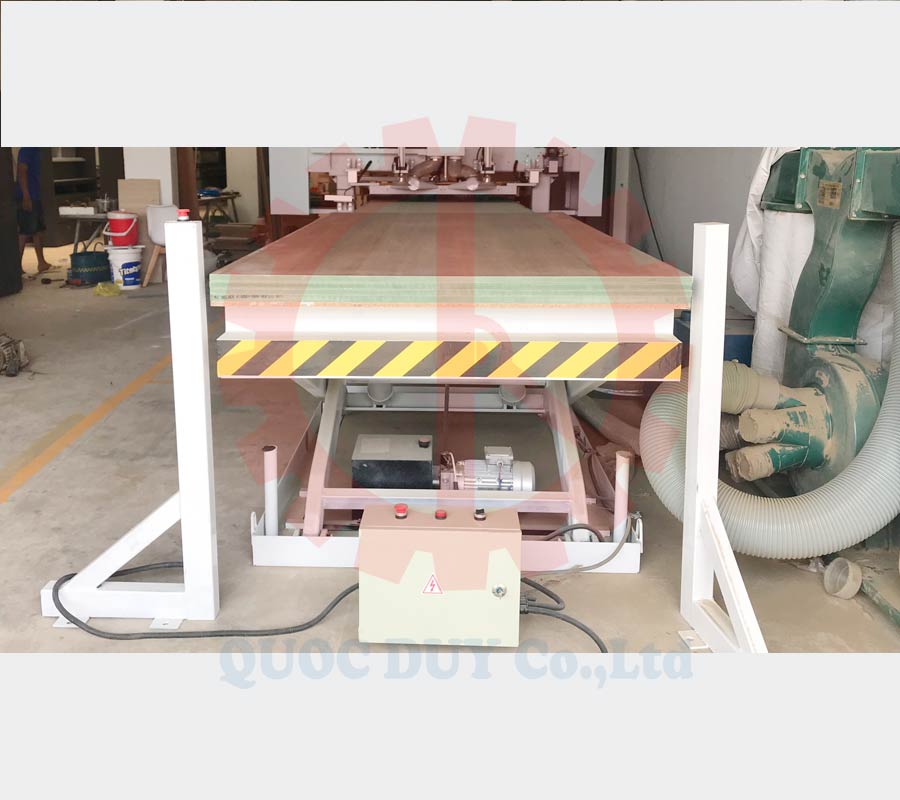

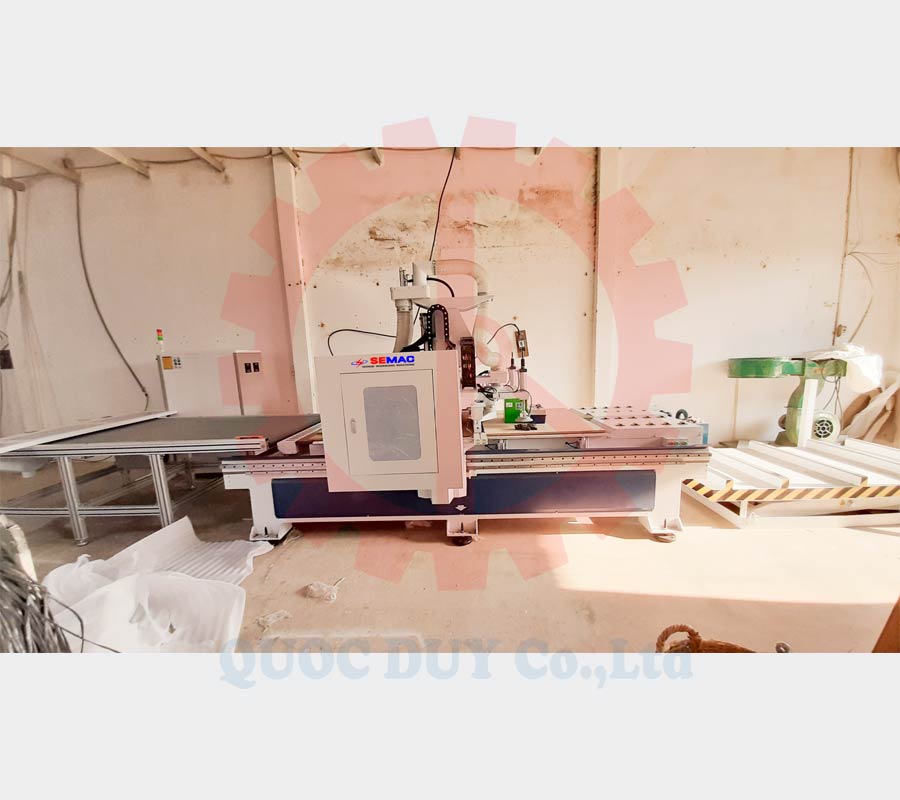

machine in customer's workshop
