The single spindle CNC router with a drilling unit integrates advanced milling, vertical drilling, horizontal drilling, cutting, and nesting capabilities—allowing for complete processing in a single workpiece setup. This configuration is the ideal choice for modern industrial engineered wood furniture factories looking to minimize production costs and optimize operational efficiency.
Outstanding Features of the Single Spindle CNC Router with Drilling Unit

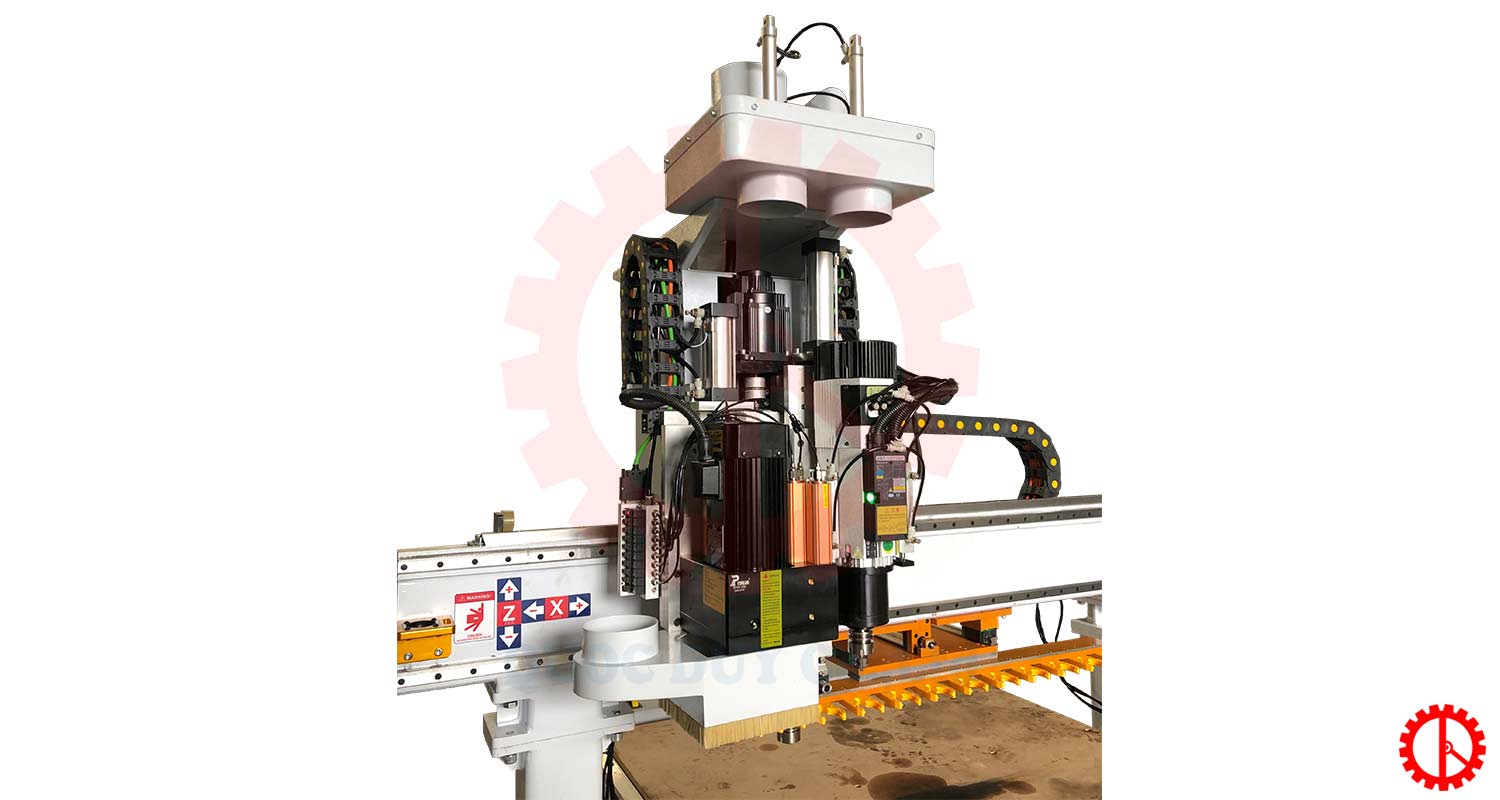

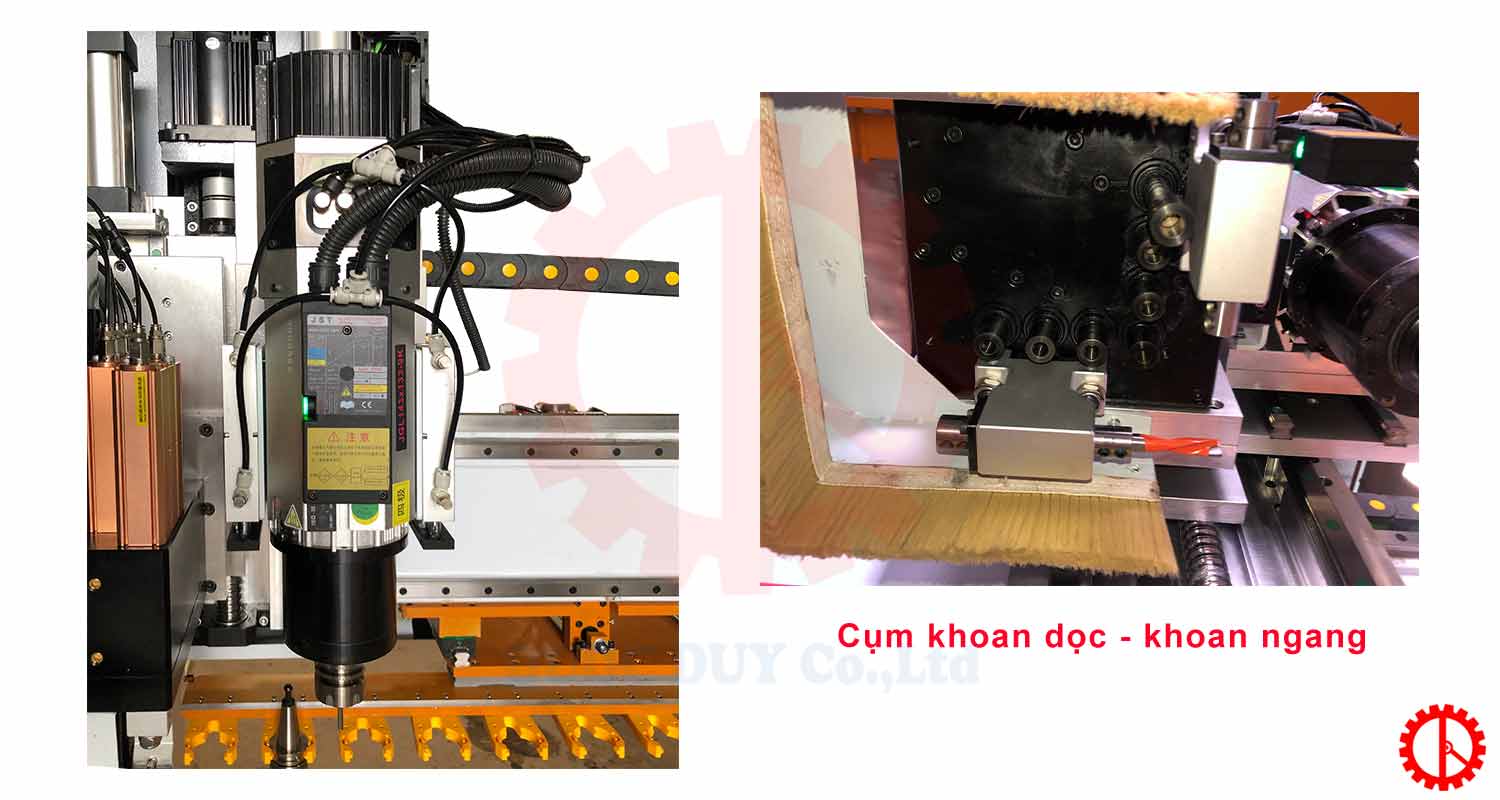

Features 1 main router spindle coupled with a heavy-duty drilling block (consisting of 7 vertical drill heads and 4 horizontal drill heads).
Equipped with a 9 kW router spindle running at a processing speed of 24,000 rpm, complemented by a 2.2 kW drilling motor.
Executes various complex operations seamlessly, including sizing/cutting, multi-angle drilling, grooving, and decorative panel routing.
Outfitted with 2 heavy-duty hold-down rollers to securely fix small-sized workpieces and stabilize materials throughout the entire machining process.
The X, Y, and Z axes are fully driven by synchronized servo motors, ensuring absolute stability and micro-level precision.

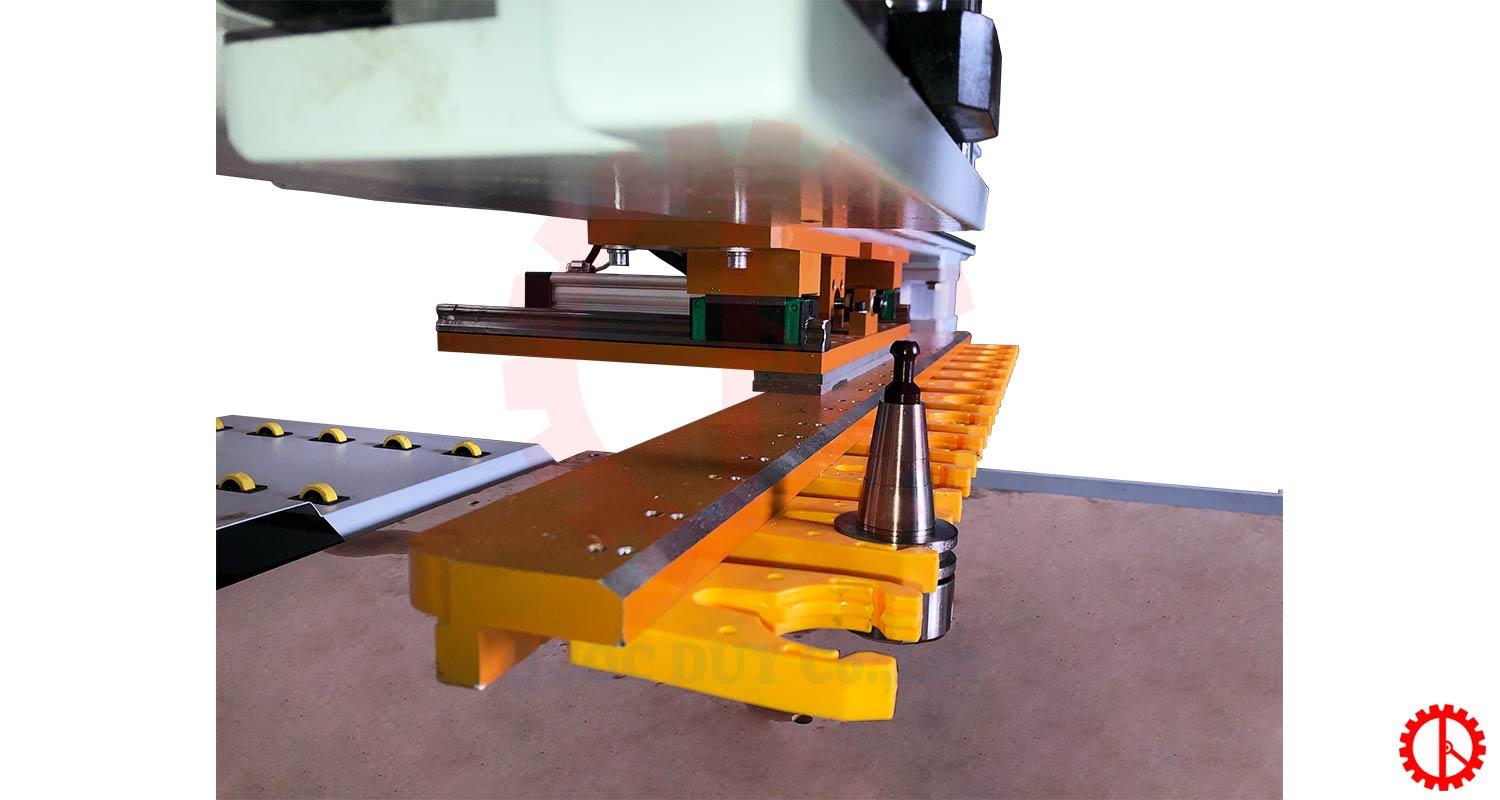

Features a 12-slot linear tool magazine supporting multiple cutter profile configurations, drastically minimizing tool setup and calibration downtime.
Utilizes a high-capacity matrix vacuum table divided into 6 distinct vacuum zones controlled by dedicated manual valves.
Key Component Configurations & Brands
Inverter: Delta (Taiwan)
Servo System: Leadshine

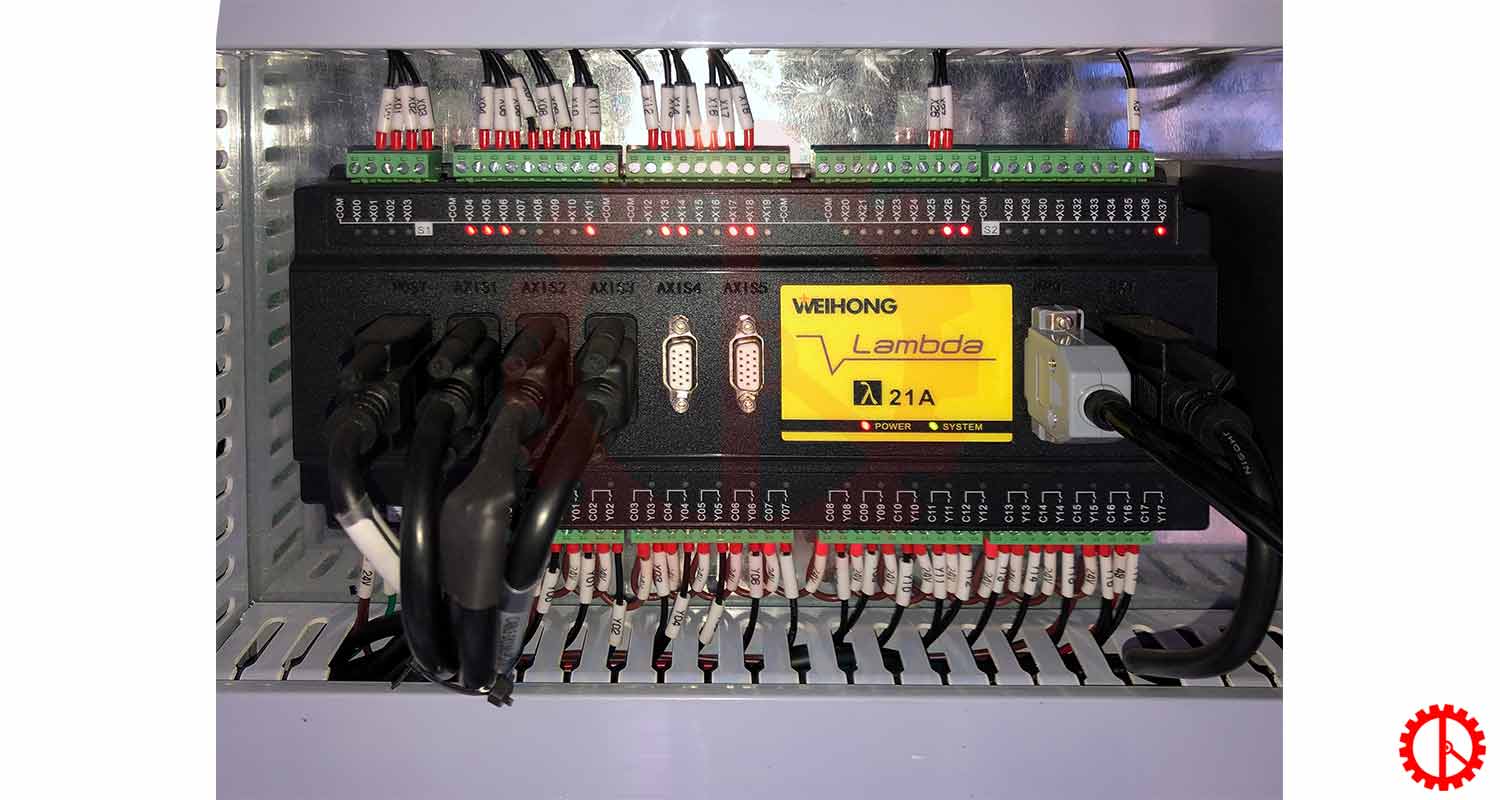

Control System: Weihong
Electrical Components: Siemens (Germany)
Linear Guide Rails: Premium Taiwan Brands
Technical Specifications
| X-axis travel | 1300 mm |
| Y-axis travel | 2500 mm |
| Z-axis travel | 220 mm |
| Working speed | 0 – 35 m/min |
| Spindle power | 9 kW |
| Drilling unit spindle power | 2.2 kW |

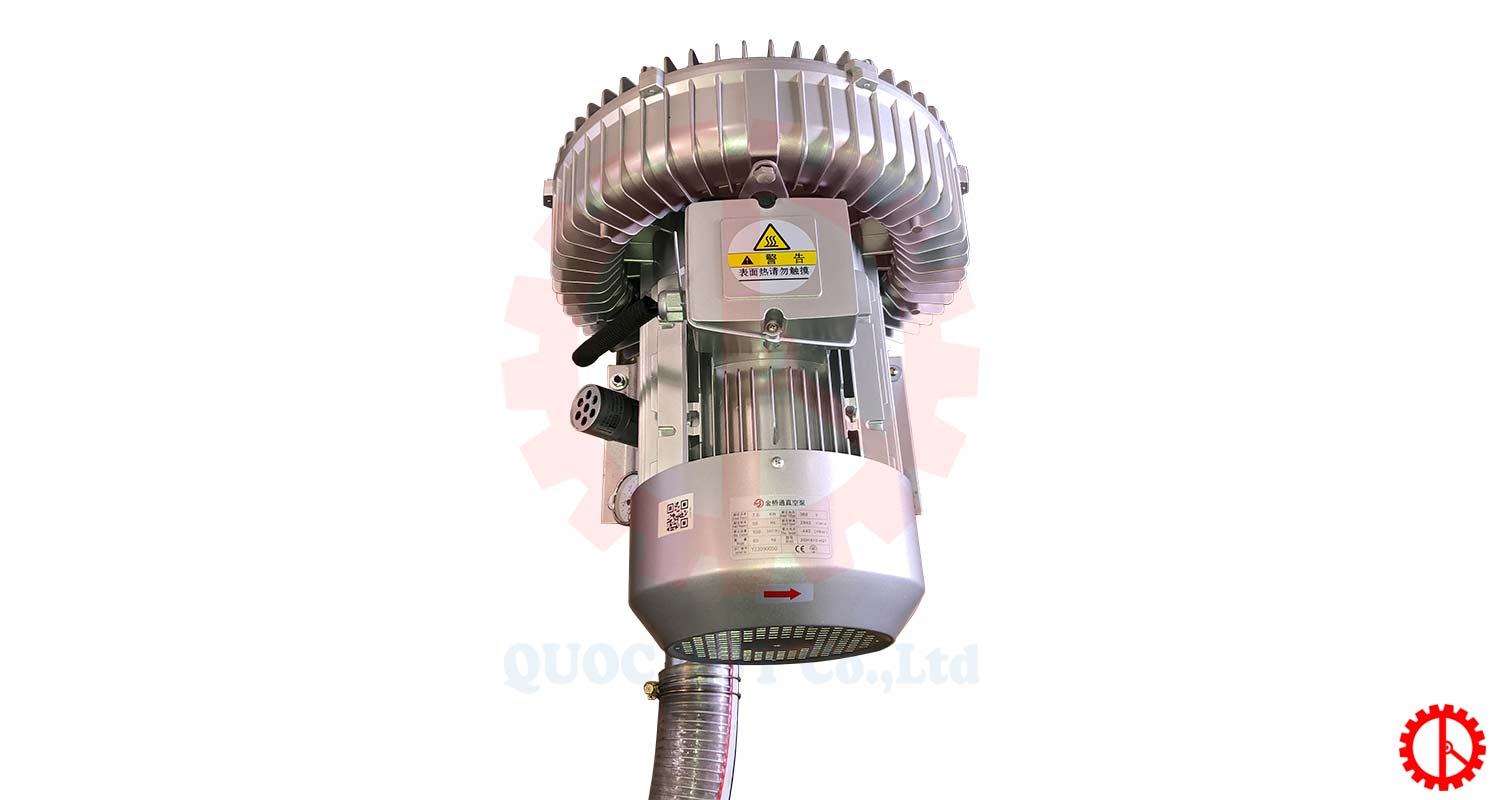

| Vacuum pump power (Dry type) | 7.5 kW |
| Servo motor | 1.5 kW x 4 pcs |
| Speed reducer | SAMPO |
| Hold-down rollers | 2 pcs |
| Tool magazine capacity | 12 slots |
| Positioning accuracy | ±0.025 mm |
| Command code | G-code |
| Voltage | 380V / 50Hz |
| Spindle speed | 24000 rpm |
| Machine dimensions | 3900 x 2300 x 2400 mm |
| Machine weight | 3000 kg |
| Transmission method | Taiwan XY-axis rack & pinion, Z-axis ball screw drive |
| Drilling Unit Specifications | |
| Power | 3HP / 2.2 kW |
| Voltage | 220V / 380V, 50Hz / 60Hz |
| Speed | 2800 – 3400 rpm |
| Pneumatic pressure | > 6.5 kgf/cm² |
| Number of horizontal drill heads | 4 |
| Number of vertical drill heads | 7 |
| Weight | 25 kg |
Note: Technical specifications, design elements, and machine aesthetics are subject to change without prior notice; however, any modifications will not alter the primary functionality or operational capacities of the equipment.
