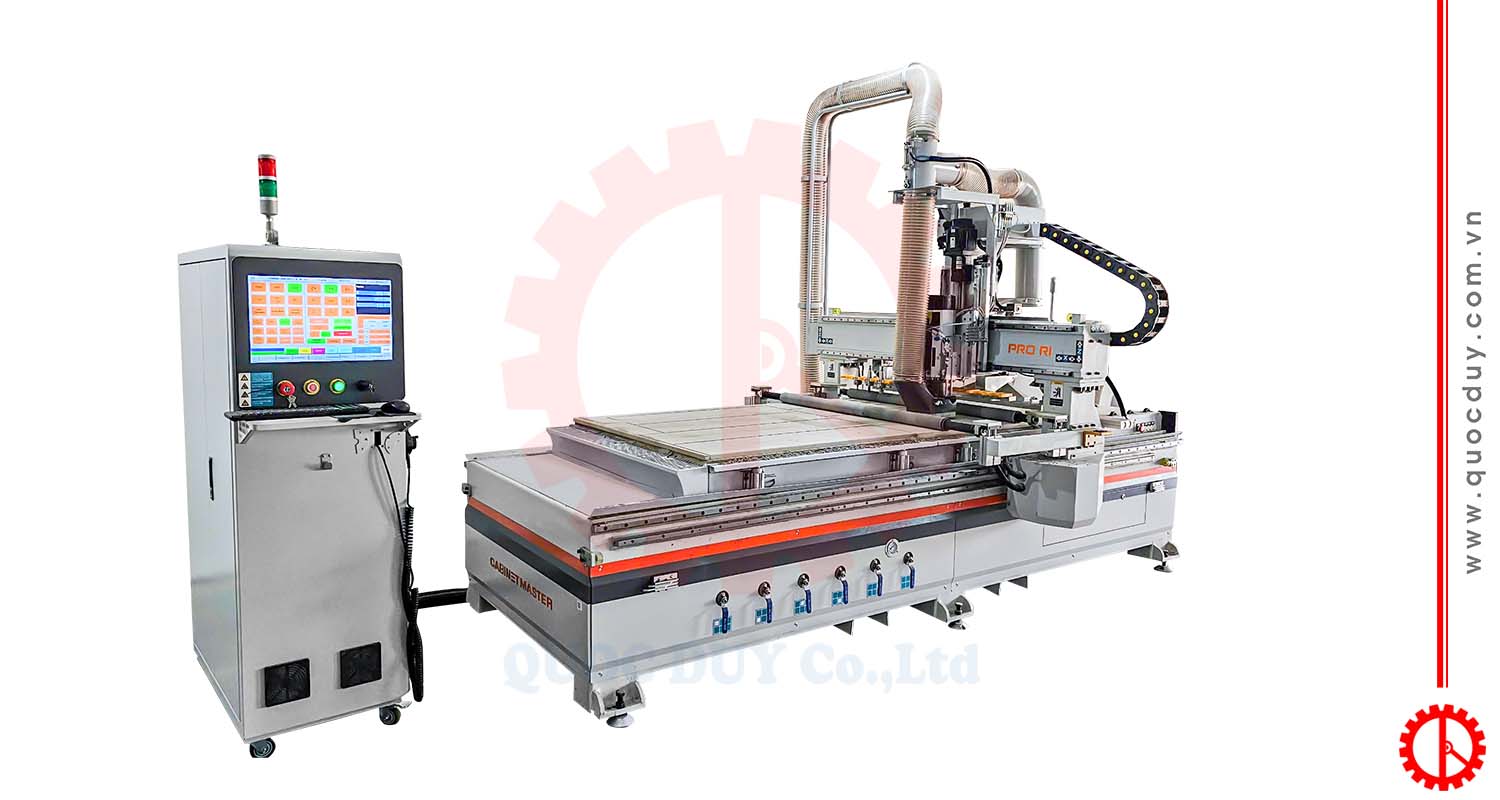

CNC Router With Automatic Tool Change – PRO R1 is a modern machining solution designed to enhance both efficiency and accuracy in production. Equipped with an automatic tool change system, the machine can automatically select and replace cutting tools as required, saving time and minimizing errors caused by manual operations. Versatile and reliable, this CNC router is suitable for a wide range of applications such as cutting, milling, and drilling. It delivers high productivity while reducing production costs, making it an ideal choice for furniture manufacturers and woodworking factories.
Features of CNC Router With Automatic Tool Change
- Designed to perform multiple functions including milling, drilling, surface engraving, automatic reaming, contour cutting, and panel grooving with high efficiency.

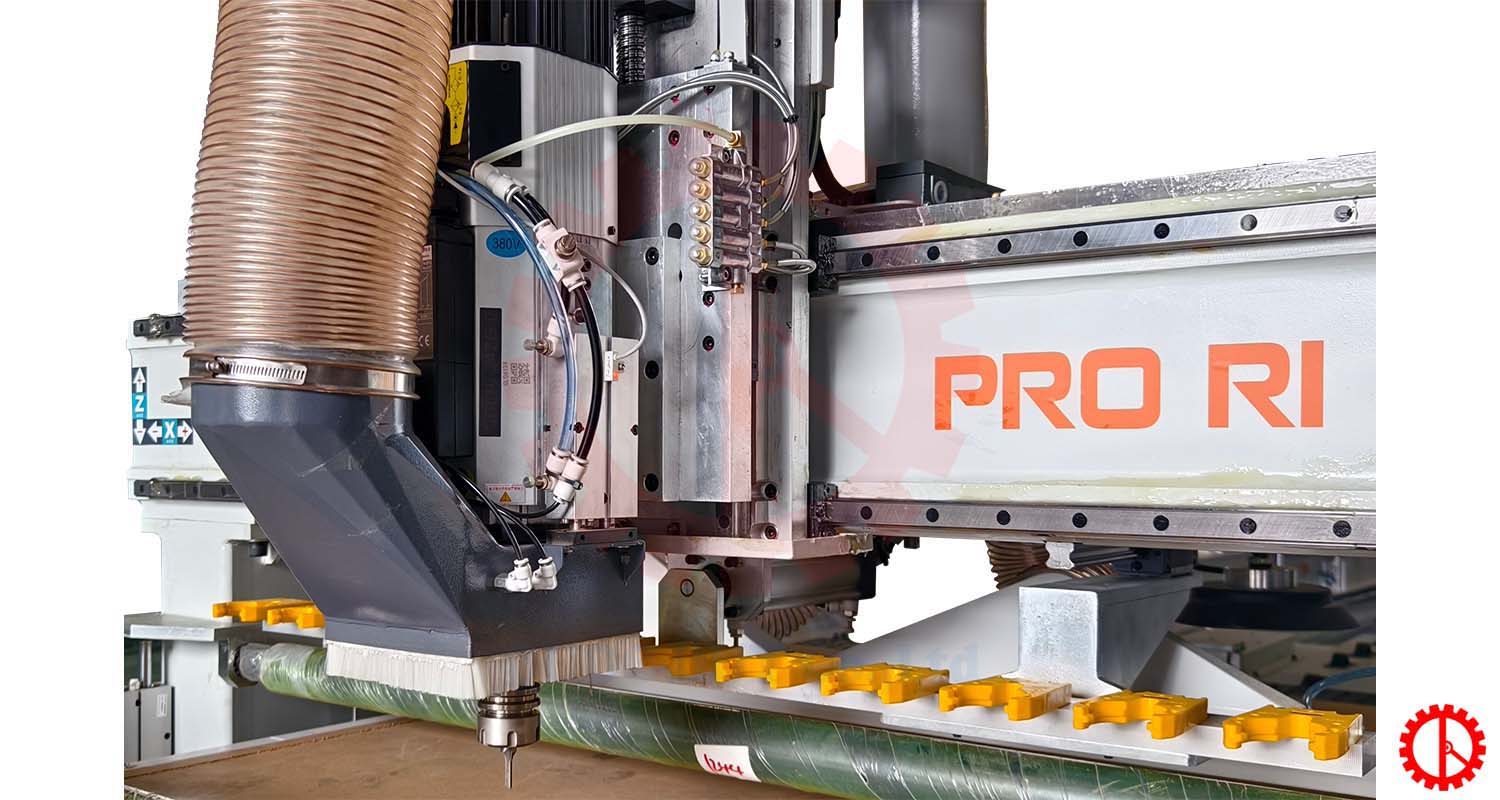

- Equipped with an automatic tool changer with 12 tool holders, allowing flexible tool changes. This feature is especially useful for processing complex products with multiple details that require frequent tool changes.

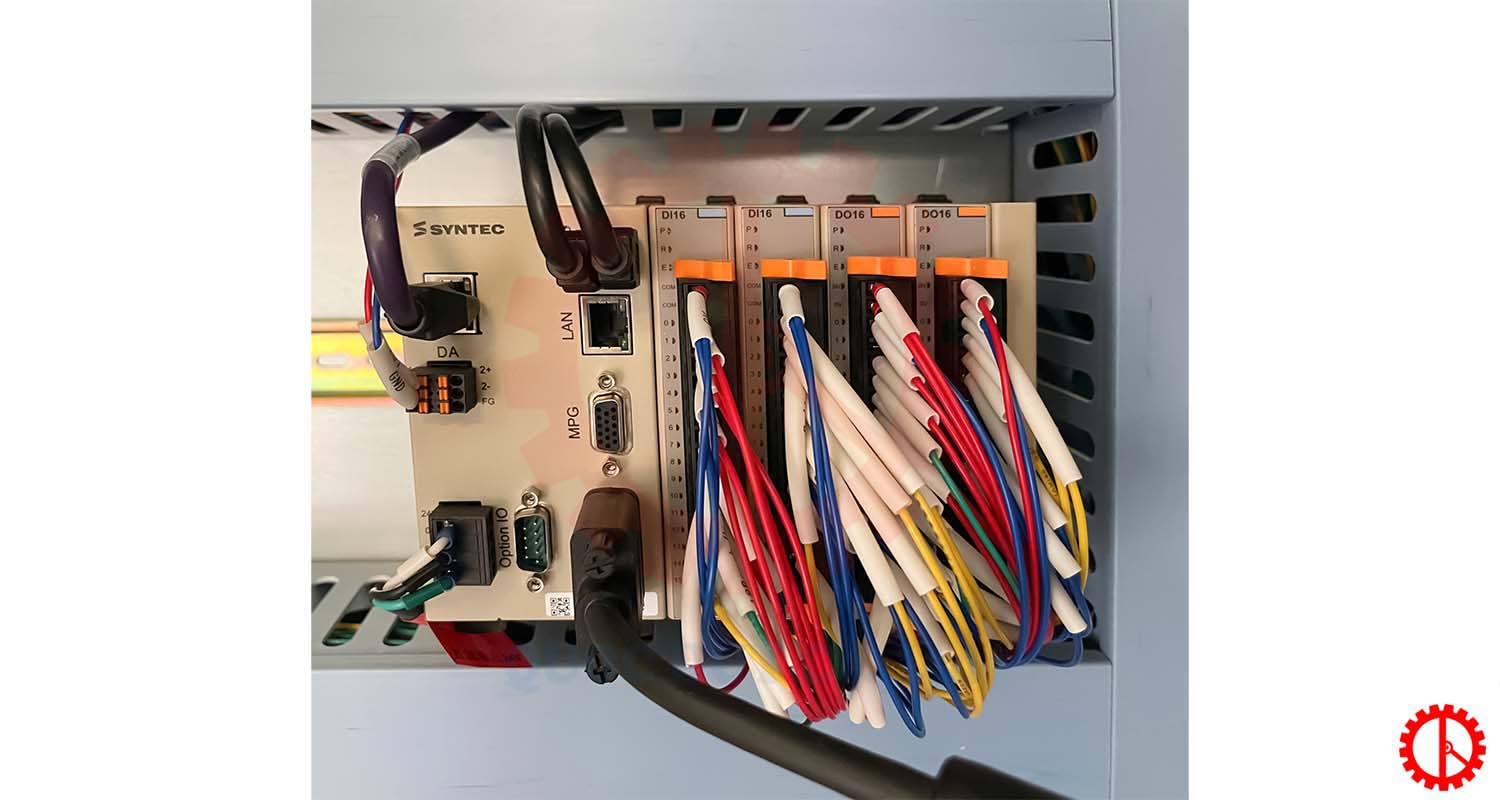

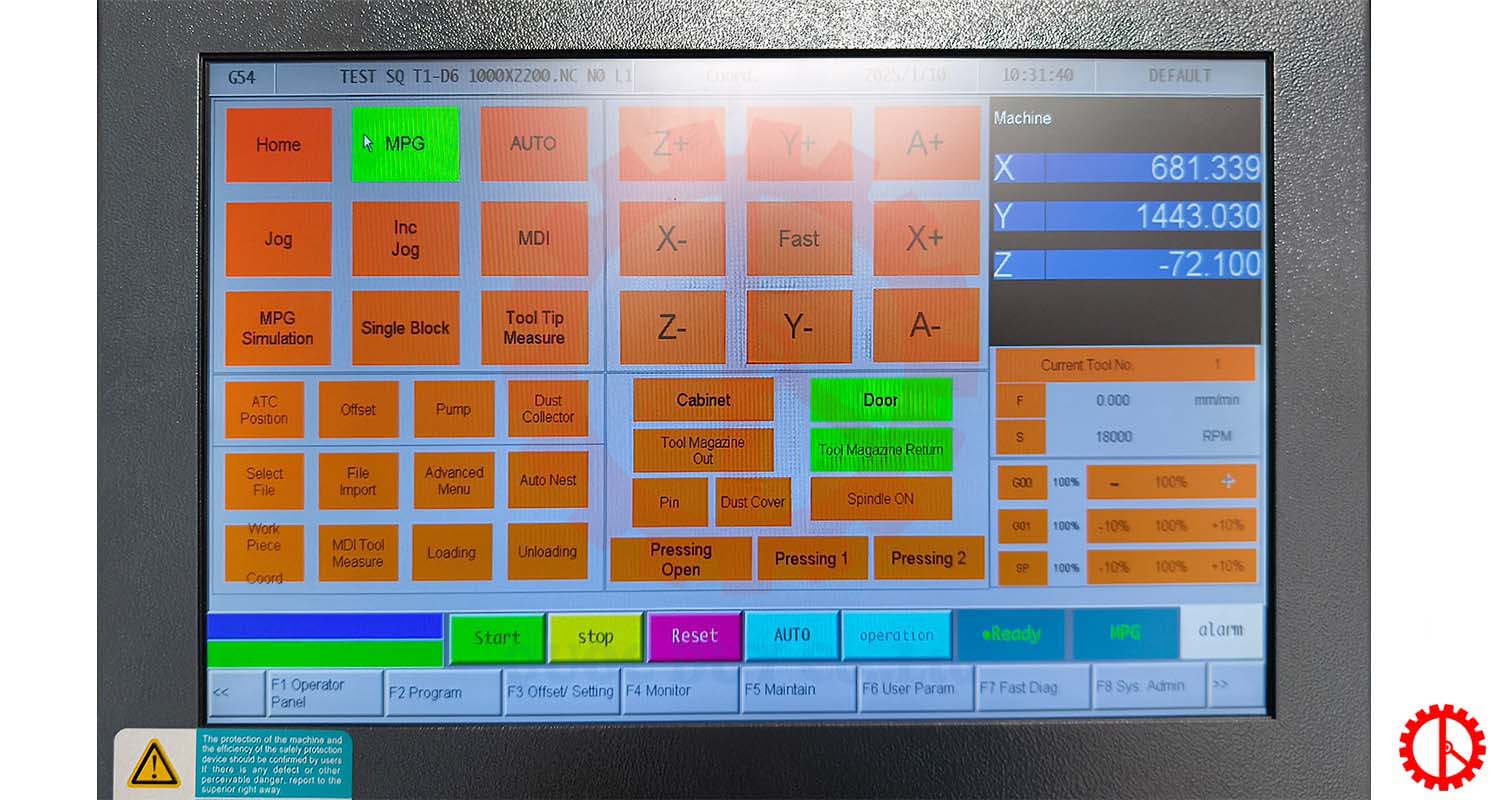

- Powered by the SYNTEC control system, offering a user-friendly interface for easy operation.
- Operates based on pre-programmed instructions, ensuring high precision and optimized machining time.
- Widely applied in the production of doors, tables, chairs, decorative patterns, wall panels, and other customized furniture components.
Specifications of CNC Router With Automatic Tool Change
| X-Axis Travel | 1,300 mm |
| Y-Axis Travel | 2,500 mm |
| Z-Axis Travel | 200 mm |
| Main Spindle Motor | 9 kW (HQD) |
| Spindle Speed | 24,000 rpm |

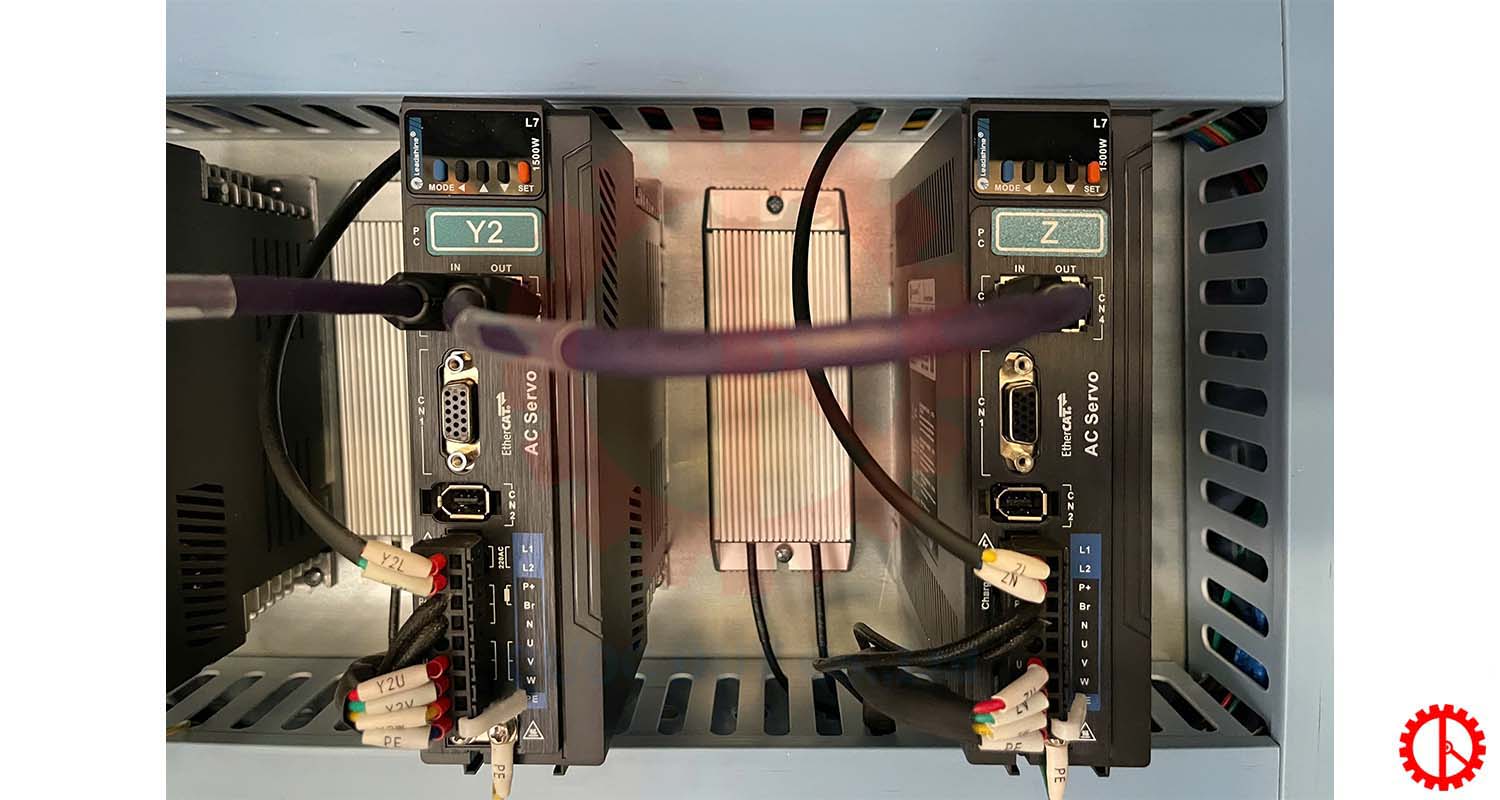

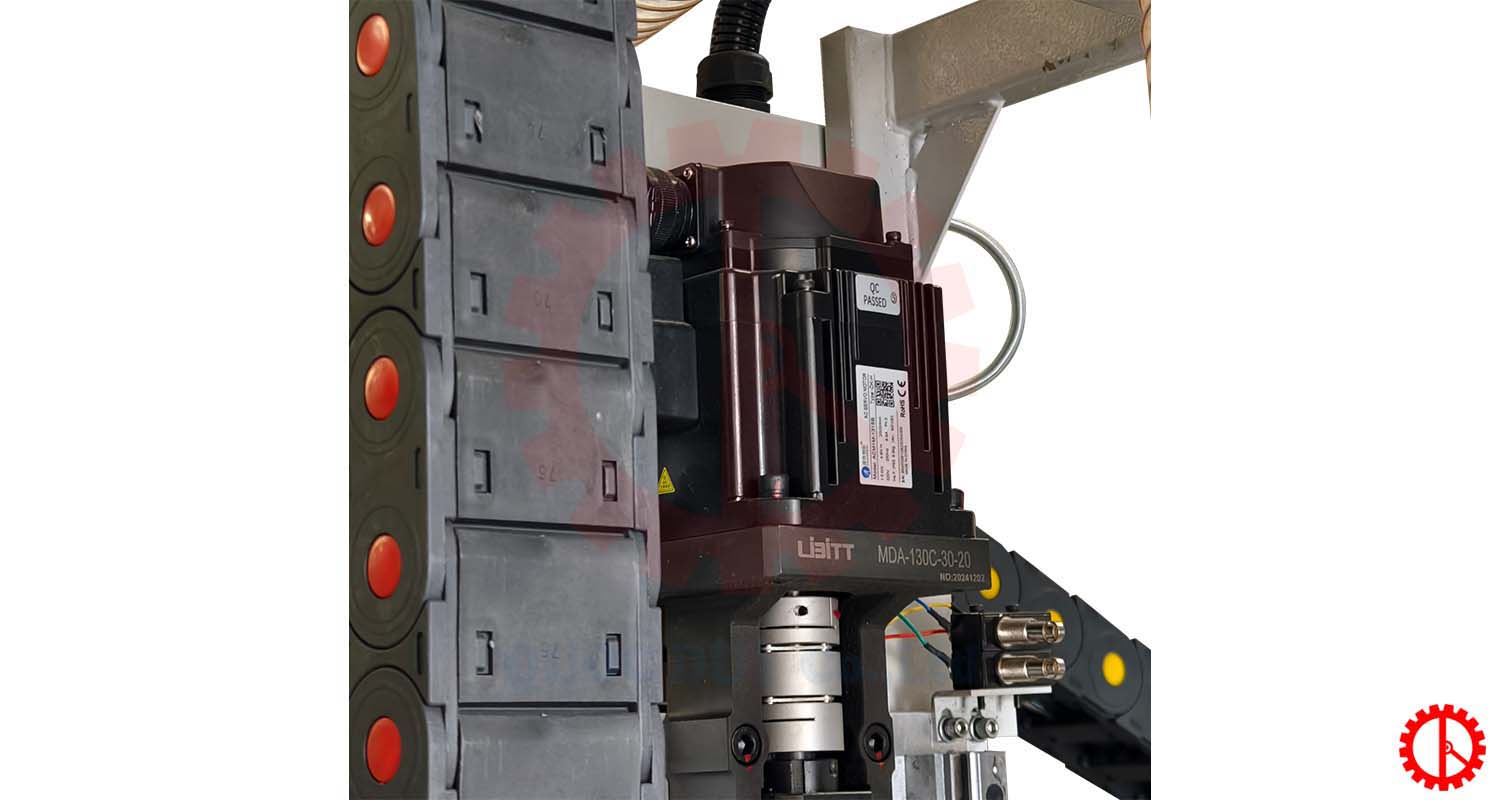

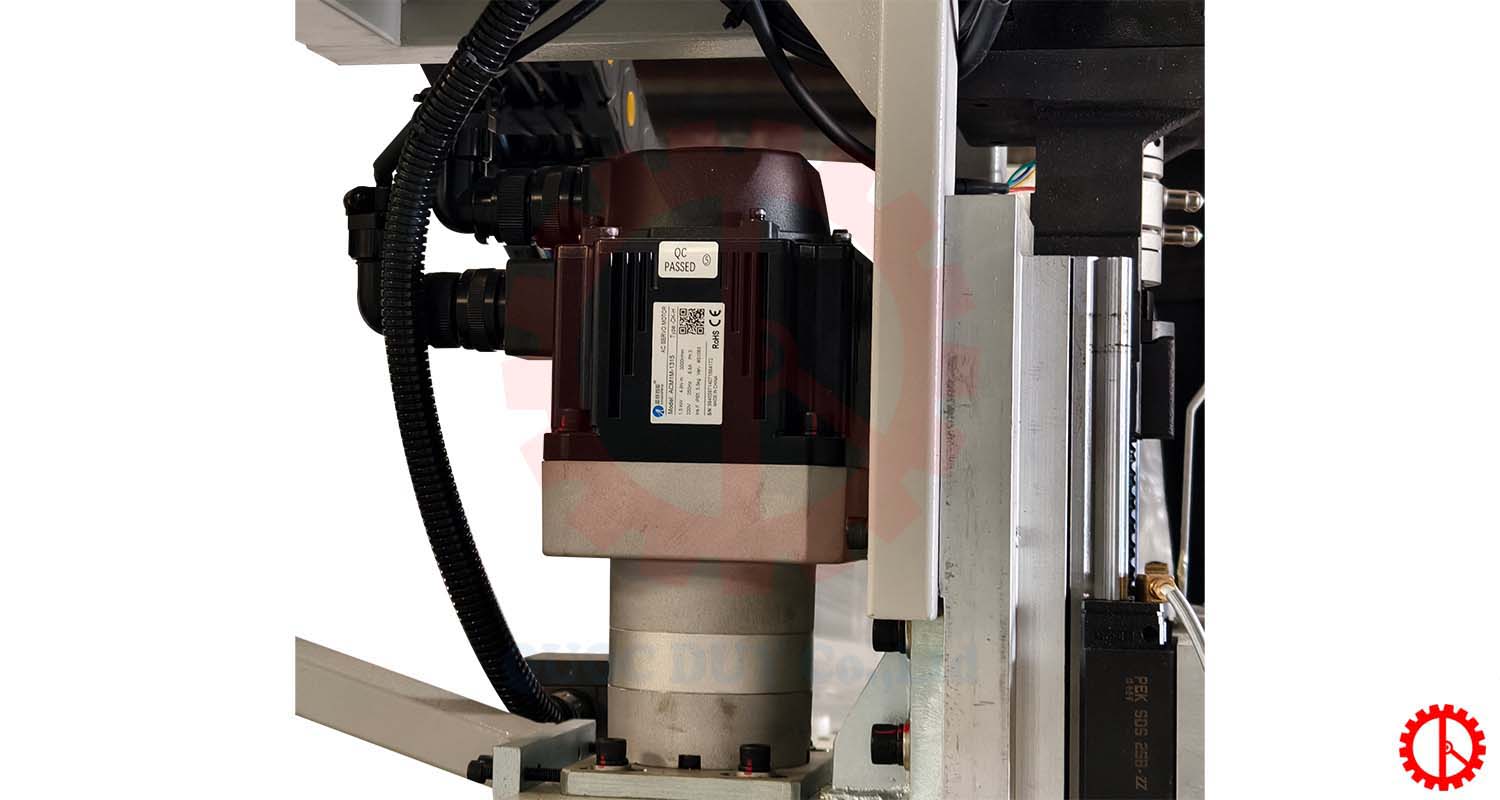

| Servo Motors | Leadshine, 1.5 kW × 4 |
| Vacuum System Power | 7.5 kW |
| Maximum Rapid Traverse Speed | 50 m/min |
| Maximum Working Speed | 20 m/min |
| Positioning Accuracy | ±0.05 mm |

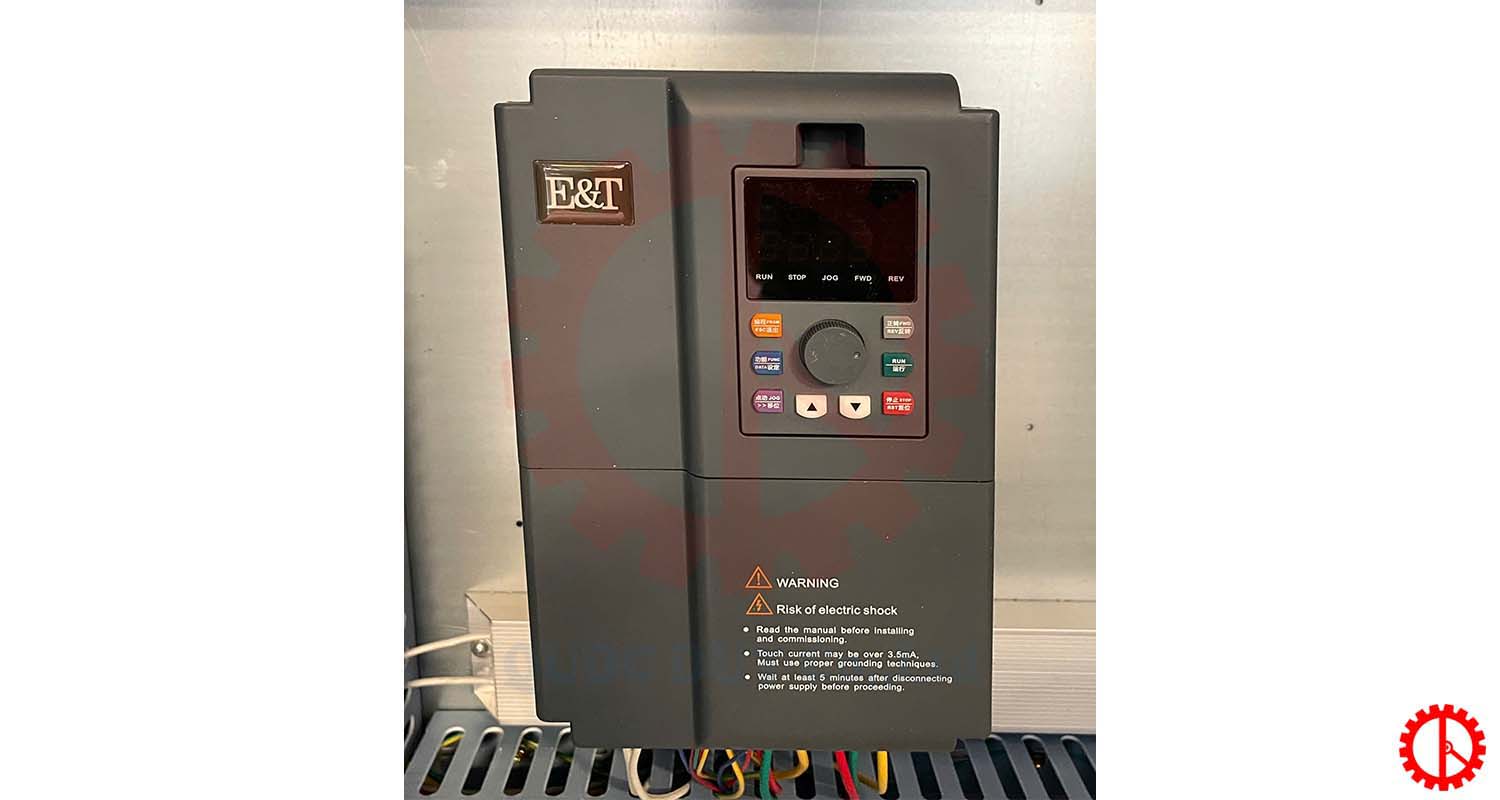

| Inverter | 11 kW |
| Roller Support Table | Yes |
| Power Supply | 380 V / 50 Hz |
| Compressed Air Pressure | 0.6–0.8 MPa |
| Net Weight | Approx. 2,400 kg |
| Overall Dimensions (L × W × H) | 3,740 × 2,180 × 2,290 mm |
*Excludes the up and down worktable for the workpiece.
Note: Technical specifications, design details, and machine colors may change without prior notice, but functionality and performance remain unaffected.
