Single-head CNC router with single linear guide – KW 1328 SR1
Features of Single-head CNC router with single linear guide
- The machine is designed for multi-functional execution: efficiently performing milling, drilling, surface carving, automatic boring, profile cutting, and panel slicing.
- Utilizes a TAIWAN BAOYUAN control system—user-friendly and easy to operate.
- Processes via pre-programmed routines, ensuring high precision and optimized cycle time.

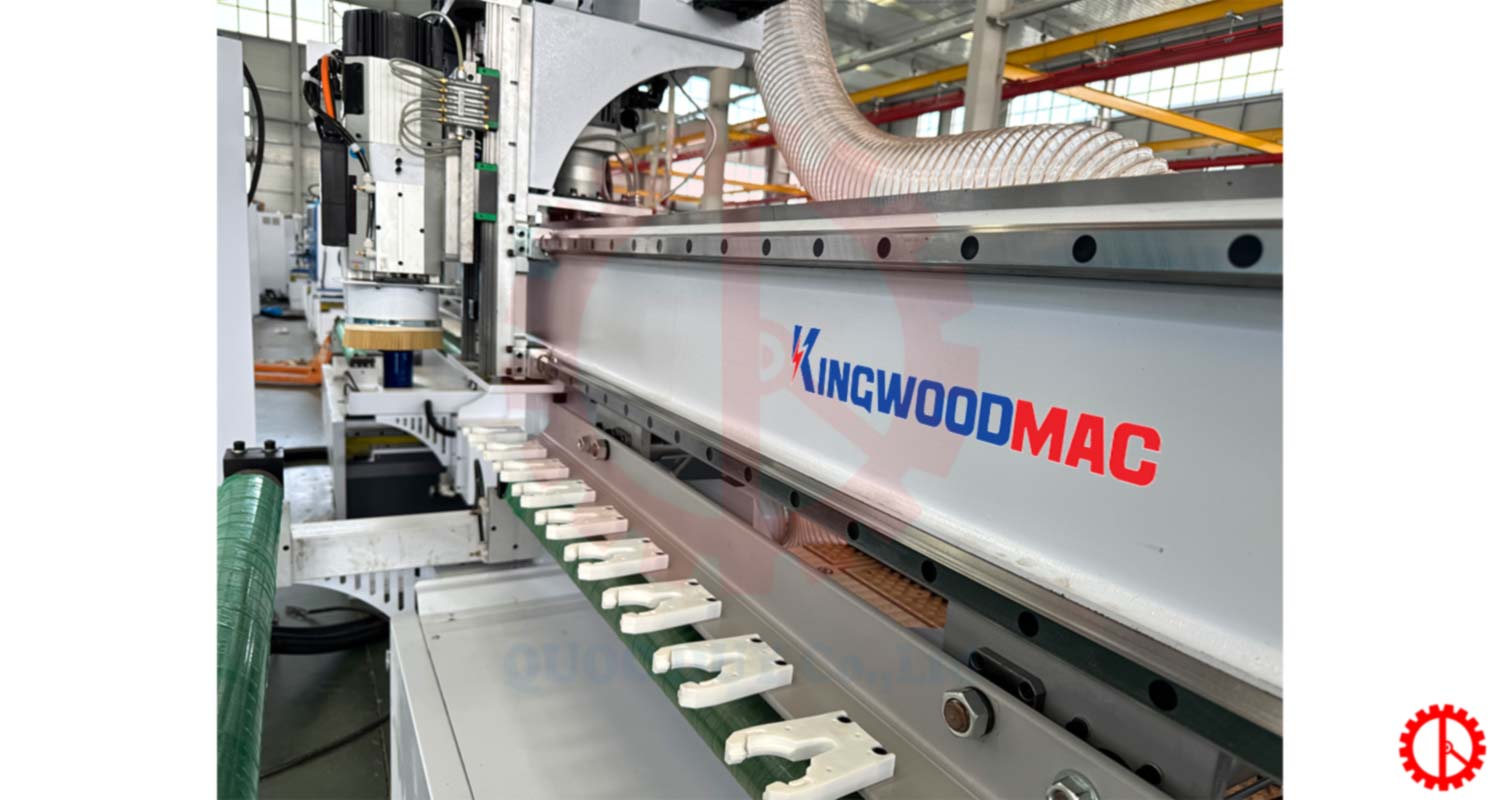

- The Automatic Tool Changer (ATC) CNC router is widely applied in the production of doors, tables, chairs, decorative patterns, partition panels, and more.
- Features a specialized structural design with a high-performance 28-point vacuum sealing working table, dual pressure rollers, and material loading/unloading capabilities.
Specifications of Single-head CNC router with single linear guide
| X-Axis Travel | 1300 mm |
| Y-Axis Travel | 2800 mm |
| Spindle Motor Power | 9 kW |
| Spindle Speed | 3000 – 24000 rpm |
| Working Speed | 12 – 30 m/min |
| Vacuum Pump Power | 7.5 kW |
| Power Supply | 380V / 50Hz |
| Total Installed Power | 25 kW |
| Machine Dimensions | 4000 × 2300 × 2100 mm |
| Machine Weight | 2100 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
Single-head CNC router with single linear guide Quotation
Quoc Duy provides a diverse range of CNC routers, CNC machining centers, and more—catering to the processing of furniture products made from engineered wood to natural timber. If you require consultation to select the optimal machine tailored to your production needs, please contact us:
- Email : info@quocduy.com.vn
- Hotline : +84 903 600 113
You are also welcome to visit our showroom and experience the machine in operation at: 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam.
