Single-head CNC router with dual linear guides – KW 1328 DR1
Features of Single-head CNC router with dual linear guides
- The machine is designed for multi-functional execution: efficiently performing milling, drilling, surface carving, profile cutting, and panel slicing.
- Utilizes a TAIWAN BAOYUAN control system—user-friendly and easy to operate.
- Processes via pre-programmed routines, ensuring high precision and optimized cycle time.

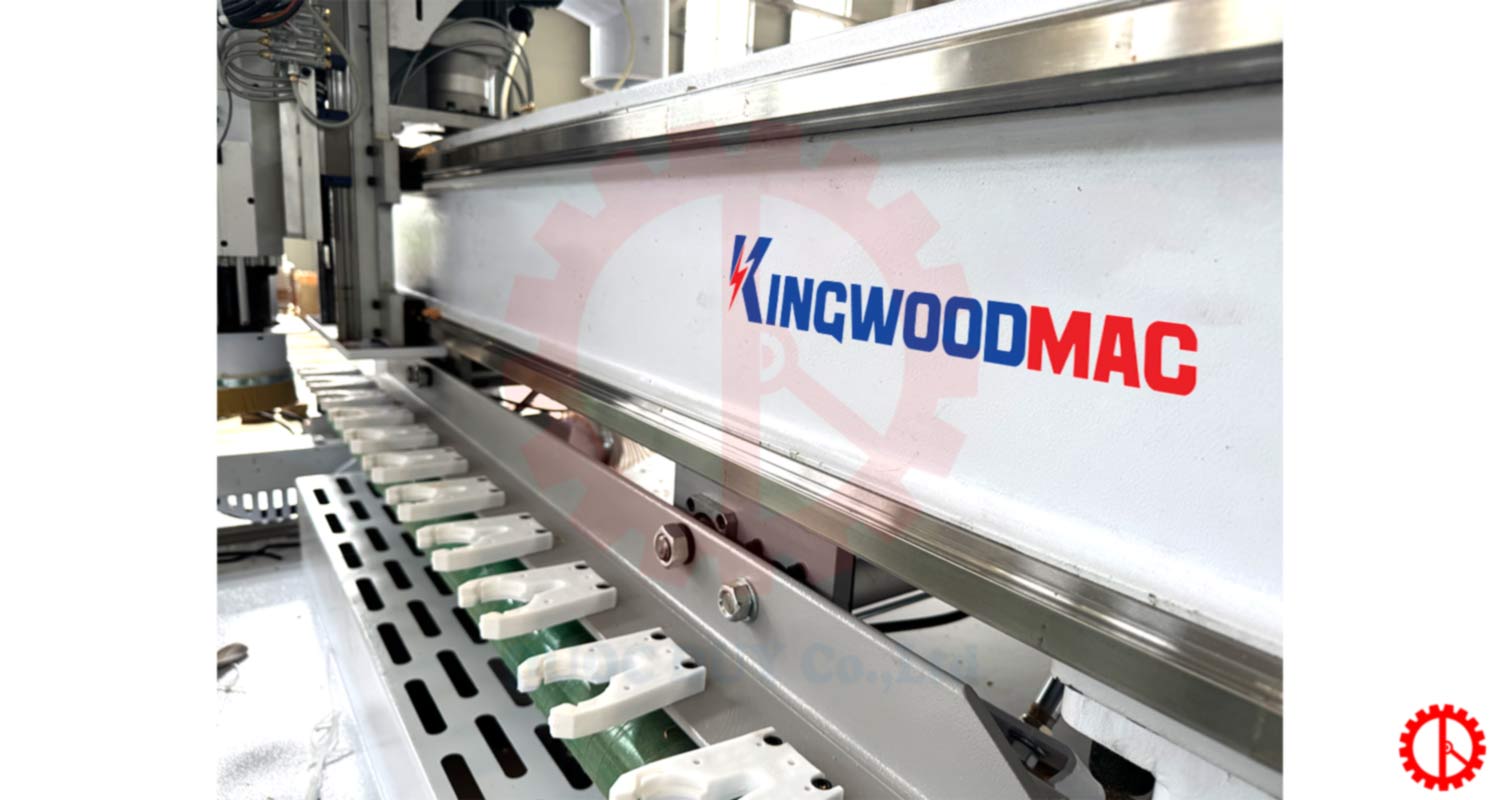

- The Automatic Tool Changer (ATC) CNC router is widely applied in the production of doors, tables, chairs, decorative patterns, partition panels, and more.
- Features a vacuum working table that securely holds workpieces in place during machining.
- Engineered with dual linear guide rails to ensure smooth movement and high accuracy.
Specifications of Single-head CNC router with dual linear guides
| Working Table Size | 1300 × 2800 mm |
| Spindle Motor Power | 9 kW |
| Spindle Speed | 3000 – 24000 rpm |
| Working Speed | 12 – 30 m/min |
| Servo Motor Power | 1.5 kW (Xinjie) |
| Inverter Power | 11 kW |
| Vacuum Pump Power | 7.5 kW |
| Power Supply | 380V / 50Hz |
| Total Installed Power | 25 kW |
| Dimensions | 4000 × 2300 × 2100 mm |
| Weight | 2100 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
Single-head CNC router with dual linear guides Quotation
Quoc Duy, with over 23 years of experience in the woodworking machinery industry, offers a diverse range of equipment including 5-axis CNC machines, 16-tool 4-axis CNC machines, CNC milling and turning lathes, automated coating lines, and auxiliary equipment—providing total solutions to optimize your production processes and maximize output.
For any inquiries regarding the single-head ATC CNC router machine, please contact us via the details below:
- Email : info@quocduy.com.vn
- Hotline : +84 903 600 113
You are also welcome to visit our showroom and experience the machine in operation at: 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam.
