    SINGLE-HEAD ATC CNC ROUTER WITH PLANING SPINDLE – KW 1325 ATC1+B

    English Tiếng Việt
    single-head-atc-cnc-router-with-planing-spindle

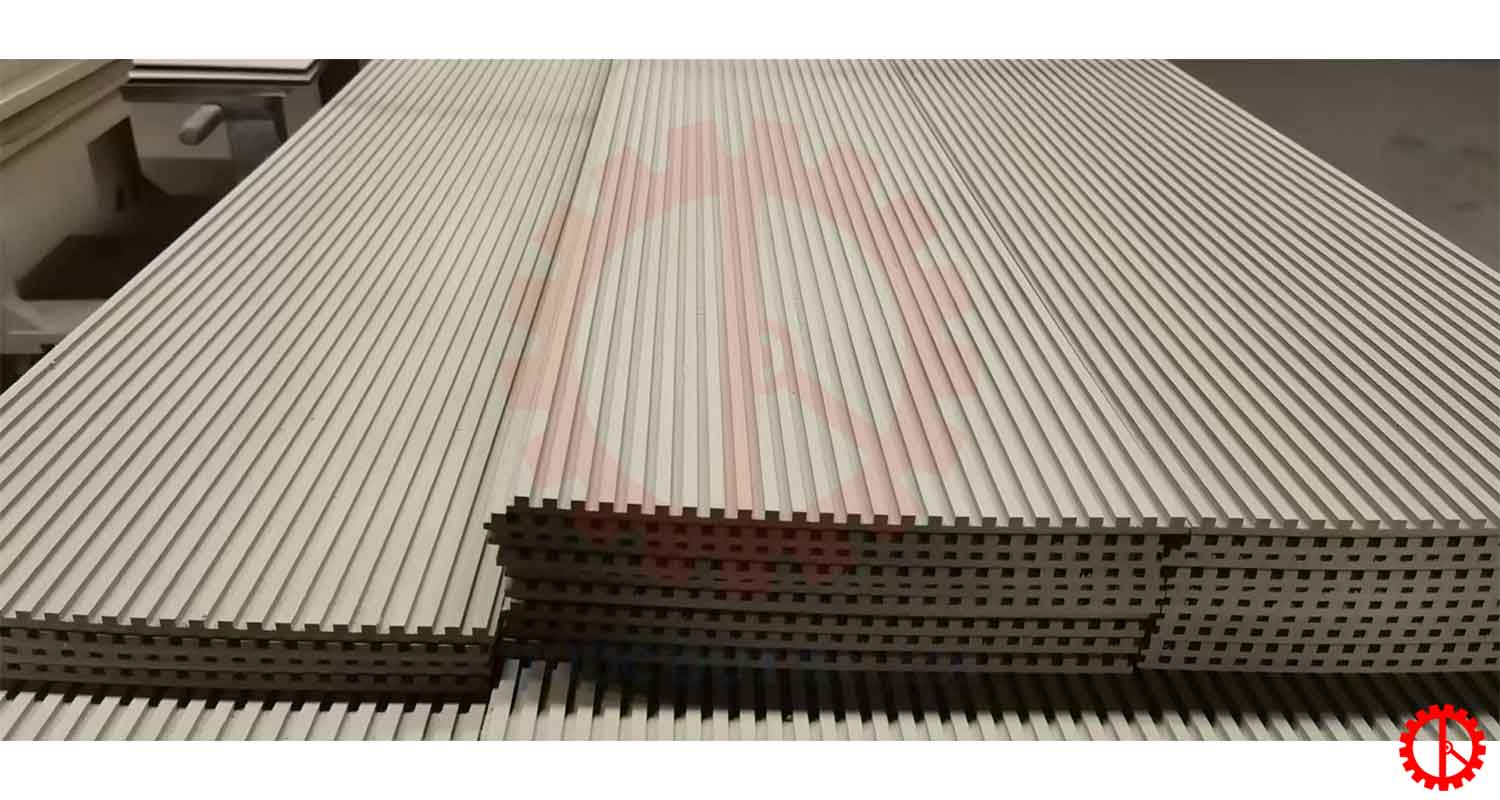

    product

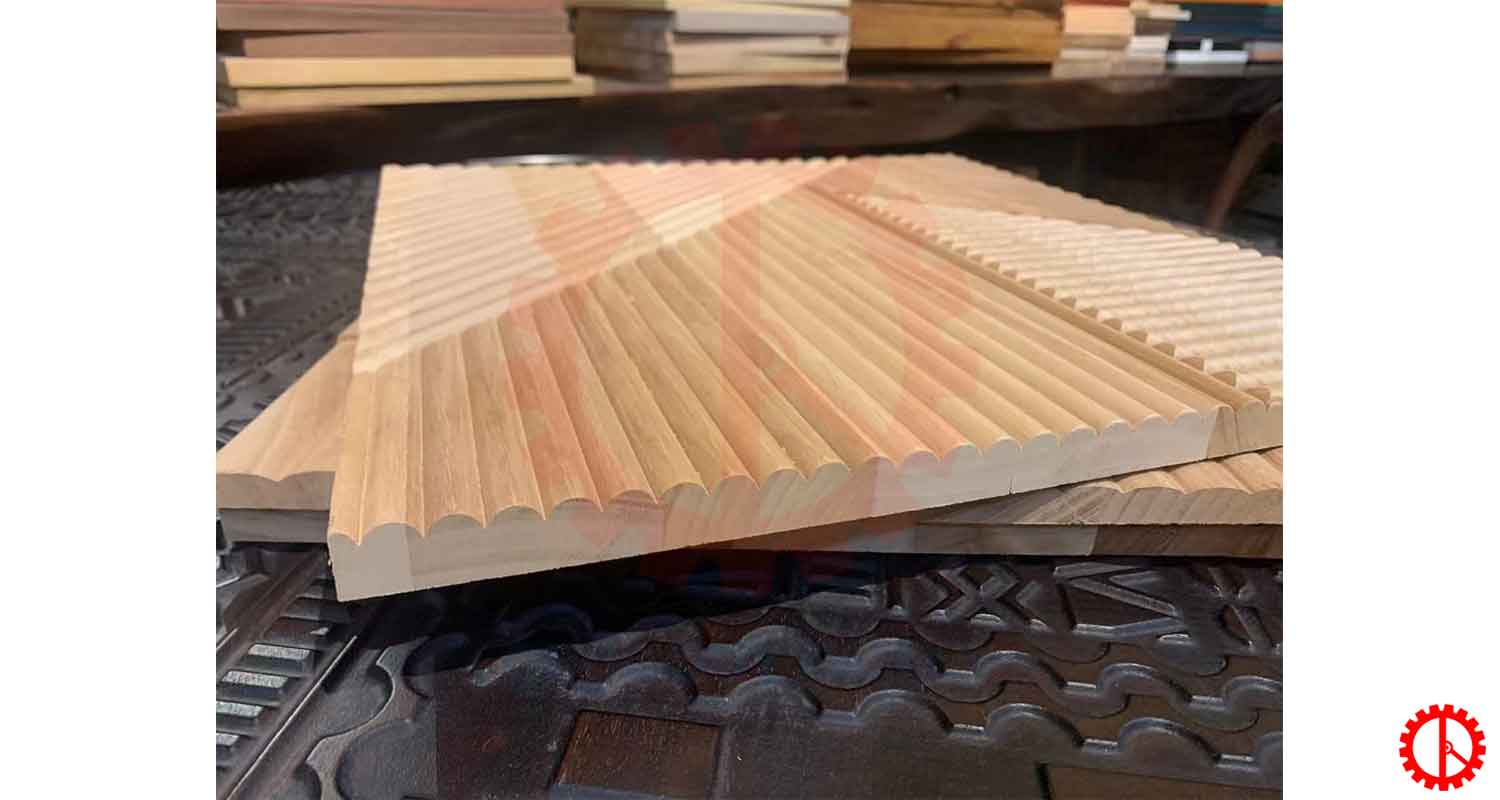

    product-1

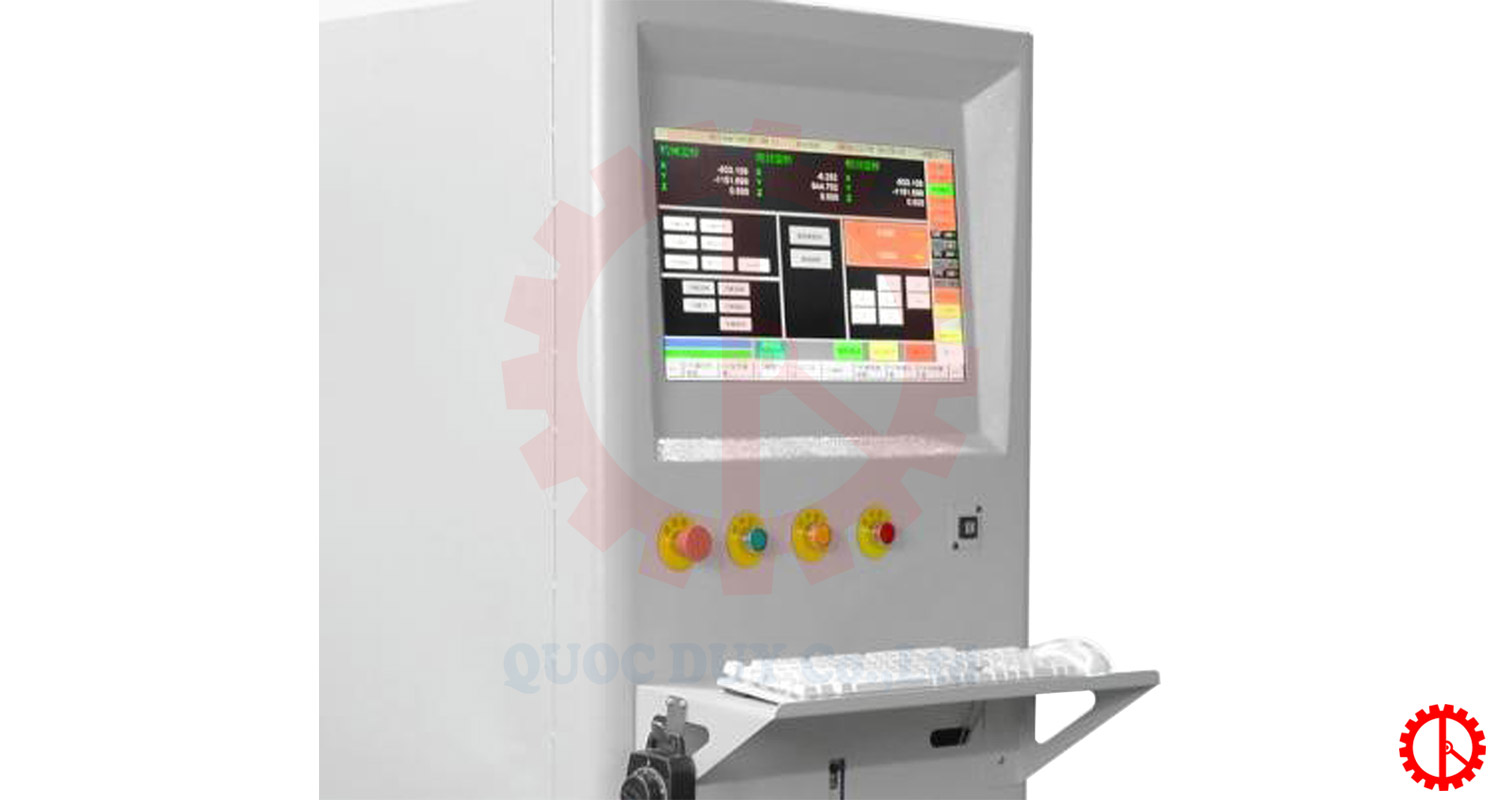

    control-screen

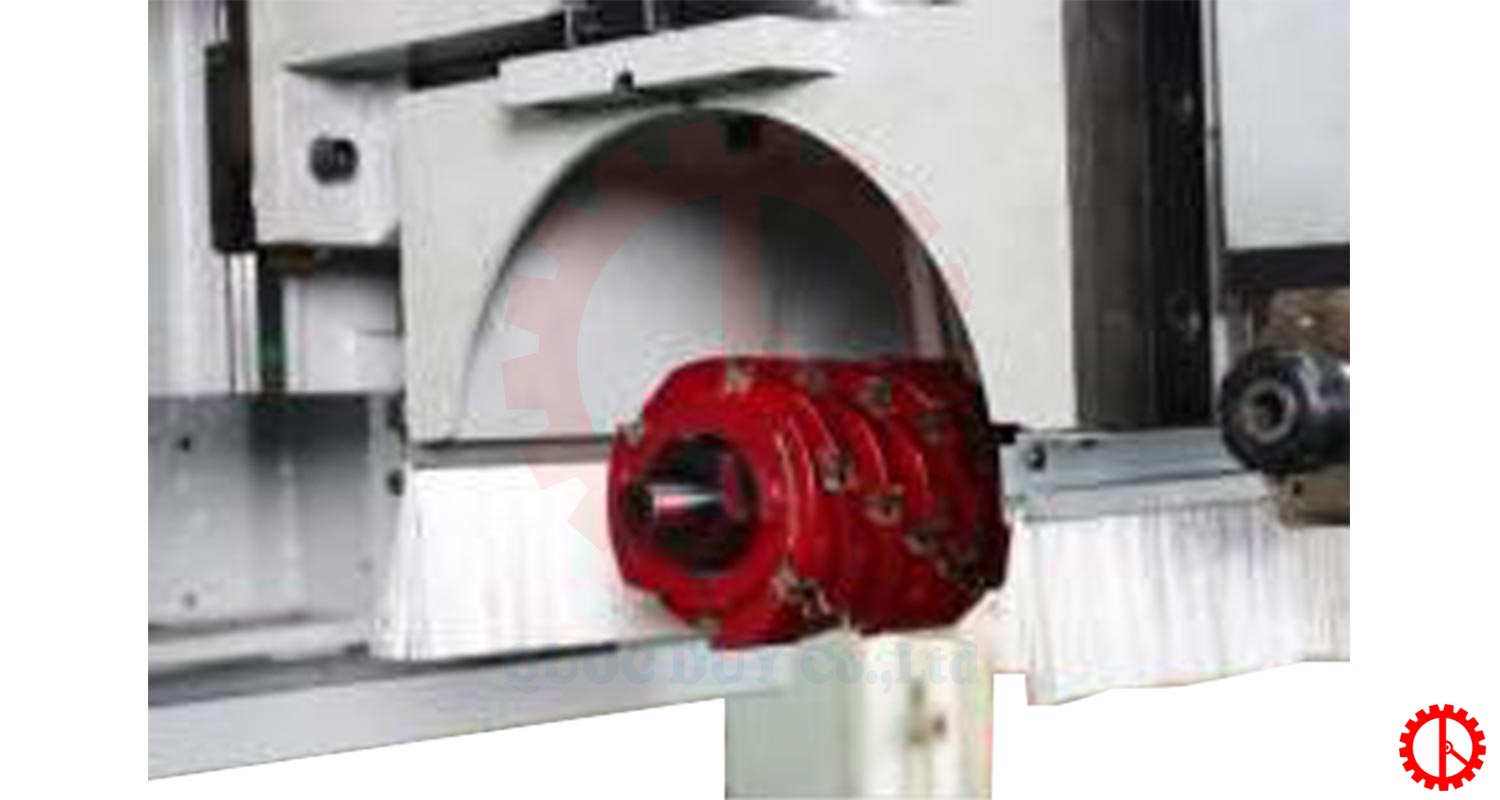

    helical cutterhead

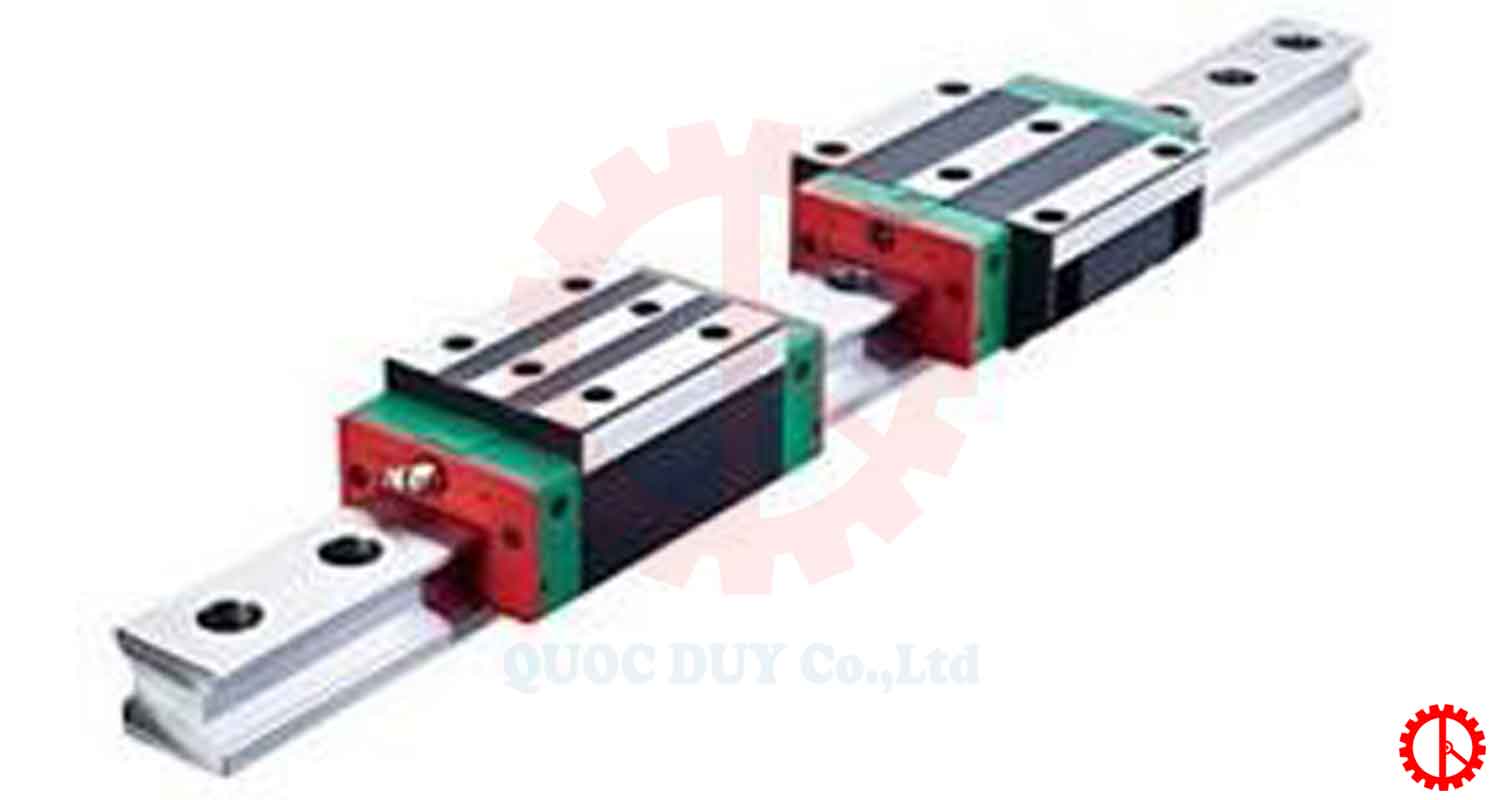

    linear guide rail 1

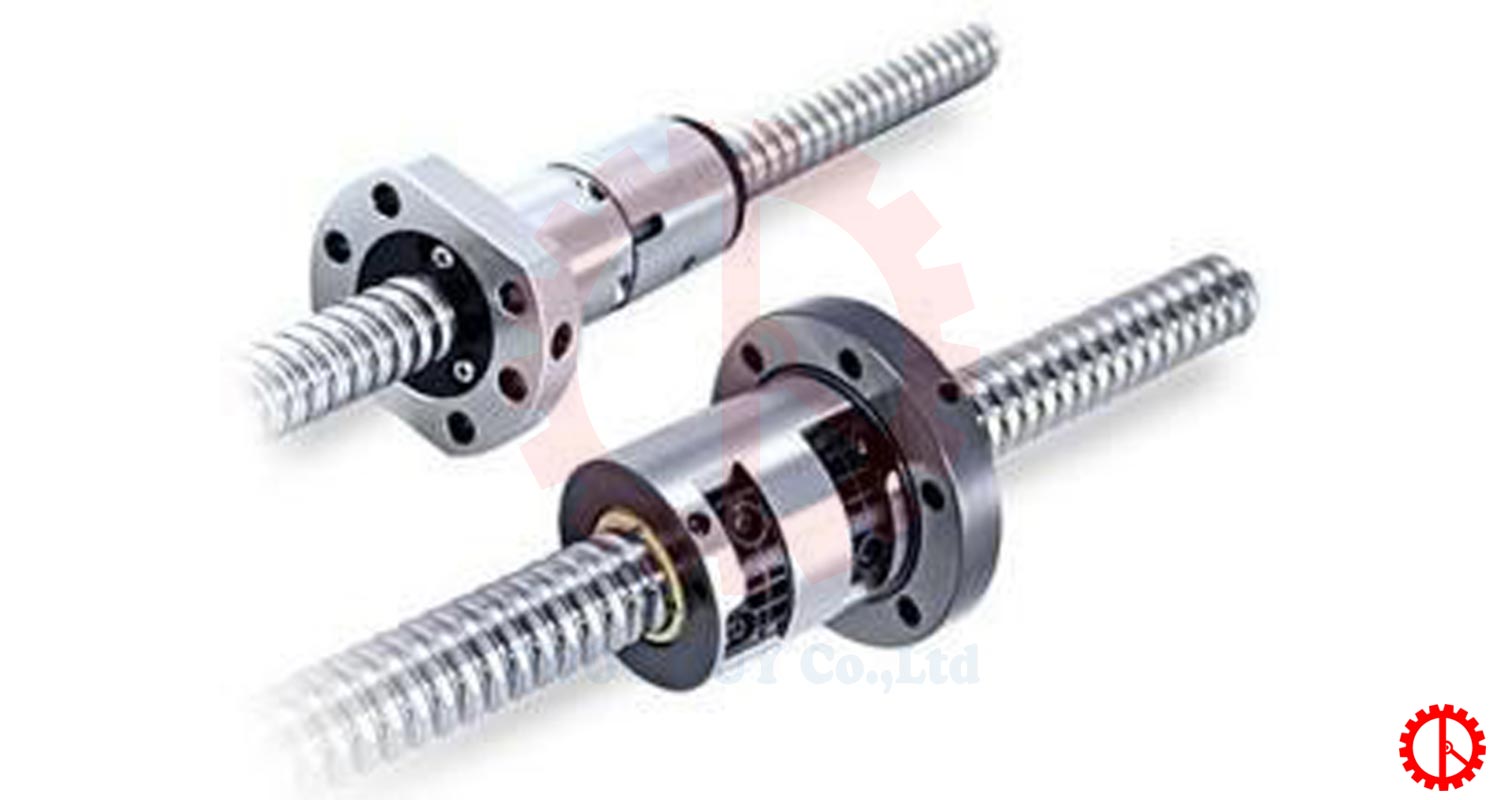

    ball-screw

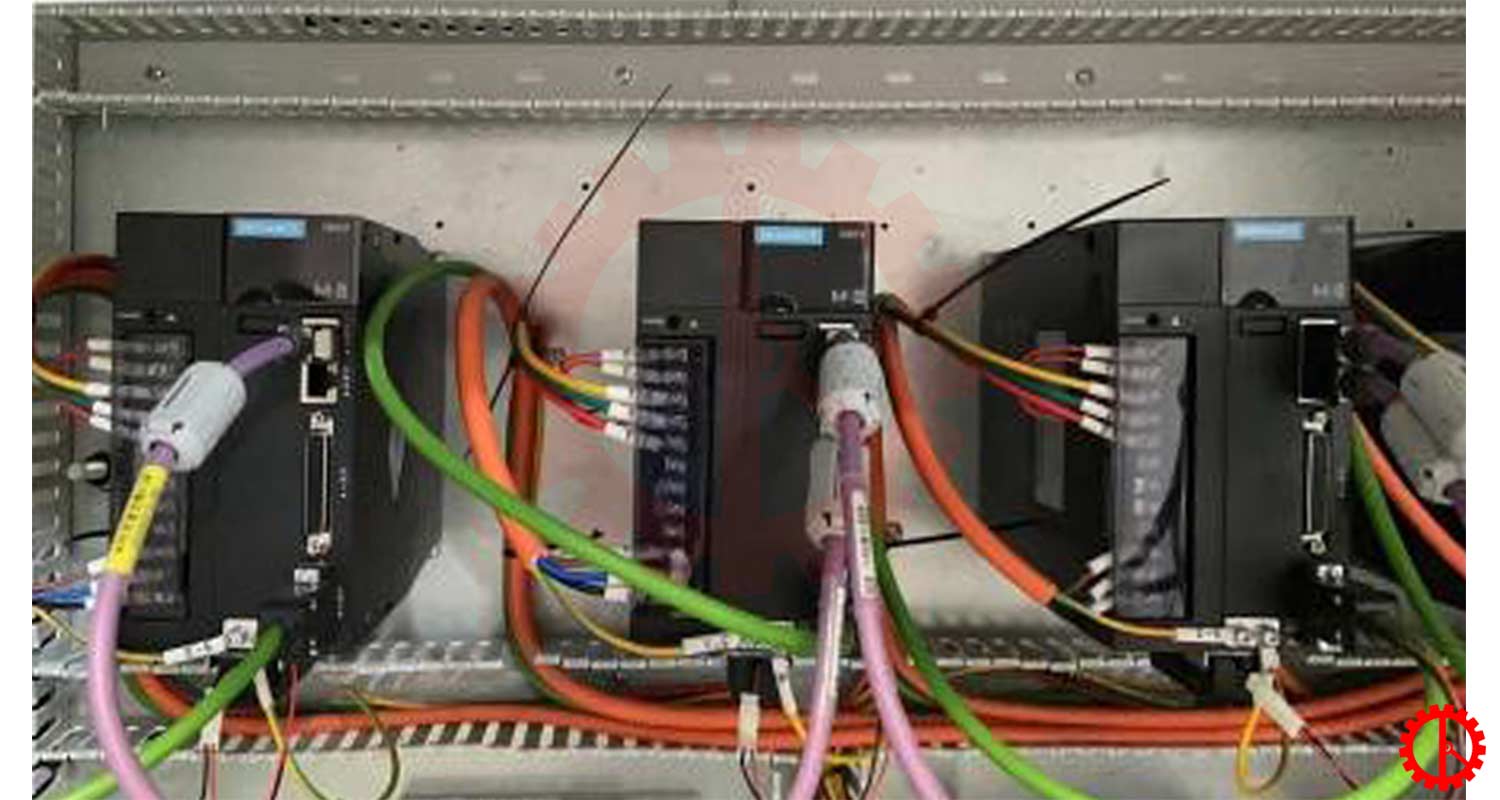

    driver-servo
    Inverter 2
    single-head-atc-cnc-router-with-planing-spindle
    product
    product-1
    control-screen
    helical cutterhead
    linear guide rail 1
    ball-screw
    driver-servo
    Inverter 2
    SKU: https://quocduy.com.vn/may-cnc-thay-dao-tu-dong-truc-bao-profile/ Category:

    Single head atc cnc router with planing spindle – KW 1325 ATC1+B is the ultimate solution for high-precision, high-speed woodworking applications. Equipped with an automatic tool changer (ATC) system, the machine significantly boosts operational efficiency and minimizes downtime. The integrated profile planing spindle enables versatile shaping capabilities, perfectly satisfying the demands of premium furniture manufacturing. Featuring a robust structure, powerful motors, and user-friendly control software, it ensures effortless operation, making it the ideal choice for professional woodworking factories.

    Features of Single head atc cnc router with planing spindle – KW 1325 ATC1+B

    • High-Quality Components: The machine utilizes premium electrical and electronic components from world-renowned brands, significantly enhancing machining precision and ensuring long-term operational stability.

    • Automatic Tool Changer & Vacuum System: The high-speed spindle supports automatic tool changing, seamlessly paired with a vacuum matrix working table to minimize cycle times and maximize operational efficiency.

    • Heavy-Duty Structure: The machine frame is fabricated from high-grade steel under specialized stress-relief conditions, ensuring maximum structural rigidity and minimizing vibration to maintain long-lasting mechanical accuracy.

    • Versatile Planing Spindle: Features an integrated profile planing spindle capable of machining diverse profiles and shapes, effortlessly meeting complex manufacturing requirements.

    Specifications of Single head atc cnc router with planing spindle – KW 1325 ATC1+B

    Working Table Size1220 × 2440 mm (Vacuum Table)
    X-axis Travel1220 mm
    Y-axis Travel2440 mm
    Z-axis Travel200 mm
    X-axis Speed40 m/min
    Y-axis Speed40 m/min
    Z-axis Speed15 m/min
    X-axis Servo Motor1.5 kW
    Y-axis Servo Motor3.0 kW
    Z-axis Servo Motor1.5 kW
    Main Spindle Motor9.0 kW (Automatic Tool Changer)
    Tool Magazine Capacity8 Tools
    Planer Spindle Motor5.5 kW (0°–270° Rotation)

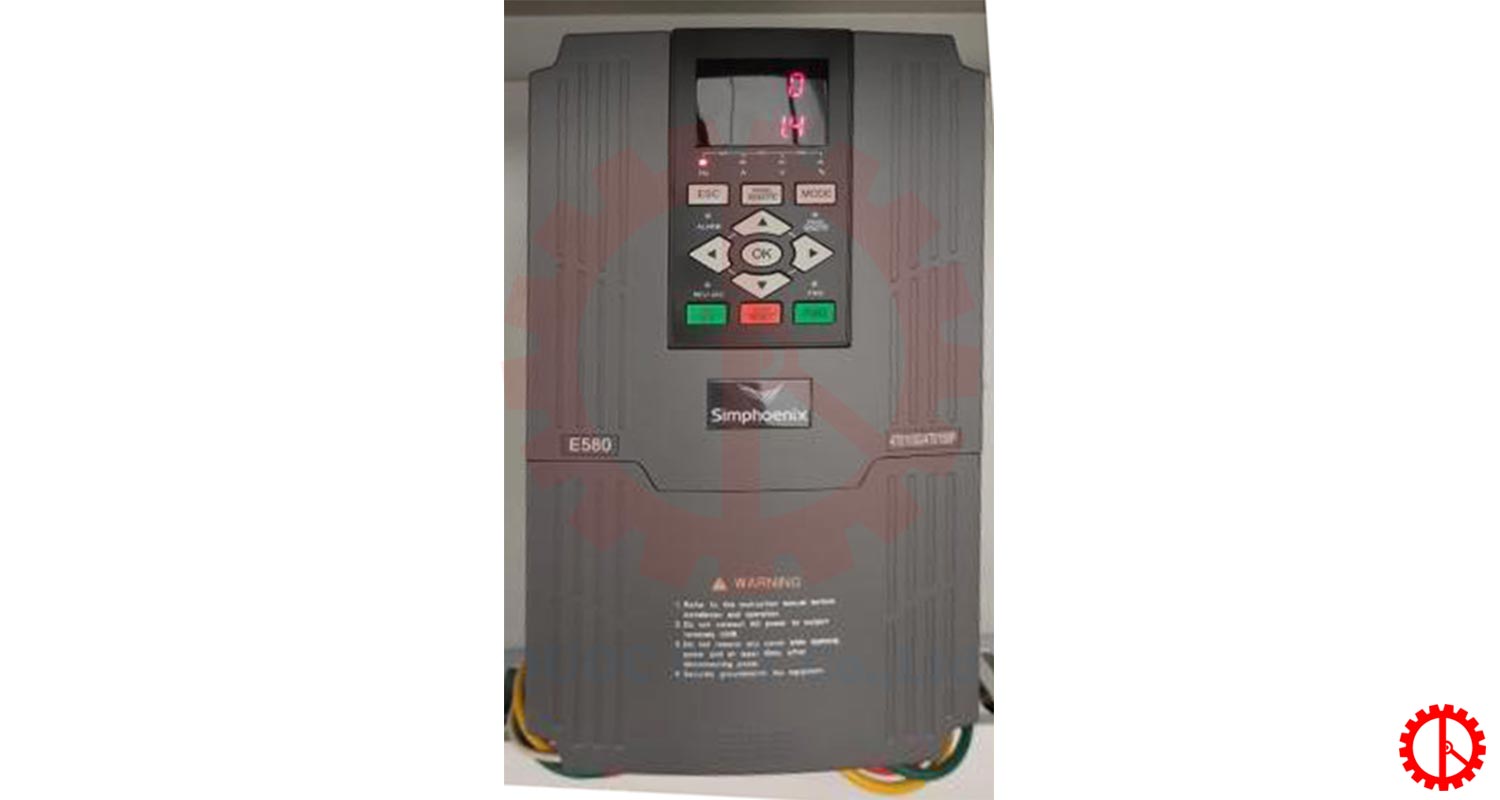

    Inverter9.0 kW
    Total PowerApprox. 24 kW
    Power Supply380V/50Hz
    Machine Dimensions (L × W × H)3800 × 2400 × 2600 mm
    Weight~3500 kg

    Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.



    OPERATION VIDEO SINGLE-HEAD ATC CNC ROUTER WITH PLANING SPINDLE – KW 1325 ATC1+B

    Single head atc cnc router with planing spindle

    ATC CNC router with integrated profile planing spindle delivers high-precision machining, boosts production speed, and provides exceptional flexibility for complex profiles. These machinery lines, equipped with versatile planing systems, enable highly efficient wood processing—from high-volume mass production to customized orders. Selecting the right machinery model not only optimizes operational efficiency but also elevates product quality, ensuring long-term manufacturing stability for your facility.

    To provide you with more options, we highly recommend exploring: Automatic planer 1m – SMBL 1000FK

    Consultation & Quotation for ATC CNC Routers with Integrated Profile Planing Spindle in Ho Chi Minh City

    If you are searching for premium profile planers or shape shaping machinery in Ho Chi Minh City, Quoc Duy is your premier provider, offering solutions tailored to every production need. Our expert team is ready to provide detailed consultations on features, capacities, and pricing to help you select the most optimized machinery lines. We are committed to delivering high-quality equipment, competitive pricing, and reliable warranty policies. Contact us today to receive a detailed quotation and experience professional, dedicated support for your manufacturing facility. Own the most modern woodworking machinery lines at the best prices—contact us now:

    You are also welcome to visit our showroom and experience the machine in operation at: 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam.
