ATC CNC router with planing unit – SM 3316ATC G is an advanced solution for high-precision wood profiling and shaping. Equipped with an automatic tool changer (ATC) system, the machine allows for rapid switching between different cutting tools, significantly optimizing production time. The intelligent CNC control system ensures user-friendly operation while guaranteeing outstanding stability and product consistency.
Features of ATC CNC router with planing unit – SM 3316ATC G

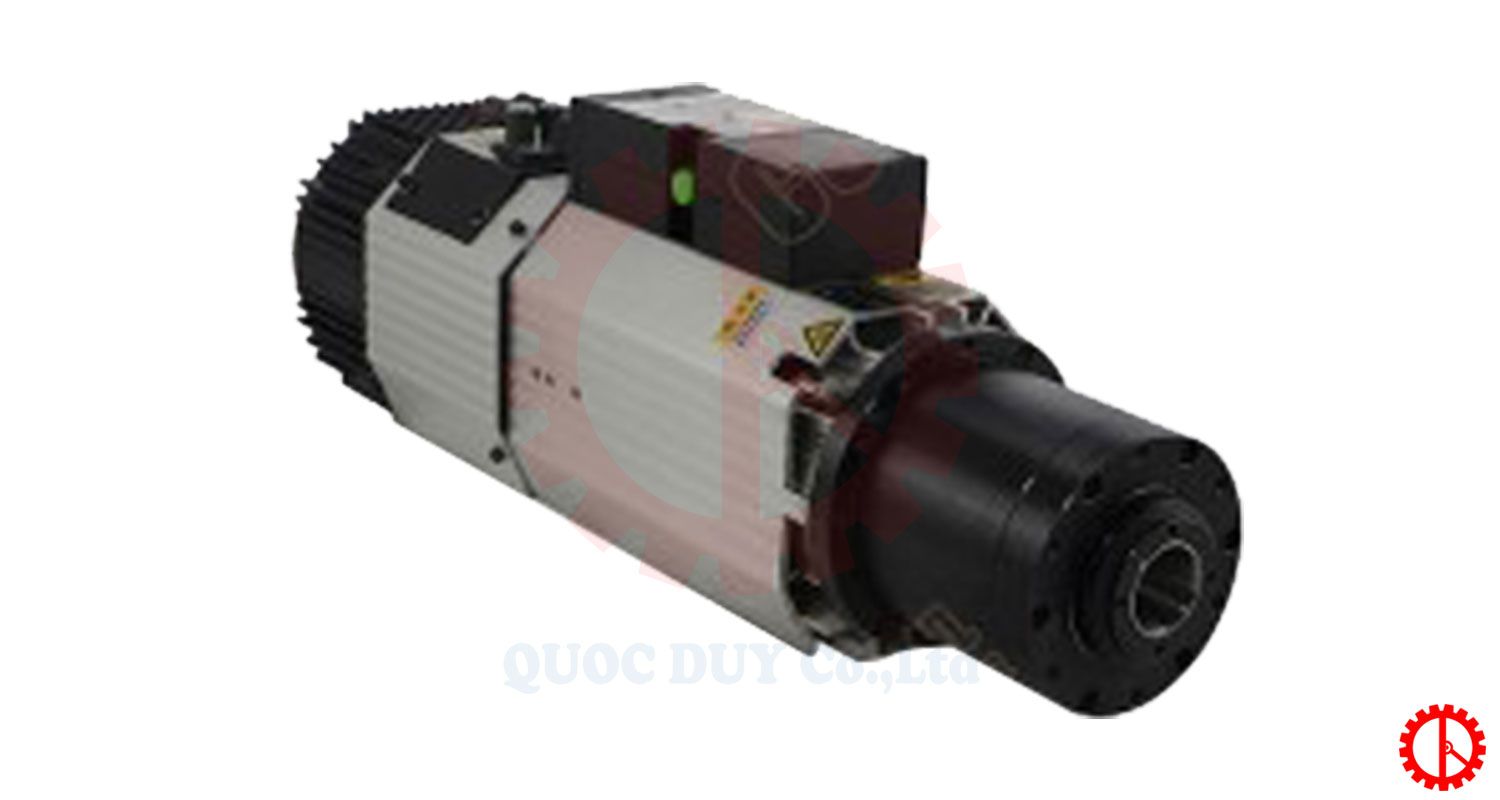

12kW Spindle Motor: Features an integrated automatic tool changer (ATC) system, flexibly supporting up to 8 tool positions.

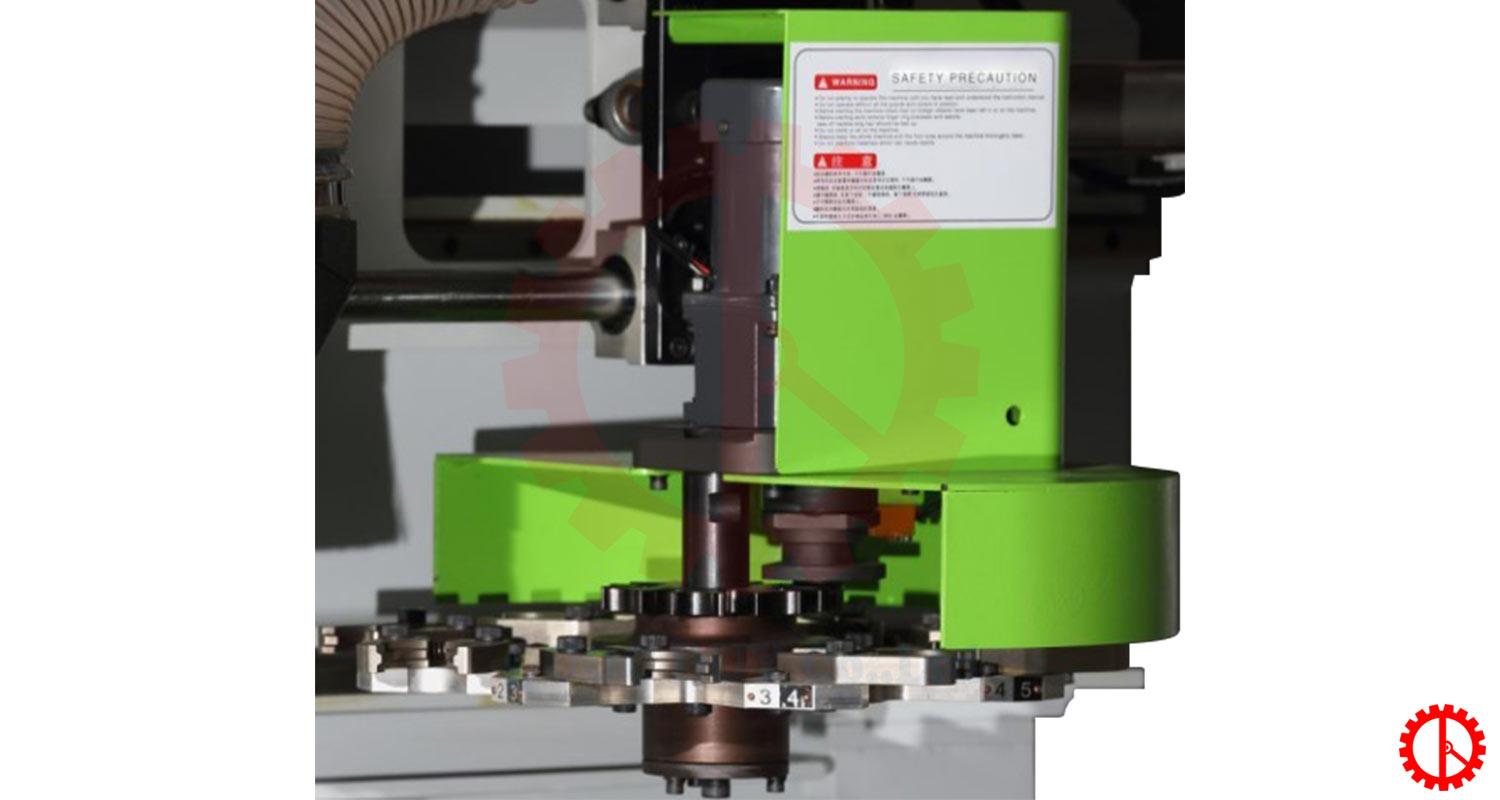

5.5kW Planing Cutterhead Motor: Optimizes processing for a wide range of diverse product profiles and contours.

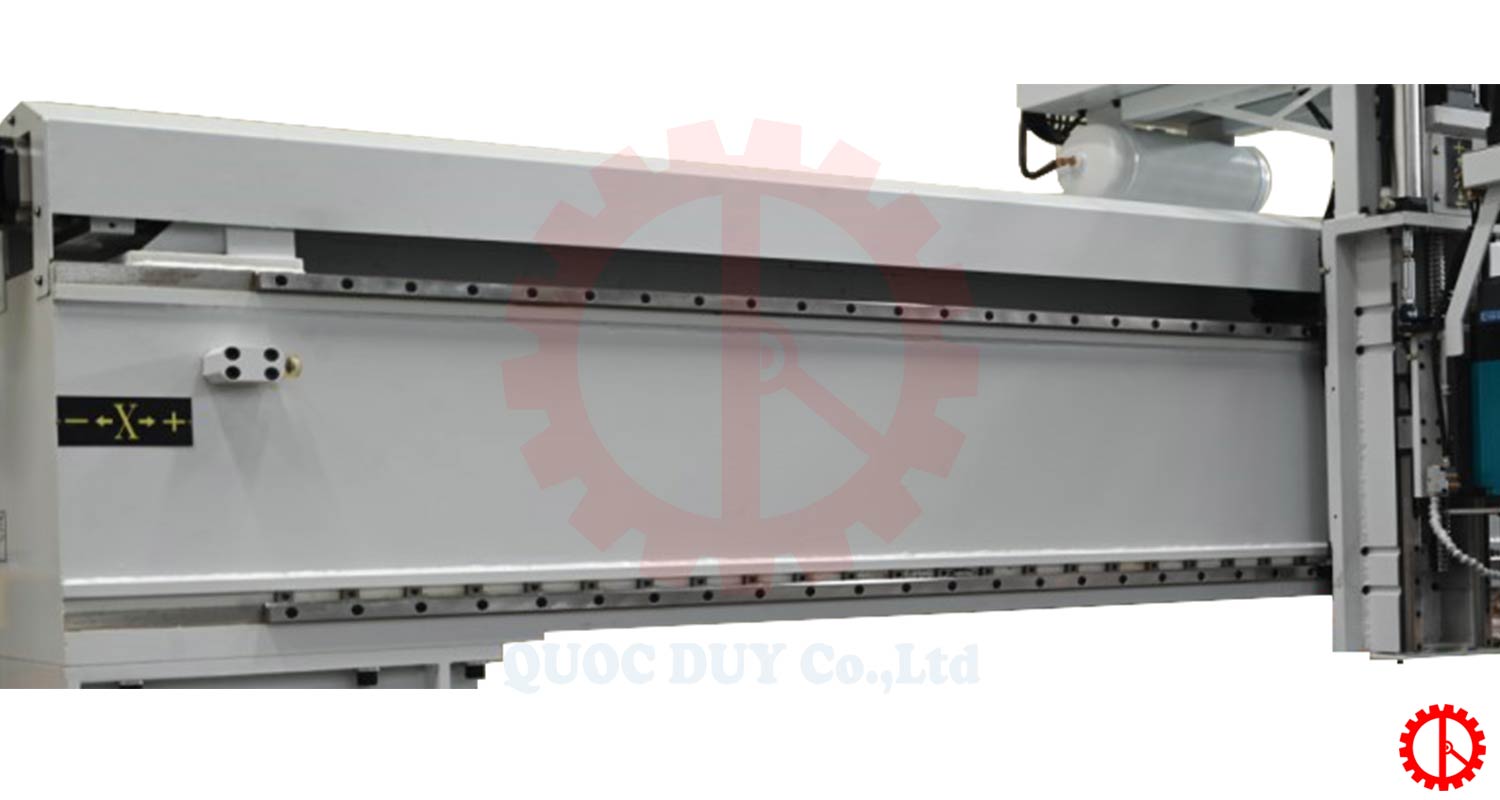

Robust Frame Construction: Ensures exceptional stability throughout continuous manufacturing operations.

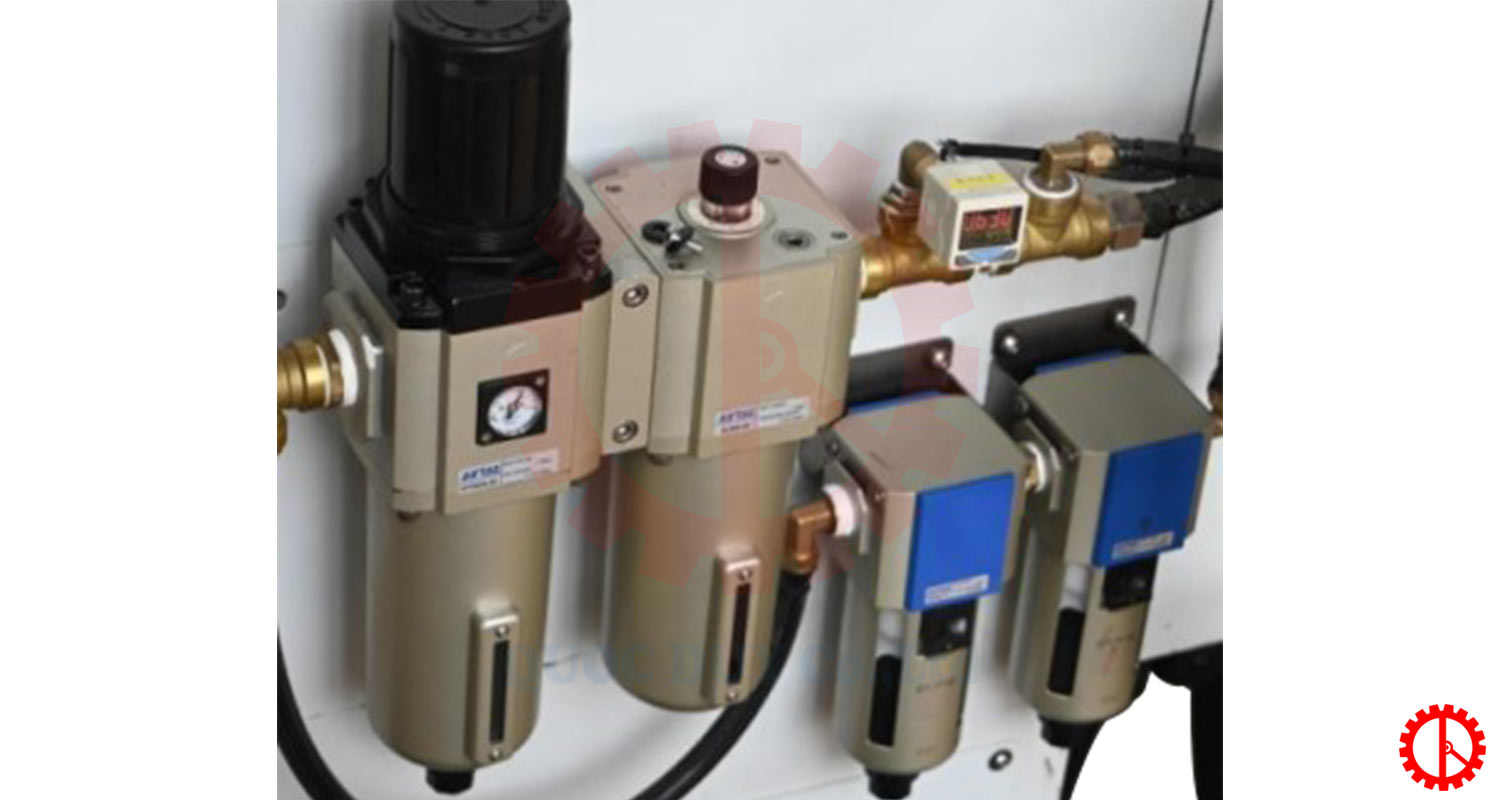

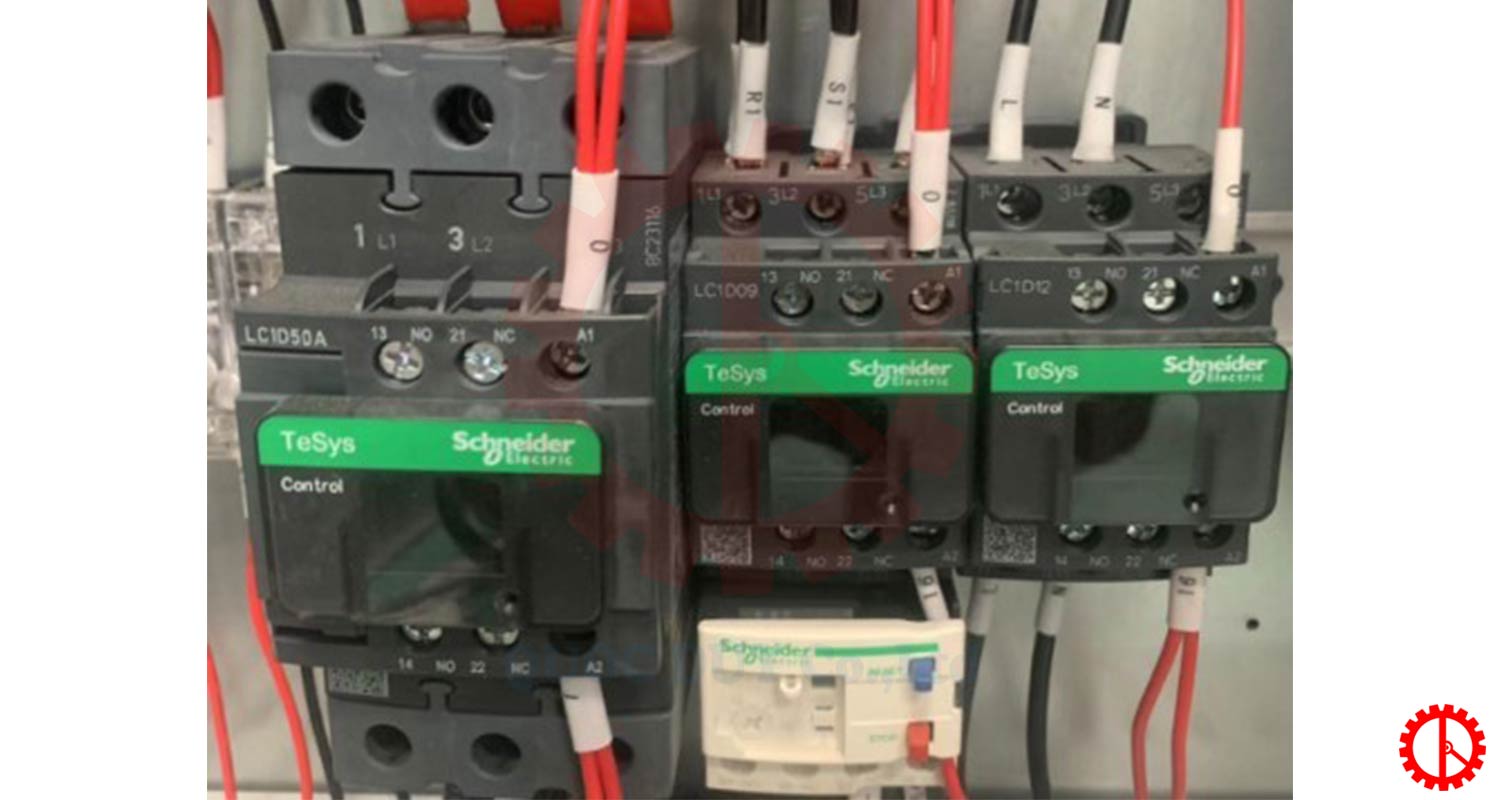

Premium Genuine Components: Equipped with authentic parts from world-renowned brands like SCHNEIDER, AIRTAC, etc., to elevate machine durability and performance.
Specifications of ATC CNC router with planing unit – SM 3316ATC G
| Working Table Size | 3100 × 1600 mm |
| Z-axis Travel | 300 mm |
| Maximum X-axis Travel Speed | 50 m/min |
| Maximum Y-axis Travel Speed | 45 m/min |
| Maximum Z-axis Travel Speed | 30 m/min |

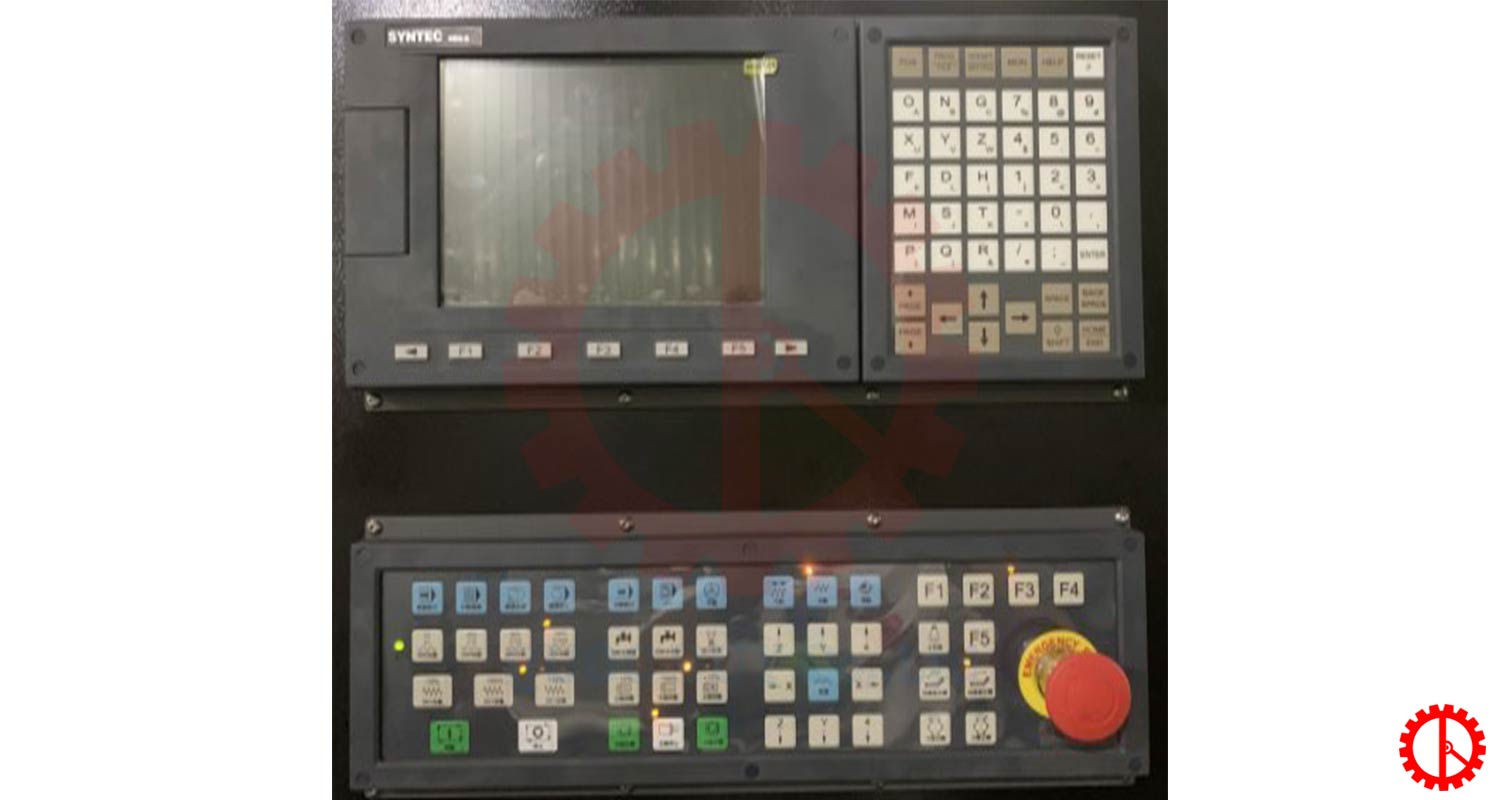

| Control System | Syntec |
| Spindle Motor | 12 kW |
| Spindle Speed | 0 – 24000 rpm |
| Tool Holder | ISO30 |
| Planer Spindle Motor | 5.5 kW |
| Planer Spindle Speed | 6000 rpm |
| Minimum Planer Cutter Size | Ø100 × 150 mm |
| Planing Angle | 0° – 90° |
| Vacuum Pump | 5.5 kW |
| Air Pressure | 0.6 MPa |
| Dust Collection Port Diameter | Ø200 mm |
| Voltage | 3 Phase 380V/50Hz |
| Machine Dimensions (L × W × H) | 5300 × 3500 × 2800 mm |
| Weight | 7000 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
