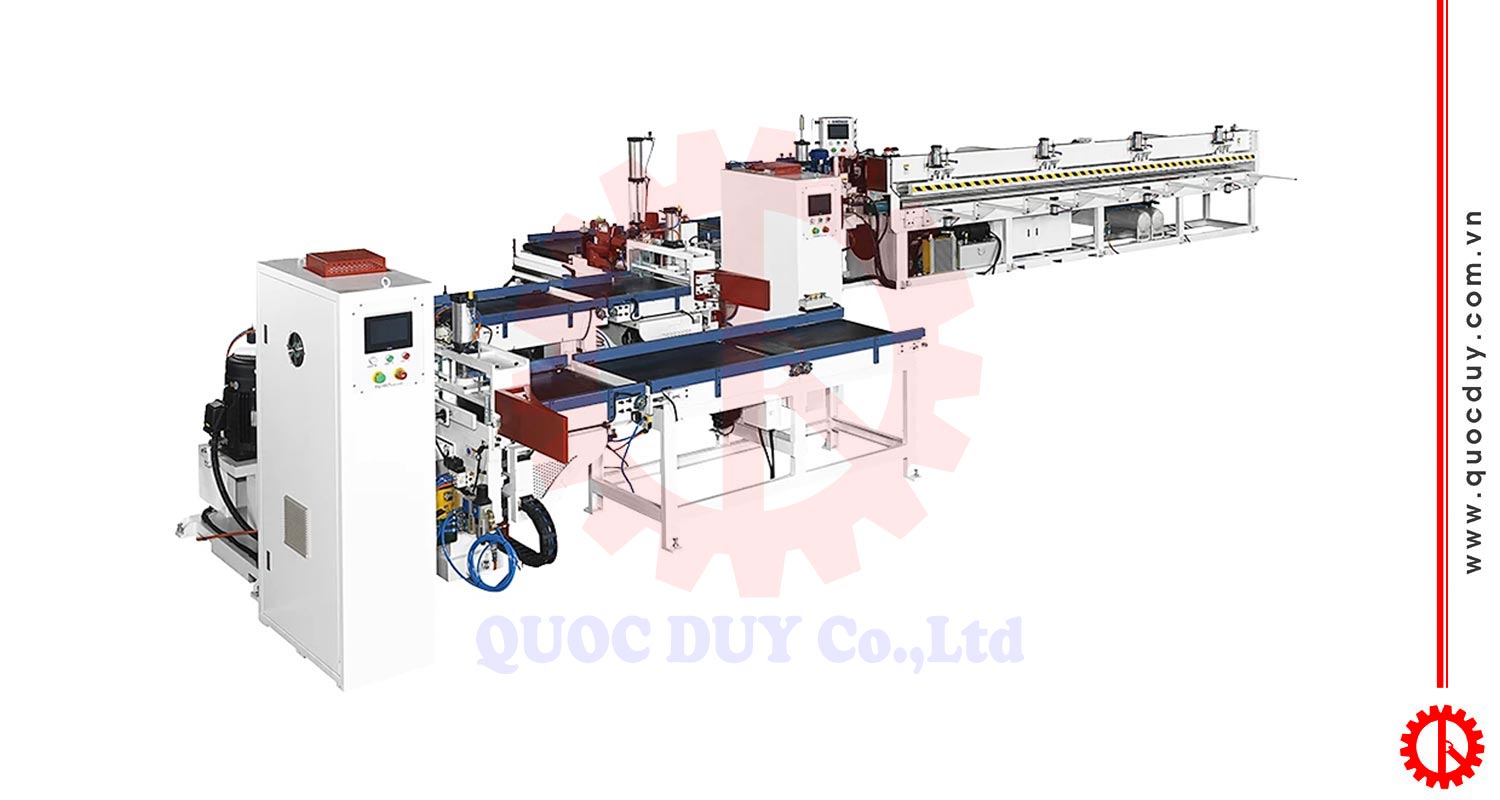

Servo type high speed finger joint system NAT 620
Introduction of servo type high speed finger joint system
Specification
TABLE FEEDER IN: A – DTC 62A | |
Table size | : 620 x 900 mm x 2 |
Feed speed | : 55 m/min |
Conveyor motor | : 1/2 HP x 2 |
TABLE TRANSSHIPPED FEED: C – STC 62A | |
Table size | : 620 x 900 mm |
Feed speed | : 55 m/min |
Conveyor motor | : 1/2 HP x 1 |
TABLE FEEDER OUT: E – STC 62C | |
Table size | : 620 x 900 mm |
Feed speed | : 55 m/min |
Conveyor motor | : 1/2 HP x 1 |
ROLLER RACK DEVICE: F – RO 62 | |
Table size | : 620 x 900 mm |
Feed speed | : 70 m/min |
Conveyor motor | : 1/2 HP x 2 |
TABLE FEEDER IN FINGER JOINT ASSEMBLER: F – FCC 20 | |
Table size | : 160 x 2000 mm |
Feed speed | : 70 m/min |
Conveyor motor | : 1/2 HP |
FINGER JOINT SHAPER MACHINE RIGHT : B – FSR 62A | |
Working demension (W x L x T) | : 620 mm, 150 – 800mm, 15 – 150 mm |
Motor of finger spindle | : 25 HP x 1 |
Size of finger cutter | : 70 x 160 x 4 x 4T |
Spindle finger speed | : 5800 rpm |
Power of cut-off saw | : 7,5 HP x 1 |
Size cut-off saw | : 255 x 100T x 4 x 50mm x 1 pcs |
Spindle speed | : 4800 rpm |
Finger shaper table conveyor motor (R&L) | : 2 HP x 1 |
Size scoring saw | : 180 x 60T x 5mm x 1 pcs |
Spindle speed | : 2850 rpm |
Conveyor power | : 1/2 HP x 1 |
Hydraulic power | : 2 Kw x 1 |
Cycle speed packing/min | : 3 – 5 times/min |
FINGER JOINT SHAPER MACHINE LEFT & GLUE SPREADER: D – FSL 62A | |
Working demension (W x L x T) | : 620 mm , 150 – 800mm, 15 – 150 mm |
Motor of finger spindle | : 25 HP x 1 |
Size of finger cutter | : 70 x 160 x 4 x 4T |
Spindle finger speed | : 5800 rpm |
Power of cut-off saw | : 7,5 HP x 1 |
Size cut-off saw | : 255 x 100T x 4 x 50 mm x 1 pcs |
Spindle speed | : 4800 rpm |
Finger shaper table conveyor motor | : 2 HP x 2 |
Size scoring saw | : 180 x 60T x 5mm x 2 pcs |
Conveyor power | : 1/2 HP x 1 |
Hydraulic power | : 2 Kw x 1 |
Roller glue height | : 150 mm |
Cycle speed packing/min | : 3 – 5 times/min |
AUTO FINGER JOINTING ASSEBLY PRESS : FJC 60/6 | |
Working demension (L x W x H) | : 620 0mm x 20-150 mm x 15-75 mm |
Power off upper & lower roller | : 2,5 HP x 2 |
In-feed inverter | : 5 HP |
In-feed speed | : 10 – 70 m/min |
Cut off saw power | : 5 HP |
Cut off saw demension | : 355 x 120T x 3 x 25.4 |
Spindle speed | : 2850 rpm |
Hydraulic power | : 5 HP |
Capacity | : 3 – 6 pcs/ min |
