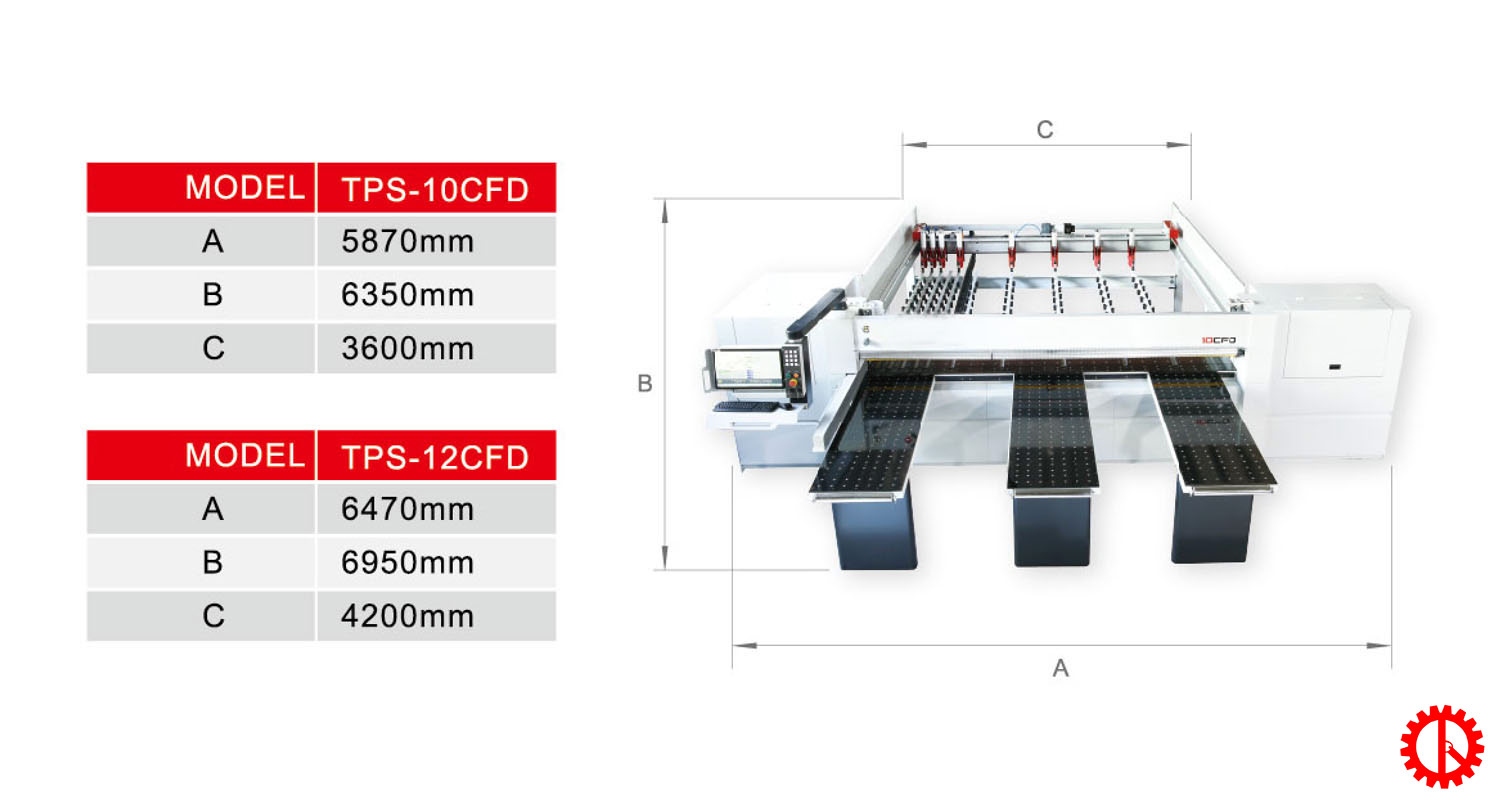

Panel saw machine for mfc TPS 10CFD
Introduction of panel saw machine for mfc
Specifications
| Max. cutting length | : 3200 mm |
| Max. cutting depth | : Max.100 mm |
| Main sawblade diameter | : Ø 405 mm |
| Main sawblade arbor diameter | : Ø 60 mm |
| Main sawblade speed | : 4700 R.P.M. |
| Scoring sawblade diameter | : Ø 180 mm |
| Scoring sawblade arbor diameter | : Ø 45 mm |
| Scoring sawblade speed | : 5400 R.P.M. |
| Saw carriage forward speed | : 100 M/ min |
| Saw carriage return speed | : 120 M/ min |
| Main sawblade motor | : 15 HP |
| Scoring sawblade motor | : 3 HP |
| Saw carriage drive motor | : 1 KW |
| High Pressure blower motor | : 5 HP |
| Machine bed blower motor | : 3 HP |
| Pusher feed motor | : 1 KW |
| Pusher feed speed | : 80 M/ min |
| Working air pressure | : 5 kg/ cm2 |
| Table height from floor | : 900 mm |
