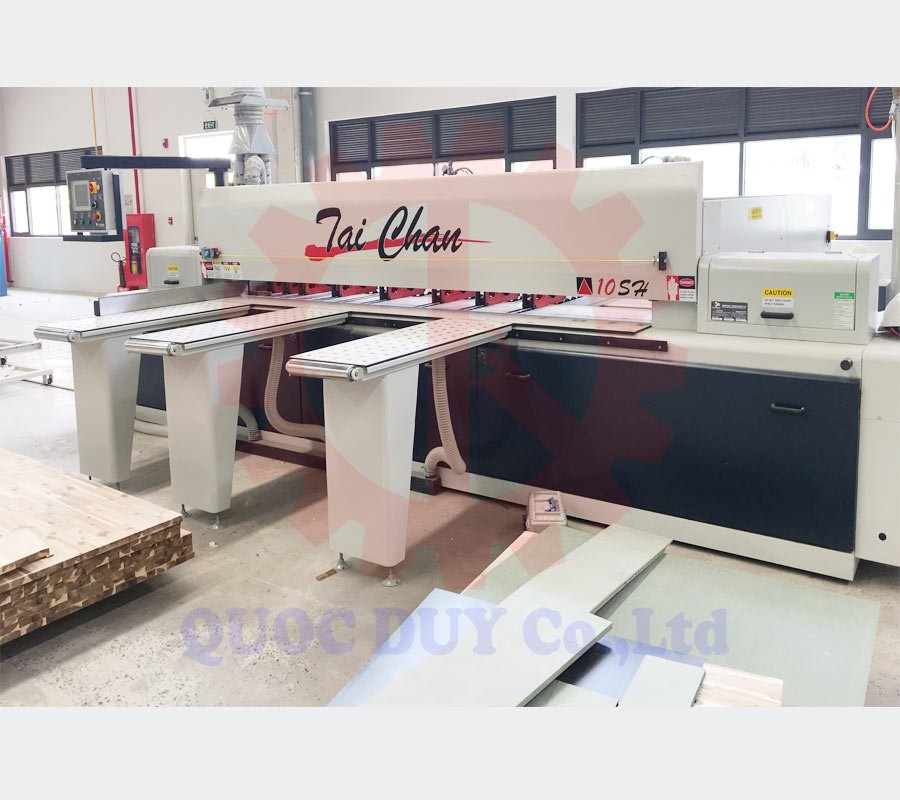

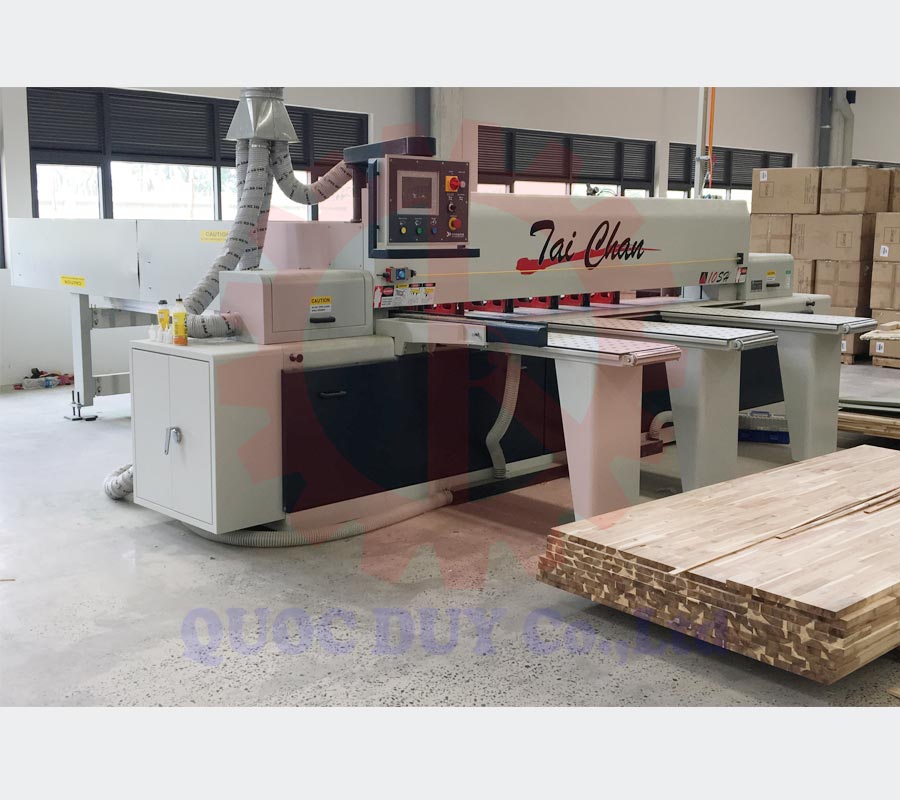

Computer panel saw machine taiwan TPS 10SH
Introduction of computer panel saw machine taiwan
Features
JAPAN-IMPORTED 8.4″ TFT COLORFUL TOUCH SCREEN
The computer features self-diagnostic function. Size error can be compensated by the machining home position.
MAGNETIC SCALE
The machine employs German-imported high torque speed reducer combined with the use of a magnetic scale and Japan Panasonic servo motor, the assure extra high positioning accuracy through double comparisons.
Specifications
| Max. cutting length | 3200 mm |
| Max. cutting depth | Max. 100 mm |
| Main blade diameter | Ø 405 mm |
| Arbor diameter | Ø 25.4 mm |
| Main blade speed | 4800 rpm/min |
| Scoring blade diameter | Ø 180mm |
| Arbor diameter | Ø 25.4 mm |
| Scoring blade speed | 6500 rpm/min |
| Feed speed | 5-40 m/min |
| Return speed | 70 m/min |
| Main sawblade motor | 15 Hp |
| Saw carriage drive motor | 2 HP |
| High pressure blower motor | 3 HP |
| Automatic feed motor | 1 kw (AC servo motor) |
| Number of clamps | 8 pcs |
| Number of floating tables | 3 pcs |
| Clampers system pull speed | 5-70 m/min |
| Clampers system push speed | 5-60 m/min |
| Working air pressure | 7 kg/cm² |
| Table high from floor | 850 mm |
