Panel polishing machine – SQ 800S/SQ 1300S effectively removes stains, excess glue, squeeze-out, and residual impurities from the board surface, while eliminating post-processing odors. It is suitable for a wide range of materials, including melamine, veneer, acrylic, and UV, satisfying diverse furniture manufacturing needs.
Features of Panel polishing machine
- LCD screen with digital display, one-touch startup, and one-touch multi-mode switching allows for precise control of water top-up timing, ensuring simple operation and ease of use.
- The entire machine is ergonomically engineered with an optimized structural design. The heavy-duty steel frame undergoes an annealing treatment to guarantee high strength, durability, stability, and resistance to deformation.
- Workpiece thickness is detected automatically without manual adjustment, preventing rag/cloth damage caused by operational errors. The pressure roller height features electric elevation for fast, convenient adjustments.

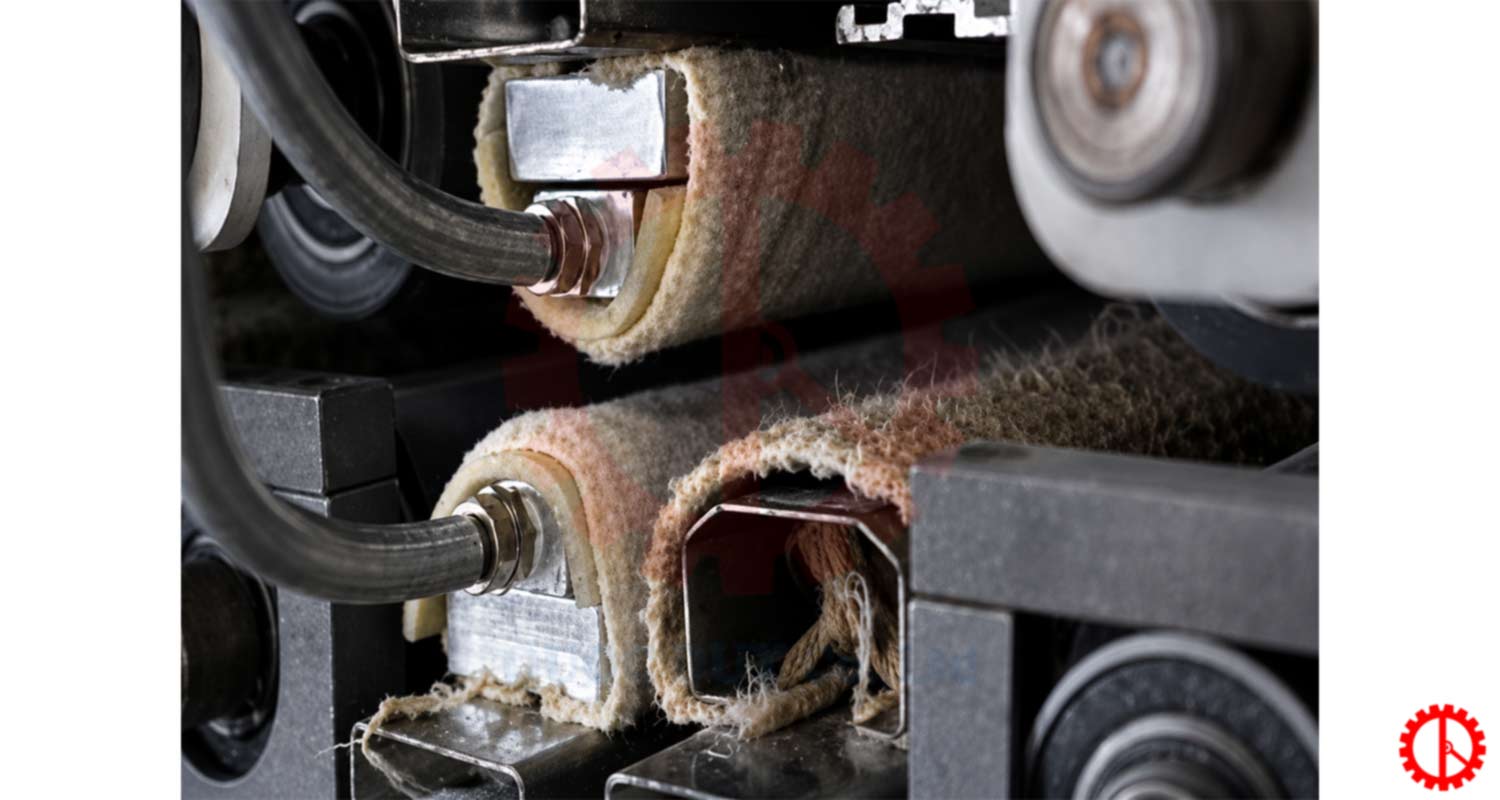

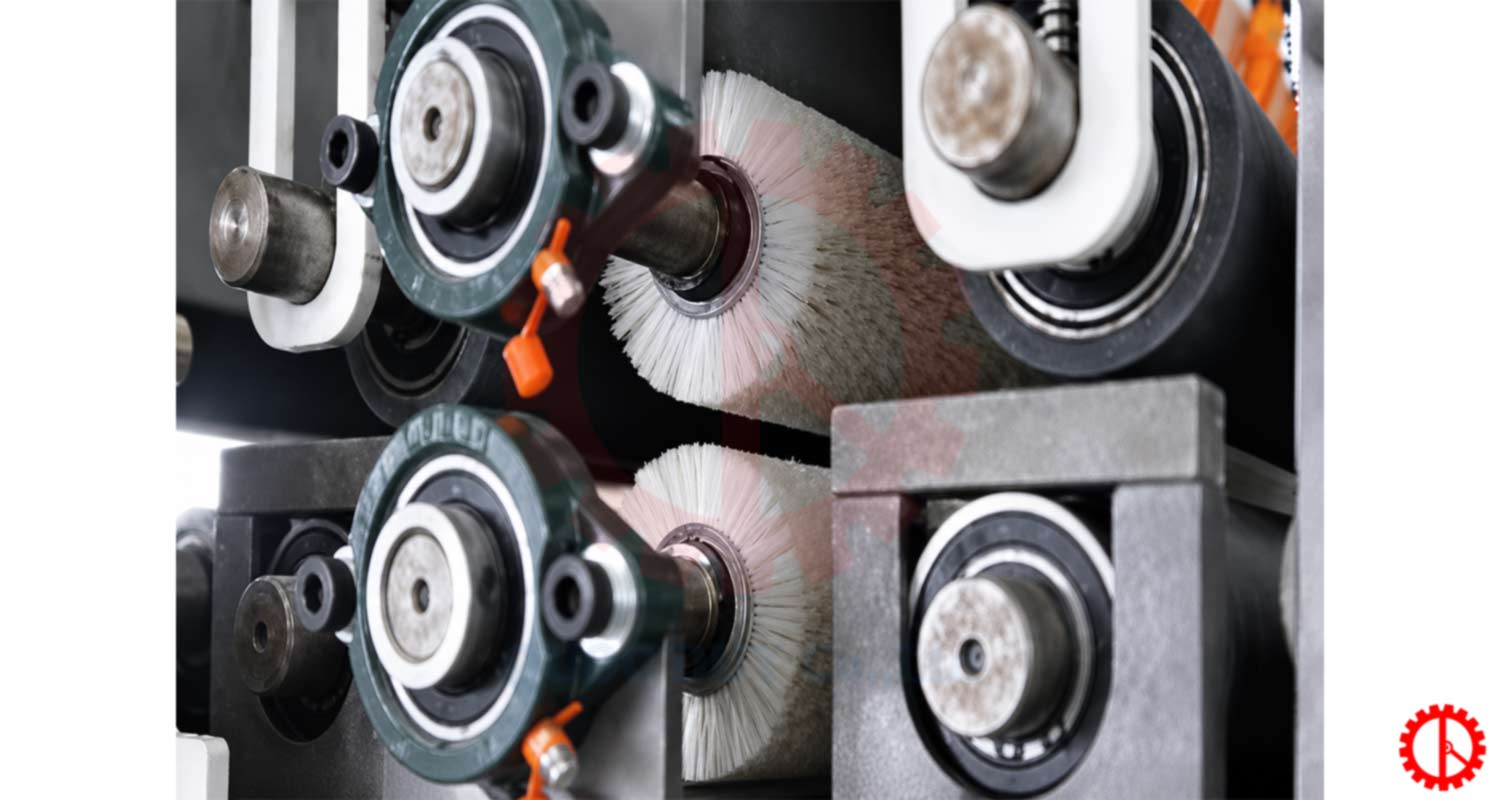

- Working components are crafted from high-wear and corrosion-resistant special materials, delivering superior cleaning capability and high efficiency; wearing parts are easy to disassemble and replace, minimizing consumable costs.

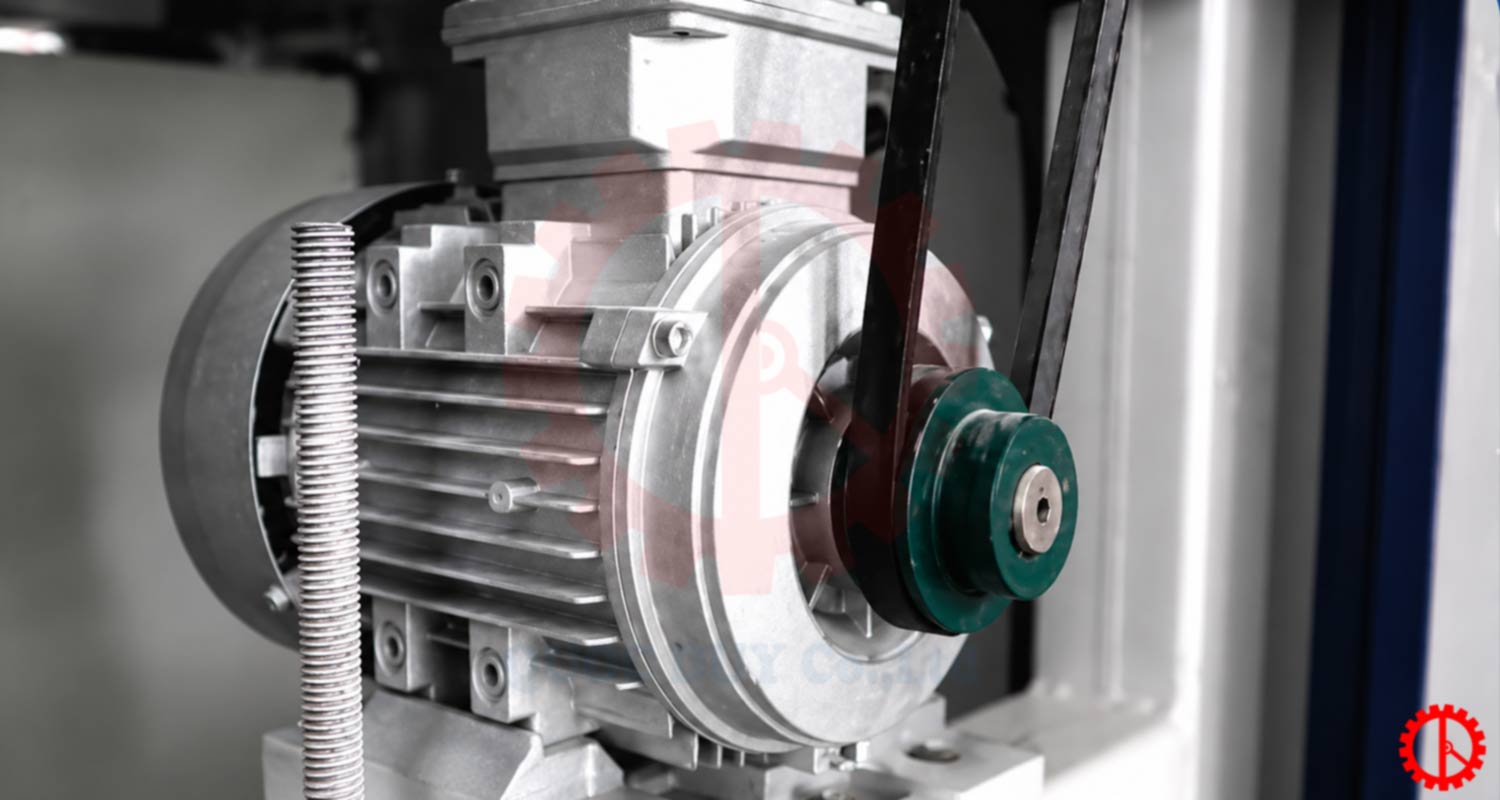

- Powered by a high-performance drive motor with variable frequency speed control.
Specifications of Panel polishing machine
| Specification | SQ 800S | SQ 1300S |
| Maximum Working Size | 2800 × 780 × 60 mm | 2800 × 1250 × 60 mm |
| Minimum Working Size | 250 × 20 × 9 mm | 250 × 20 × 9 mm |
| Working Thickness | 8 – 60 mm | 8 – 60 mm |
| Total Power | 4.11 kW | 4.11 kW |
| Working Speed | 0 – 25 m/min | 0 – 25 m/min |
| Working Table Height | 900 mm | 900 mm |

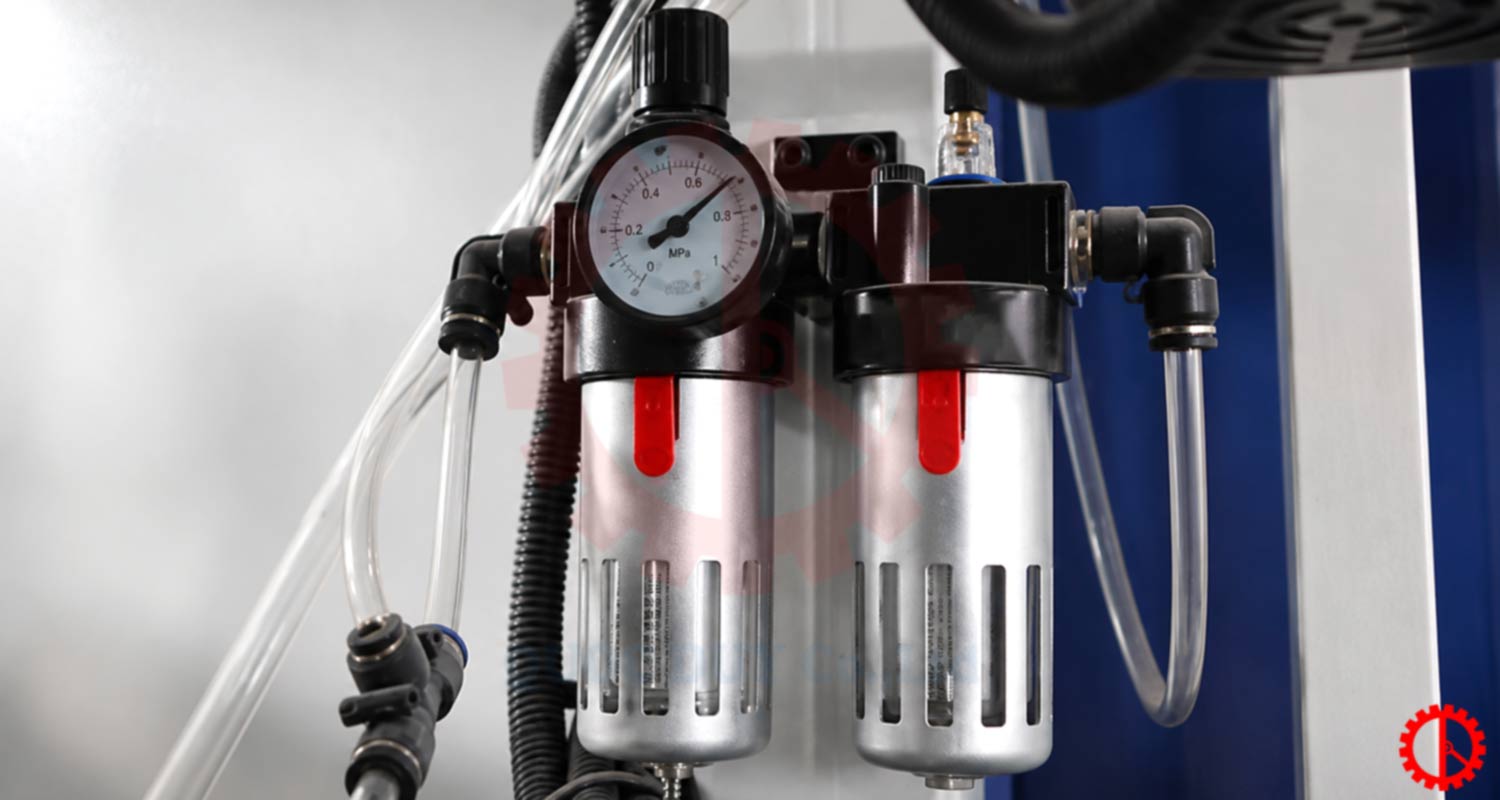

| Working Pressure | 0.6 MPa | 0.6 MPa |
| Power Supply | 380V / 50Hz | 380V / 50Hz |
| Dust Collection Port Diameter | Ø100 mm × 3 | Ø100 mm × 3 |
| Dimensions | 2230 × 1350 × 1750 mm | 2230 × 1850 × 1750 mm |
| Cleaning Efficiency | 2400 m² / 8 hours | 2400 m² / 8 hours |
Latest Panel polishing machine quotation
A panel polishing machine is an essential piece of equipment for cleaning board surfaces following processing, edge banding, and other operations. To receive expert advice on the ideal model for your specific production needs, please contact Quoc Duy using the information below. With over 23 years of experience in supplying woodworking machinery, we guarantee high-quality products at competitive prices.
- Email : info@quocduy.com.vn
- Hotline : +84 903 600 113
You are also welcome to visit our showroom and experience the machine in operation at: 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam.
