MOLDING EDGE SANDING MACHINE – HR S2W1

TAIWAN

– Molding edge sanding machine HR-S2W1 is an automatic sanding machine, specializing in sanding straight details or profiles such as table edges, …

– Super speed sanding helps sanding faster, more accurately, helping increase productivity for your business.

SKU: https://quocduy.com.vn/may-cha-nham-bien-dang-profile/ Category: Deformation sanding machine

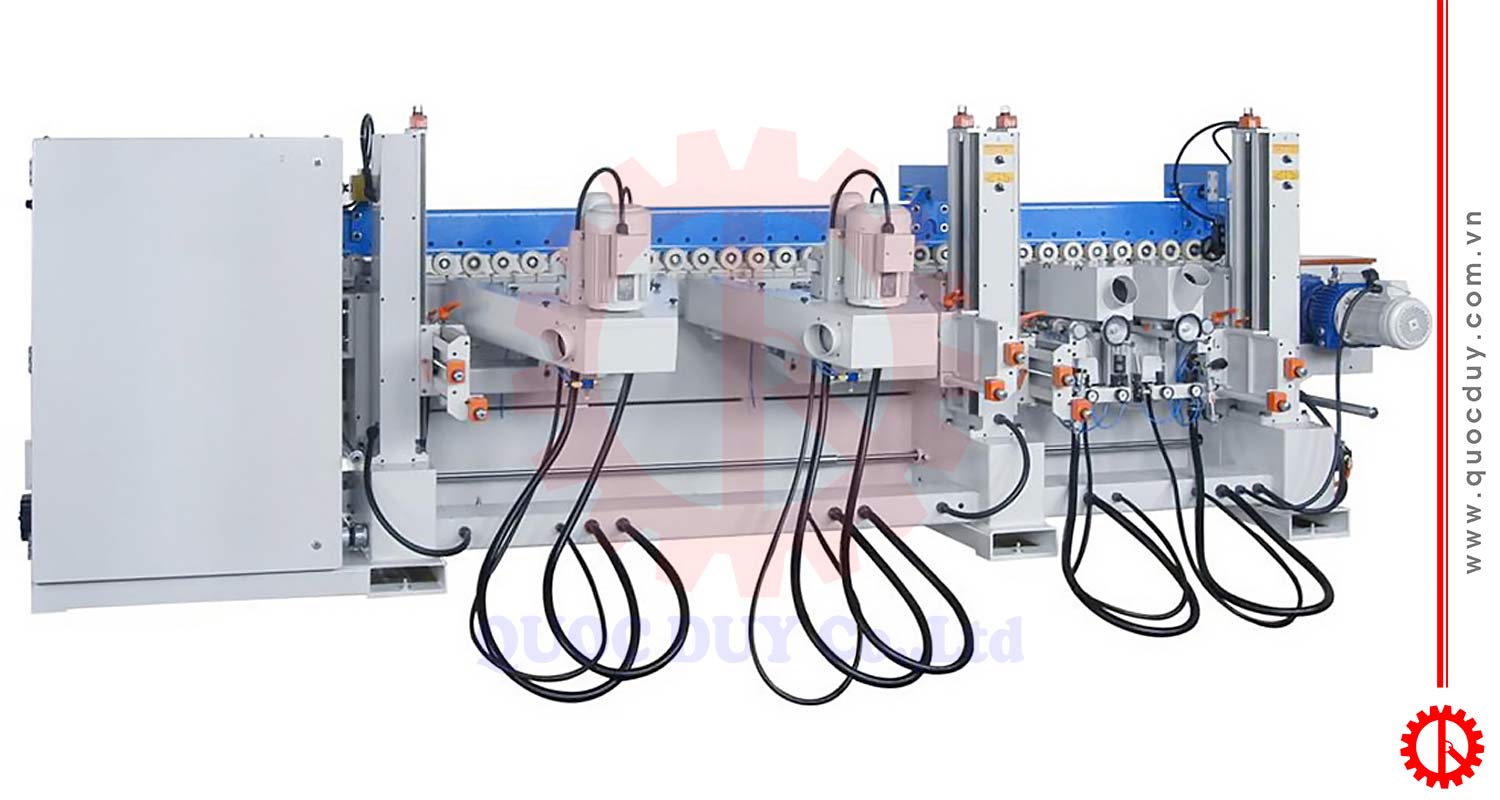

Molding edge sanding machine HR S2W1

Introduction of molding edge sanding machine

Purpose: Sanding straight edge or edge of table
Range of working width	50 ~1800 mm
Minium workpiece lenght (rollers kind)	250 mm
Minium workpiece lenght (belt kind)	100 mm
Range of working length	50 ~80 mm
Width Conveyor sanding	30 ~100 mm
Lenght of sanding belt	2450 mm
The tilt angle of conveyor sanding	– 45⁰ ~ + 90⁰
Motor of conveyor sanding / speed	2,2 kW x 2 (0 ~ 1800 rpm)
Motor of workpiece conveyor / speed	0.75 Kw (3 ~ 28 m/ min)
Workpiece conveyor width	80 mm
Motor of spindle brushes sanding / speed	2.2KW x 1 (0 ~ 1800 rpm)
The tilt angle of brushes sanding	+90⁰ ~ + 180⁰
Vaccum suction motor	0,1 Kw x 2
