Lunisolar tenon milling machine is a diverse machine with different types of yin and yang tenons,… with a design of 16 flexible machining heads, the processed product is highly aesthetic and saves costs. production costs, helping to optimize the production process.

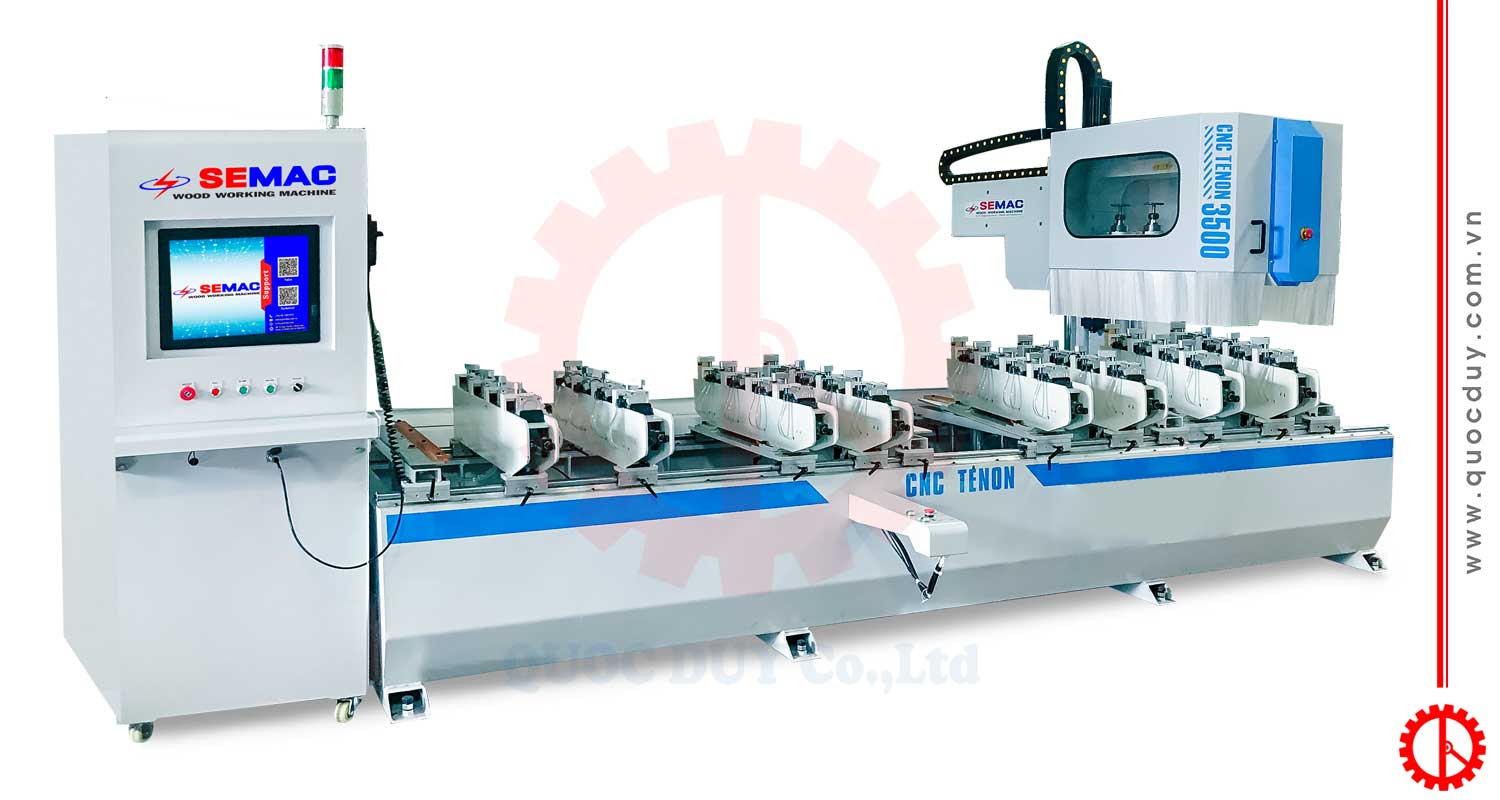

Introducing the lunisolar tenon milling machine
Features of lunisolar tenon milling machine
- The tenon and mortise machine is designed to process 4 workpieces at the same time, saving time and increasing productivity
- User-friendly interface for easy manipulation and operation
- Capable of machining both positive and negative tenons in one go
- System of genuine imported components and supplies of high-quality
- Fast-speed processing motor can adjust different rotation speeds for each different product
- Working table length is up to 3900 mm for simple long workpiece processing
- Using servo motors to control the machining axes ensures high accuracy
- Products after processing are consistent in quality
Specifications of yin and yang cnc tenon making machine
| No.of spindle | : 4 axis ( X,Y,Z,A) |
| Motor power | : 5.5 Kw x 4, 3 Kw x 4 |
| Max processing length | : 3900 mm |
| Max processing width | : 150 mm |
| Max processing height | : 120 mm |
| Operating voltage | : 380V |
| Working pressure | : 7-8kg/m2 |
| Spindle speed | : 10000-18000 rpm (can adjustable) |
| Processing speed | : Stepless speed regulation |
| Net weight | : 3200 kgs |
| Machine size | : 4600 x 2850 x 2600mm |
Video of operating a 16-head tenon milling machine
Latest lunisolar tenon milling machine price
At Quoc Duy, we offer a variety of woodworking machines equipped with modern technology at the most competitive prices. Every product is tailored to meet your technical requirements, ensuring the highest level of quality and productivity for your factory.
Our experienced sales and technical team is always available to provide expert advice and guidance, helping you to optimize your production and investment costs.
For your tenon processing needs, we recommend the tenoner machine. To receive quick and reliable advice, please contact us immediately via
- 24/7 consulting phone number: 0903 600 113
- Email: info@quocduy.com.vn
- Website: www.quocduy.com.vn – www.semac.com.vn
You can also visit our factory located at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City to observe the latest machines in action.
We look forward to hearing from you soon!
