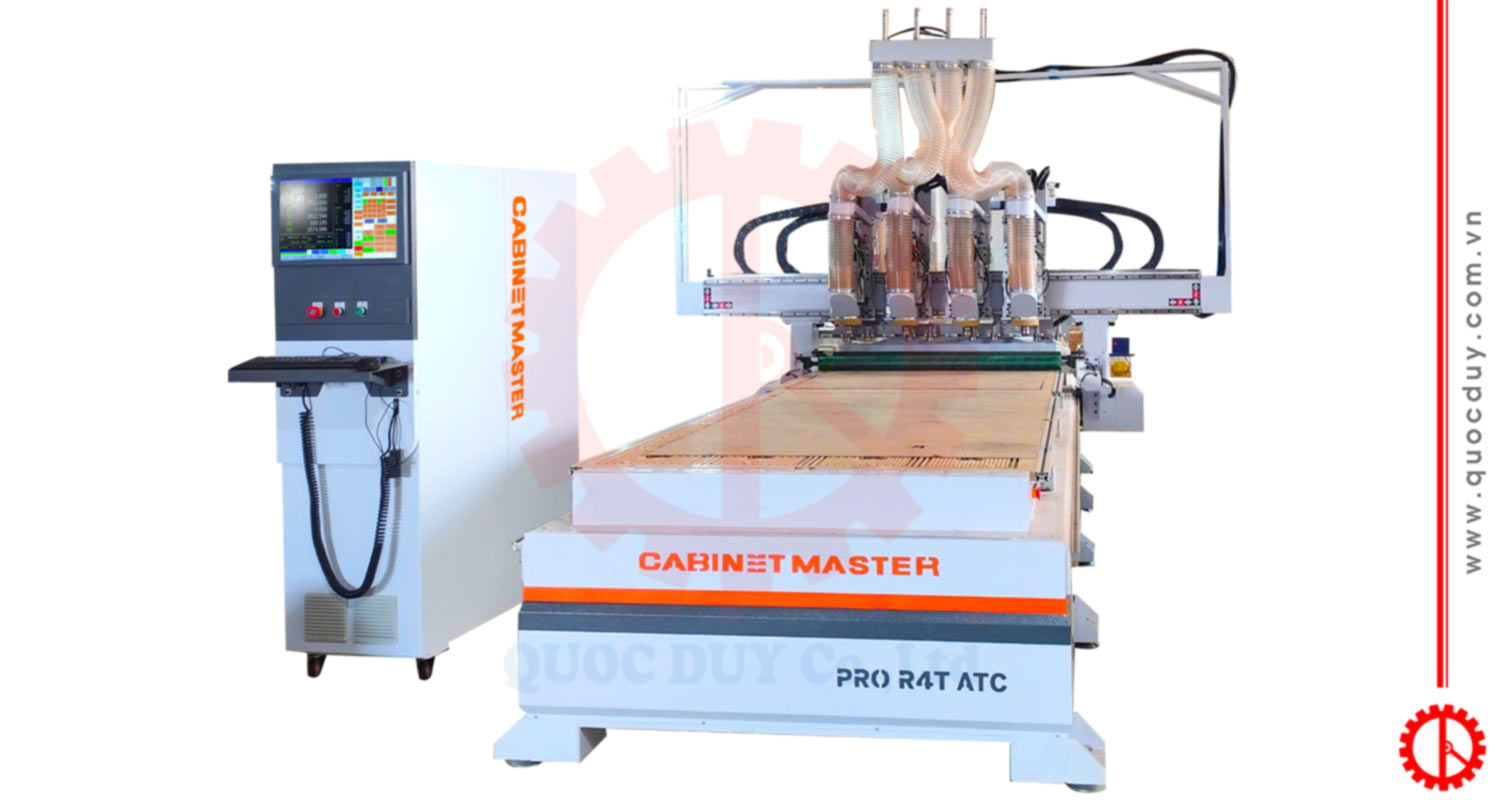

Independent 4 head atc cnc router – PRO 1325T R4 ATC is engineered to meet high-productivity demands with absolute precision. Featuring four independent working heads, the machine allows for the simultaneous processing of multiple workpieces, optimizing cycle times and significantly boosting manufacturing efficiency. Equipped with an automatic tool changer (ATC) system, the machining process becomes faster and more flexible, making it ideal for a diverse range of product types.
Features of Independent 4 head atc cnc router
- The machine features a robust, heavy-duty design ensuring stable operation, while dual worktables boost productivity by minimizing workpiece loading/unloading downtime.
- Equipped with four high-power 9kW spindles for simultaneous processing of four workpieces; the automatic tool changer offers processing versatility, and the high power output ensures rapid machining speeds and increased productivity.
- High-precision Leadshine servo motors.
- SYNTEC (Taiwan) control system ensures stable performance and ease of operation.
- Electrical components from Schneider and Delixi.
- Automatic oil lubrication system ensures smooth operation and extends the machine’s service life.
Specifications of Independent 4 head atc cnc router
| Kích thước bàn làm việc | : 1300x2500mm x 2 bàn |
| Hành trình trục Z | : 200 mm |
| Động cơ servo X, Y, Z | : 1.5 kW |
| Tốc độ di chuyển tối đa | : 60 m/phút |
| Tốc độ làm việc tối đa | : 25 m/phút |
| Trục chính | : 9 Kw x 4 cái ( HQD ) – thay dao tự động |
| Tốc độ trục chính | : 24000 vòng/phút. |
| Bơm hút chân không | : 7.5 kW x 2 cái ( loại nước ) |
| Khí nén | : 0.6 – 0.8 Mpa |
| Độ chính xác | : ±0.05 mm |
| Mã code | : Gcode |
| Điện áp | : 380V/50Hz |
| Kích thước máy | : 6300x3460x2900mm |
| Trọng lượng máy | : 3500kg |
| Worktable dimensions | : 1300 x 2500 mm (2 tables) |
| axis travel | : 200 mm |
| X, Y, Z servo motors | : 1.5 kW |
| rapid traverse speed | : 60 m/min |
| working speed | : 25 m/min |
| Spindle | : 9 kW x 4 units (HQD) – automatic tool change |
| Spindle speed | : 24000 rpm |
| Vacuum pump | : 7.5 kW x 2 units (water-cooled type) |
| Compressed air | : 0.6 – 0.8 MPa |
| Accuracy | : ±0.05 mm |
| Code format | : G-code |
| Voltage | : 380V/50Hz |
| Machine dimensions | : 6300 x 3460 x 2900 mm |
| Machine weight | : 3500kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
Exclusive Benefits of Purchasing the Independent 4-Head ATC CNC Router at Quoc Duy CNC
With over 23 years of experience in supplying woodworking machinery and equipment, Quoc Duy has always been a trusted partner for every customer. When purchasing a woodworking CNC machine from Quoc Duy, you are guaranteed:
100% Genuine Imported CNC Machines: Equipped with standardized components and parts, ensuring absolute quality and peak performance.
12-Month Warranty & 24/7 Technical Support: Round-the-clock assistance to keep your operations running smoothly.
Highly Competitive Pricing: Constantly updated with the best promotional incentives tailored for our clients.
Professional & Highly Experienced Engineers: Free on-site installation and comprehensive, hands-on operational training until your team is fully proficient.
Rapid-Response Technical Support Center (+84 903 600 113): Ready to troubleshoot and resolve issues promptly, ensuring your production lines maintain uninterrupted operation.
Explore Other CNC Models with Similar Functions
Thanks to their diverse configurations and features, independent multi-head CNC router series are engineered to meet increasingly demanding product standards, helping manufacturing workshops boost productivity, save costs, and optimize labor. Depending on the production scale and specific operational requirements, customers can easily choose the most suitable machine model.
