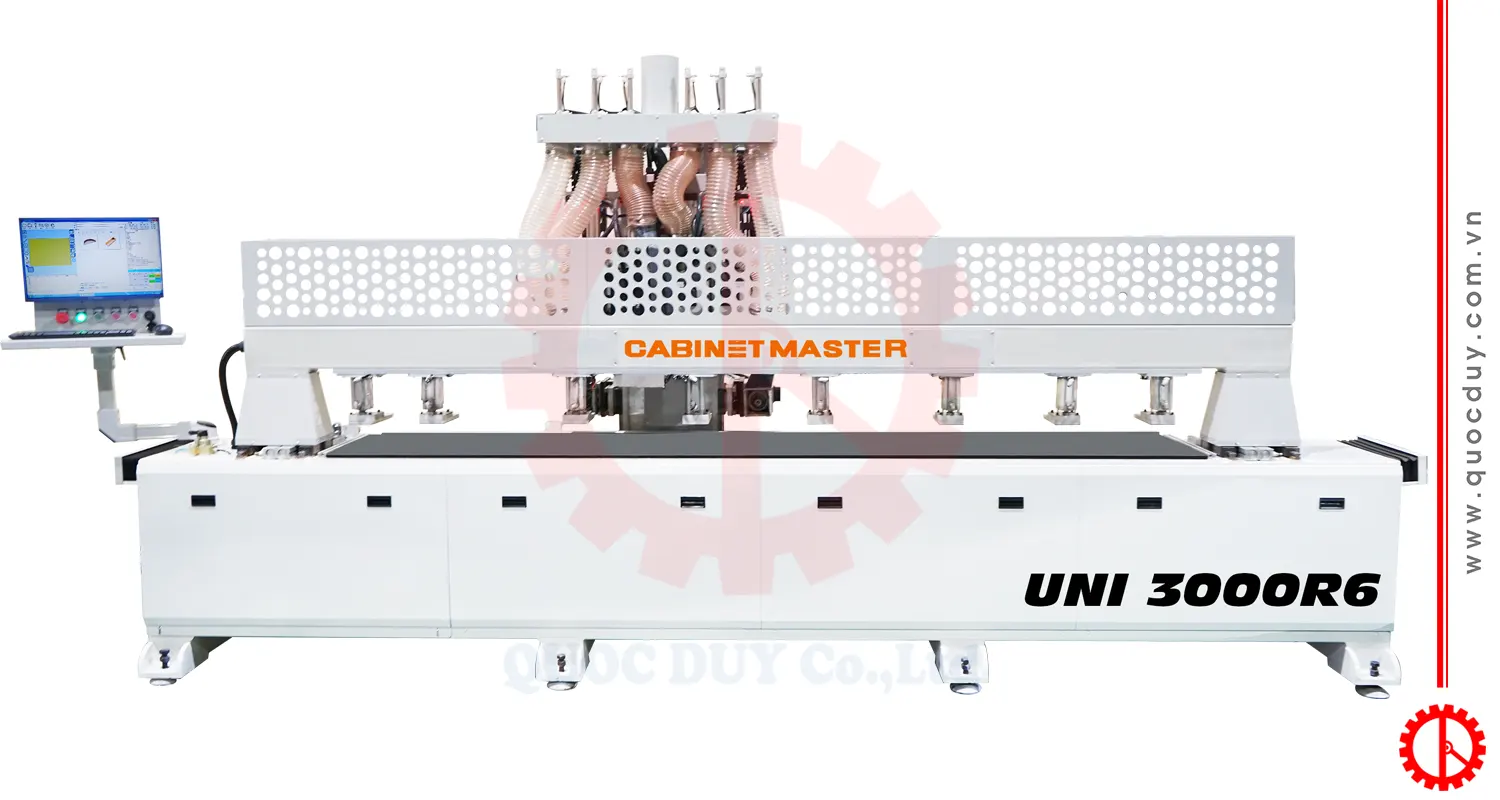

Hinge Lock Chill Drilling Machine - UNI 3000R6I

Hinge lock chill drilling machine is an upgraded CNC drilling machine with many superior features. Integrates 4 vertical drilling clusters (including 1 hinge drilling cluster) and 2 horizontal drilling clusters for multi-functional processing.

Introductions of hinge lock chill drilling machine

Feature of hinge lock chill driilling machine

The CNC drilling machine is designed with 2 processing directions: 4 vertical machining axes and 2 horizontal machining axes.
Performs multiple functions: drilling, milling, tenoning, drilling and milling locks, door hinges,…
Genuine imported components ensure high durability and stability.
Operating the cabinet door hinge drilling machine is simple, integrating barcode scanning, QR codes, infrared,…
The library system includes door handle and hinge styles, just need to set the size.

Specifications of hinge lock chill drilling machine

Maximum working length	: 3000 mm
Maximum workpiece thickness	: 100 mm
Maximum horizontal milling and drilling depth	: 110 mm
Maximum vertical spindle milling width	: 150 mm
Maximum X axis travel	: 250mm
Maximum Y axis travel	: 4000mm
Maximum Z axis travel	: 140mm
Motor servo X, Y, Z axis	: 0.85kW x 3
Vertical drilling power	: 4.5kW x 3
Hinge drilling power	: 1.5kW
Hortizontal drilling motor	: 4.5kW
Tilted milling motor	: 4.5kW (Adjustable tilt angle)
Dust hood diameter	: Ø150mm; Ø95mm x 2
Machine dimensions	: 5300 x 1700 x 2200mm
Machine weight	: 2000kg

Video of operating a multi-function cnc milling and drilling machine

Latest hinge lock chill drilling machine price

For customers’ peace of mind, when purchasing the UNI 3000R6 CNC plank drilling machine, you will receive a machine warranty policy of up to 12 months. You will receive free and quick installation support and operating instructions from A – Z from a highly specialized and enthusiastic technical team. In particular, during the process of using the machine, customers will be accompanied throughout by Quoc Duy Technical Support Center 0789 15 15 18, ensuring support anytime, anywhere.
