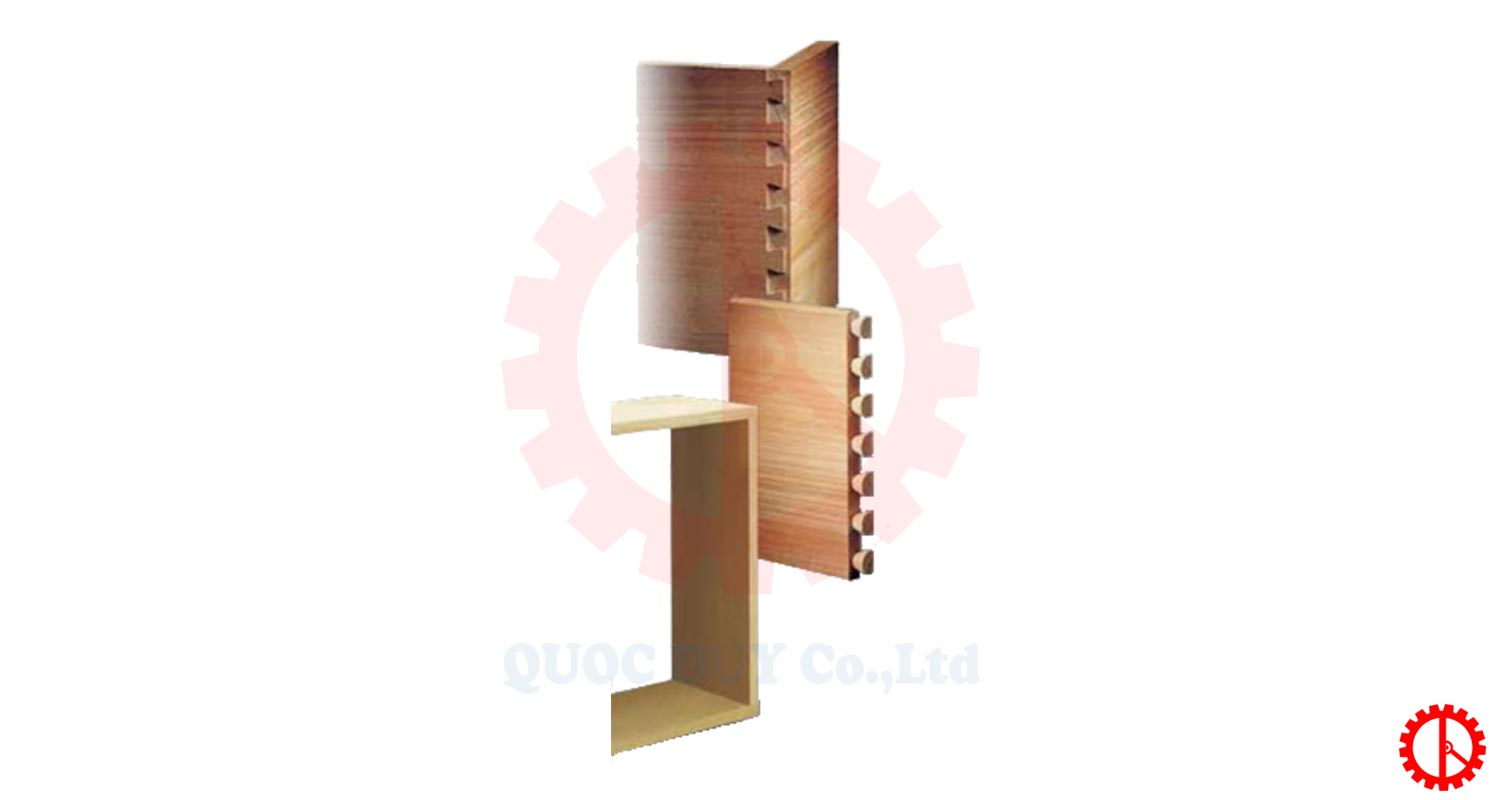

The High Speed Dovetail Machine is an advanced equipment in the woodworking industry, designed to produce dovetail joints with high precision and rapid processing speed. The machine helps increase labor productivity, saving production time and costs. Notably, it ensures uniform and sharp joint quality, meeting the stringent requirements of the furniture and woodworking manufacturing industries.
Outstanding Features of the High Speed Dovetail Machine

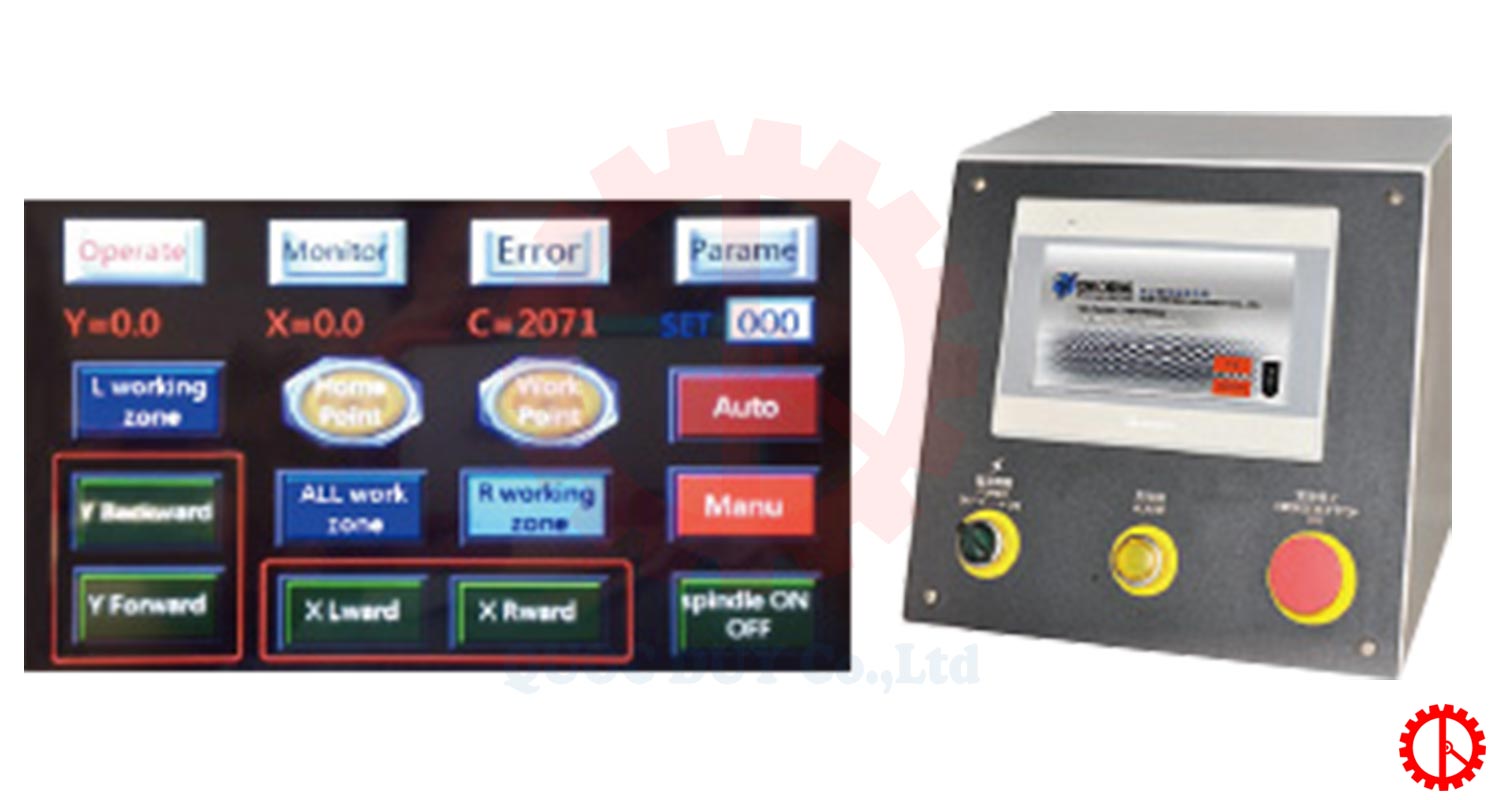

User friendly interface allows operators to easily navigate and control the machine.

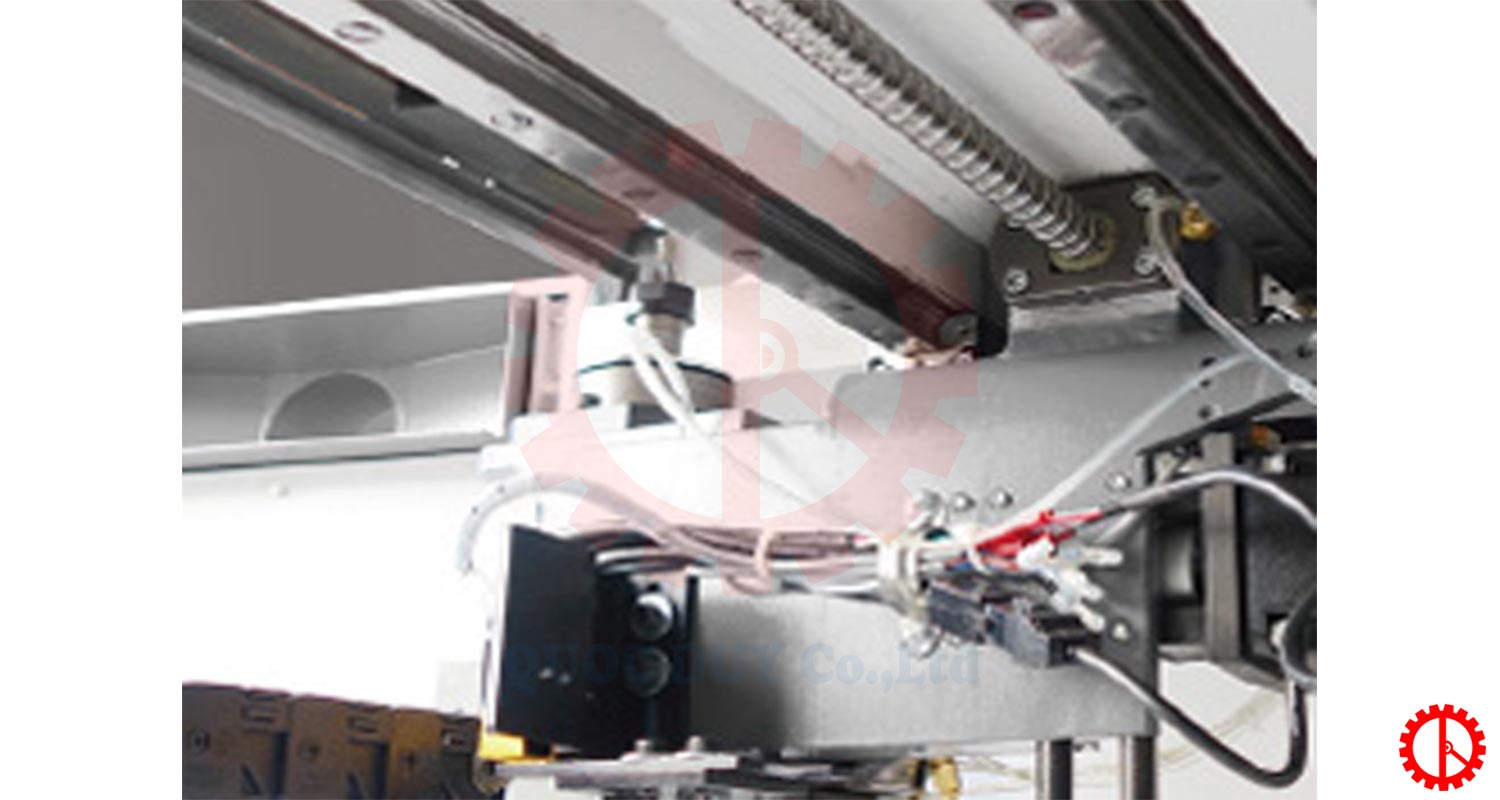

Driven by a high-speed servo motor combined with a ball screw and linear guide rails, delivering high performance and stability.
Heavy duty machine frame ensures maximum stability during high-speed processing.

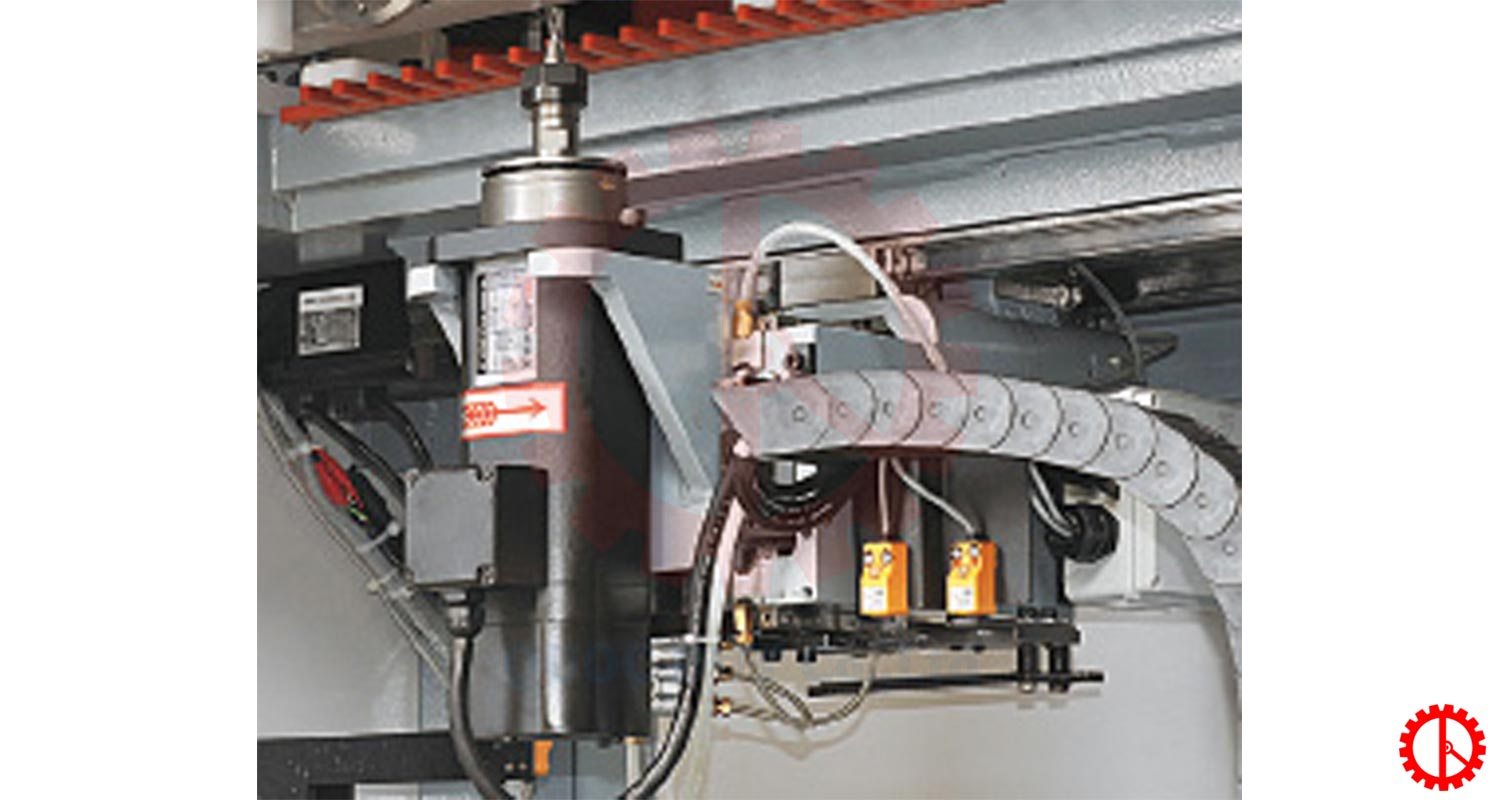

Spindle motor with a rotation speed of up to 20,000 RPM ensures fast and precise machining.
Spindle speed can be adjusted to suit various workpiece types and processing requirements.

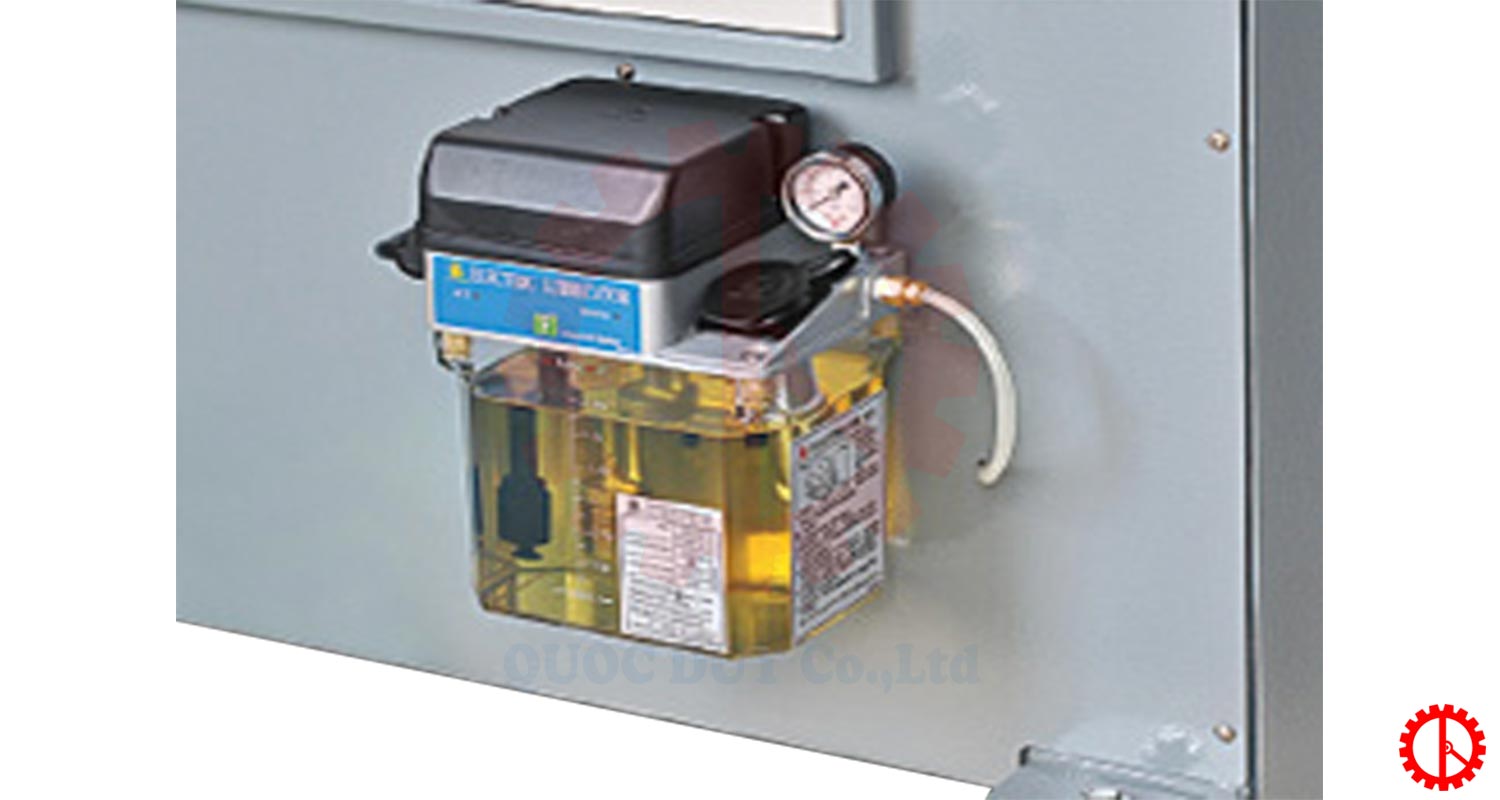

Equipped with an intelligent lubrication system that automatically alerts upon low oil levels and stops operation to protect the machine.
Technical Specifications
| Max. board thickness | 25 mm |
| Min. board thickness | 8 mm |
| Max. working width | 600 mm |
| Pitch/Joint distance | 25 mm (adjustable) |
| Spindle motor | 2 HP |
| Spindle speed | 20,000 RPM |
| Total power | 5 HP |
| Working table height | 850 mm |

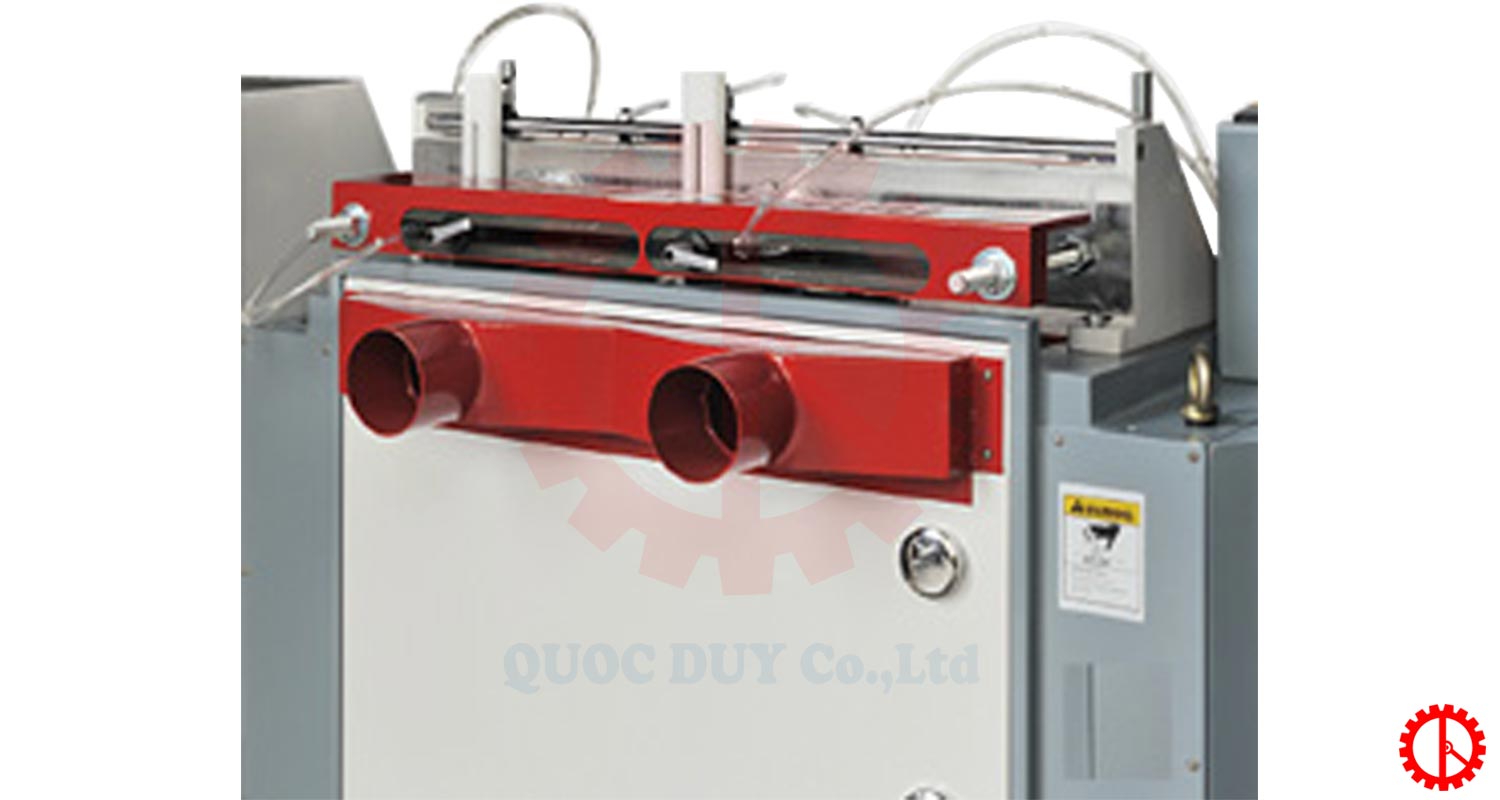

| Dust outlet diameter | Ø100 mm |
| Compressed air pressure | 0.6 Mpa |
| Machine dimensions | 1500 x 840 x 1300 mm |
| Packing dimensions | 1600 x 940 x 1400 mm |
| Net / Gross weight | 700 kg / 720 kg |
Note: Specifications, design features, and machine colors are subject to change without prior notice, provided that such changes do not alter the primary functions and operational performance of the machine.
video about high speed dovetail machine
Quoc Duy Supplies a Wide Variety of Dovetail Machine Models
Quoc Duy specializes in supplying a diverse range of dovetail machines, meeting the joint-making demands of the furniture and woodworking manufacturing industries. Offering various designs and configurations, our dovetail machines are engineered with advanced technology, high durability, and outstanding working efficiency. We commit to delivering high-quality products tailored to specific operational requirements. Partner with Quoc Duy to select the optimal processing solution for your business.
Where to Invest in an Affordable High Speed Dovetail Machine in Ho Chi Minh City?
If you are looking for a high-quality yet affordable dovetail machine in Ho Chi Minh City, Quoc Duy is the ideal choice. We offer a diverse selection of dovetail jointing machines, ensuring high working performance and long-lasting durability. With an experienced technical team, we will assist you in finding the product best suited to your production needs. Contact Quoc Duy today for a free consultation and the most competitive pricing for your business!
