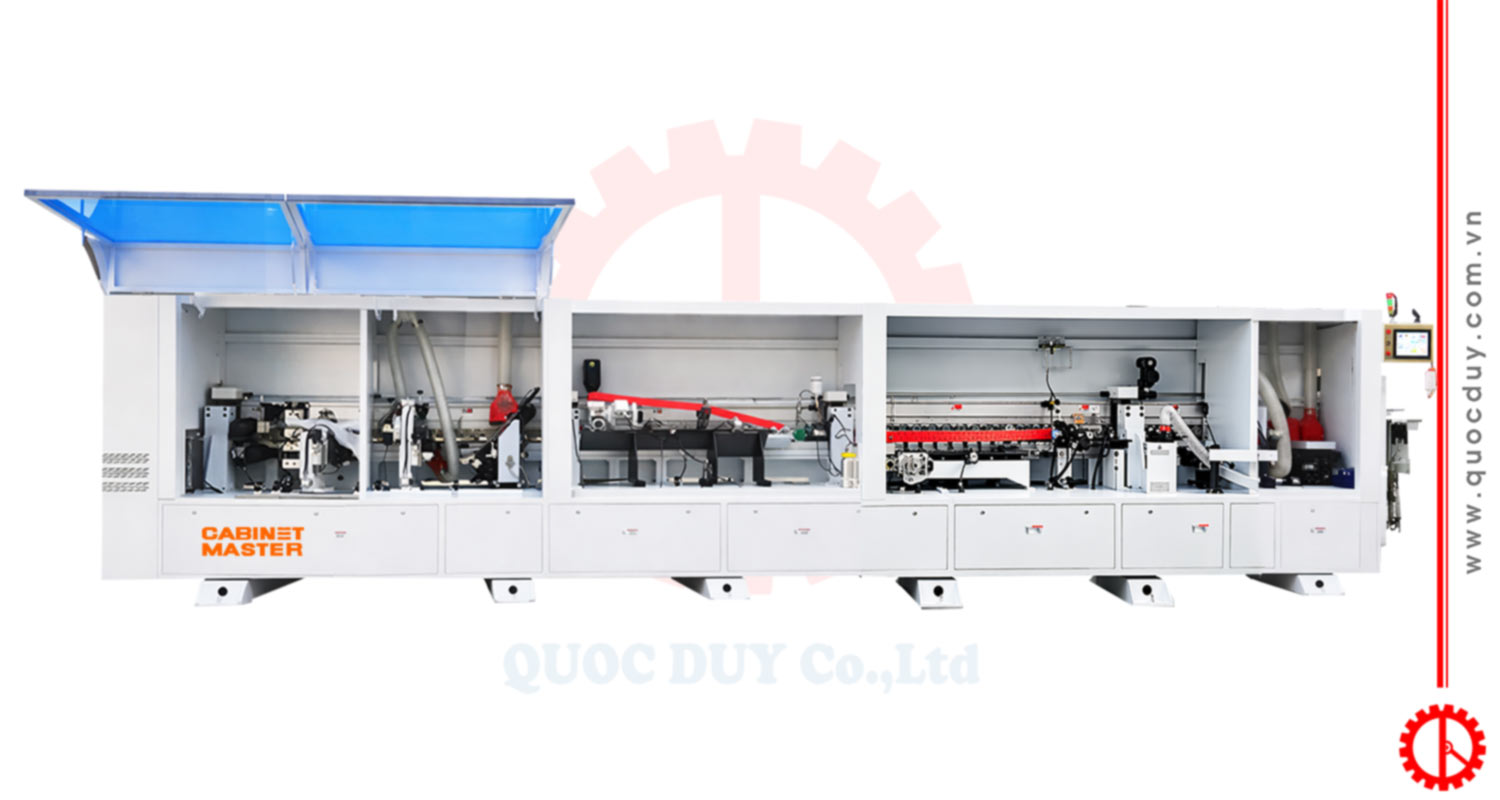

Heavy duty inclined edge banding machine is a machine with many outstanding improvements such as: integrated 2 glue pots, equipped with modern UV drying lamps, integrated digital clock in each function cluster to help calibrate quickly and accurately. .
Introductions of heavy duty inclined edge banding machine
Features of heavy duty inclined edge banding machine
- This particular line of inclined edge banding machine can glue boards up to 32mm thick. It is designed to work with a variety of thread types such as veneer, PVC, MDF, and others. The machine comes equipped with a touchscreen interface that allows you to set the glue pot temperature as per your requirement, saving time and effort in reheating the glue.
- The machine boasts a 45-degree bevel assembly and a smooth surface, which makes it perfect for the inclined gluing process. It comes with two integrated glue pots – one inclined-edge roller pot and another straight-edge roller pot. Additionally, it has two sets of straight and inclined pressing rollers along with a specially designed tilting roller assembly that helps adjust lifting and tilting automatically, quickly, and easily.
- The auto edge banding machine is further enhanced with an integrated UV drying lamp that helps keep the glue temperature suitable for the splint pressing process, increasing adhesion between the splint and the edge of the board. With the loading mechanism, the machine designs a tail-cutting cluster located behind the top and bottom thread trimming cluster, helping the glued product maximize aesthetics.
- The machine is also improved with a digital clock mounted directly on the function cluster of the top and bottom thread trimmer and glue scraper cluster, making calibration easier and more accurate.
Funtions of heavy duty inclined edge banding machine
- Pre-milling
- Inclined edge guling
- Straight edge guling
- Straight roller
- UV drying lamp
- Inclined roller
- Fine trimming
- End cutting
- Scraping
- Buffing
Application of heavy duty inclined edge banding machine
45-degree beveled edge gluing machine with many modern improvements, specialized for gluing most types of threads such as PVC, veneer, MDF,… Widely used in the production of kitchen cabinets and handleless wooden furniture.
Specifications of heavy duty inclined edge banding machine
| Air pressure | : 0.6 Mpa |
| Total power | : 15.8 kw |
| Feeding speed | : 18 – 22 m/min |
| Lifting motor | : 0.37 Kw |
| Max. Edge band thickness | |
| Veneer | : 0.6 mm |
| PVC | : 0.4- 3 mm |
| Max. panel thickness | : 32 mm |
| Workpiece lenght | : ≥ 250 mm |
| Workpiece width | : 10 – 55 mm |
| Pre-milling | : 0.6 mm |
| Pre-milling motor | : 5.5 Kw |
| End cutting motor | : 0.37 Kw |
| Trimming motor | : 0.75 Kw |
| Conveyor motor | : 4 Kw |
| Buffing motor | : 0.37 Kw |
| Dimensions | : 7100 x 900 x 1700 mm |
Video of heavy duty inclined edge banding machine
Latest heavy duty inclined edge banding machine price
Are you looking for an auto edge banding machine that can meet your processing needs? Look no further than the heavy duty inclined edge banding machine! This upgraded version is designed to handle the edge banding processing needs of domestic and foreign units alike.
At Quoc Duy, we offer a variety of edge banding machines, including manual, automatic, 6-function, curved, and high standard veneer eva glue profile wrapping machine
If you need to contact us, our experienced sales team is ready to advise and offer the most suitable solution for your needs. You can reach us via:
- Email : info@quocduy.com.vn
- Hotline : 0903 600 113
- Website : www.quocduy.com.vn – www.semac.com.vn
Better yet, come directly to our factory at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City, and see the operating process of the most modern machines for yourself.
