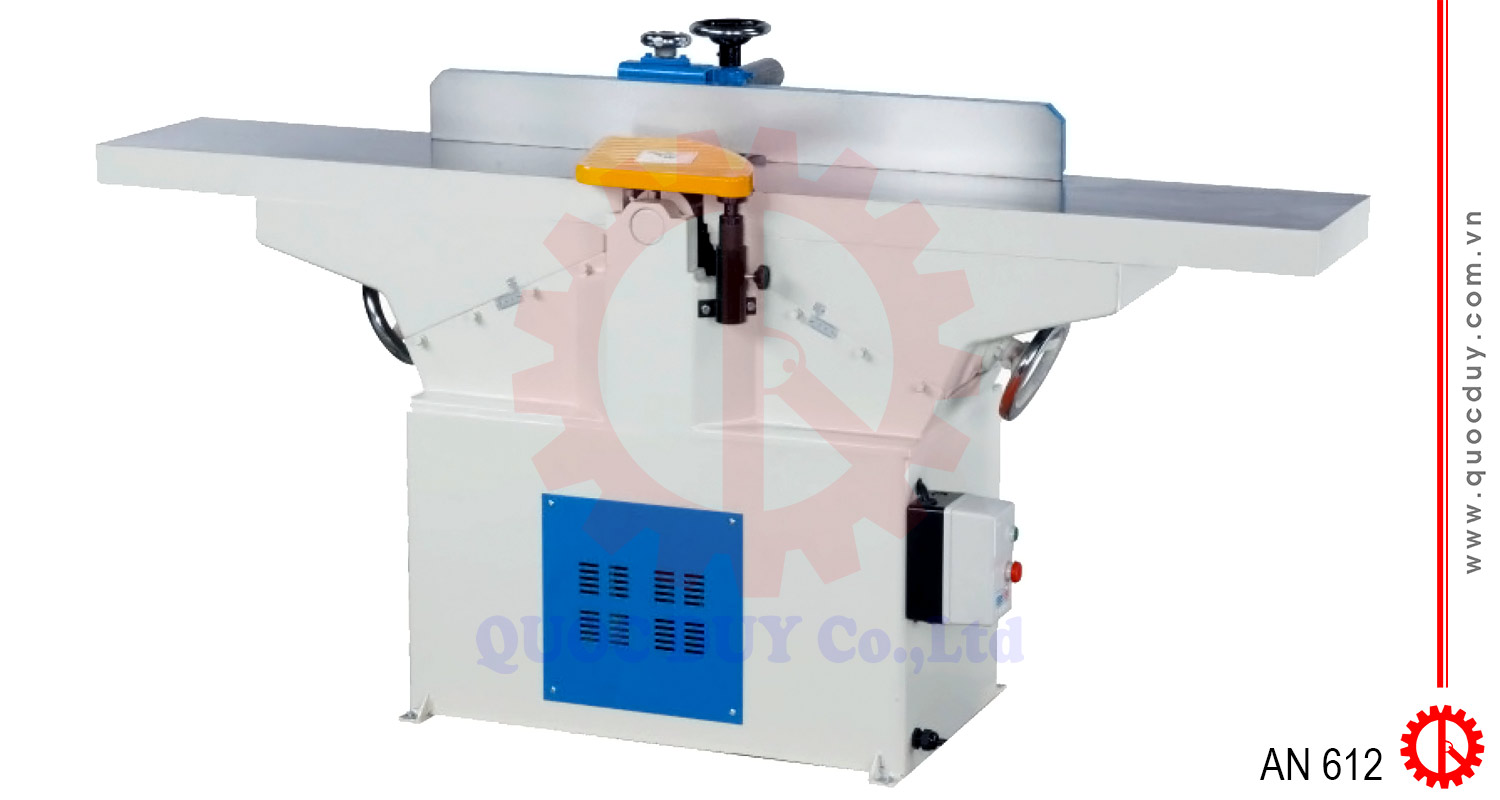

Hand jointer 1800mm – AN 612 is specialized for smoothing product surfaces with a working table size of 305 x 1828 mm.
Introduction of hand jointer 1800mm
Features of hand jointer 1800mm
– Hand jointer 1800mm have Straight cutterhead is standard. Helical cutterhead and quick change cutterhead are optional
– Heavy gauge steel metal base assures max rigidity and stability
– Magnetic switch control
– Specially designed cutterhead guard for safety
– Cutterhead features sound reduction design
Specifications of hand jointer 1800mm
| Table area | 305 x 1828 mm |
| Spindle speed | 5300 rpm |
| Spindle diameter | 100 mm |
| Cutterhead motor | 2 PH |
| Knives straight cutterhead | 3 pcs |
| Knife size straight cutterhead | 305 x 30 x 3 mm |
| Fence size | 110 x 990 mm |
| Net weight | 330 kg |
| Gross weight | 410 kg |
| Machine size | 1840 x 590 x 950 mm |
| Packing sizes | 1880 x 600 x 990 mm |
video of hand jointer 1800mm
Hand Jointer at Customer's factory
Hardware supplies
Refer to other lines of dialysis machines
- HAND JOINTER TAIWAN – AN 512
The planer machine of the planer system is one of the smart choices for wood processing units to choose to invest in.
Help and support consultation on coagulation machines
Answering your questions is our mission, contact directly to Quoc Duy’s official Hotline number 0903 600 113 to have our staff support and advise you on prices and payments. Answer questions related to the 1800mm planer line.
- You can also send a letter via the following email: info@quocduy.com.vn. We will respond to you as soon as possible.
- Address to see the machine in direct operation: 401 To Ngoc Van, Quarter 1, Thanh Xuan Ward, District 12, Ho Chi Minh City
- Visit website: quocduy.com or semac.com.vn to update more latest products from Quoc Duy
Quoc Duy specializes in providing quality, reputable woodworking machines at the best prices. We are always ready to serve you.
