Cnc sliding table saw S 32 CNC
Introduction of cnc sliding table saw
Features
Apply to processing all kinds of density boards, cutting MDF, OKAL, Arcylic, solid wood…
1. Fast and accurate positioning, reduce labor costs
2. Built-in CAM software, automatically generate optimized layout plan, improve board utilization
3. Parts and material will be import with the good quality, ensure durability and stability
4. Machine is made of high quality steel, sliding table structure is made of aluminum alloy

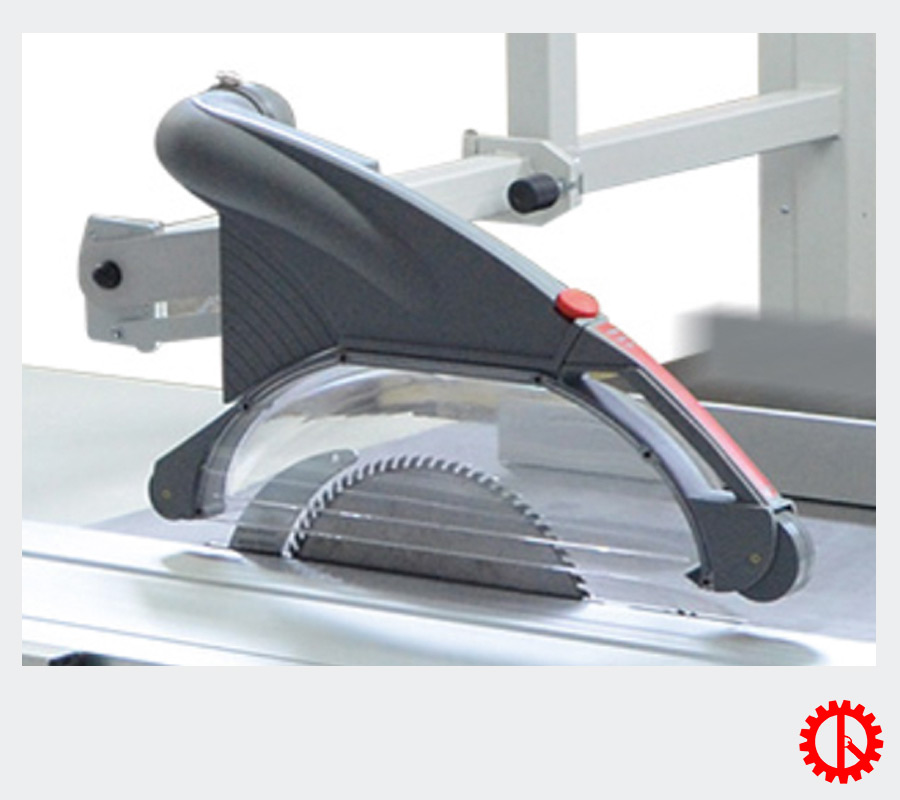

Protection hood
Lock sliding table safely

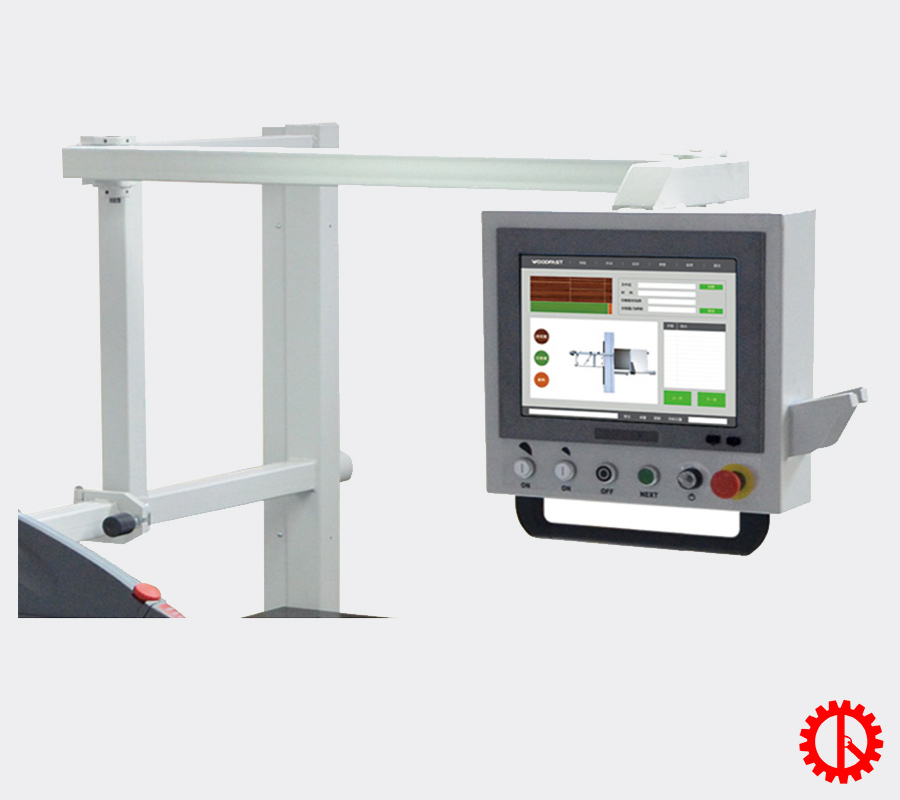

Touch – creen panel

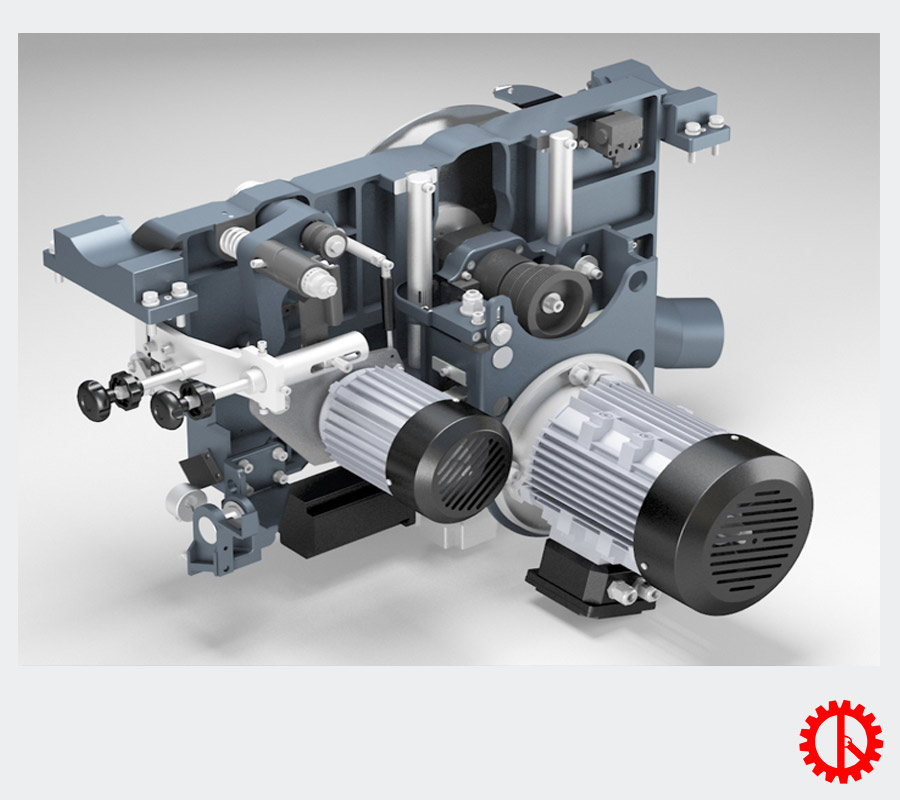

Powerful, durable motor
Specifications
| The main blade size | : 400 mm |
| The main blade speed | : 3000/ 4000/ 5000 rpm |
| Groove saw blade size | : 120 mm |
| Slot saw blade speed | : 8000 rpm |
| Blade inclination | : 0-45° |
| Maximum cutting thickness at 90°> | : 125 mm |
| Maximum cutting width | : 1250 mm |
| Slide size | : 3200 × 408 mm |
| Maximum cutting stroke | : 3200 mm |
| Vacuum port diameter | : 100 mm, 80 mm |
| Main motor output power | : 5.5 kW S1 |
| Slot saw motor output power | : 0.75 kW S1 |
| Package size | |
| Host | : 2300 × 1190 × 910 mm |
| Slide | : 3600 × 505 × 280 mm |
| Net weight | : 810 kgs |
| Gross weight | : 920 kgs |
