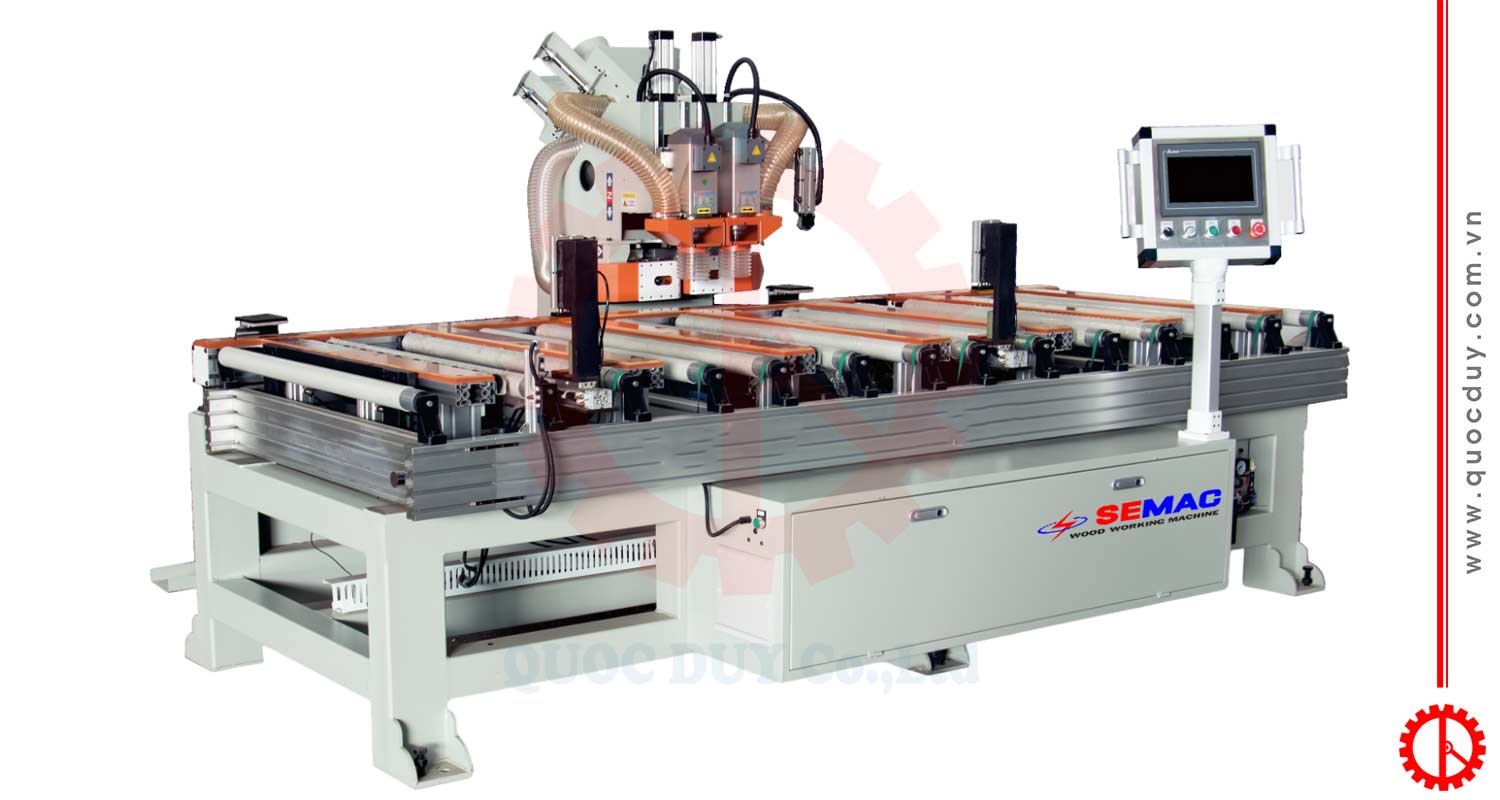

Cnc router for door lock making machine SMPS 1124
Introduction of cnc router for door lock making machine
Specifications
| Working leght | : 1800 -2400 mm |
| Working width | : 600-1100 mm |
| Working thickness | : 20-80 mm |
| Processing speed | : 20 m/min |
| Motor servo | : Delta |
| Giảm tốc | : Hãng Shimpo- Nhật BẢn |
| Slider | : H20/ H25 – Taiwan |
| Tool magazine | : follow type straight tool magazine (capacity three) |
| Clamp | : 5 |
| Workpiece clamp | : vacuum |
| Total power | : 20 kw |
| Voltage | : 380V/ 50 Hz |
| Air pressure | : ≥ 6.5 kgf/cm2 |
| Milling heads | : 2.2 KW high precision, imported bearings and gears |
| Horizontal spindle | : 7.5 KW air-cooled manual tool change spindle |
| Vertical spindle | : 9 KW air-cooled automatic tool change spindle |
| Net weight | : 2650 kg |
| Machine size | : 3650 x 2200 x 2300 mm |
