Milling and drilling machine for locks – SM 620AB is specifically designed for milling and drilling lock holes on composite plastic doors. Equipped with 4 processing motors, it operates at high speeds, while its roller conveyor worktable allows seamless integration into automated production lines. The finished products achieve high quality and excellent aesthetic appeal.

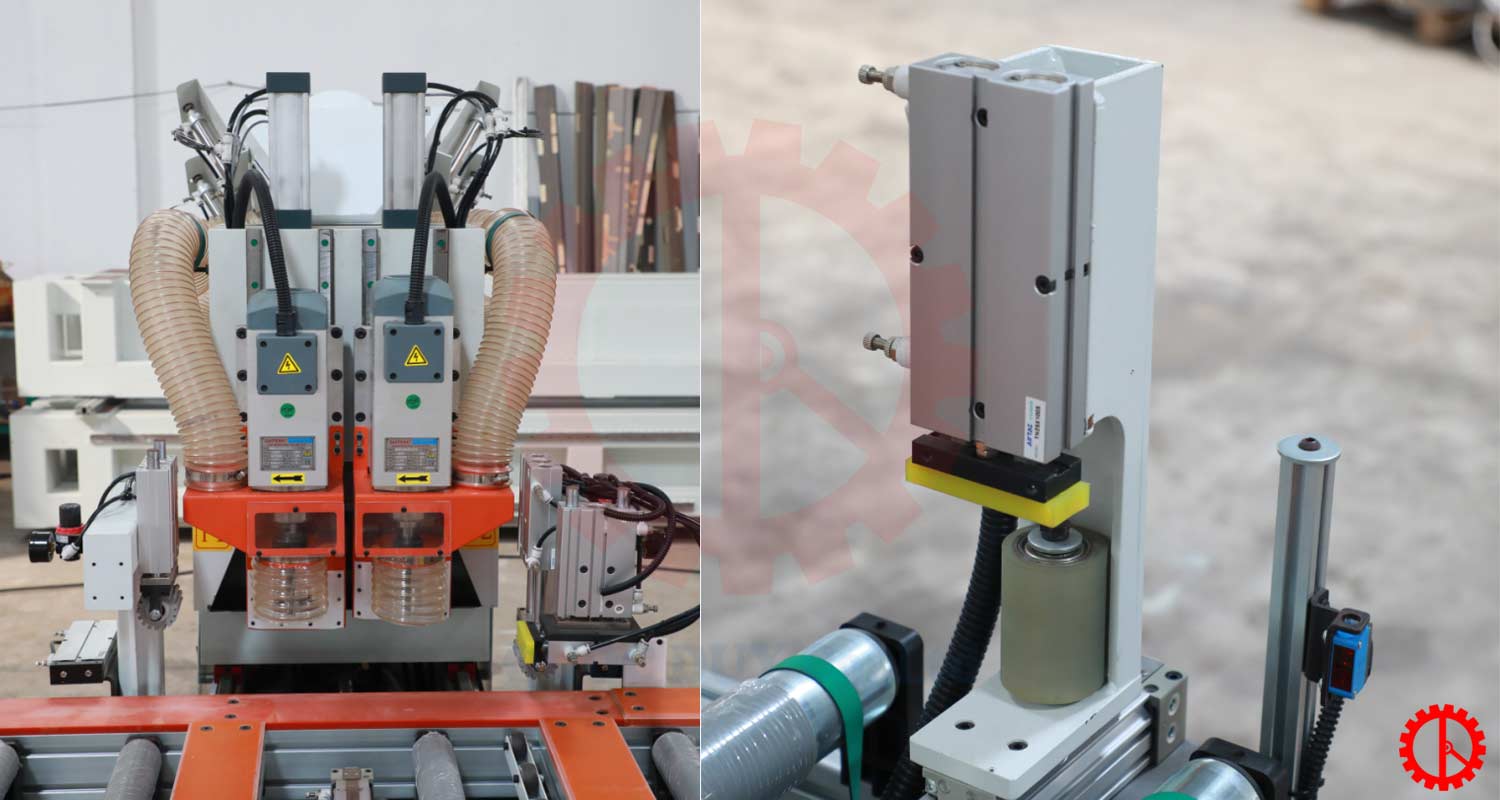

Features of Milling and drilling machine for locks
High-Speed Lock Hole Processing: Specifically designed for fast milling and drilling of lock holes on composite plastic doors and similar materials.
Roller Conveyor Worktable: Features a roller conveyor table design for easy and flexible integration into automated production lines.
Precise Processing Specifications: Handles a vertical-to-side lock hole distance of under 100 mm and a side lock groove processing depth of under 100 mm.
Heavy-Duty Frame: Built with a rigid frame structure to ensure stable, vibration-free operation throughout the machining process.
Automatic Thickness Measurement: Automatically measures workpiece thickness, eliminating manual input errors.
Reliable Drive System: Utilizes a rack-and-pinion drive for the X-axis and high-precision ball screws for the Y and Z axes.
Specifications of Milling and drilling machine for locks
| Door Length | 1800 – 3000 mm |
| Door Width | 500 – 1050 mm |
| Door Thickness | 30 – 60 mm |
| Side Groove Milling Motor | 3.7 kW, 1.5 kW |
| Lock Mortising Motors | 3.7 kW × 2 |
| Power Supply | 380V / 50Hz |
| Working Air Pressure | 0.6 MPa |
| Total Installed Power | 16.4 kW |
| Machine Weight | 2000 kg |
| Machine Dimensions | 3200 × 2200 × 1700 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
