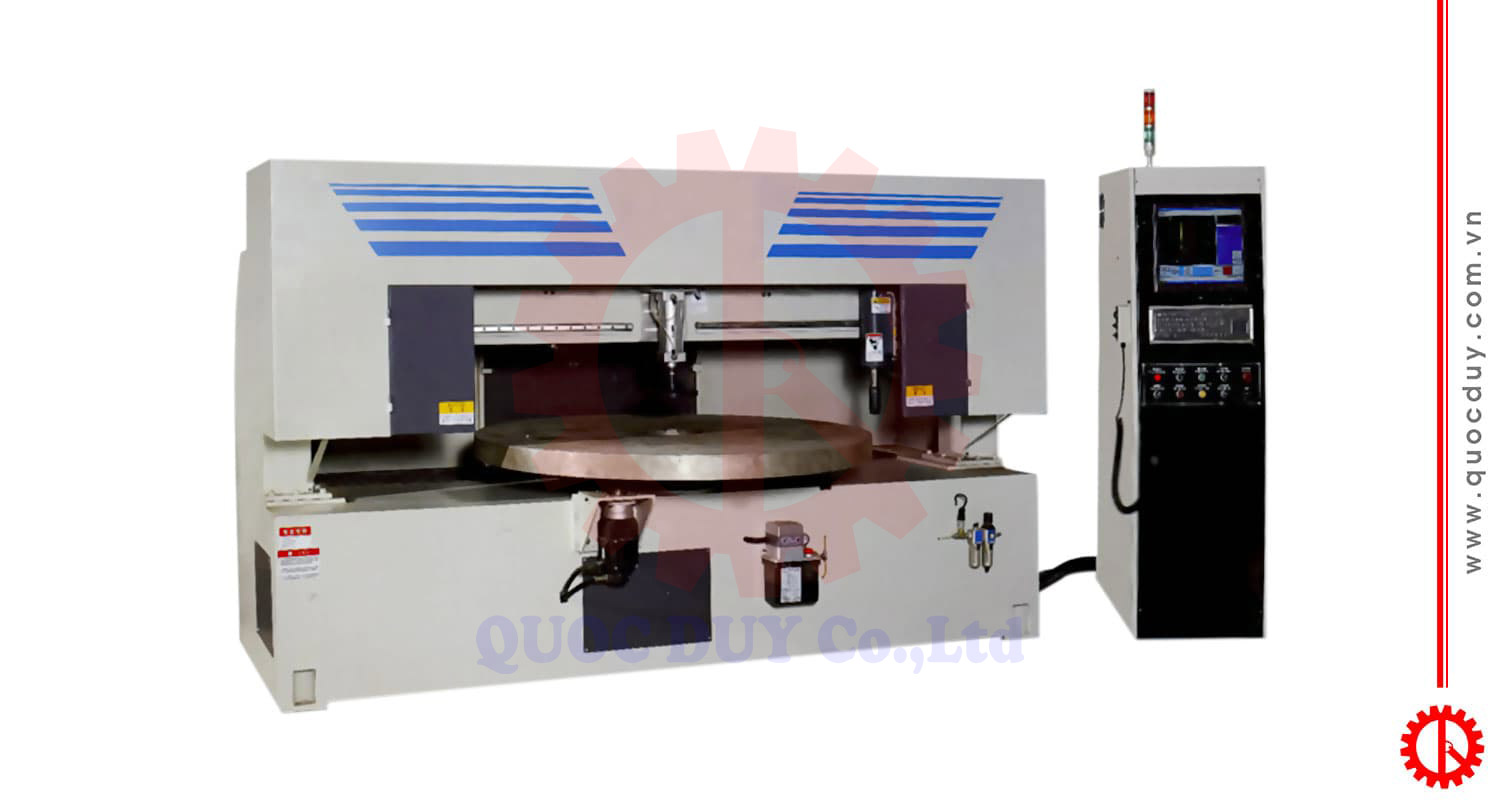

Cnc copy shaping machine SDF 1800CNC
Introduction of cnc copy shaping machine
Feature
– Fully automatic CNC control for high precision machining.
– Designing a large table with high-speed copy shaper. Saving cost and processing time.
Specification
| Number of axes | 04 pcs |
| Max. working height | 180 mm |
| Working capacity | 200 – 1800 mm |
| Table size | 1800 mm |
| Max. processing speed | 20 m/min |
| Feeding speed | 40 m/min |
| Main spindle power | 7.5kw x 2 |
| Spindle diameter | Ø 40 mm |
| Spindle speed | 8600 rpm |
| X-axis motor | 1.0kw |
| Y-axis motor | 1.0kw |
| Z -axis motor | 1.0kw |
| A -axis motor | 1.5kw |
