Beam saw machine TPS 8 is the machine line that customers are most interested in. With an automatic blade design, and cutting boards at high speed, the price is suitable for many investment budgets.
INTRODUCTION OF BEAM SAW MACHINE
Features of beam saw machine
- Specialized machine for cutting MDF, MFC, HDF, Okal,… panel products with beautiful cutting lines and fast cutting speed.
- The ability to cut multiple boards at the same time helps shorten processing time.
- Taiwan CNC panel saw wood sawing machine has different sawing modes, cutting a variety of sizes, large and small.
- Equipped with a roller table to help insert boards easily.
- Clamps firmly fix the workpiece, ensuring high precision in cutting boards.
Specifications of beam saw machine
| Max. length of cut (mm) | 2600 mm |
| Max. depth of cut (mm) | 80 mm |
| Main sawblade diameter (mm) | Ø 355 mm |
| Arbor diameter (mm) | Ø 1” mm |
| Main blade arbor speed (r.p.m) | 4800 r.p.m |
| Scoring sawblade diameter (mm) | Ø 160 mm |
| Arbor diameter (mm) | Ø 1” mm |
| Scoring blade arbor speed (r.p.m) | 6500 r.p.m |
| Feed forward speed (m/min) | 12 – 16 – 21 – 26 m/min |
| Return speed (m/min) | 24 – 32 – 42 – 52 m/min |
| Main sawblade motor (HP) | 13 HP |
| Saw carriage drive motor (HP) | 3 HP |
| Net weight (kgs) | 2200 kgs |
| Gross weight (kgs) | 2600 kgs |
| Machine size (mm) | 5232 x 3353 x 1829 mm |
| Packing size (mm) | 5486 x 1016 x 1092 mm |
VIDEO OF OPERATION OF SERIES Beam saw MACHINE
LATEST BEAM SAW MACHINE PRICE
For more detailed information about woodworking machine and updated price lists of products in the best sawing system at Quoc Duy. Please quickly contact Quoc Duy to receive the most accurate and detailed quote.
- Email: info@quocduy.com.vn
- Hotline: 0903 600 113
- Website: www.quocduy.com.vn – www.semac.com.vn.
You can also come directly to our factory at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City to see the operating process of the most modern machines currently.
Some panel saw models are worth investing in
Taiwanese panel saw machines have been the machines chosen by interior construction businesses to invest in. The machine is a large size, specialized for cutting large-sized boards of 1220 x 2440 mm. The ability to cut 3-4 wooden panels at the same time helps quickly increase output.
Quoc Duy introduces to customers several specialized sawing machines for cutting large-format boards that many wood processing units are choosing to invest in.

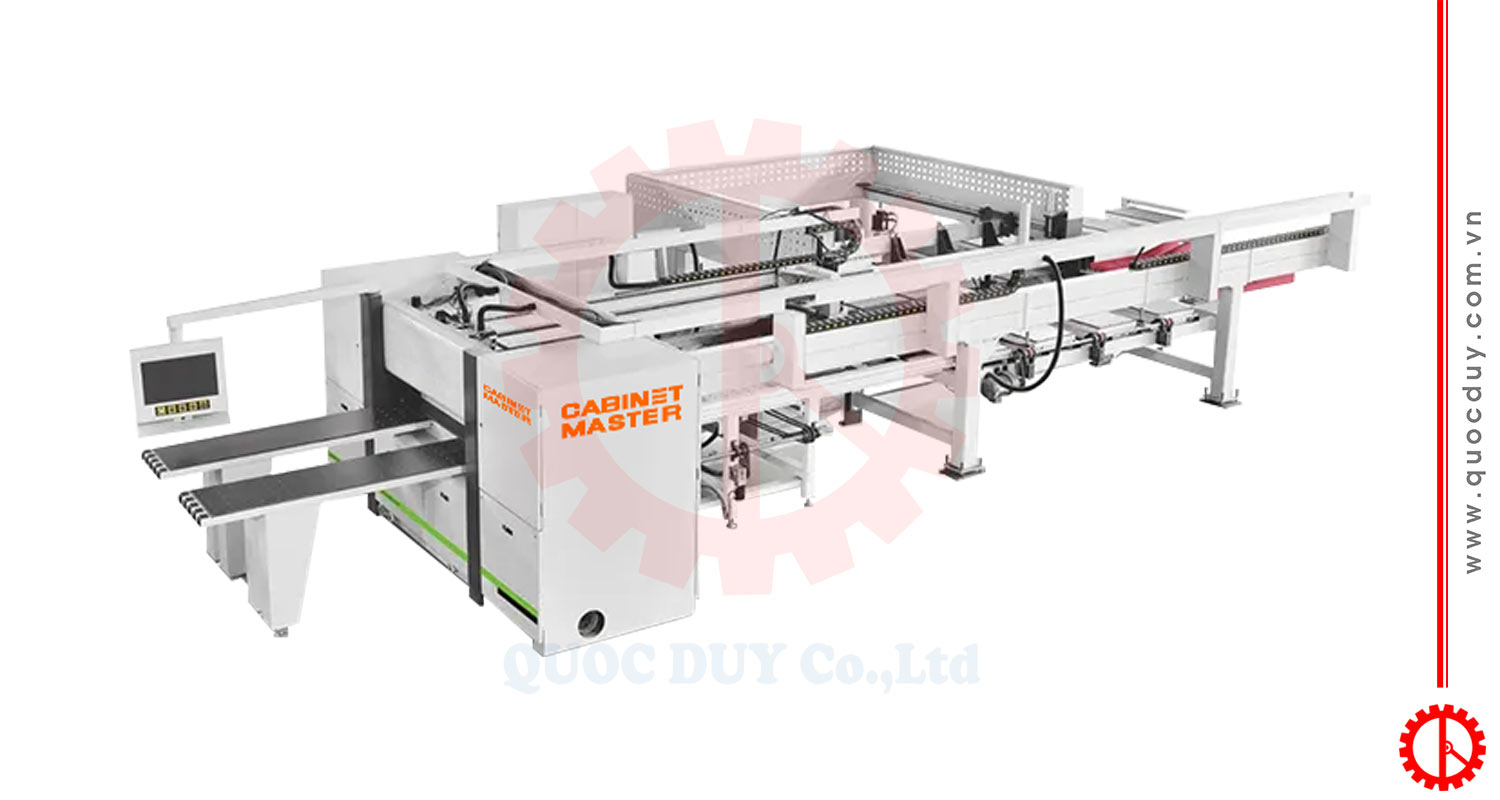

2-blade automatic panel saw machine is specialized for cutting MFC, MDF, HDF panels, etc. with smooth cutting edges and outstanding cutting speed.
