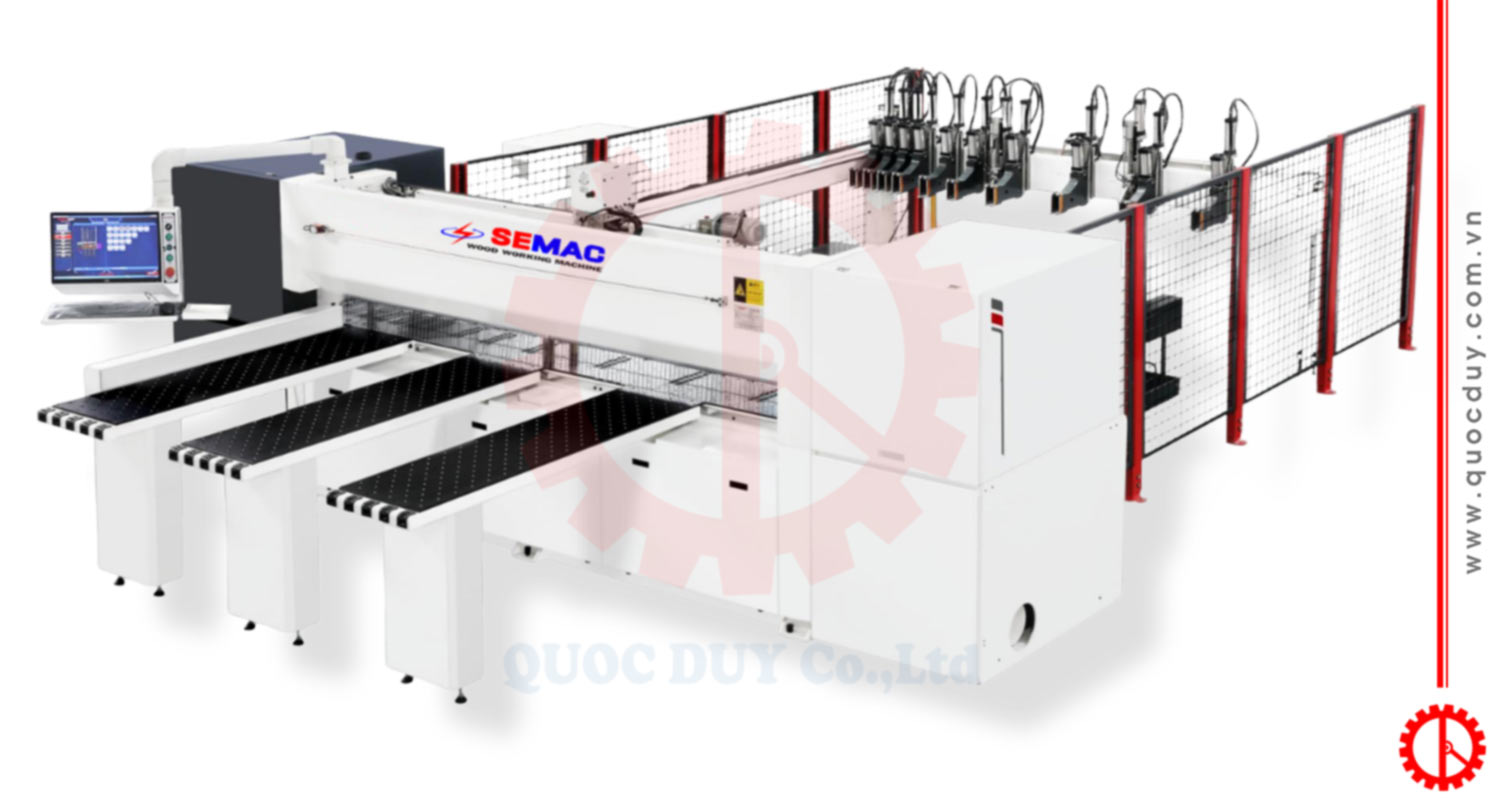

Panel saw machine TPS 10 is an automatic 2-blade panel saw machine from Taiwan, designed to cut large format boards like MDF, MFC, Okal, etc. with high accuracy and precise cutting lines.
INTRODUCTION OF PANEL SAW MACHINE
Features of panel saw machine
- The panel saw is equipped with a removable screen that can rotate when in use
- Designed with 3 billet tables, wide and large to hold many boards
- High efficiency, production capacity is 3 times that of sliding table saw.
- Easy operation, ordinary workers can operate the machine, and no high expertise is required.
- It comes with two saw blades, one main blade, and one primer saw blade, making it a specialized sawing machine for cutting panels.
Specifications of panel saw machine
| Max. length of cut (mm) | 3200 mm |
| Max. depth of cut (mm) | 80 mm |
| Main sawblade diameter (mm) | Ø 355 mm |
| Arbor diameter (mm) | Ø 1” mm |
| Main blade arbor speed (r.p.m) | 4800 rpm/min |
| Scoring sawblade diameter (mm) | Ø 160 |
| Arbor diameter (mm) | Ø 1” mm |
| Scoring blade arbor speed (r.p.m) | 6500 rpm/min |
| Feed forward speed (m/min) | 12 – 16 – 21 – 26 m/min |
| Return speed (m/min) | 24 – 32 – 42 – 52 m/min |
| Main sawblade motor (HP) | 13 HP |
| Saw carriage drive motor (HP) | 3 HP |
| Net weight (kgs) | 2400 kg |
| Gross weight (kgs) | 2900 kg |
| Machine size (mm) | 5842 x 3353 x 1829 mm |
| Packing size (mm) | 5893 x 1016 x 1600 mm |
Operation video of panel saw machine
LATEST PANEL SAW MACHINE PRICE
If you have any inquiries about woodworking machinery, specifically the Computer panel saw for mfc, or need detailed advice regarding the machine, please contact us immediately using the information provided below for the most thoughtful assistance.
- Email: info@quocduy.com.vn
- Hotline: 0903 600 113
- Website: www.quocduy.com.vn – www.semac.com.vn.
Alternatively, if you prefer to see the most modern machines in action, you can visit our factory located at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City
