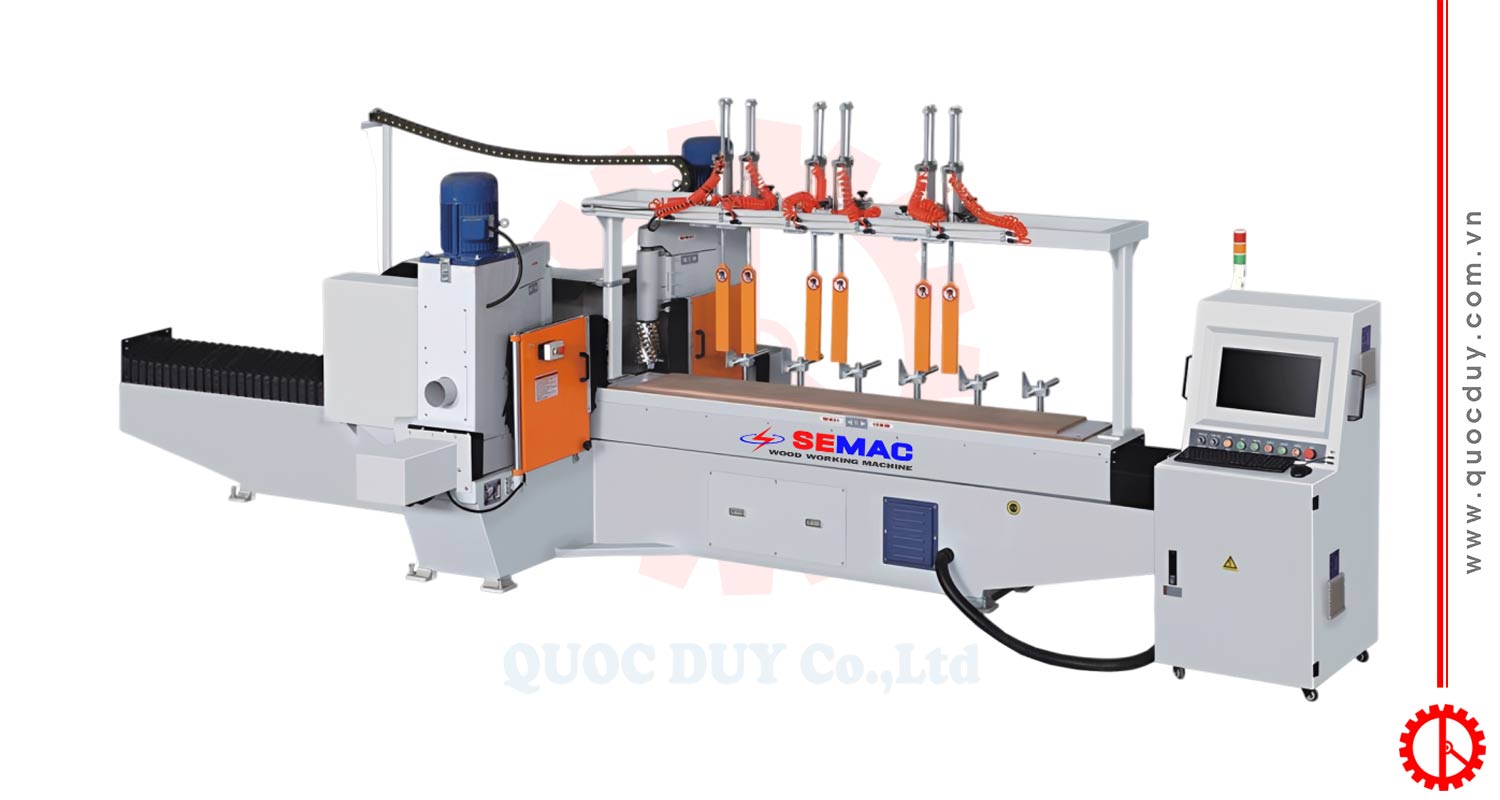

8 axis linear cnc profiling machine HH-CNC-85-8TC
Introduction of 8 axis linear cnc profiling machine
Features of 8 axis linear cnc profiling machine
- The working height is extendable to 600 mm for workpiece stacking (Opt.).
- An automatic feeding system is available for greater productivity (Opt.)
- The wood dust is effectively collected without affecting the sanding quality.
- The machine follows a two-step process: forward for milling & backward for sanding.
Structures of 8 axis linear cnc profiling machine
Oscillating sanding heads provide smooth finish after rough cut.
Imported spiral cutterheads for fine cut
Easy tool change
Specifications of 8 axis linear cnc profiling machine
| Max. Working Height | 200 mm |
| Max. Working Length | 2000 mm (Opt.): 2500 mm |
| Max. Working Width | 350 mm |
| Controller & Software | 1. CAD / CAM file conversion software developed by Huan Hung’s R&D. |
| Delta Servo Motor | 3 KW x 1 / 0.85 KWx 8 |
| Spindle Motor (Italian Motor) | 15 HP x 2 / 10 HP x 2 7.5 HP x 2 / 5 HP x 2 |
| Milling Heads | 4 |
| Shaft Inner Diameter | 40 mm |
| Max. Working Speed | 1 – 15 mm |
| Spindle Speed | 9000 rpm |
| Max Return Speed | 100 m/min |
| Clamping System | 8 vertical pneumatic cylinders |
| Machinery NW | 8000 kg |
| Machinery NW | 8500 kg |
Video of operating the 8-axis CNC long copy machine
> See more:
Latest 8 axis linear cnc profiling machine price
For more than 20 years, Quoc Duy has been a reliable supplier of shaping machine. Our extensive experience has enabled us to offer the highest quality products to our customers. If you have any inquiries or would like to make a purchase, please do not hesitate to contact us.
