60 m³ Electric wood drying kiln – KD E60 is an internal circulation drying system that utilizes a dedicated heat source, equipped with advanced functions such as heating, dehumidification, cooling, and heat recovery dehumidification. The system supports multiple operating modes with high flexibility, ensuring a highly stable temperature and humidity environment within the drying chamber.
The system features high-precision temperature and humidity control, operating fully automatically without requiring constant supervision. Operating parameters include a temperature range of 25–70°C and a humidity range of 30–70%, offering flexible and adjustable moisture reduction capabilities.
Unlike traditional high-temperature rapid drying methods that reduce wood moisture primarily through forced evaporation, this system utilizes internal circulation dehumidification technology for “soft drying.” It allows for low-temperature drying below 40°C, which achieves a faster yet gentler drying process, lowering the relative humidity inside the chamber while effectively reducing the moisture content of the wood.
1. Machine Construction of 60 m³ Electric Wood Drying Kiln – KD E60

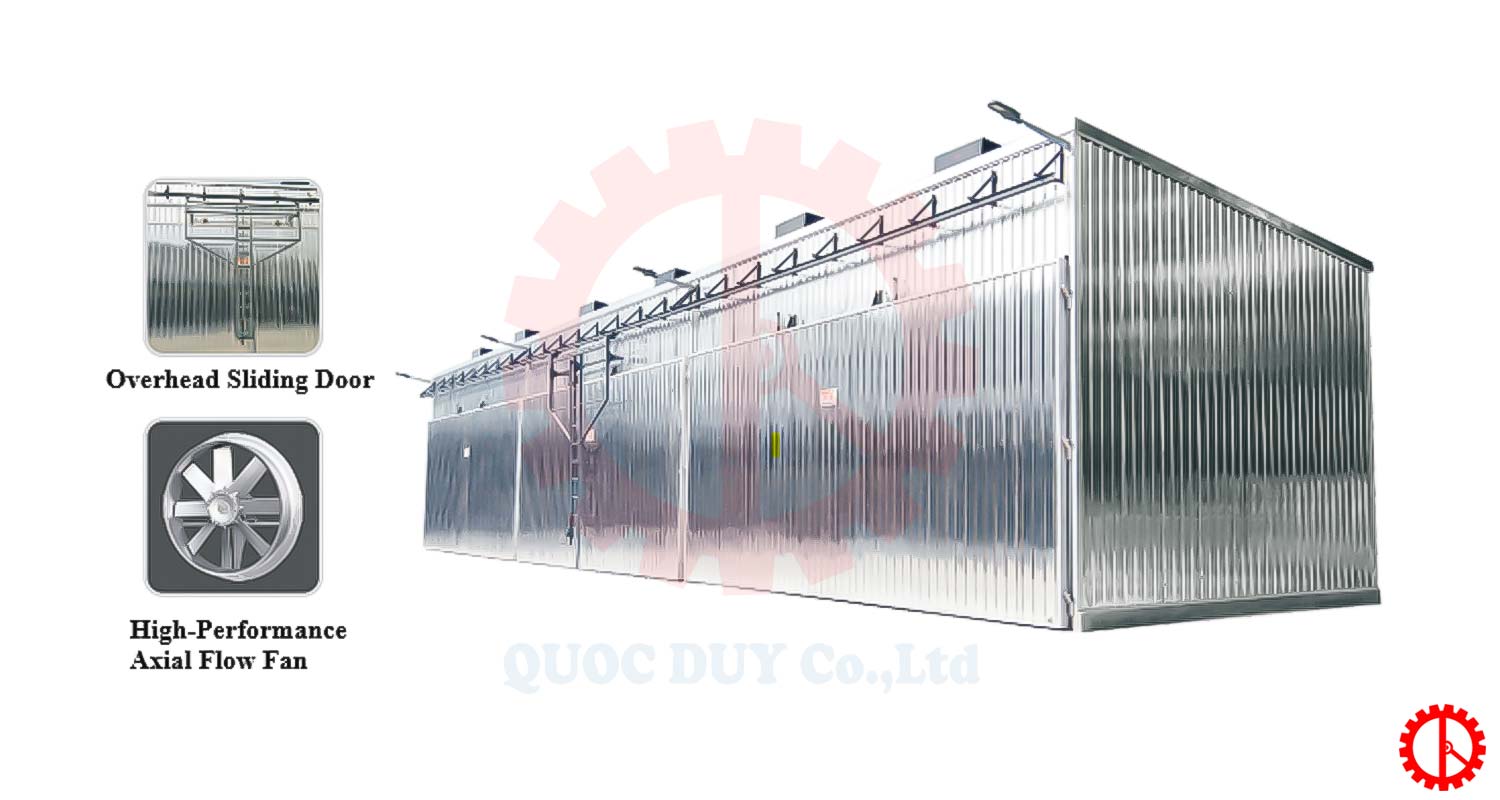

1.1 60 m³ Aluminum alloy aging oven
The provided dimensions represent the clear internal measurements. The side and rear walls of the chamber are constructed from aluminum alloy. The fan mount and support frames are fabricated from extruded aluminum. The insulation material utilizes 100 mm rockwool, and the internal lining consists of a 1.0 mm thick bright aluminum sheet.
Specifications of 60 m³ Aluminum alloy aging oven
| Capacity | 60 m³ |
| Aluminum Alloy Kiln Chamber Size | 6600 × 6800 × 5600 mm |
| Fan Configuration | 3 kW × 3 Units |

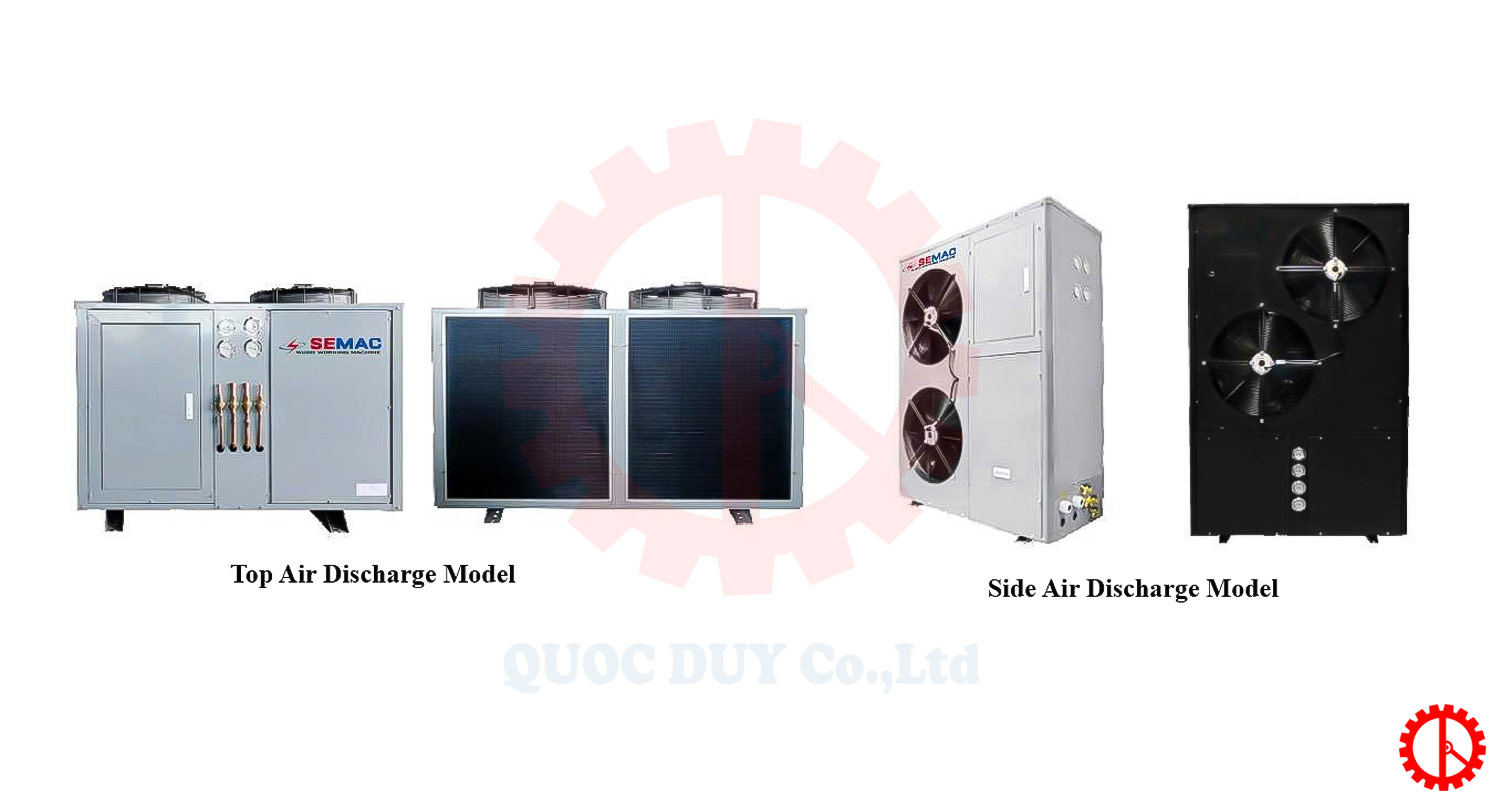

1.2. SMART WOOD DRYING SYSTEM
a. Product Introduction
This high-temperature industrial heat pump is independently developed with a heavy-duty industrial design, equipped with high-efficiency fans and high-performance heat exchangers. The equipment delivers prominent advantages such as energy saving, safety, environmental friendliness, high efficiency, low cost, and a wide application range.
Consuming only a small amount of electricity, this industrial heat pump can effectively absorb low-grade residual heat (waste heat) sources ranging from 15°C to 55°C to generate high-temperature hot air between 40°C and 85°C. This provides a sustainable alternative to oil burners, natural gas, coal, and fuel-fired boilers.
b. Features:
Industrial-Grade Design: Engineered with high-efficiency fans and highly effective heat exchangers to deliver exceptional energy performance and highly reliable system operation.
Modular Construction: The compressor and heat exchangers are installed independently, making on-site connection and installation simple and flexible.
Premium Componentry: Equipped with a high-quality brand-name compressor capable of withstanding heavy pressure loads, operating with low noise, and providing excellent heat “release” capabilities.
Comprehensive Protection Systems: Integrated high/low pressure protection, overload protection, and exhaust gas temperature control to guarantee safe and highly stable equipment operation.
c. Technical Specifications
| Capacity | 60 m³ |
| Quantity | 2 Units |
| Power Distribution | 45 kW |
| Humidification System (Optional) | JDT-20A, 120 kg/h |
| Temperature Range | 40–75°C |
2. SIMILAR PRODUCTS TO THE 60m³ ELECTRIC WOOD DRYING KILN
If the 60m³ electric wood drying kiln does not perfectly align with the specific requirements of your workshop or company’s bending press production lines, you may also consider exploring our other products tailored to various production needs and applications.
