The 6 Sided CNC Boring Machine with Dual Drilling Units is a modern machining solution designed to optimize the wood panel drilling process with high precision and speed. Featuring dual drilling units, the machine delivers exceptional output and reduces idle time, making it highly suitable for industrial furniture production. The intelligent control system ensures maximum accuracy and minimizes errors, while the user-friendly interface allows for effortless operation.
Key Features of 6 Sided CNC Boring Machine with Dual Drilling Units
Heavy duty frame, built with a robust structure that ensures stable operation and a long service life.

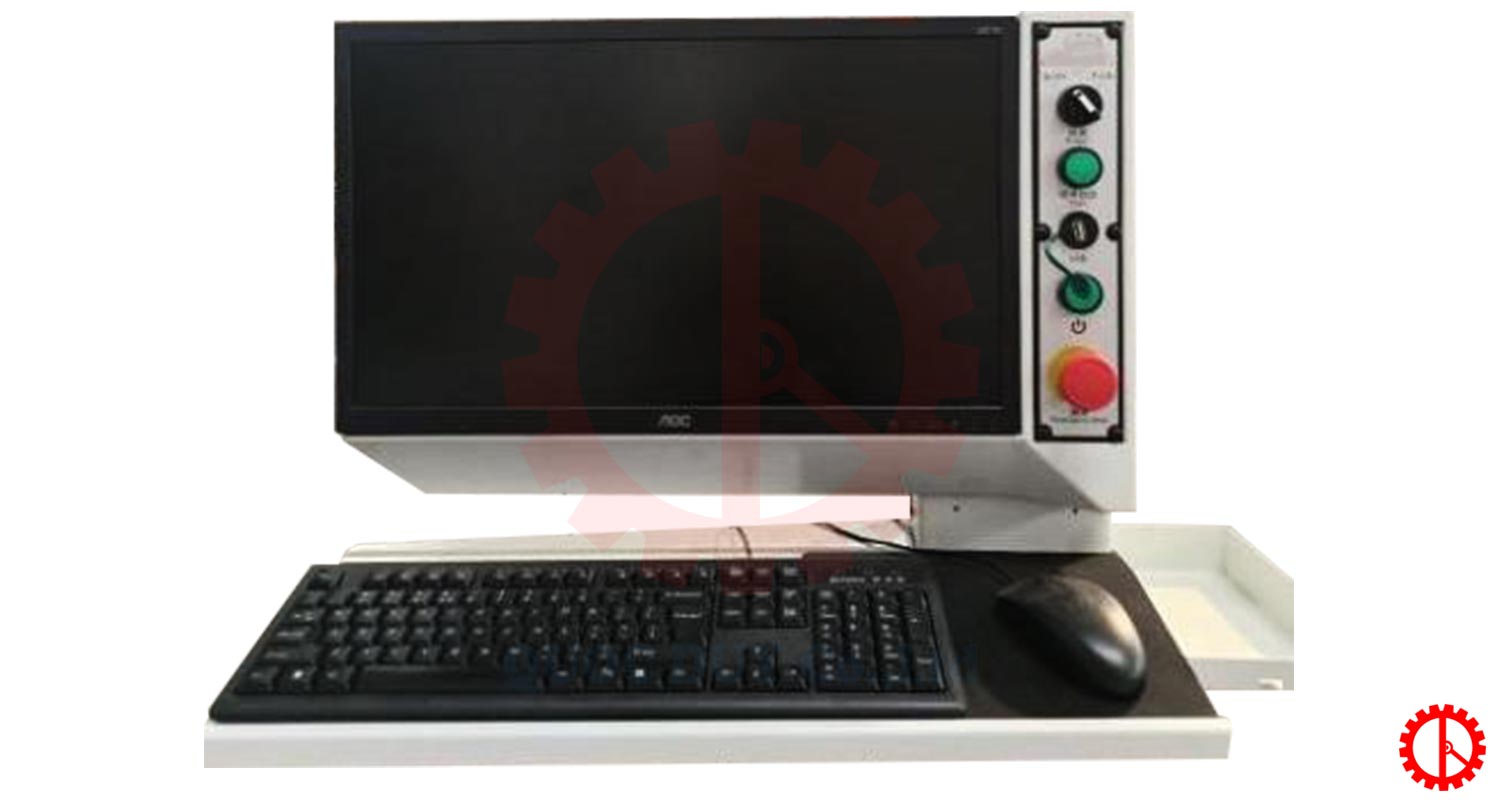

Intuitive interface, visual and user friendly control system that supports rapid setups and operations.

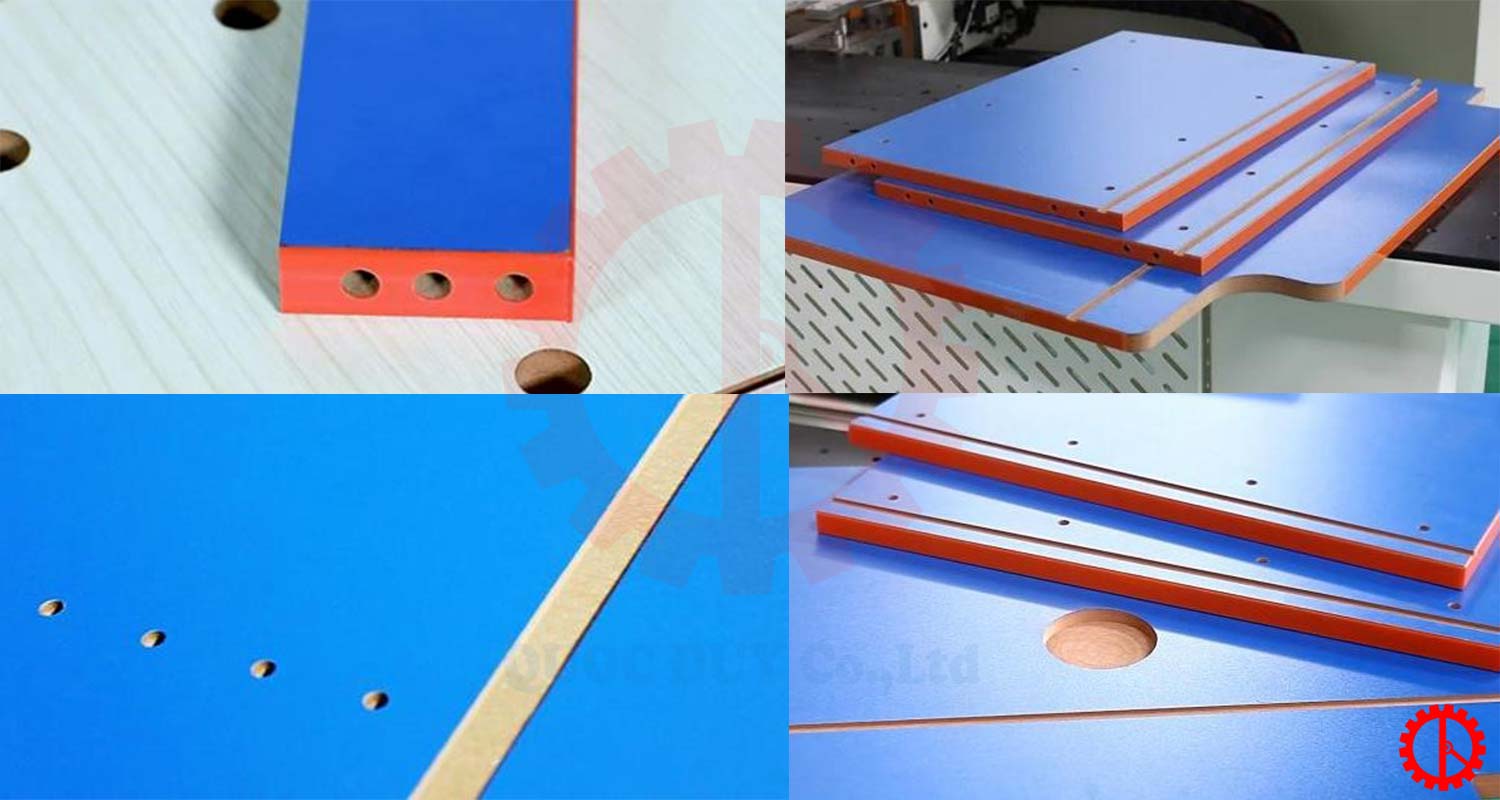

Versatile processing, highly efficient machining across various engineered wood panels such as MDF, MFC, chipboard (Okal), etc.

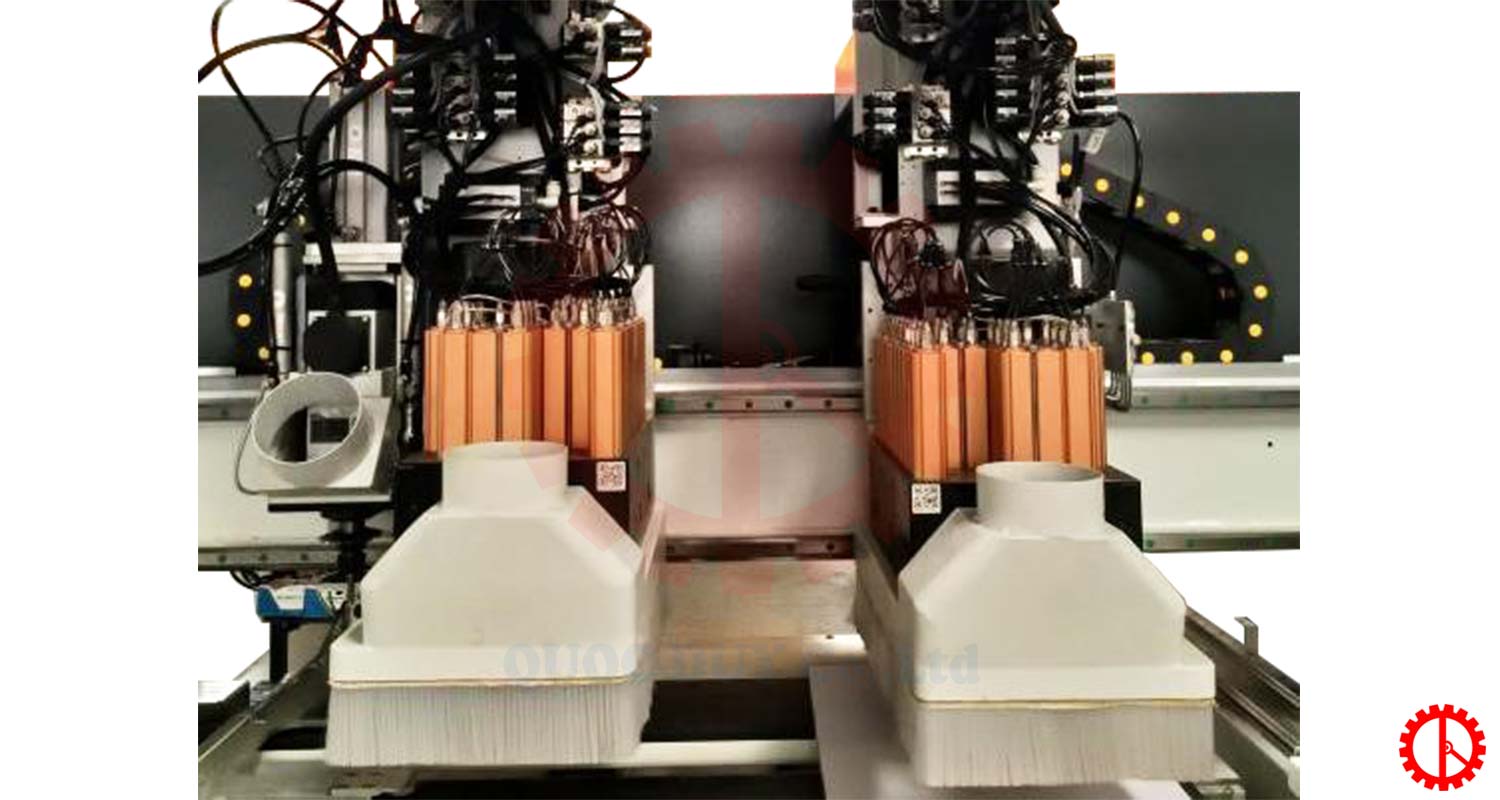

Fully equipped with top, bottom, and horizontal drilling units along with a milling unit to meet diverse processing requirements.
High speed execution, delivers rapid processing speeds while maintaining absolute precision.
Simultaneous 6 sided machining, processes all 6 sides of the panel in a single pass to boost productivity and optimize production workflows.
Technical Specifications
| Maximum Travel Speed | |
| X-axis / U-axis | 130 m/min / 130 m/min |
| Y-axis / Y2-axis | 85 m/min / 85 m/min |
| Z-axis / Z2-axis | 30 m/min / 30 m/min |
| V-axis | 80 m/min |
| W-axis / A-axis | 30 m/min / 30 m/min |
| Drilling Unit | |
| Top vertical drill bits | 12 bits x 2 |
| Top horizontal drill bits | 8 bits x 2 |
| Bottom vertical drill bits | 9 bits |
| Motor power | 2.2 kW x 3 |
| Motor speed | 2800 rpm |
| Milling Spindle | |
| Quantity | 2 (top + bottom) |
| Spindle power | 3.5 kW x 2 |
| Spindle speed | 18,000 rpm |
| Processing Dimensions | |
| Processing width | 50 – 1200 mm |
| Processing length | 250 – 5000 mm |
| Processing thickness | 10 – 60 mm |
| Other Parameters | |
| Working table height | 960 mm |
| Total power | 22.35 kW |
| Working pressure | 0.7 – 0.8 MPa |
| Vacuum suction flow rate | 9400 m³/h |
| Weight | 3850 kg |
| Overall dimensions | 6480 * 2840 * 2200 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice, but will not alter the machine’s functions and performance capabilities.
