6 sided cnc boring machine SM 612
Introduction of 6 sided cnc boring machine
Feature
– Apply to drilling all kinds of density boards, MDF, MFC, okal, …
– Processing on 6 sides with high speed and high precision.
– Automatic unloading
– Scan barcode processing, high efficiency

Precision bottom drilling box

Automatic compression anti-jump device

High torque helical gear reducer

Precision bottom drilling box

Pneumatic clamping feeding device

Roller assistance transfer table

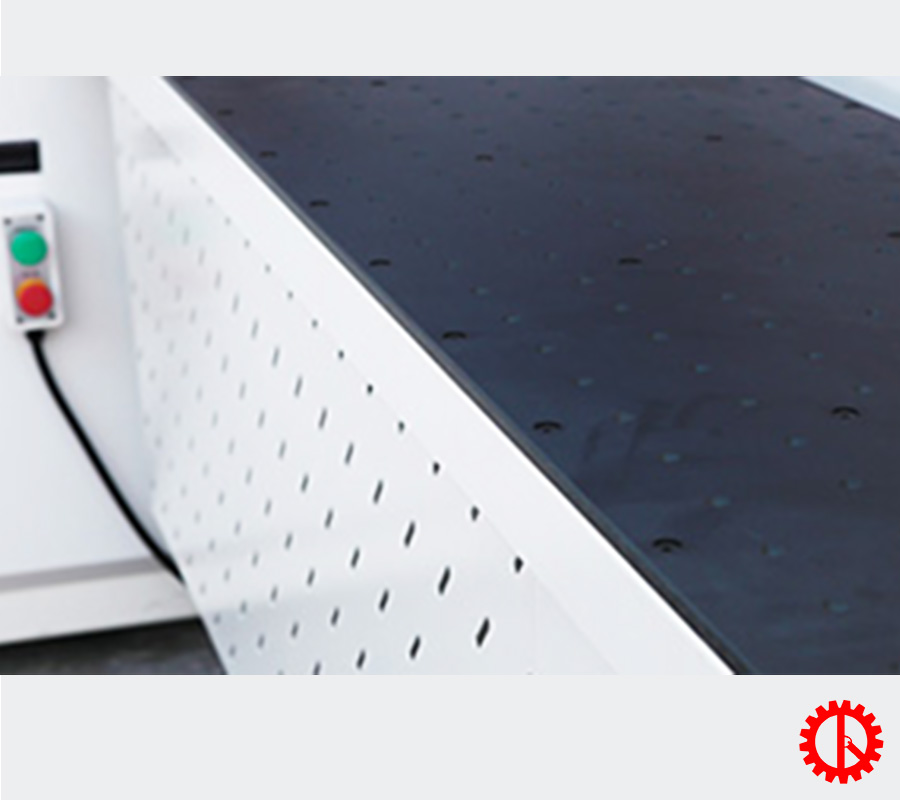

Air floating feeding platform

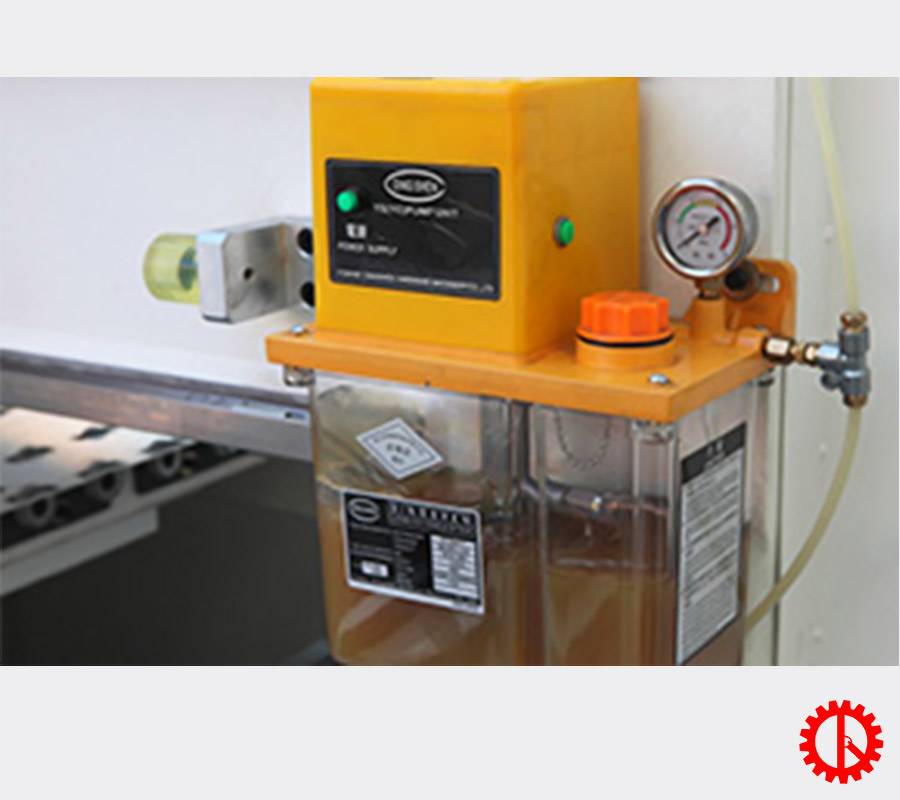

Automatic lubricator
Specification
Processing size range | |
Min. Width of work-piece | 50 mm |
Max. Width of work-piece | 1200 mm |
Max. Length of work-piece | 5000 mm |
Min. Length of work-piece | 250 mm |
Max. Thickness of work-piece | 48 mm |
Min. Thickness of work-piece | 10 mm |
Working Stoke & Max. Position speed | |
X axis | 5000 mm – 130m/min |
Y axis | 1680 mm – 80m/min |
Z axis | 90 mm – 30m/min |
U axis | 5000 mm – 130m/min |
V axis | 1200 mm – 80m/min |
W axis | 100 mm – 30m/min |
A axis | 1260 mm – 30m/min |
Drilling unit | |
Vertical spindles | 12 ( X axis) + 9 ( Y axis) |
Horizontal | 8 |
Drilling box motor speed | 3400 rmp |
Drilling motor power | 2.2 kw |
Milling unit | |
Milling motor power | 3.5 kw x 2 |
Spindle speed | 18000 rmp |
Other data | |
Working table height | 960 mm |
Total power | 19.2 kw |
Voltage | 380 V/50 Hz |
Air pressure | 0.7-0.8 Mpa |
Weight | 3500 kg |
Operation eare size | 5800 x 2840 x 2200 mm |
