Detailed Introduction of the 5 Unit Brush Sanding Machine
Key Features
- The 5 Unit Brush Sanding Machine SM 1300-5S is also widely known as a multi-directional brush sanding machine.
- Engineered with a Brush Sanding 5 Axis configuration: vertical sanding rollers, horizontal sanding rollers, and 360-degree rotating disc units.
- This machine is highly trusted for smoothing flat surfaces and denibbing/sanding primer and sealer coatings. It efficiently handles challenging complex profiles, grooves, edges, and contoured workpieces.
- Similar to other advanced brush sanders, it comes equipped with an intuitive PLC touch screen display for precise parameter monitoring and control.

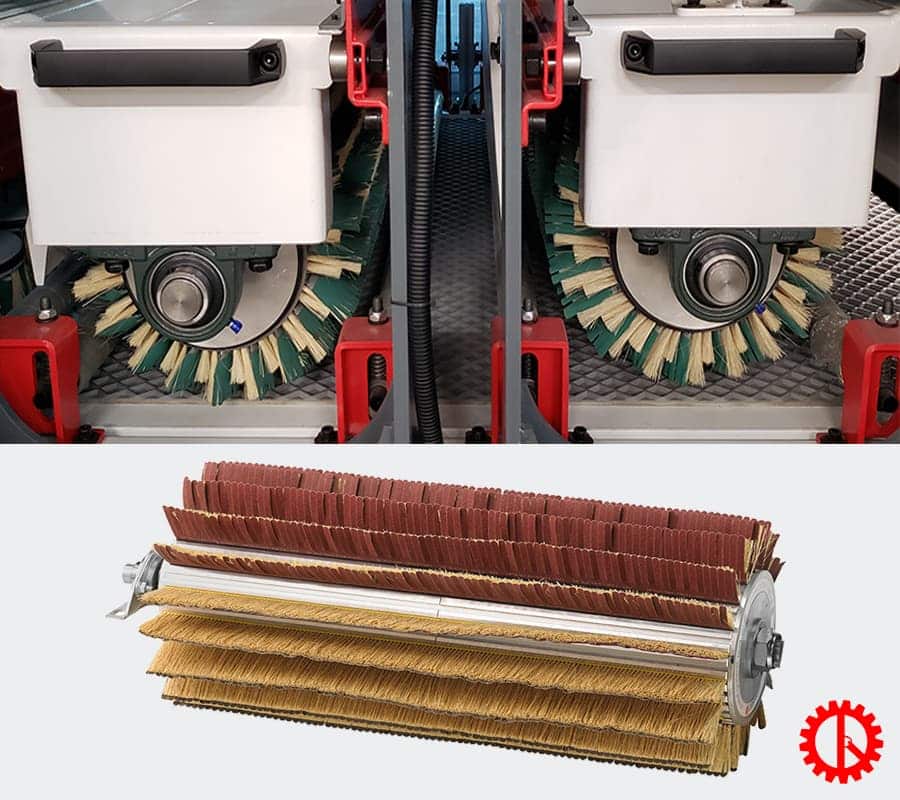

Vertical sanding roller

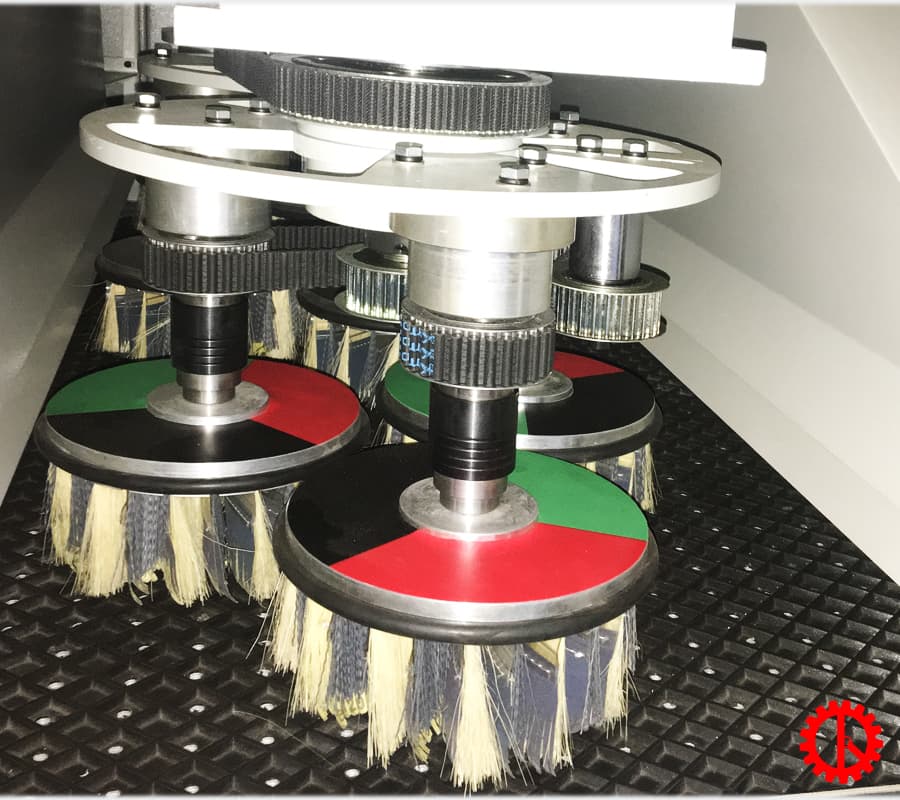

Rotary disc sanding unit

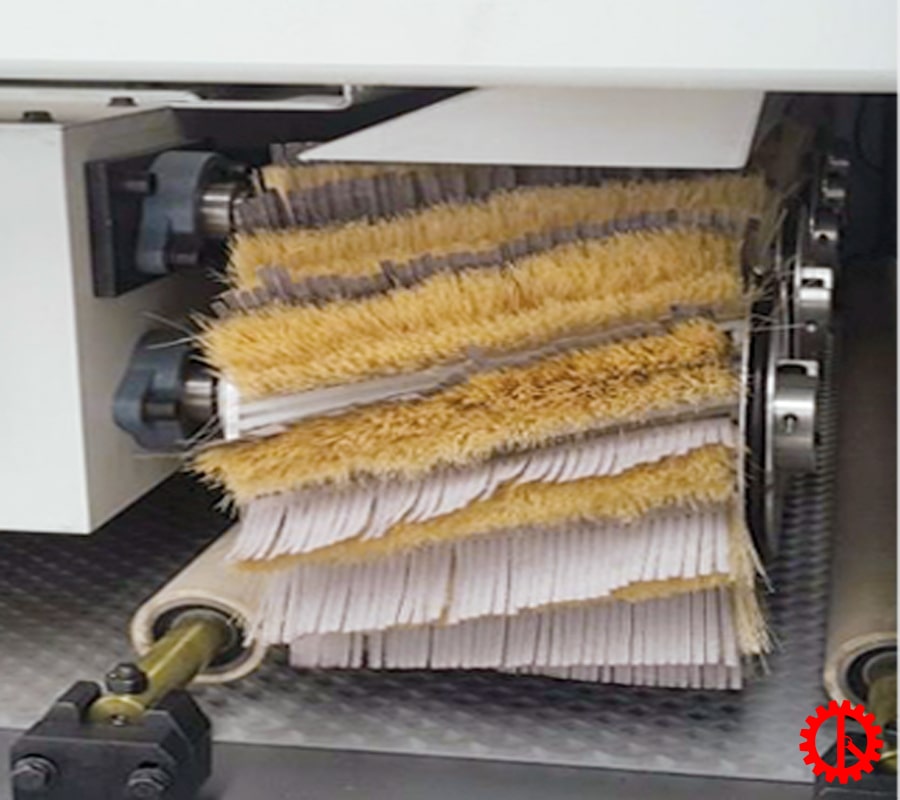

Horizontal sanding roller

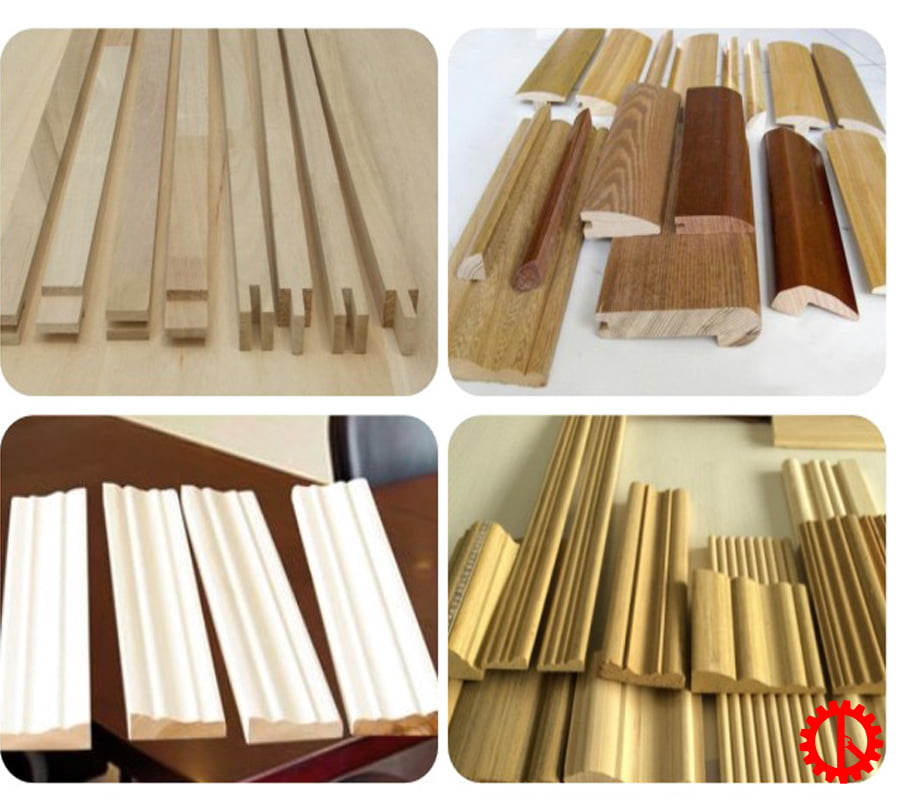

Sanding applications
Technical Specifications
| Max. working width | 1300 mm |
| Working thickness | 100 mm |
| Brush speed adjustment | 80 – 450 rpm |
| Vertical roller speed | 80 – 550 rpm |
| Conveyor speed | 5 – 20 m/min |
| Individual axis lifting motor | 5 x 0.25 kW |
| Main lifting motor | 1.5 kW |
| Disc tray motor | 1 x 1.1 kW |
| Brush disc motor | 4 x 1.5 kW |
| Vertical roller motor | 2 x 2.2 kW |
| Horizontal roller motor | 2 x 1.5 kW |
| Conveyor motor | 2.2 kW |
| Oscillation motor | 5 x 0.2 kW |
| Total power | 20.45 kW |
| Number of vertical rollers | 2 sets |
| Vertical roller diameter | Ø300 mm |
| Number of brush discs per unit | 4 x 3 sets |
| Brush disc diameter | Ø180 mm |
| Number of horizontal rollers | 8 sets |
| Horizontal roller diameter | Ø330 mm |
| Dust collection ports | 9 x Ø100 mm |
| Dust extraction velocity | 22 – 30 m/s |
| Machine weight | 4850 kg |
| Machine dimensions | 3750 x 1980 x 2180 mm |
Note: Technical specifications, design features, and machine color are subject to change without prior notice. However, any modifications will not affect the primary functions and operational performance of the machine.
