The 5 axis cnc machine with dual independent heads moving in two directions. This innovative design allows for the simultaneous machining of two different products. Not only can it precisely handle the most complex 3D intricate details, but it also doubles your productivity, delivering exceptional economic efficiency for high-end manufacturing.
Features of 5 axis cnc machine with dual independent heads moving in two directions
- The SYNTEC controller from Taiwan operates stably, is easy to operate, and offers high precision.
- The machine performs a variety of functions including milling, drilling, grooving, and 45-degree bevel cutting, with 5 axes of motion, allowing it to process complex 3D shapes such as chair frames and legs.
- The robust machine frame ensures stable operation during product processing.
- The machine is designed with two independent heads, allowing it to process the same product or two different types of products simultaneously, saving production time and costs and increasing productivity.
- Using a dual spindle head with a 9kW power output and two cross-shaped motors, it can accommodate 4 cutting tools simultaneously, enabling the simultaneous processing of different products, increasing processing efficiency and saving production time.
- The flexible, adjustable vacuum work table can be adjusted left and right, allowing for convenient addition of pneumatic fixtures. It enables quick switching between curved and flat fixtures.
- The 3D simulation software is particularly useful: it avoids collision risks, eliminates unnecessary stops and toolpaths, reduces programming time, and improves production efficiency. It is compatible with many programming software programs on the market such as NX, AlphaCam, PowerMill, etc., and is easy to operate.

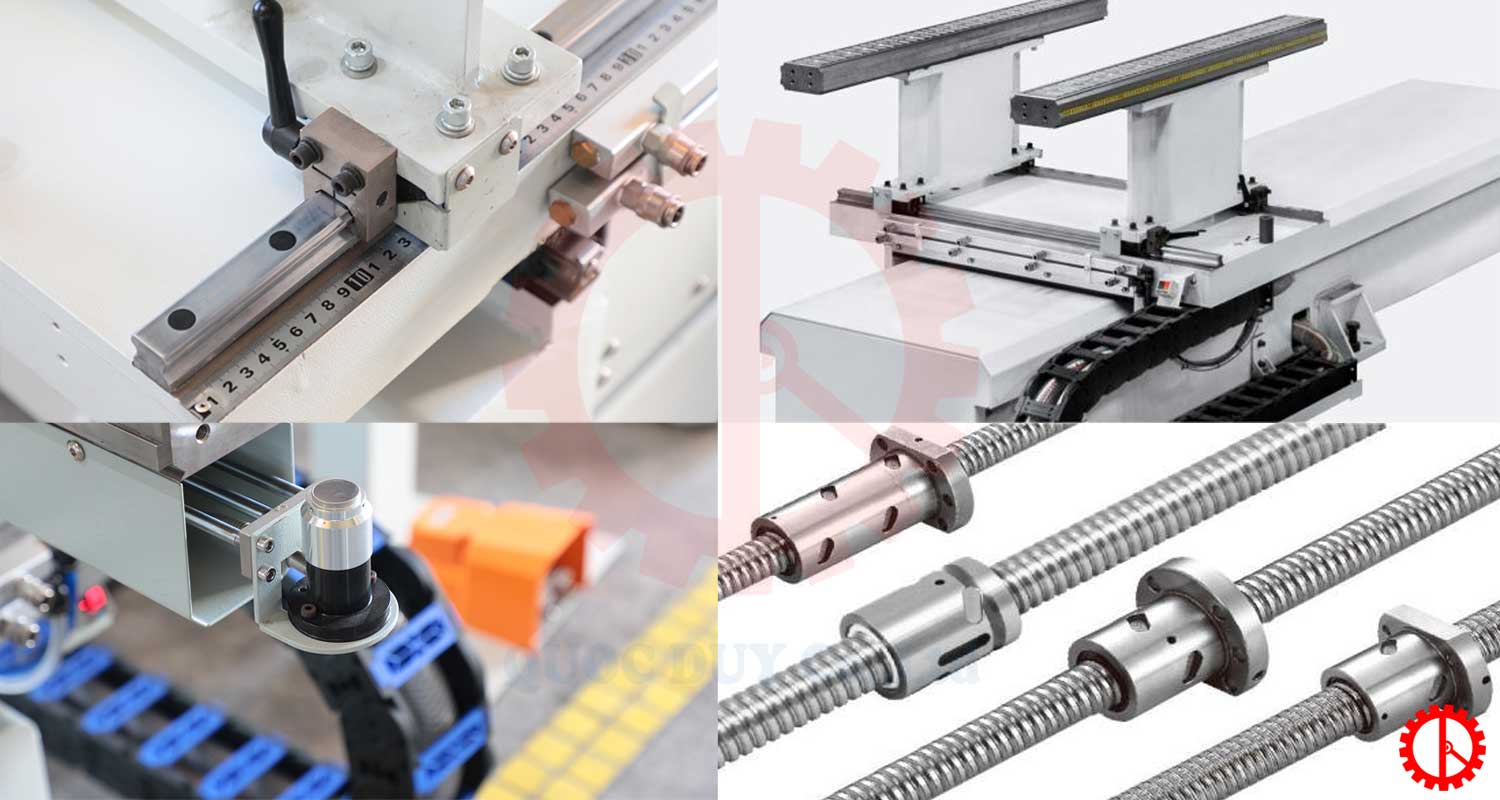

- SYNTEC servo motors + high-precision drive structures: The mechanical system uses servo motors to drive high-precision drive structures on each axis.
- Sumitomo (Japan) gearboxes operate smoothly and quietly. The low friction coefficient eliminates relative slippage in the meshing area, minimizing wear and ensuring machine durability.
- Automatic oil pumps supply oil to drive mechanisms such as guide rails, racks, gears, etc., ensuring smooth movement with high precision.
Specifications of 5 axis cnc machine with dual independent heads moving in two directions
| Working table size | : 1130x980mm x 2 pcs |
| X1/X2 axis travel | : 3600 mm |
| Y1/Y2 axis travel | : 4000 mm |
| Z1/Z2 axis travel | : 800 mm |
| C1/C2 axis travel | : ±540° |
| A1/A2 axis ( rotary head ) | : ±360° |
| Maximum X1/X2 axis travel speed | : 60m/min |
| Maximum Y1/Y2 axis travel speed | : 60m/min |
| Maximum Z1/Z2 axis travel speed | : 30m/min |
| axis servo motor power | : 1.7 Kw |
| Y axis servo motor power | : 1.7 Kw |
| Z axis servo motor power | : 2.4 Kw |
| C axis servo motor power | : 1.7 Kw |
| A axis servo motor power | : 1.1 Kw |
| Spindle motor power | : 9 kW x 4 – speed 18000 rpm |
| Vacuum pump power | : 4 Kw x 2 pcs |
| Voltage | : 380V/50Hz |
| Air pressure | : 0.7 – 0.8 MPa |
| Net weight | : 6500 kg |
| Machine size | : 4500x4500x3300mm |
Note: Technical specifications, design features, and machine color may be subject to change without prior notice; however, such changes will not affect the machine’s functions or operational performance
