The 5 Axis CNC Machine with Automatic Tool Changer for chair backrests is specifically engineered for processing high-quality chair back components. Equipped with an advanced automatic tool changer (ATC) system, it ensures seamless, uninterrupted, and rapid machining workflows.
Introduction of the 5 Axis CNC Machine with Automatic Tool Changer
Key Features of the 5 Axis CNC Machine for Chair Backrests

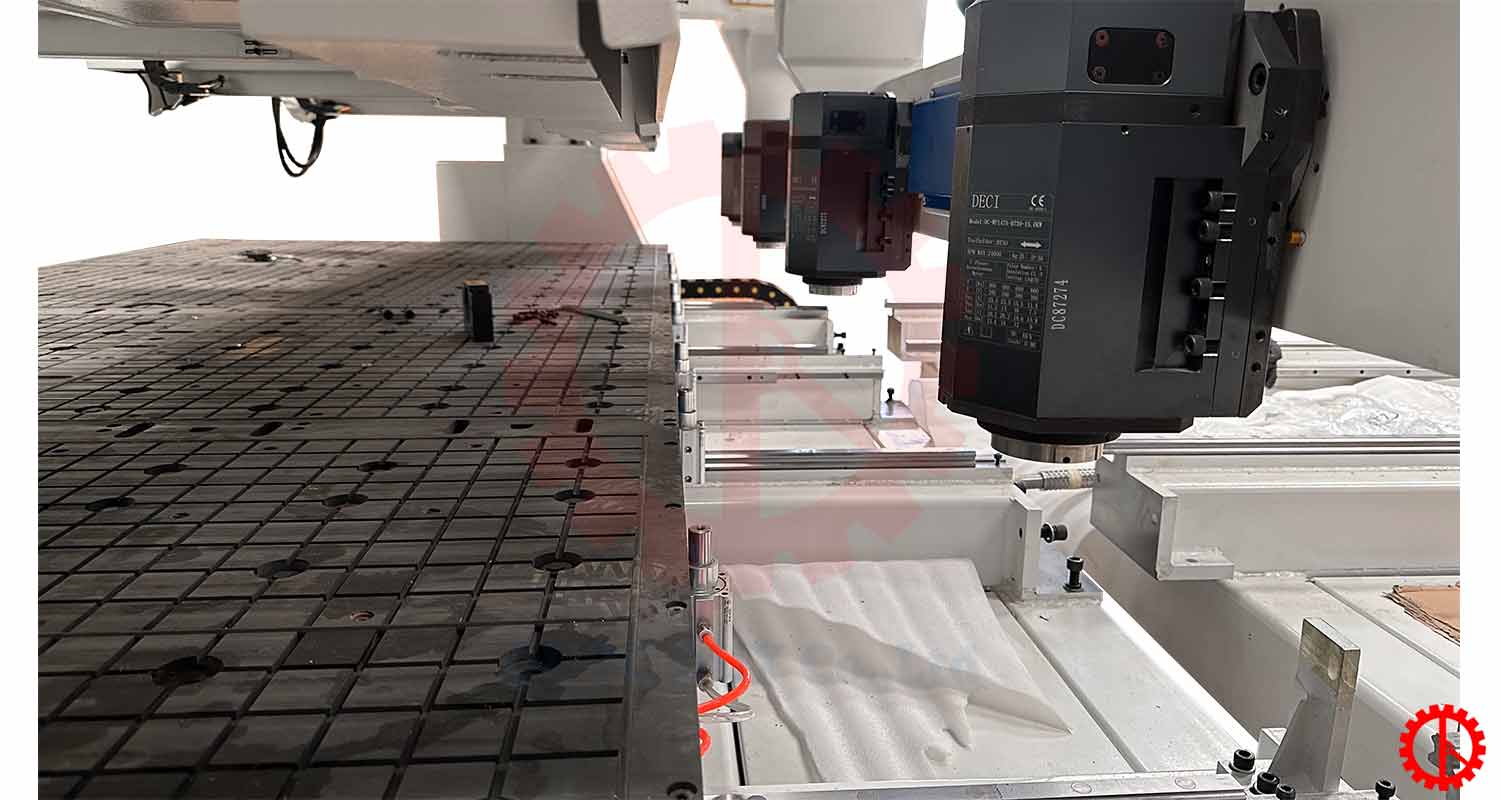

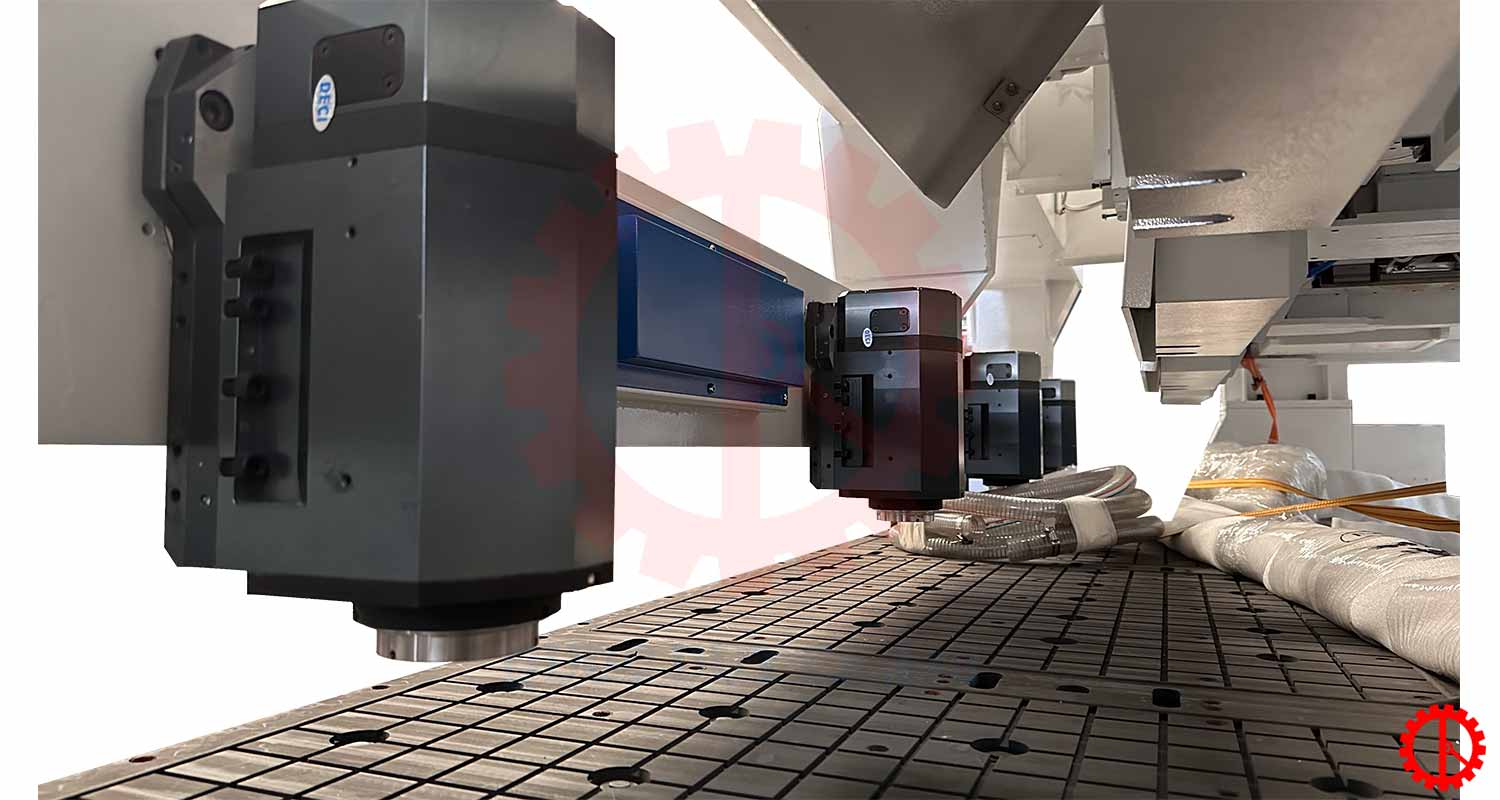

Modern design allows each machining assembly to move with high flexibility and mobility.

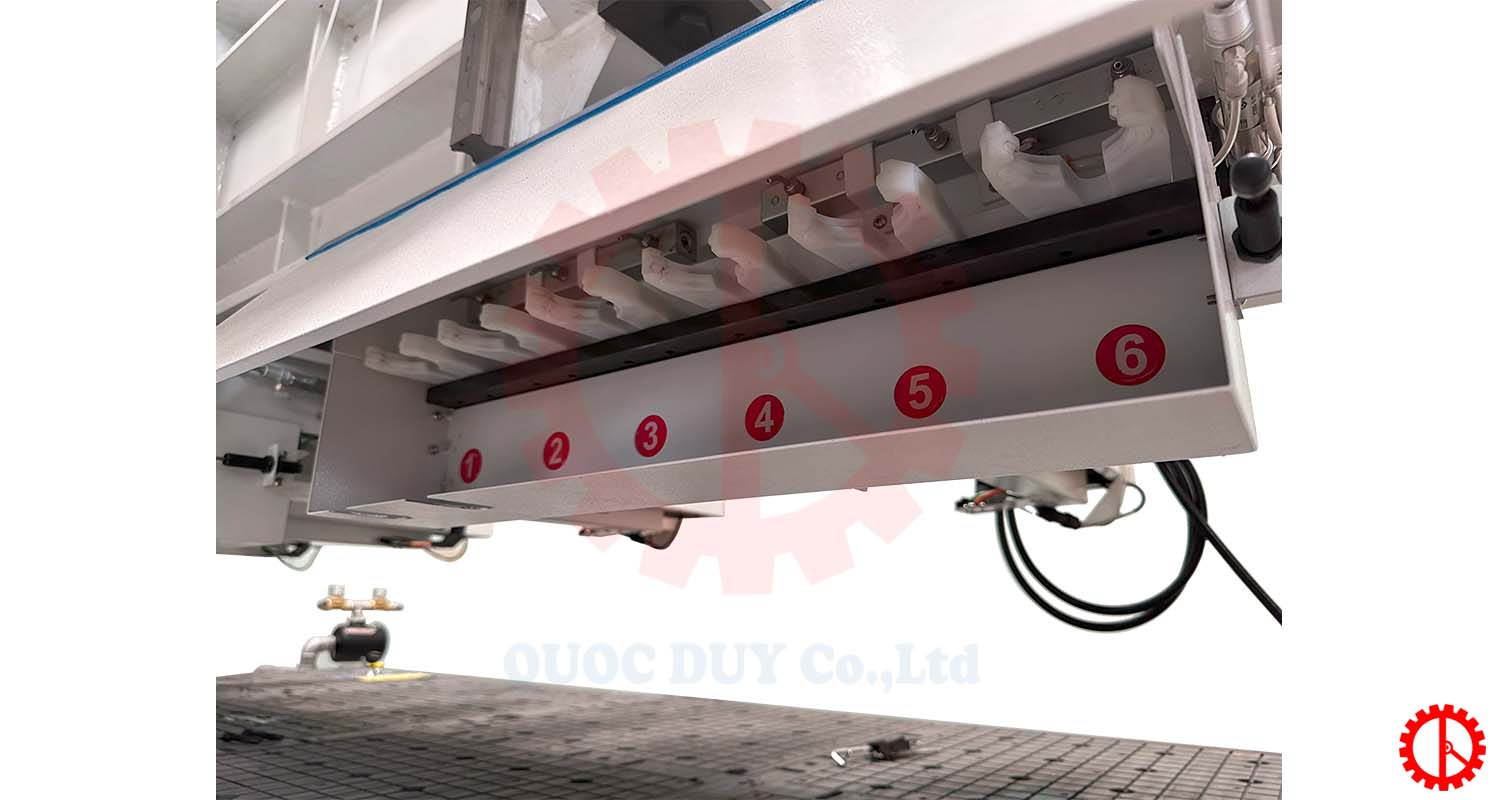

Integrated with a high-speed automatic tool changer function, maximizing versatility during complex component processing.
High throughput capacity capable of manufacturing 4 products simultaneously per cycle.

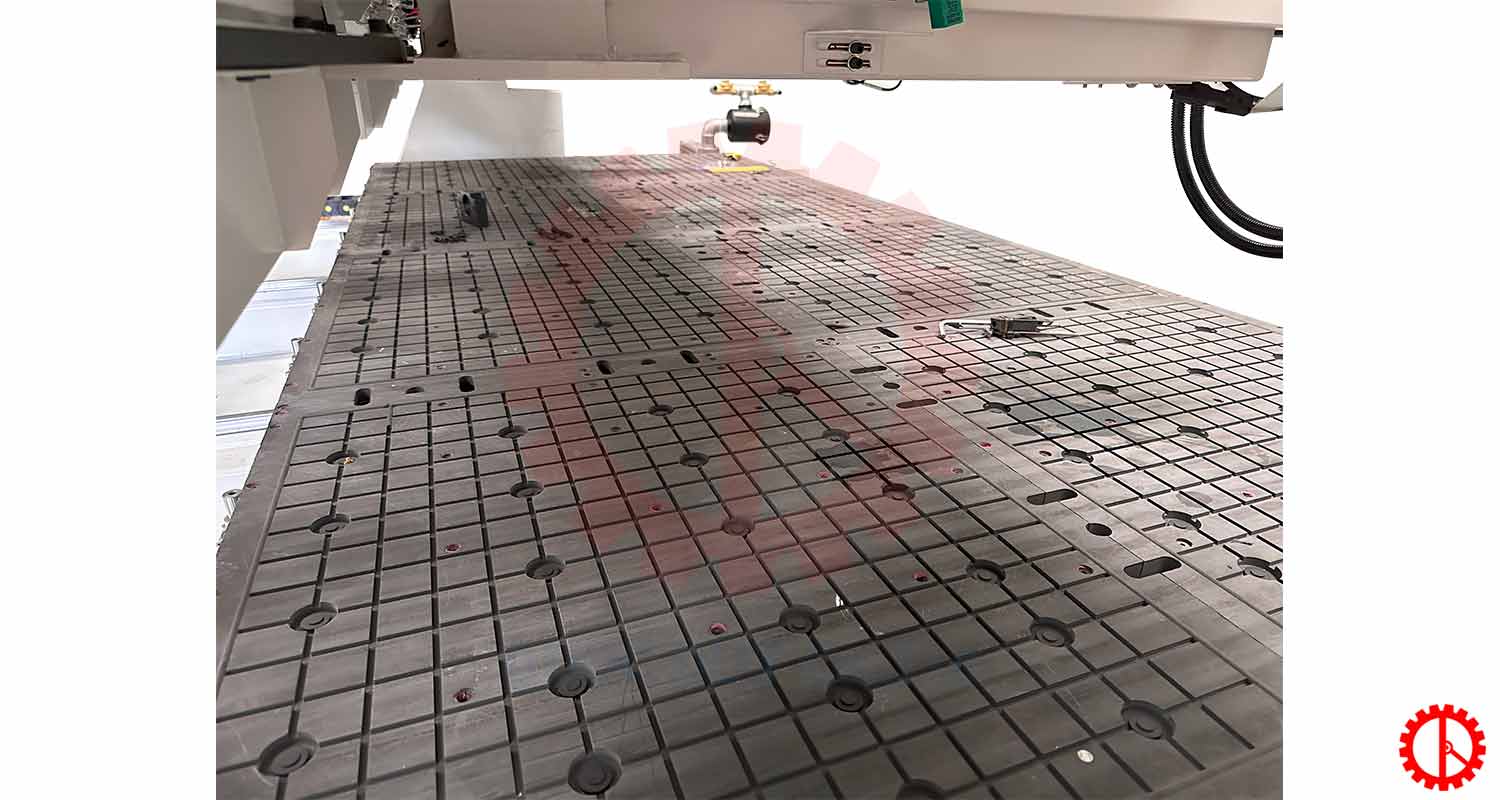

Features a synchronized system of moving machining units and an in-and-out traveling worktable structure, delivering exceptional stability and superior machining precision.
Equipped with an intuitive, user-friendly control interface.
Technical Specifications
| Worktable size | 3600 x 1700 mm |
| Max. X-axis travel | 1890 mm |
| Max. Y-axis travel | 2490 mm |
| Max. Z-axis travel | 725 mm |
| Max. A-axis travel | -126° to 46° |
| Max. B-axis travel | -60° to 60° |
| Spindle motor | 15 kW x 4 units, Automatic Tool Changer (ATC) |
| Spindle speed | 18,000 rpm |
| X-axis servo motor | 3 kW |
| Y-axis servo motor | 2 kW |
| Z-axis servo motor | 3 kW |
| A-axis servo motor | 1 kW x 2 units |
| B-axis servo motor | 0.75 kW x 4 units |
| Q-axis servo motor (tool magazine) | 0.4 kW x 4 units |
| Voltage | 380V / 50Hz |
| Compressed air | 0.6 – 0.8 MPa |
| Machine weight | 11,000 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice; however, any modifications will not alter the functionality or operational capabilities of the machine.
