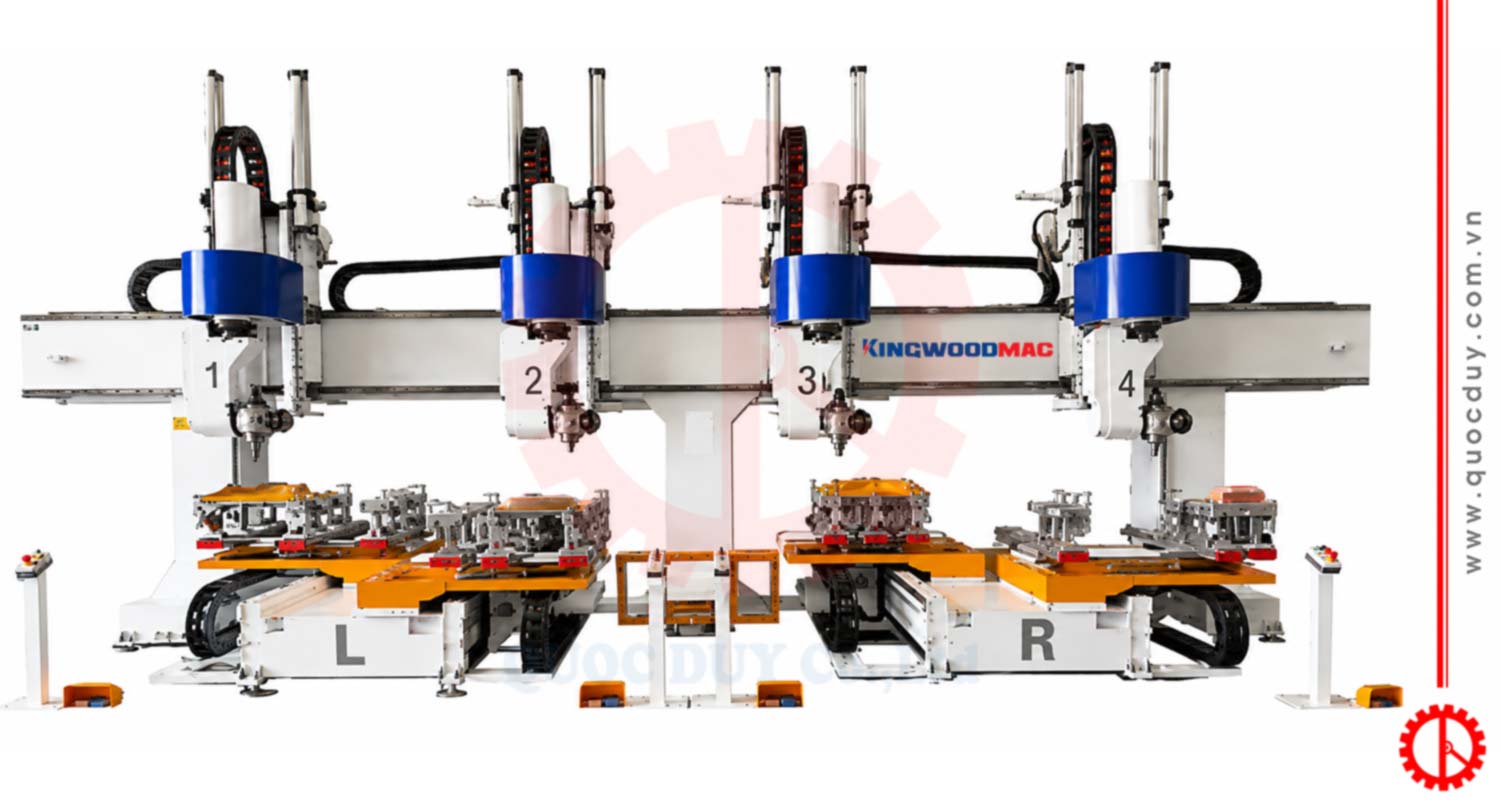

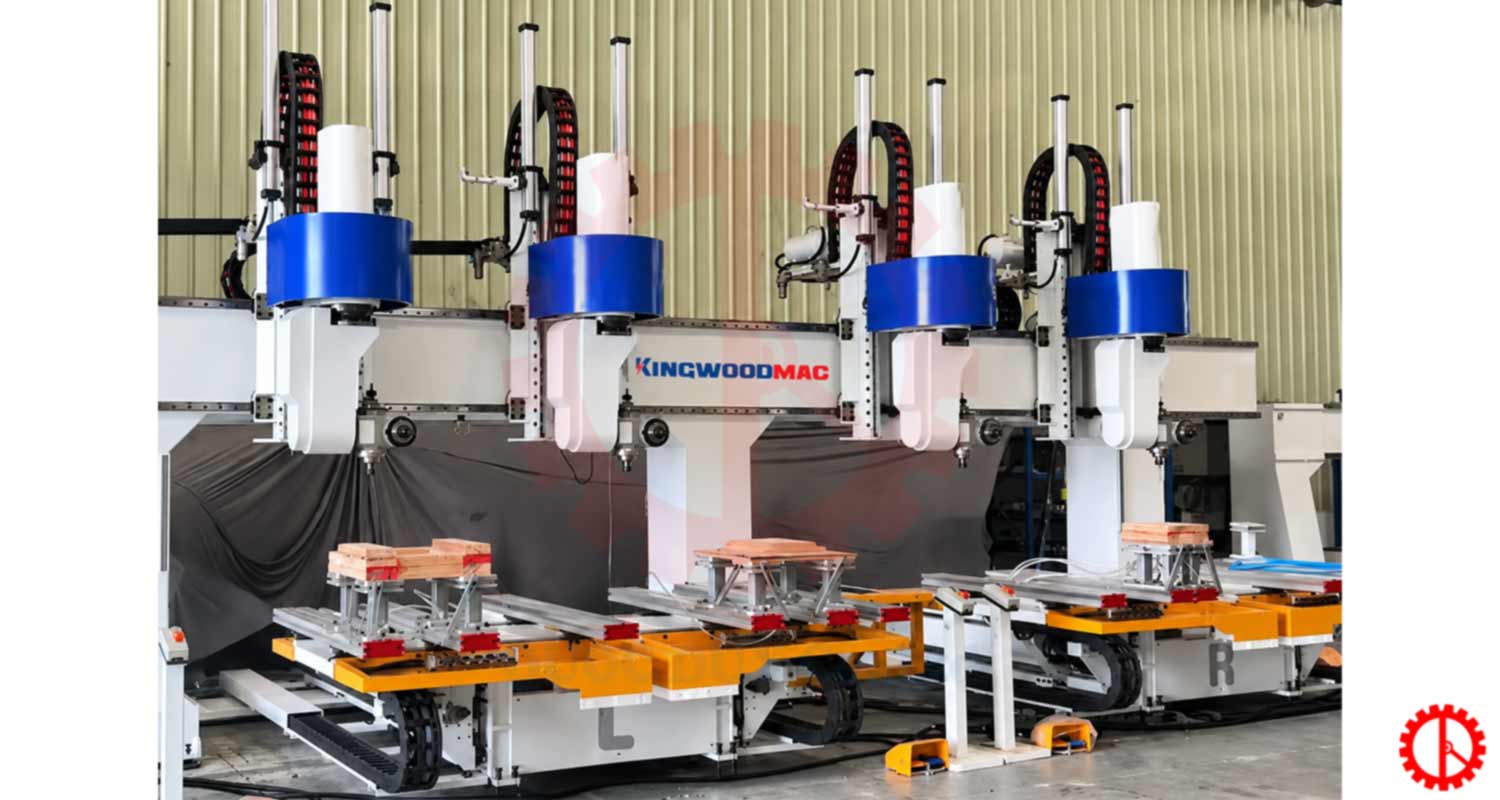

5-Axis CNC machining center with four independent heads – MASTER T4Z4 is a premium CNC processing solution specifically engineered for high-precision machining of intricate contours and complex profiles. Featuring a design with four independent machining heads combined with advanced 5-axis technology, it maximizes productivity, drastically reduces lead times, and satisfies diverse manufacturing requirements for custom furniture designs, molding, and complex workpieces.
Features of 5-Axis CNC machining center with four independent heads
Advanced 5-Axis Simultaneous Controller: Features a dual-system, dual-channel control configuration for high-speed, synchronized multi-axis motion.
Complex 3D Surface Processing: Engineered to handle complex 3D spatial curves, custom-shaped parts, and intricate workpieces—dramatically boosting machining throughput and shortening total production cycles.
Ultra-Fast Tool Changing: Head-to-head switching time takes under 1 second, minimizing idle time to enhance surface finish quality and optimize operational efficiency.
Comprehensive Machining Range: Capable of versatile operations across flat surfaces, curved faces, inclined planes, compound-angled holes, 2D/3D contours, and freeform 3D paths.
Roughing & Finishing Applications: Perfectly suited for both roughing and finishing operations on complex solid wood components and uniquely profiled items.
Vacuum Worktable: Workpieces are firmly secured by a vacuum clamping system, allowing multiple complex machining steps to be completed in a single setup, maximizing efficiency and precision.
Specifications of 5-Axis CNC machining center with four independent heads
| Maximum X-Axis Speed | 45 m/min |
| Maximum Y-Axis Speed | 45 m/min |
| Maximum U-Axis Speed | 45 m/min |
| Maximum Z-Axis Speed | 45 m/min |
| A-Axis Rotation | ±120° |
| C-Axis Rotation | ±380° |

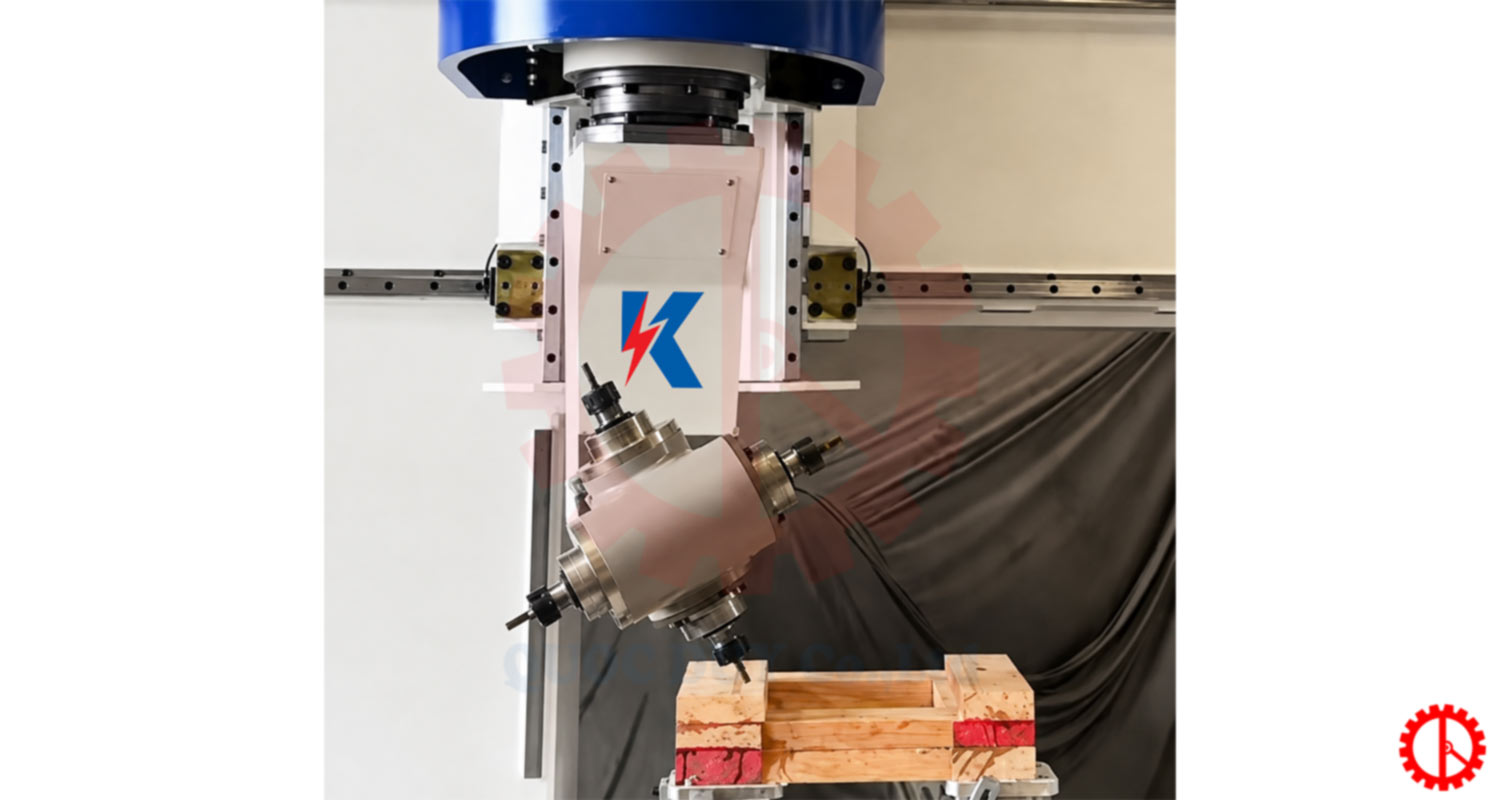

| Spindle Configuration | Manual Tool Change; Each Unit Includes 1 Spindle with 2 Machining Heads, 2R + 2L Tool Interface |
| Spindle Motor Power | (7.5 kW + 7.5 kW) × 4 |
| Maximum Spindle Speed | 18000 rpm |
| Cooling Method | Water Cooling |
| Tool Holder | ER32 × 4 |
| Power Supply | 380V / 3 Phase / 50Hz |
| Working Air Pressure | 6 bar |
| Installed Power | 35 kW |
| Air Inlet Diameter | Ø16 mm |
| Input Power Cable Size | 10 mm² |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
VIDEO OF 5-AXIS CNC MACHINING CENTER WITH FOUR INDEPENDENT HEADS
Reputable Supplier of 4-Independent-Head 5-Axis CNC Machining Centers
Investing in a 5-axis 3D CNC machine is more than acquiring equipment—it is a long-term investment in your manufacturing operations. Quoc Duy provides the MASTER T4Z4 alongside end-to-end services, including technical consultation, installation, operational training, and ongoing maintenance. This ensures your business achieves rapid, stable production integration while maximizing equipment performance and ROI.
Contact Quoc Duy today for expert consultation on the 4-independent-head 5-axis CNC machine tailored to your factory scale and investment goals.
- Email : info@quocduy.com.vn
- Hotline : +84 903 600 113
You are also welcome to visit our showroom and experience the machine in operation at: 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam.
