The 5 Axis 4 Head 16 Tool CNC Machine – PRO 4X4 features high-speed machining spindles operating at approximately 12,000 rpm. Capable of multi-angle multi-axis machining, the machine is engineered with a heavy-duty load-bearing steel structure that ensures high precision and exceptional machining performance.
Features of 5 Axis 4 Head 16 Tool CNC Machine

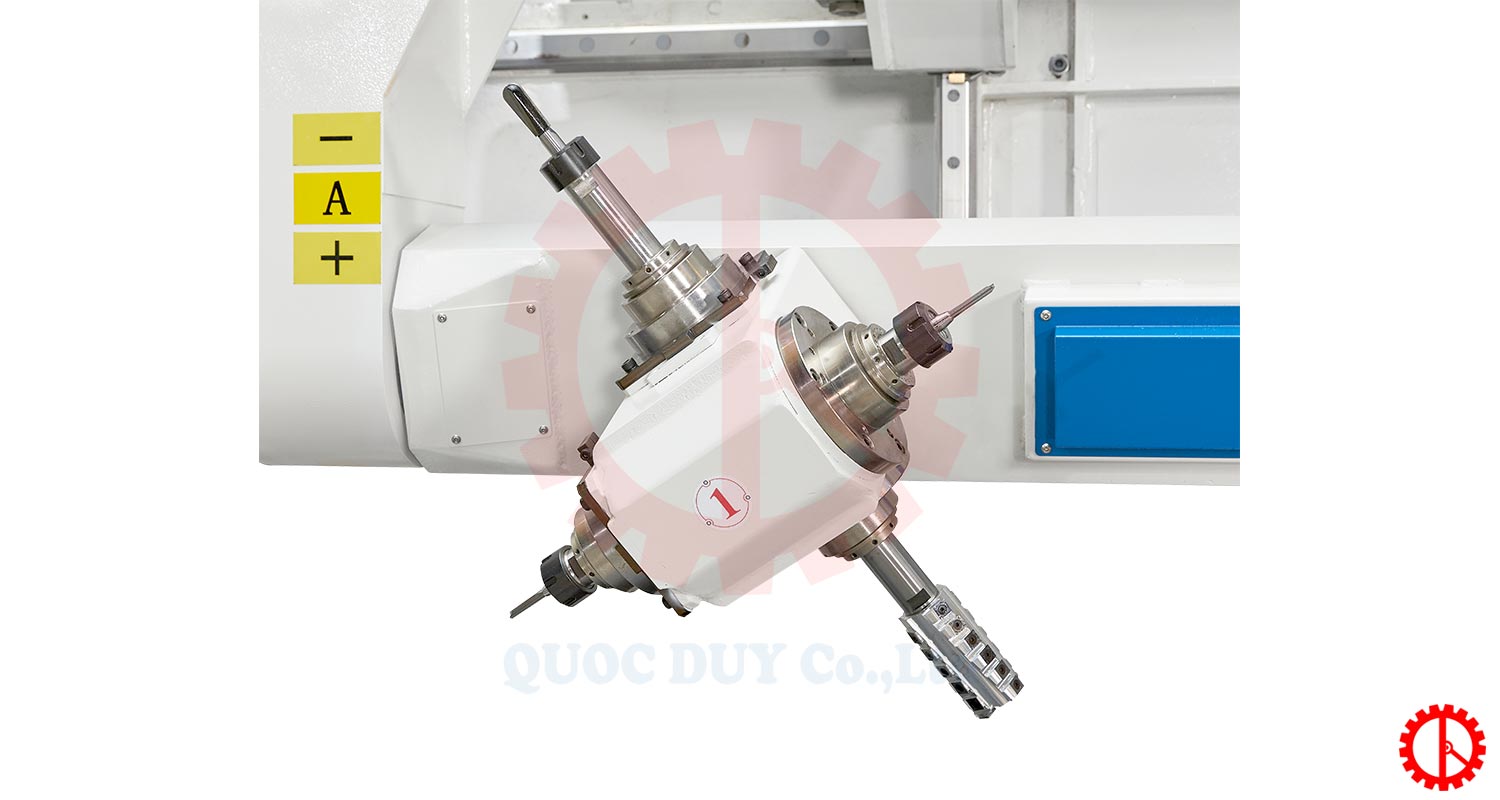

Modern design allowing each machining assembly to move with high flexibility.
High-efficiency throughput capable of processing 4 workpieces simultaneously per cycle.

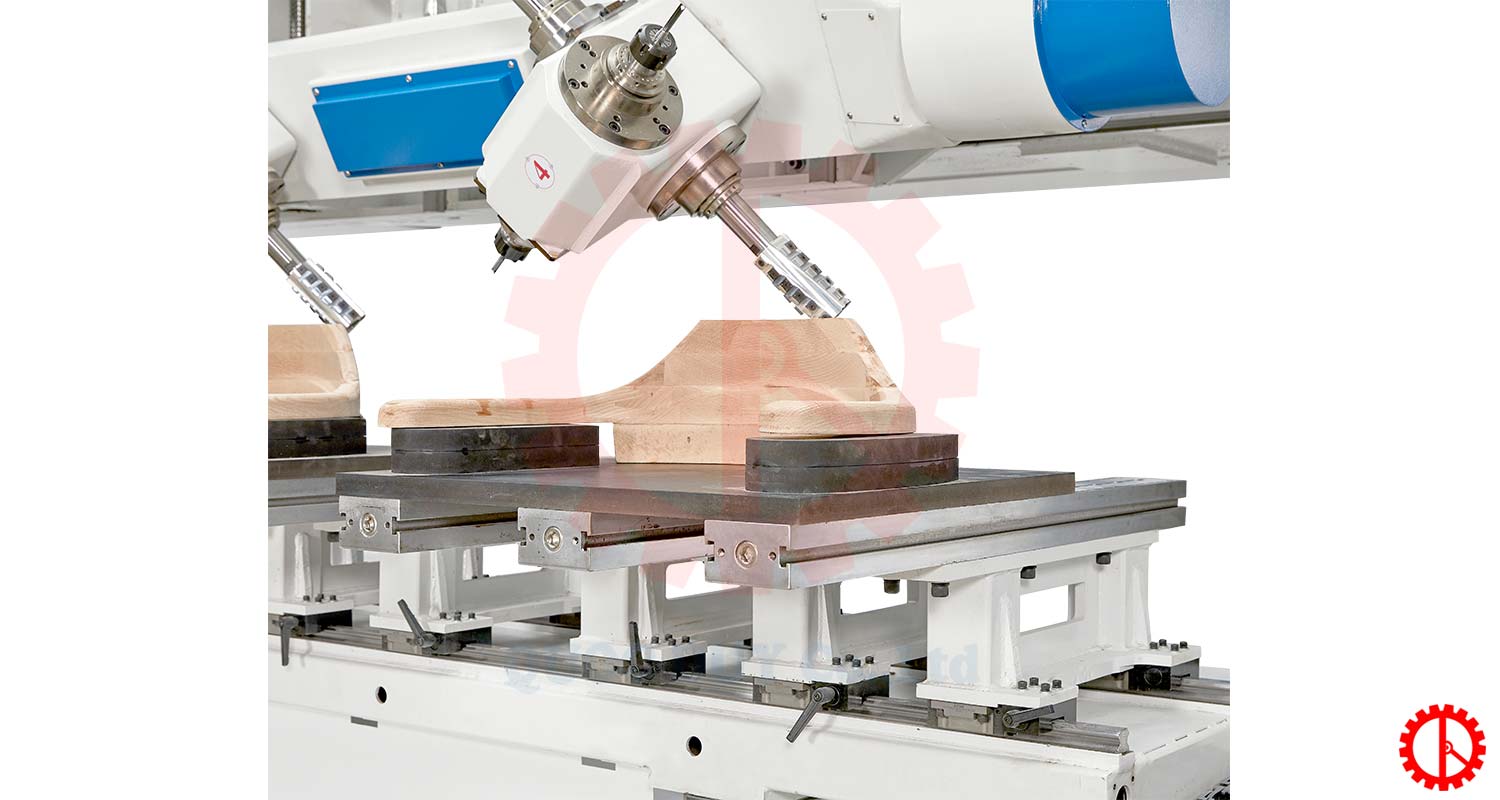

Features a synchronized system of moving machining units and an in-and-out traveling worktable configuration, delivering superior stability and enhanced machining accuracy.
Equipped with an intuitive, user-friendly control interface.
Specifications of 5 Axis 4 Head 16 Tool CNC Machine
| Workpiece dimensions | 850 x 850 x 250 mm |
| Max. X-axis travel | 1600 mm |
| Max. Y-axis travel | 1200 mm |
| Max. Z-axis travel | 400 mm |
| Max. A-axis travel | ±270° |
| Max. B-axis travel | ±50° |
| Spindle motors | 5.5 kW x 8 units |
| Max. spindle speed | 12,000 rpm |
| Voltage | 3-phase, 380V |
| Compressed air | 6 bar |
| Machine weight | 6500 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice; however, any modifications will not alter the functionality or operational capabilities of the machine.
