4 axis CNC router with single ATC spindle – CB 4AR1 ATC features an advanced 4-axis configuration with a 180 degrees tilting spindle. This exceptional capability provides ultimate flexibility for complex machining tasks, such as 45 degrees beveling, hinge and lock case boring, and curved panel cutting. The machine guarantees high-precision results while significantly boosting daily production throughput.
Features of 4 axis CNC router with single ATC spindle – CB 4AR1 ATC
Multifunctional Processing Capabilities: Performs a wide range of processing tasks, including curved panel routing, 45 degrees bevel cutting, and lock/hinge pocket boring, ensuring high-quality results with exceptional accuracy.
Heavy-Duty Frame & Vacuum Table: Built with a rigid, heavy-duty frame to ensure stable and vibration-free operation, paired with a powerful vacuum table that holds workpieces firmly in place during high-speed machining.

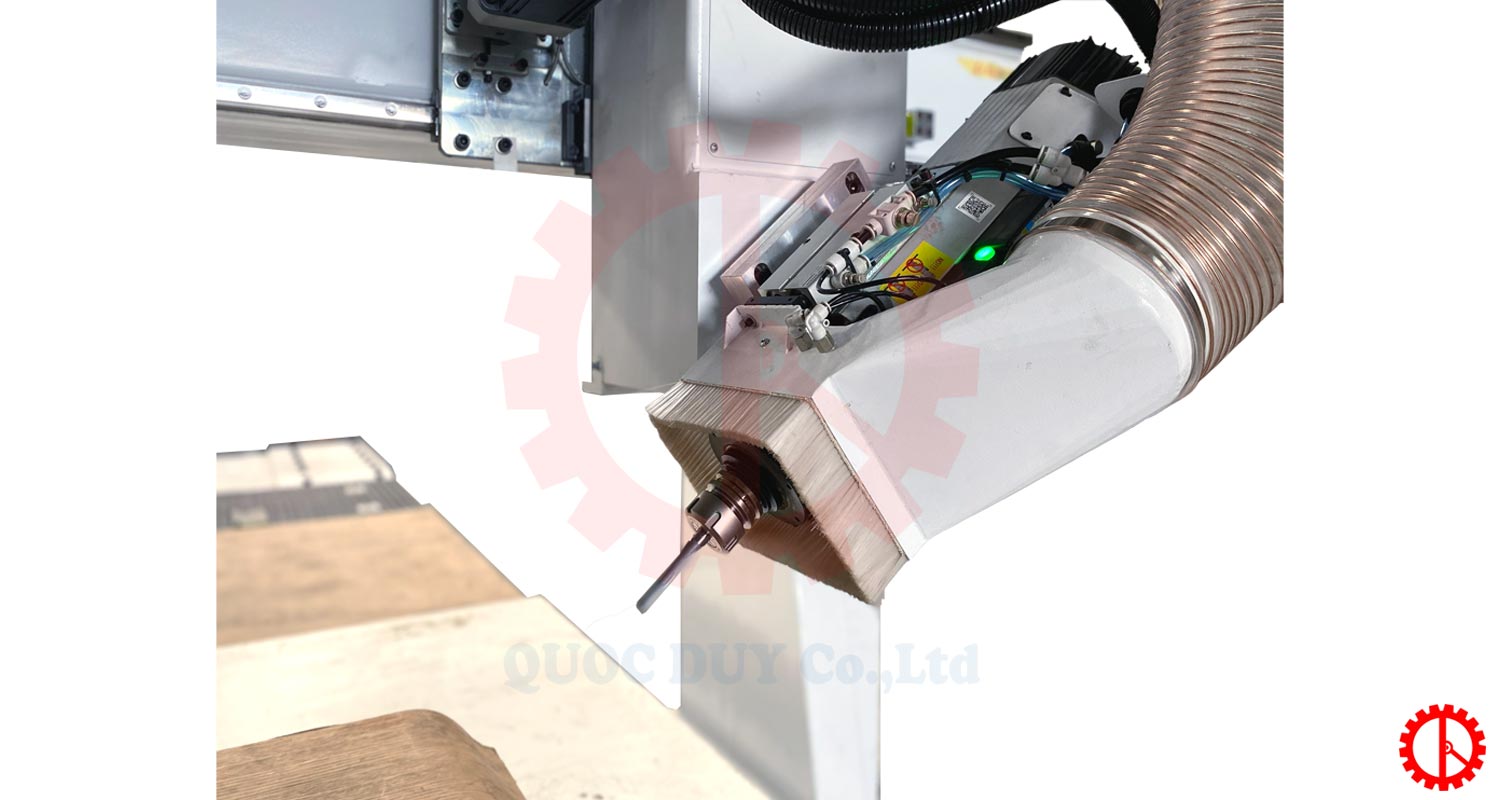

9 kW ATC Spindle & 180 Tilting Rotary Tool Changer: Powered by a high-performance 9 kW spindle integrated with a 12-slot rotary automatic tool changer (ATC). The 180 degrees tilting capability delivers unmatched flexibility for complex machining angles.
SYNTEC Controller (Taiwan) with RTCP Support: Equipped with an advanced Taiwan-made SYNTEC controller featuring RTCP (Rotation Tool Center Point) functionality, ensuring ultra-stable and precise 4-axis simultaneous control.
Specifications of 4 axis CNC router with single ATC spindle – CB 4AR1 ATC
| Maximum Workpiece Size | 1300 × 2800 × 600 mm |
| Rapid Traverse Speed | 50 – 80 m/min |
| Machining Speed | 12 – 30 m/min |
| Spindle Power | 9 kW, Automatic Tool Changer (ATC), Rotary Tool Magazine |
| Spindle Speed | 3000 – 24000 rpm |
| Control System | SYNTEC, Supports RTCP Function, 4-Axis Control |
| Servo Motor Power | 1.5 kW |
| Vacuum Pump Power | 7.5 kW |
| Total Installed Power | 25 kW |
| Power Supply | 380V / 50Hz |
| Working Air Pressure | 0.6 – 0.8 MPa |
| Machine Dimensions | 4300 × 2300 × 3500 mm |
| Weight | 2700 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
