The 4-sided planer with 4 spindles and 230mm working width is an indispensable piece of equipment in professional woodworking shops that require high production speed and perfectly surfaced workpieces right from the initial stage. By planing all four sides simultaneously in one pass, the machine significantly reduces processing time, delivering finished products with superior flatness and sharpness.
Features of the 230mm 4-Spindle 4 Side Planer
Precise Operation: The spindle system is precisely dynamically balanced, ensuring smooth, stable operation, reducing vibration, and thus increasing the sharpness of the surface after machining.
Durable Transmission: The durable and precise transmission system ensures strong traction and maintains working speed even during continuous operation for many hours.
Safety & Cleanliness: The machine is equipped with a noise-reducing cover combined with a dust collection system, keeping the workspace clean and reducing the impact of wood dust on the operator’s health.

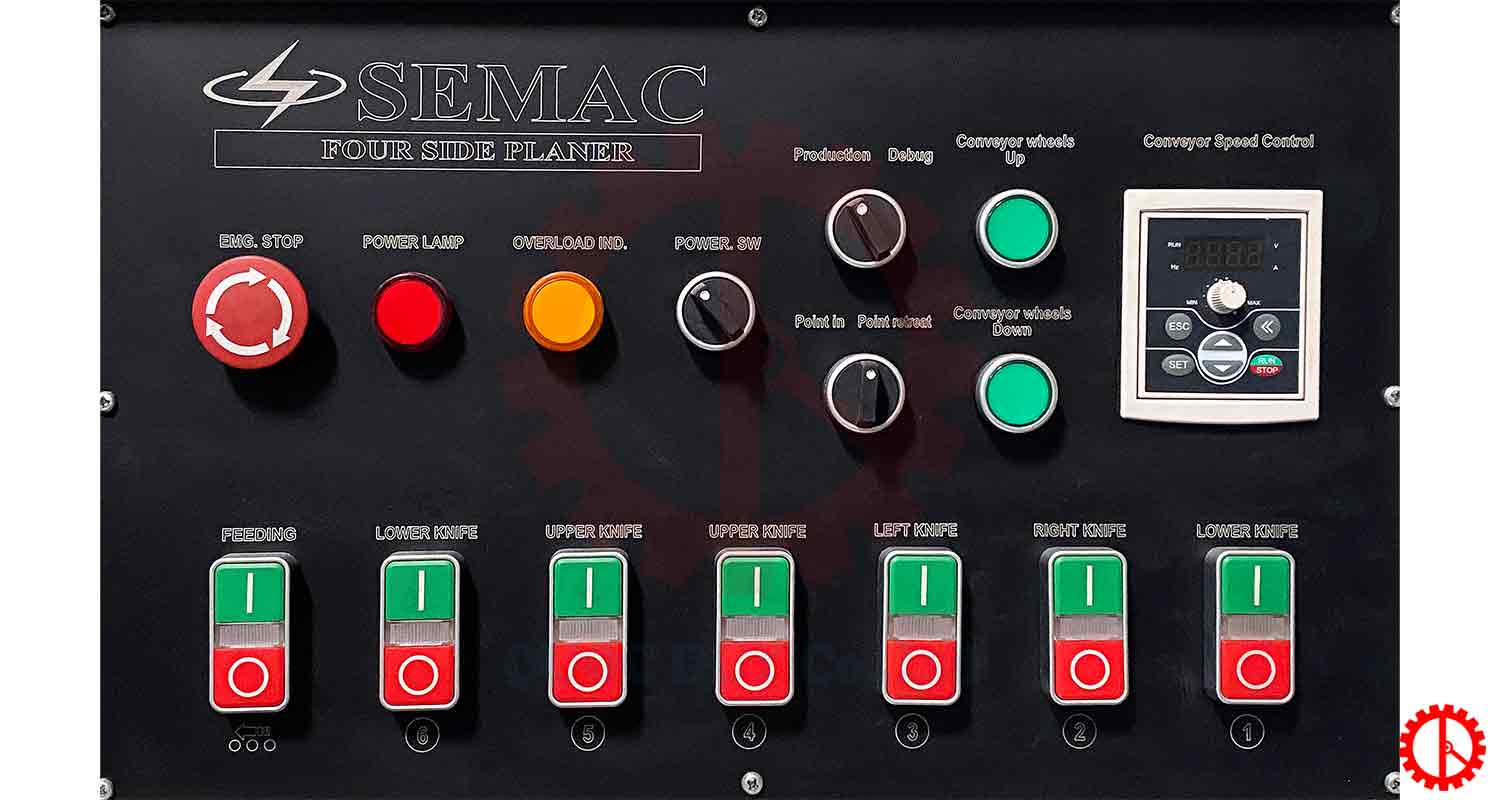

Ease of Use: The control panel is intuitive with easy-to-use push buttons, suitable even for new workers. The machine is suitable for workshops requiring large order volumes due to its ability to feed workpieces evenly and stably throughout the entire travel path.
Functions of the 230mm 4-Spindle 4 Side Planer

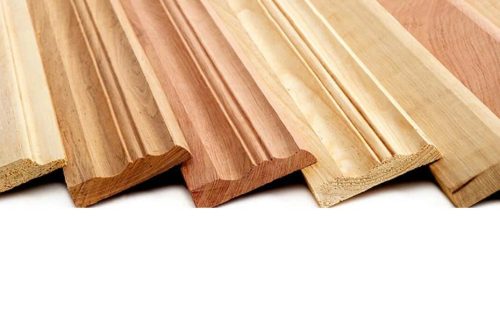

230mm 4-Spindle 4 Side Planer Product
One-Pass Machining: Smoothly planes all four sides in a single workpiece pass, shortening production time and reducing manual processing steps.
Versatile Shaping: Besides basic straight planing, the machine can also perform profiling, edge planing, and surface treatment for various shapes, flexibly meeting different wood shaping requirements.
Ideal Application: Very suitable for workshops producing wooden doors, mouldings, natural wood flooring, laminated panels, and products requiring high precision.
Material Compatibility: Supports machining various workpiece sizes, suitable for a wide range of natural and engineered wood.
230mm 4 Spindles 4 Side Planer Technical Specifications
| Working width | : 25-230 mm |
| Working thickness | : 8-160 mm |
| Working table length | : 580/300 mm |
| Feeding speed | : 5-40 m/min |
| Main shaft diameter | : Ø40mm |
| Main spindle speed | : 7000 r/min |
| Pneumatic source pressure | : 0.6 MPa |
| Overall power | : 54.75 kW |
| Feeding power | : 4 kW |
| Right shaft power | : 5.5 kW |
| Diameter right shaft | : Ø110 – Ø160mm |
| Left shaft power | : 7.5 kW |
| Diameter left shaft | : Ø110 – Ø160mm |
| 1st lower shaft power | : 5.5 kW |
| Diameter 1st lower shaft | : Ø125mm |
| 1st upper shaft power | : 7.5 kW |
| Diameter 1st upper shaft | : Ø125 – Ø160mm |
| Total power | : 41.75 kW |
| Dust collector diameter | : Ø150mmn x 4 |
| Machine size | : 3680 x 1660 x 1800mm |
| NET weight | : 4000 kg |
Note: Specifications, design features and colors of the machine are subject to change without prior notice, but will not affect the function and operation of the machine.
Reasons Why the 230mm 4-Spindle 4-Sided Planer is a Worthwhile Investment:
If you are looking for a machine that is powerful, precise, and operates intelligently, the 4-spindle 4-sided planer is the “missing piece” your workshop needs. Invest once – optimize productivity long-term. This is also why modern woodworking shops choose to upgrade to this type of machine.
