1270mm vacuum membrane press – WV 1270 T2
Features of 1270mm vacuum membrane press – WV 1270 T2

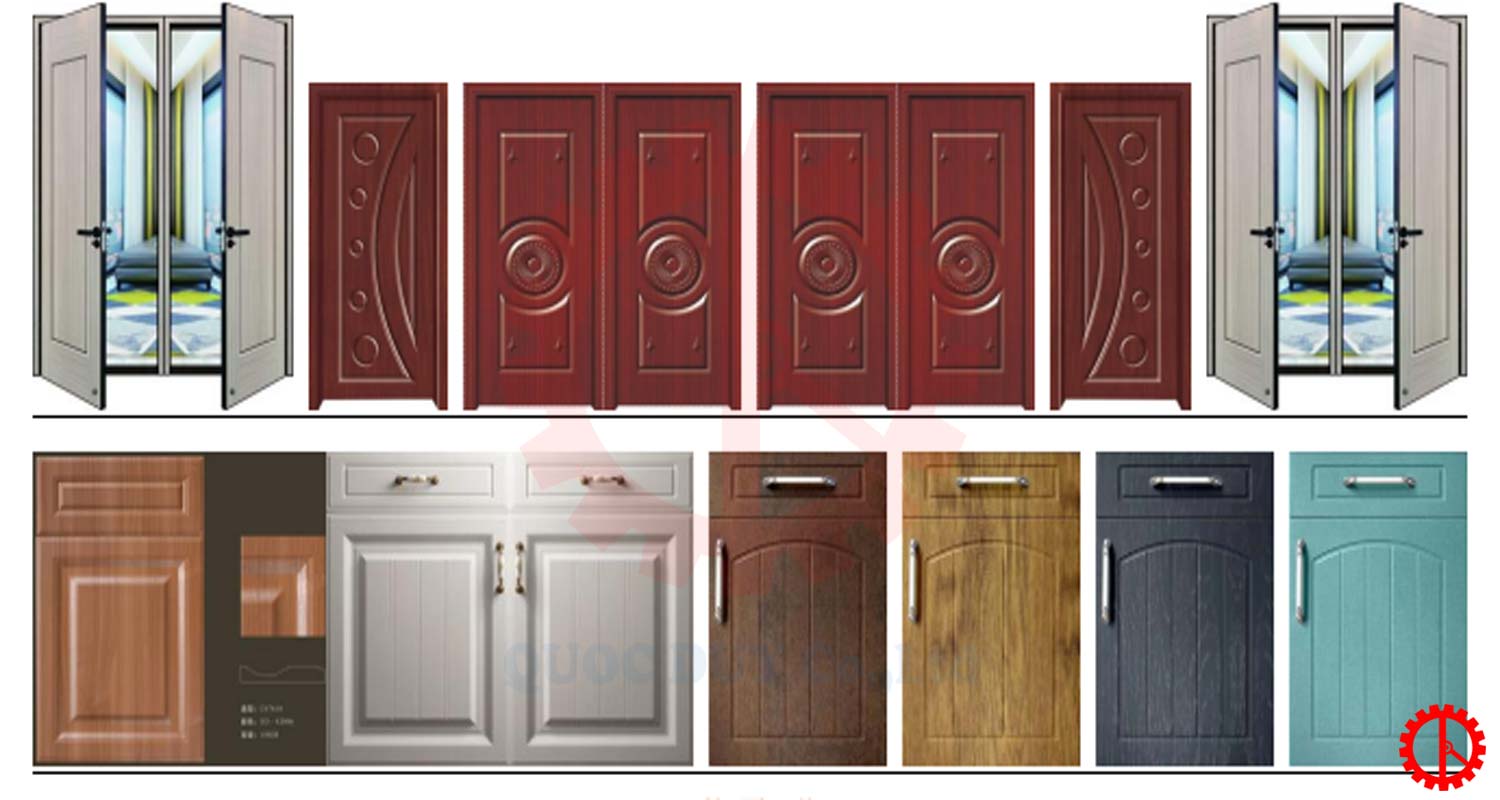

High-End Decorative Surface Lamination: Specially designed for laminating decorative overlay materials onto wood panels, primarily utilized in panel-based furniture manufacturing. Perfectly processes premium materials such as high-grade PVC films, PETG films, heat transfer films, and more.
Dual Alternating Working Tables: Engineered with two independent working tables to enable continuous, non-stop processing—maximizing machine uptime and optimizing production efficiency.
High-Capacity Vacuum Pump: Equipped with a powerful, heavy-duty vacuum pump that delivers rapid air evacuation, significantly shortening cycle times and speeding up production.
Synchronized Primary & Secondary Heating Systems: Features a fully synchronized dual-heating system (main and auxiliary heaters) to ensure uniform temperature distribution across both the panel and the film, resulting in flawless bonding and seamless edge wrapping.
Dual Automatic Film Cutters: Integrated with two automatic film cutting units to eliminate manual trimming, saving labor time and substantially reducing material waste.
Specifications of 1270mm vacuum membrane press – WV 1270 T2
| Working Table Size | 3000 × 1270 × 50 mm |
| Maximum Processing Height | 90 mm (Including Support Pad) |
| Table Travel Motor Power | 0.37 kW × 2 |
| Vacuum Pump Motor Power | 3.0 kW |
| Rated Vacuum Flow | 100 m³/h |
| Main Heating Power | 36 kW |
| Auxiliary Heating Power | 9 kW |
| Control System | PLC + Touch Screen |
| Working Air Pressure | 0.6 MPa |
| Machine Dimensions | 11000 × 1780 × 1850 mm |
| Weight | 3000 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
Get a Quotation for the 1270mm vacuum membrane press – WV 1270 T2
With over 23 years of industry expertise, Quoc Duy provides comprehensive engineering and machinery solutions for the woodworking and furniture manufacturing sectors. We do not just sell machinery; we deliver complete, custom-tailored solutions engineered to optimize your production workflows and maximize overall operational efficiency.
For any inquiries or to request a detailed, formal quote for our 1270mm vacuum membrane press – WV 1270 T2, please contact us through the following channels:
- Email : info@quocduy.com.vn
- Hotline : +84 903 600 113
You are also welcome to visit our showroom and experience the machine in operation at: 401 To Ngoc Van Street, Thoi An Ward, Ho Chi Minh City, Vietnam.
