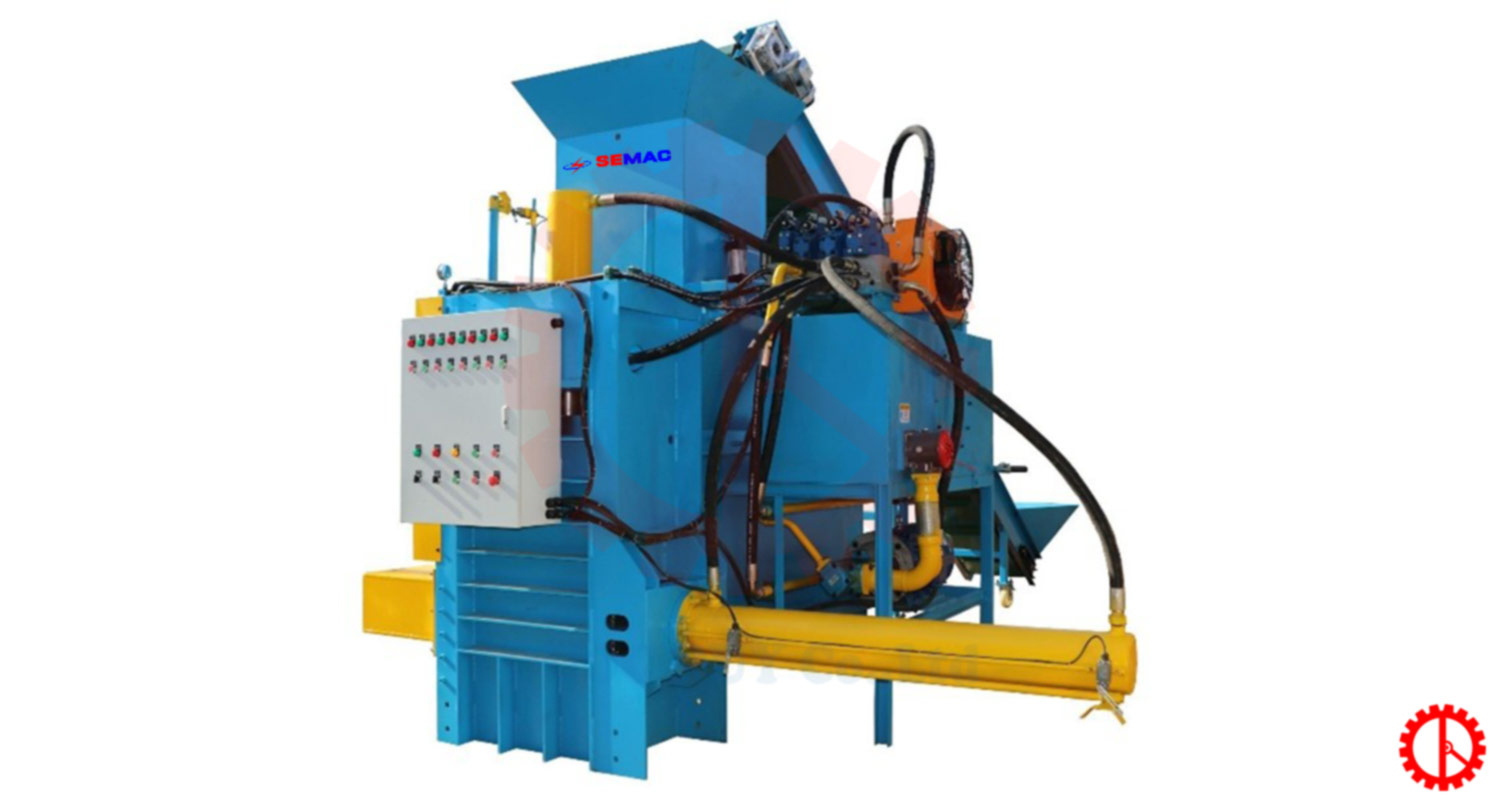

Wood shaving briquetting machine – BC4-160
Specifications of Wood shaving briquetting machine
| Specification | Model / Specification | Quantity | Remarks |
| Motor | 22 kW – 4P | 1 | 380V / 50Hz |
| Hydraulic Pump | 3525VQ3821 | 1 | Low-Pressure Vane Pump |
| Hydraulic Valve | LQ25-4 | 1 | Cartridge Valve Assembly Mounted on Manifold |
| Hydraulic Cylinder | Ø80 | 1 | Heavy-Duty High-Pressure Hydraulic Cylinder |
| Hydraulic Cylinder | Ø100 | 1 | Heavy-Duty High-Pressure Hydraulic Cylinder |
| Hydraulic Cylinder | Ø160 | 2 | Heavy-Duty High-Pressure Hydraulic Cylinder |
| Cooling System | Air-Cooled Oil Cooler | 1 | Fin-Type Cooling System |
| Hydraulic Oil Tank | 600 L | 1 | 4 mm Thick Steel Plate |
| Machine Frame | Q235B Steel | — | Frame Constructed from 10 mm Thick Steel Plate |

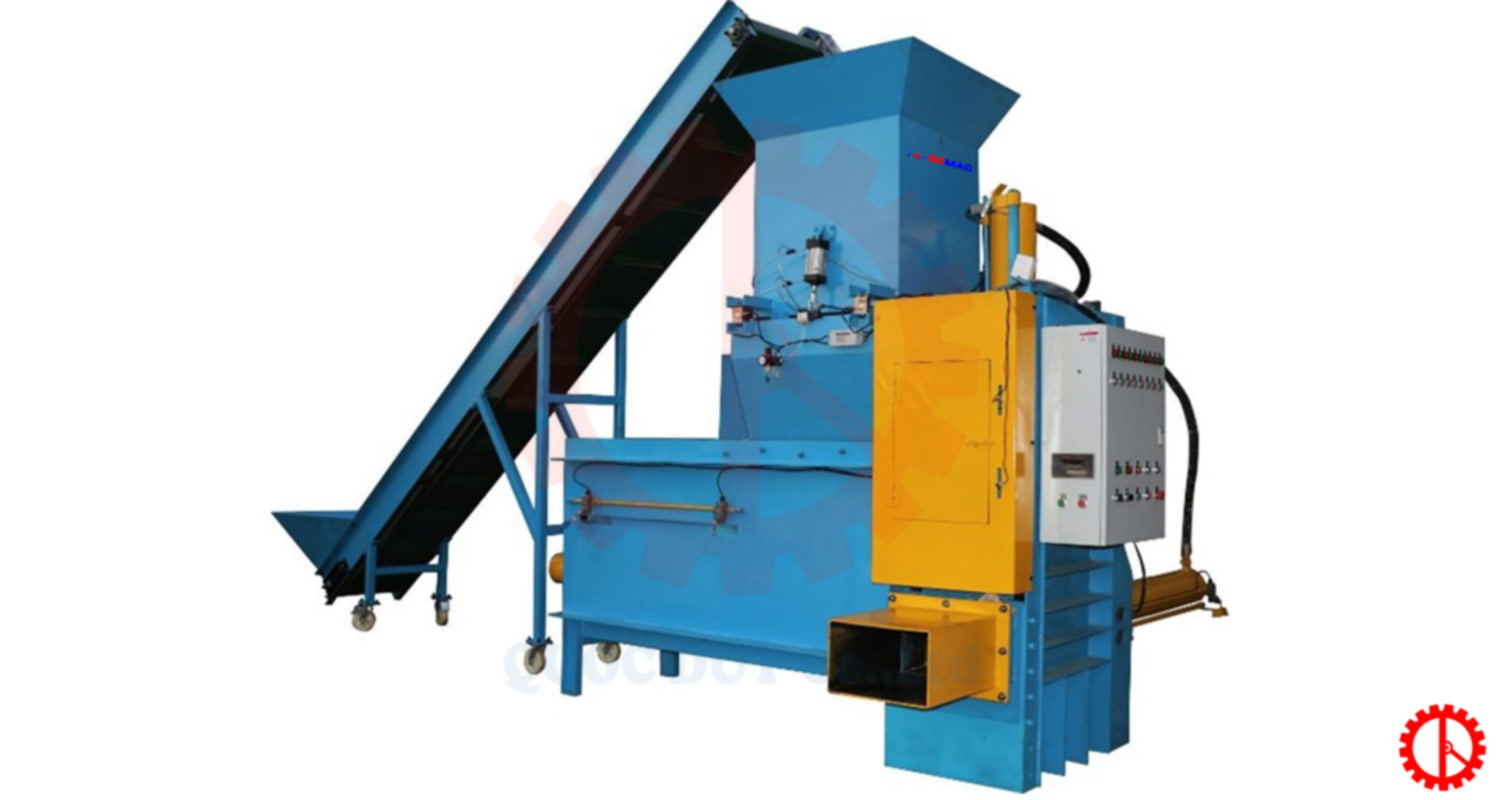

| Infeed Conveyor (Optional) | 500 × 5500 mm | 1 | PVC Conveyor Belt |
| Electrical System | PLC Control System with Chint Auxiliary Electrical Components | ||
| Operating Mode | Manual + Automatic | ||
| Oil Filter Capacity | 630 L/min | ||
| Weighing System | Automatic Weighing Sensor with Digital Display | ||
| Bale Size | 700 × 400 × 300 mm | ||
| Production Capacity | 80 – 100 Bales/hour | ||
| Bale Weight | 15 kg | ||
| Dimensions | 2900 × 3600 × 3500 mm | ||
| Weight | 5000 kg | ||
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
