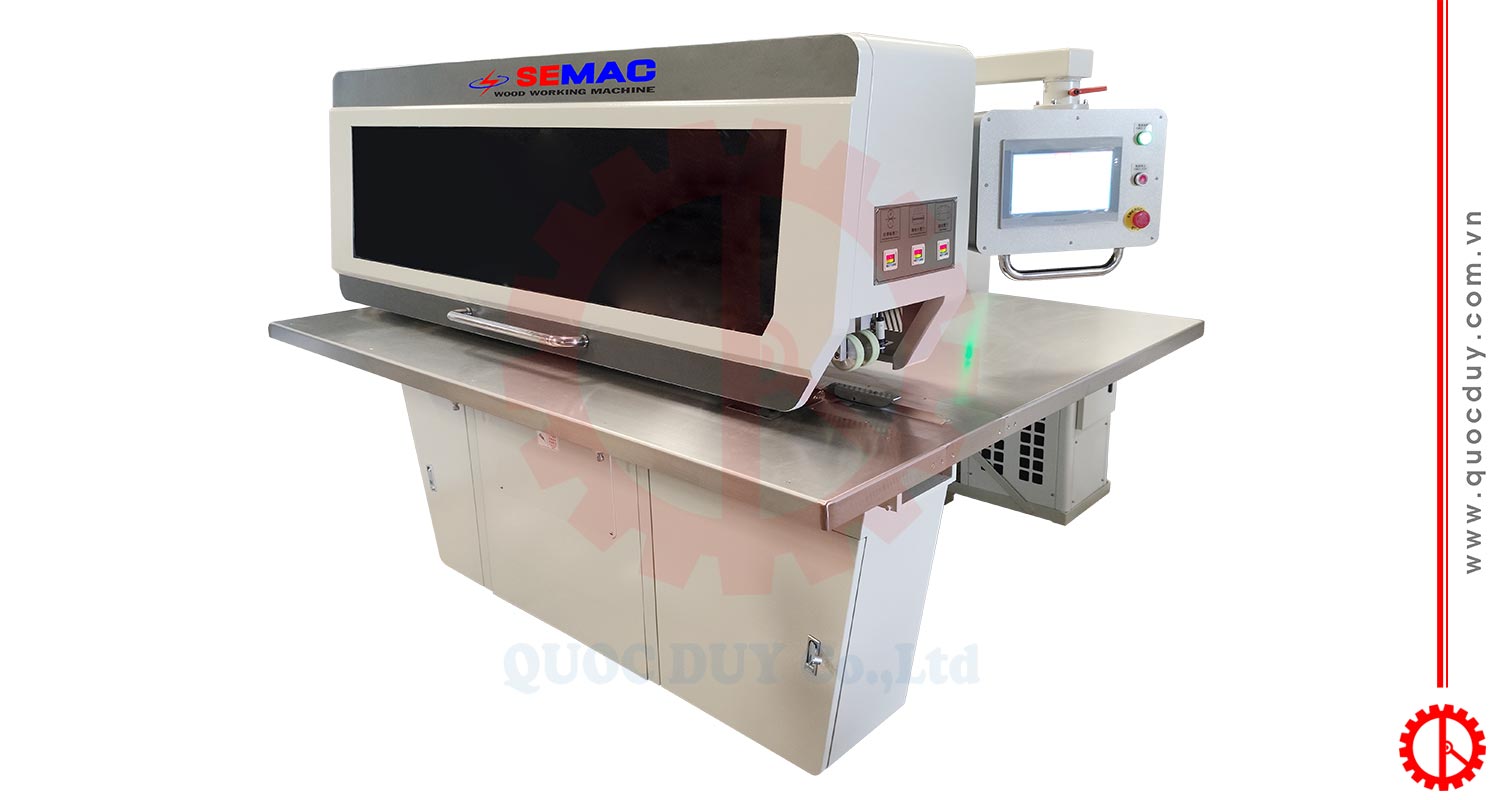

Features of Veneer Edge Trimming Machine
- Machine equipped with a touch-screen control panel for intuitive operation and easy adjustment of working thickness.
- High processing speed with excellent finish quality.
- Utilizes genuine, high-quality components for long-lasting performance.
- Automatic gluing system driven by gear transmission ensures enhanced stability and durability.
- Six independent heating zones with individually adjustable temperatures.

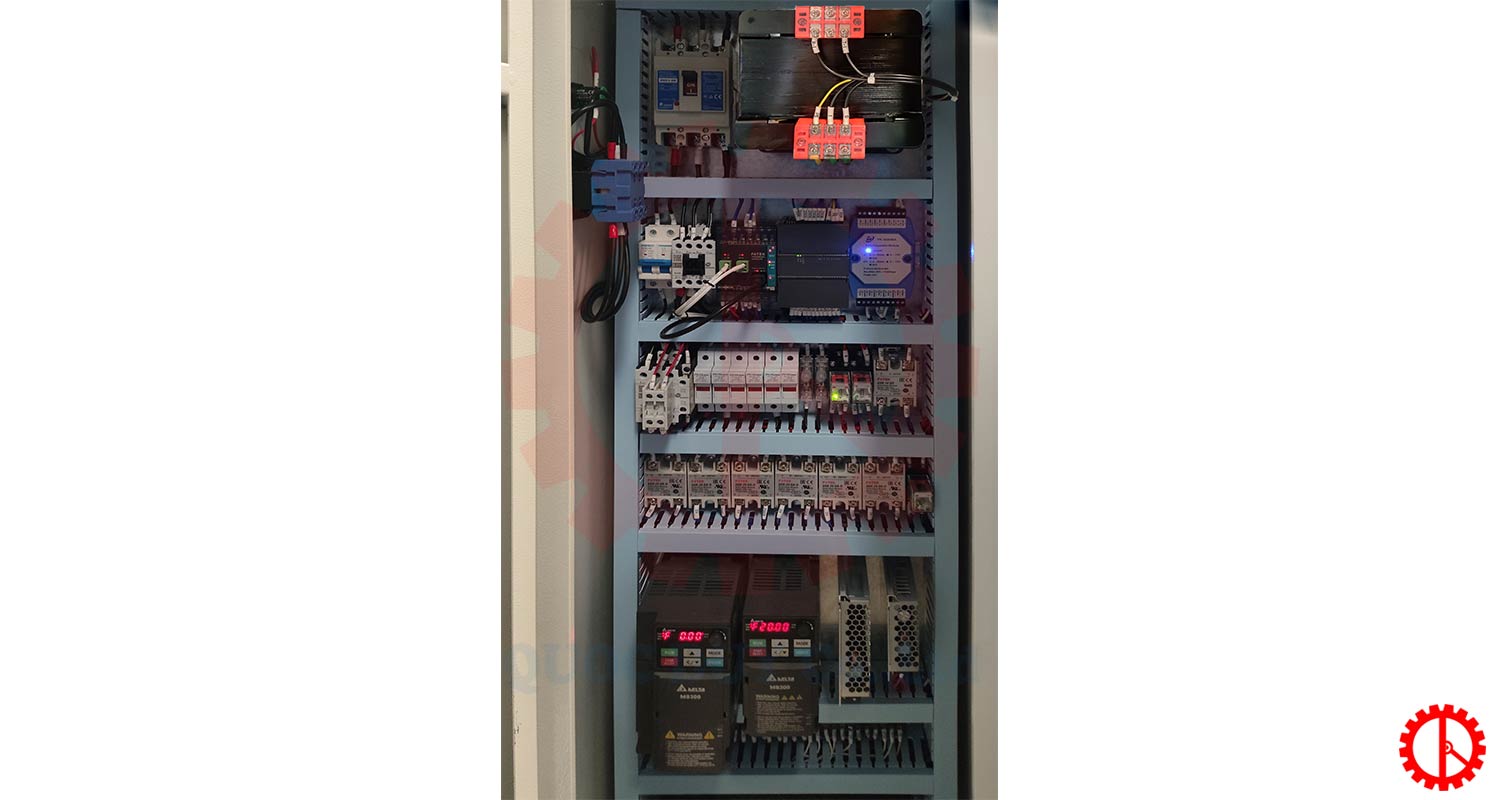

- PLC-controlled system with user-friendly interface.
- FESTO (Germany) pressure regulating valve ensures stable and reliable operation.
- Durable TSUBAKI (Japan) drive chain minimizes excessive stretching and ensures long-term use.
- Patented thickness adjustment system offers simple and stable operation.
Specifications of Veneer Edge Trimming Machine
| Working thickness | : 0.4 – 4 mm |
| Working width | : 40 mm – Unlimited |
| Working length | : 300 mm – Unlimited |
| Convey speed | : 0 – 55 m/phút |
| Motor drives feeding chain | : 1.5kW |
| Motor rotates glue pot | : 0.15kW |
| Workbench height | : 900 mm |
| Max. Working temperature | : 230 0C |
| Air pressure | : 0.6 MPa |
| Voltage | : 380V/50Hz |
| Total power | : 7.5kW |
| NET Weight | : 1680kg |
| Machine dimensions | : 2150 x 2000 x 1650 mm |
video of Veneer Edge Trimming Machine
Latest Veneer Edge Trimming Machine Price
Quoc Duy provides a range of machine lines from well-known brands, featuring a variety of models that include both popular and Veneer Edge Trimming Machine. If you have any other questions or requests, please feel free to contact us using the information below:
- Email: info@quocduy.com.vn
- Hotline: 0903 600 113
- Website: www.quocduy.com.vn – www.semac.com.vn
We also invite you to visit our factory located at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City to see the operation process of our state-of-the-art machines.
