UV spraying line – SPM 1300UV FL is a state-of-the-art automated coating system that integrates advanced UV and PU spraying technologies. Engineered for rapid, high-uniformity finishing, it seamlessly accommodates workpieces of various dimensions. Featuring an intelligent design, rock-solid operational stability, and high-level automation, this system serves as the ideal solution for production facilities that demand premium surface quality and high-speed finishing throughput.
Features of UV spraying line – SPM 1300UV FL
Line Configuration: The complete system includes a Panel Dust Cleaner, an Automated UV Coating/Spraying Machine, two (2) Infrared (IR) Heating Conveyors, a UV Curing Oven, and a Roller Conveyor.
Fully Automated System: Optimizes the entire coating workflow, significantly reducing manual labor costs while maximizing production throughput.
High Workpiece Flexibility: Engineered to seamlessly handle various product dimensions and shapes, making it the perfect solution for factories with highly diverse product portfolios.
Superior Coating Uniformity & Adhesion: Ensures a flawlessly consistent finish and exceptional paint adhesion, fully meeting premium aesthetic and technical standards.
Stable Operation & Easy Maintenance: Features a modern structural design integrated with an intuitive, smart control system for hassle-free operation and low-maintenance upkeep.
Specifications of UV spraying line – SPM 1300UV FL

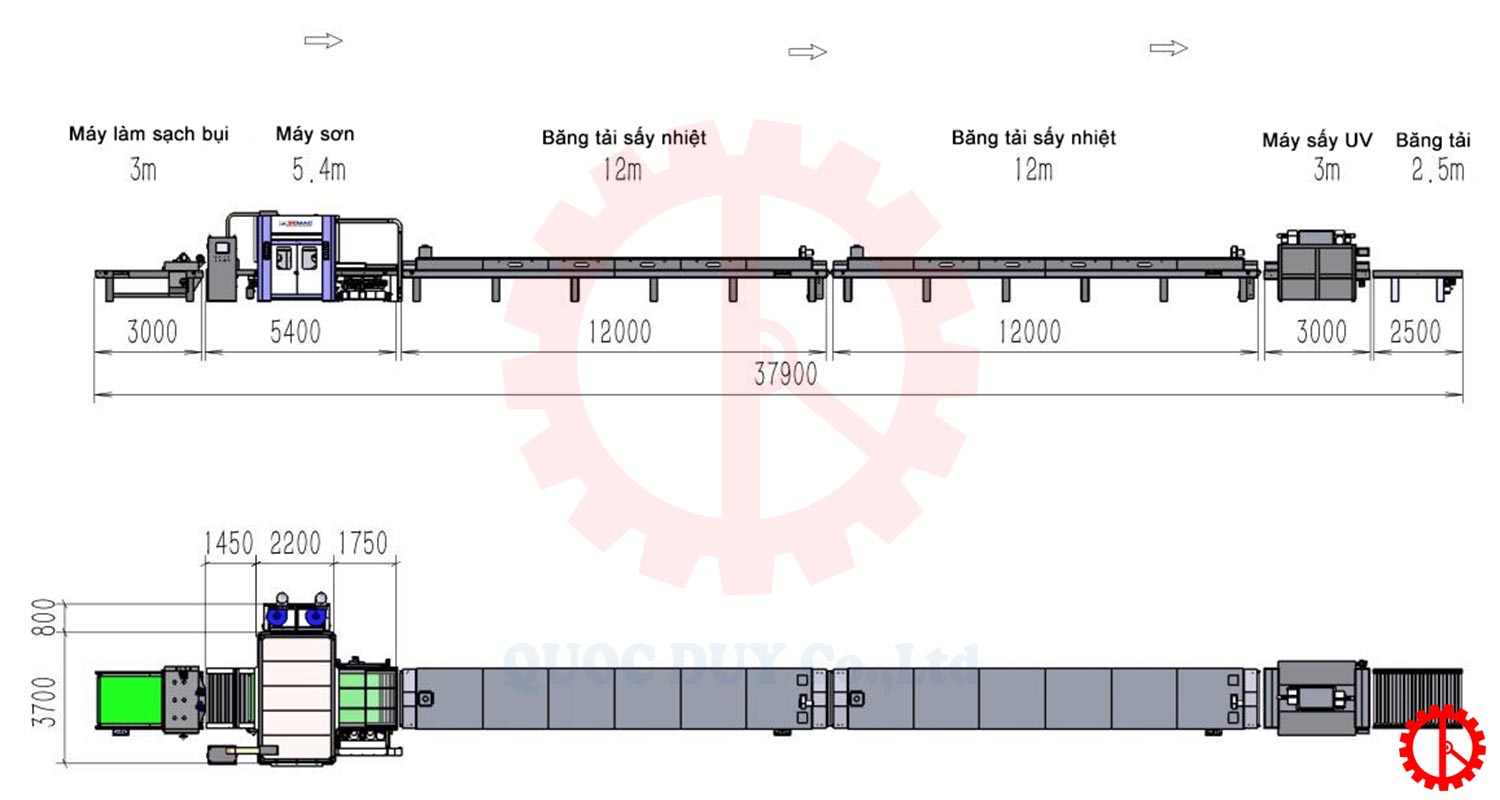

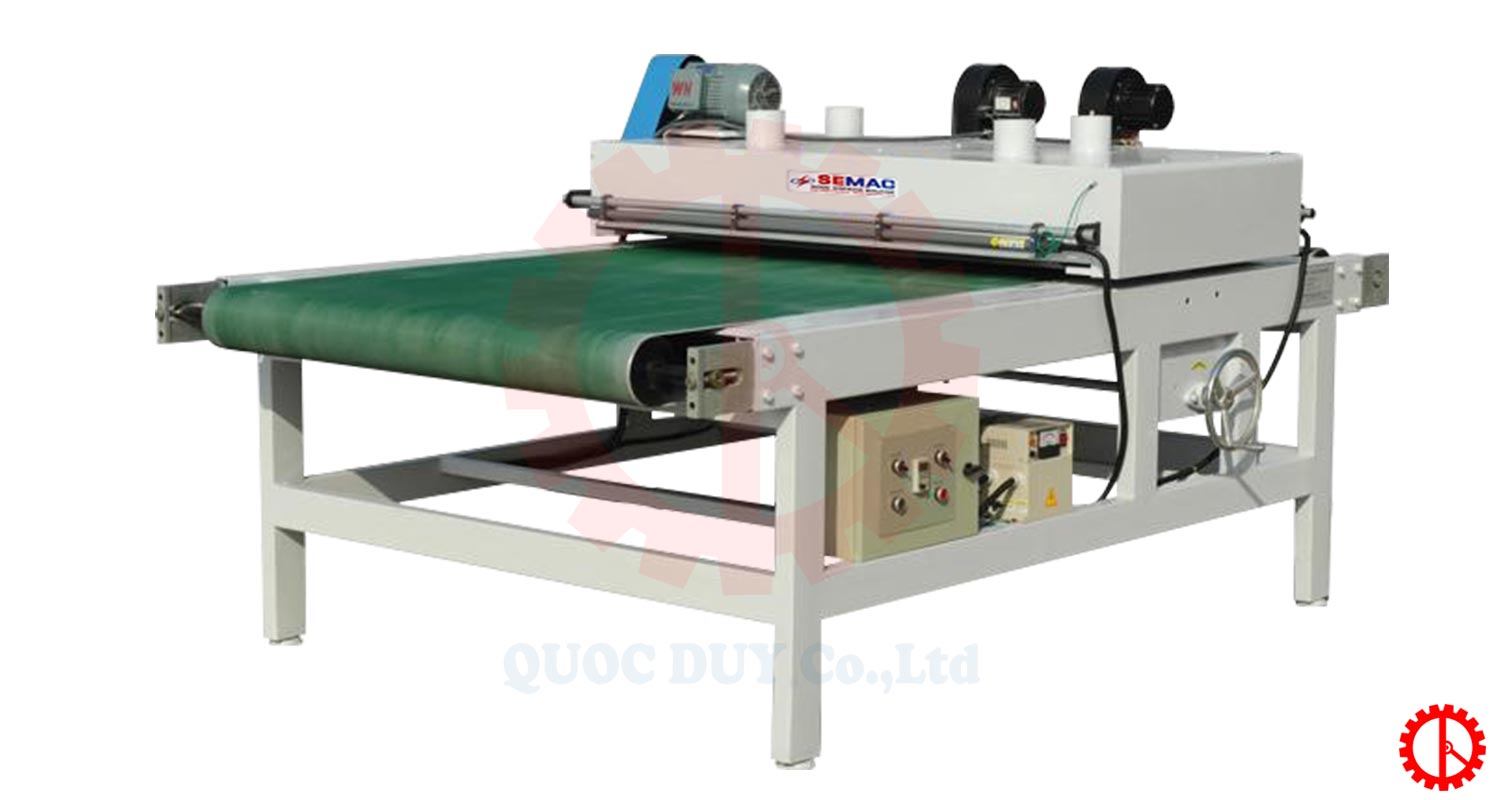

Dust cleaning machine
Features of Dust cleaning machine
Advanced Dust Removal System: Engineered with a combined configuration of two (2) heavy-duty cleaning brushes and two (2) high-velocity air blowers to powerfully and effectively eliminate dust and debris from the workpiece surface.
Precision Workpiece Stabilization: Equipped with three (3) sets of industrial rubber hold-down rollers to keep workpieces securely stabilized and completely prevent shifting during high-speed operations.
Premium Anti-Static System: Features a premium KAPPER anti-static bar (Germany) to neutralize static charges, facilitating the effortless removal of embedded ultra-fine dust particles.
Specifications of Dust cleaning machine
| Maximum Working Width | 1300 mm |
| Maximum Working Thickness | 125 mm |
| Feed Speed | 0 – 15 m/min |
| Total Power | 2.14 kW |
| Machine Dimensions | 3000 × 1910 × 1460 mm |
| Weight | 850 kg |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.

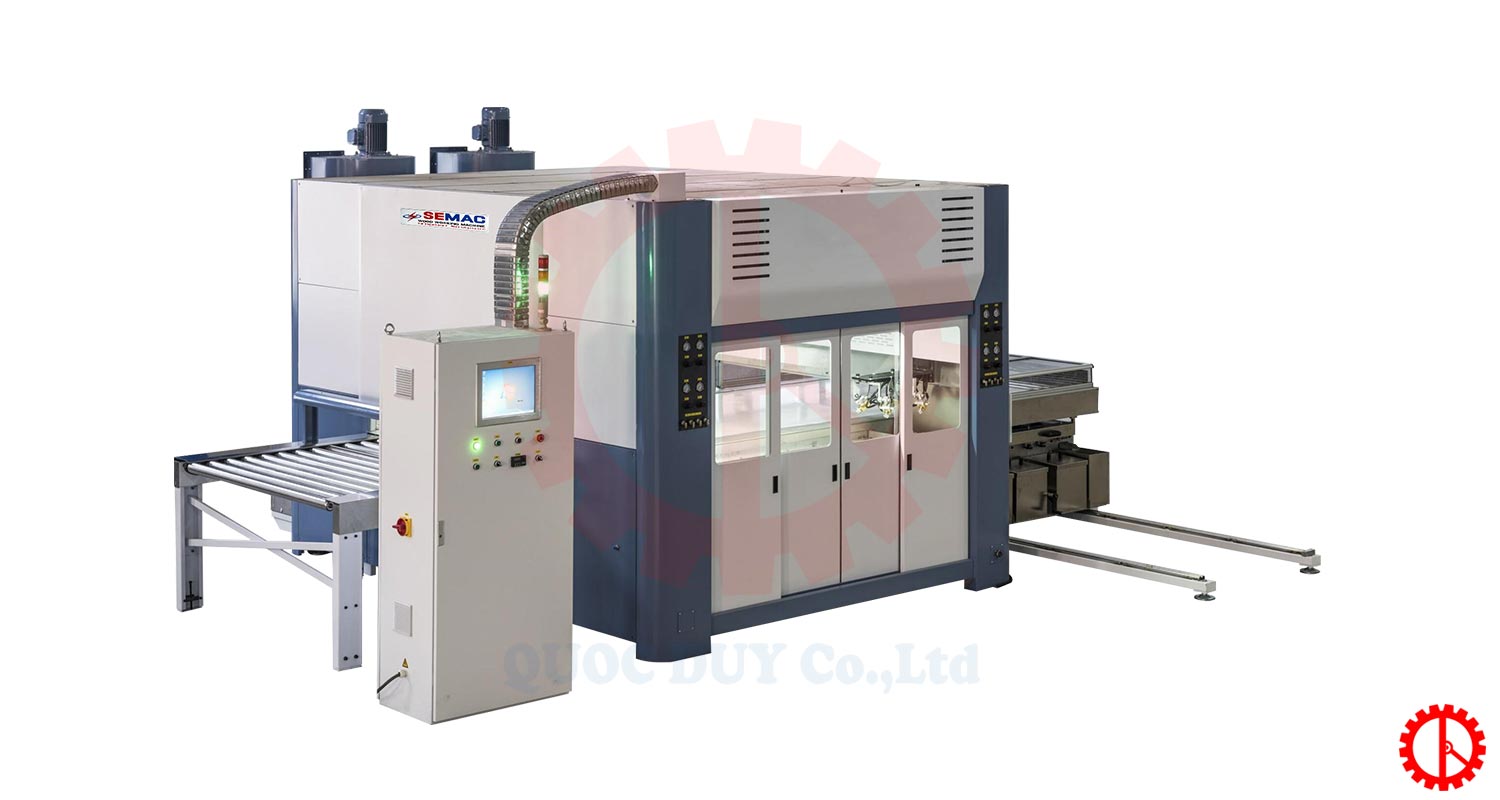

UV coating machine
Features of UV coating machine
Advanced Japanese Control Architecture: Utilizing a cutting-edge Japanese control system, the spraying speed can reach an impressive velocity of up to 100 m/min.
High-Capacity Gun Configuration: Each spray arm assembly supports up to four (4) spray guns, delivering superior coating uniformity and exceptional operational flexibility.
Precision REER Width Sensors (Italy): Equipped with high-accuracy REER workpiece width-sensing technology to dynamically optimize the spray stroke, drastically minimizing paint overspray and maximizing efficiency.
Dual-Stage Air Filtration System: Features a premium dual-layer air filtration system to maintain a pristine environment inside the spray booth, effectively preventing dust contamination from ruining the finish quality.
High-Efficiency UV Paint Recovery System: Integrates an advanced UV paint reclamation and separation system that recycles up to 98% of overspray paint, significantly driving down material costs.
Corrosion-Resistant Recovery Zone: The paint recovery enclosure is constructed from premium anti-corrosion, acid-, and alkali-resistant materials to substantially extend the machine’s operational lifespan.
Detailed images of UV coating machine

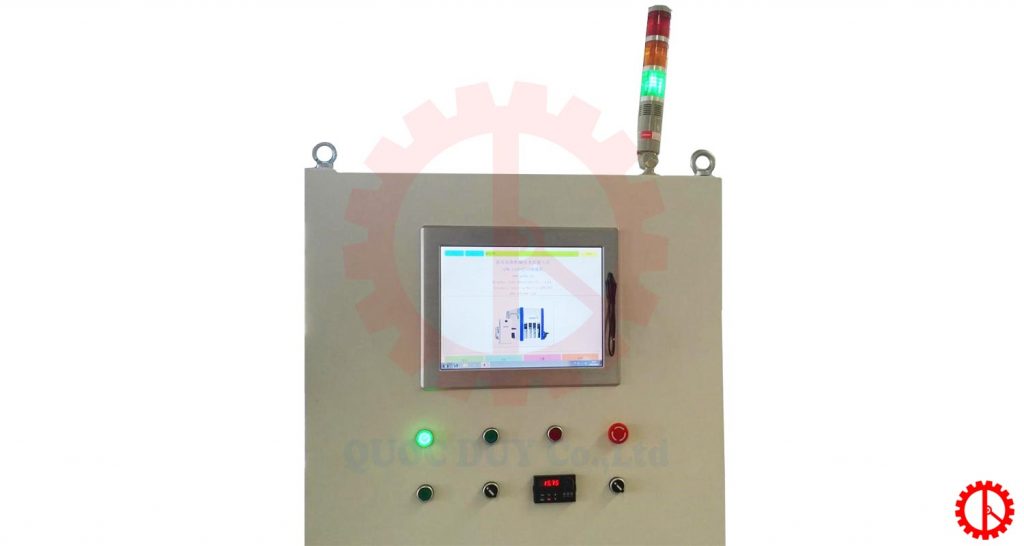

Control Cabinet

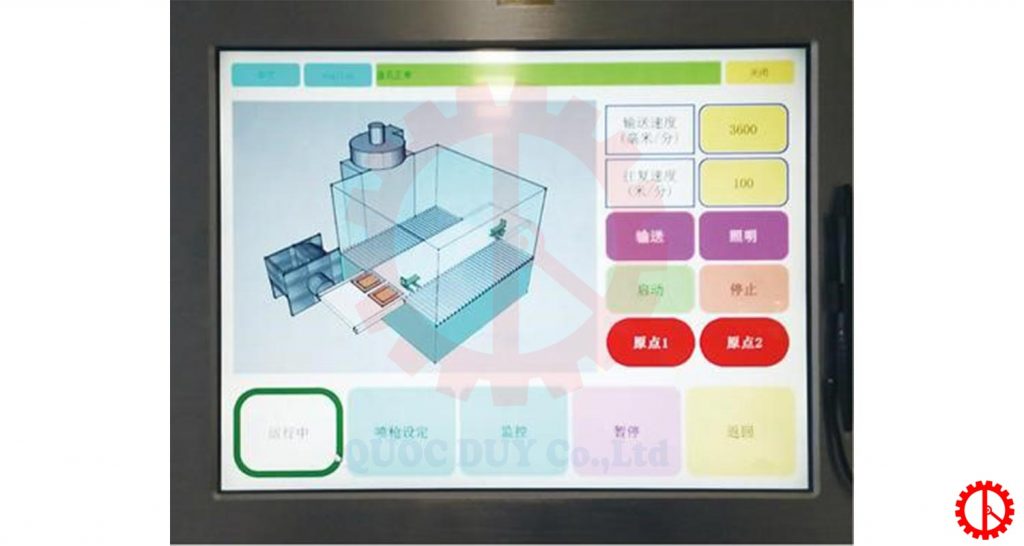

control screen

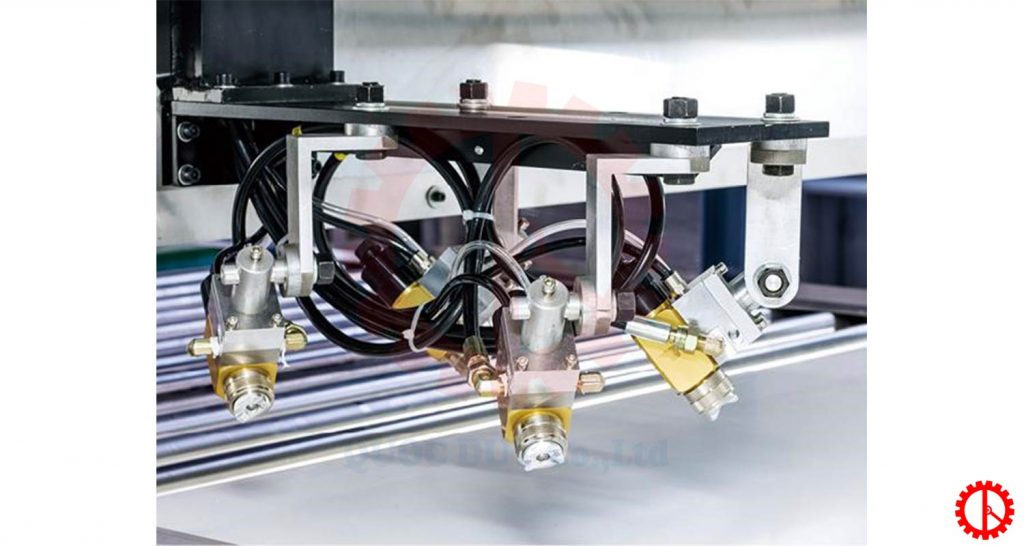

spraying systemt

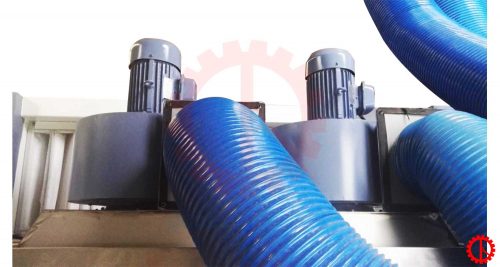

fan motor

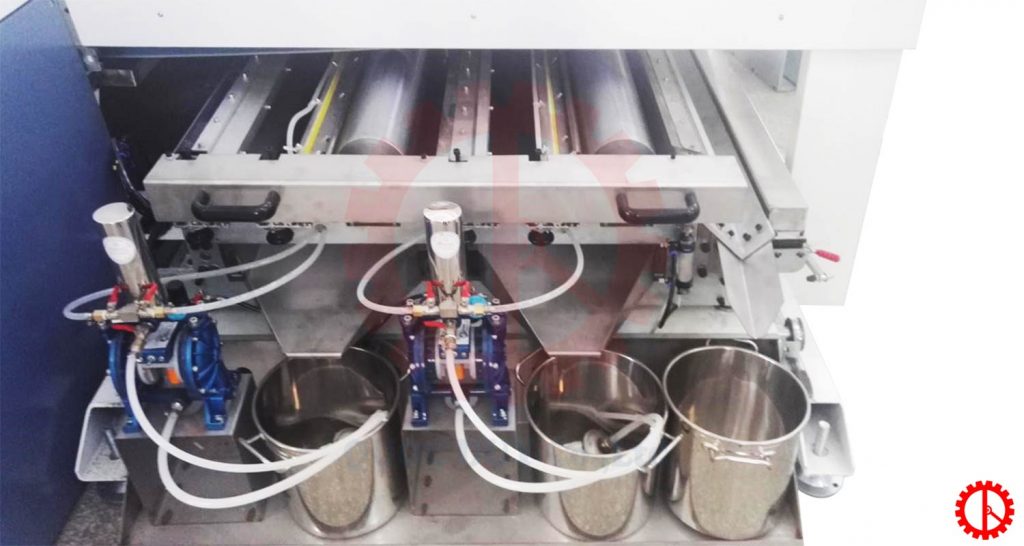

paint recovery area

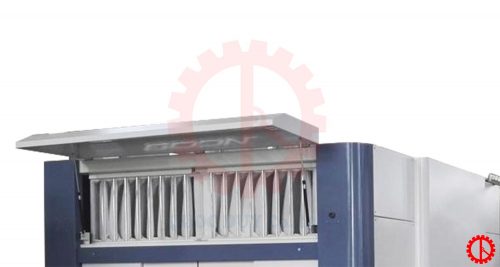

air filter

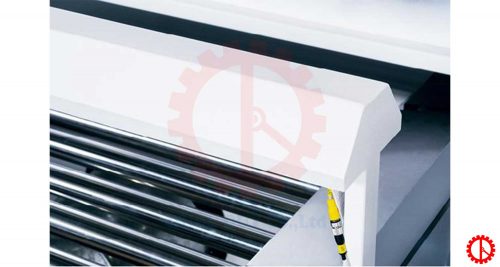

Sensor

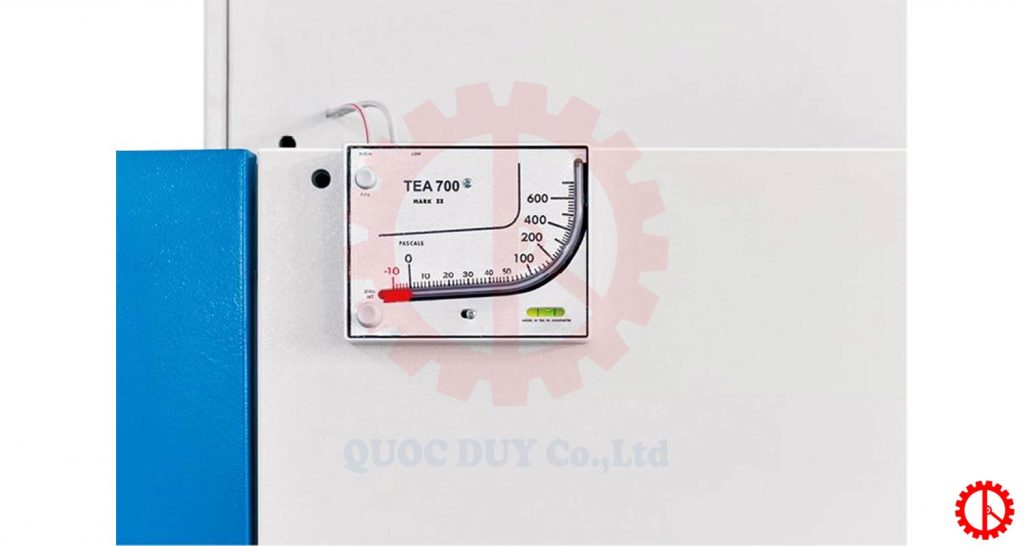

Gauge

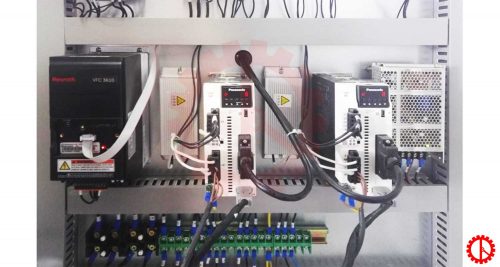

electrical cabinet
Specifications of UV coating machine
| Maximum Working Width | 1300 mm |
| Maximum Workpiece Thickness | 40 mm |
| Maximum Feed Speed | 8 m/min |
| Required Air Pressure | 0.5 – 0.8 MPa |
| Total Power | 13 kW |
| Weight | 4500 kg |
| Overall Dimensions | 5400 × 4500 × 2500 mm |

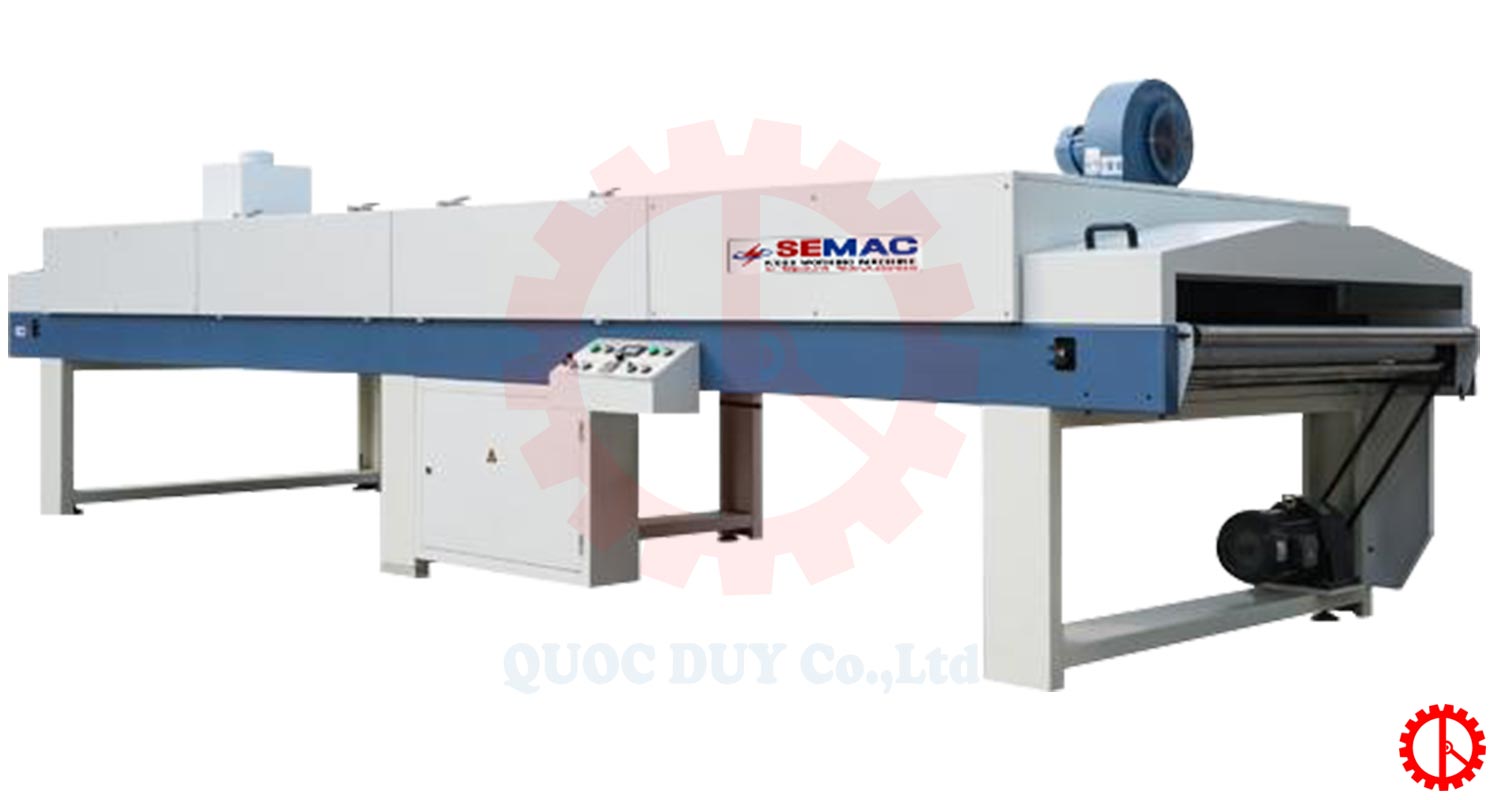

Thermal dryer conveyor
Features of Thermal dryer conveyor
High-Temperature Chain Drive Structure: Engineered with a heavy-duty, high-temperature resistant chain drive system to guarantee smooth, stable, and continuous operation under extreme thermal conditions.
Variable Frequency Speed Control: The workpiece feeding speed is precisely and flexibly adjusted via a variable frequency drive (VFD/inverter), effortlessly matching diverse drying and curing requirements.
High-Efficiency Hot Air Recirculation: Features a fully-enclosed chamber design integrated with a hot air recirculation system, maintaining a highly stable temperature while significantly reducing energy consumption.
Rapid IR (Infrared) Heating: Utilizes high-performance infrared (IR) lamps for rapid, uniform heating, drastically shortening drying cycles and boosting throughput.
Active Exhaust System: Integrated with an active exhaust air ventilation system to continuously extract fumes, ensuring a safer work environment and meeting strict environmental standards.
Specifications of Thermal dryer conveyor
| Maximum Working Width | 1300 mm |
| Maximum Working Thickness | 120 mm |
| Feed Speed | 0 – 6 m/min |
| Total Power | 17 kW |
| Weight | 3000 kg |
| Machine Dimensions | 12000 × 1710 × 1600 mm |

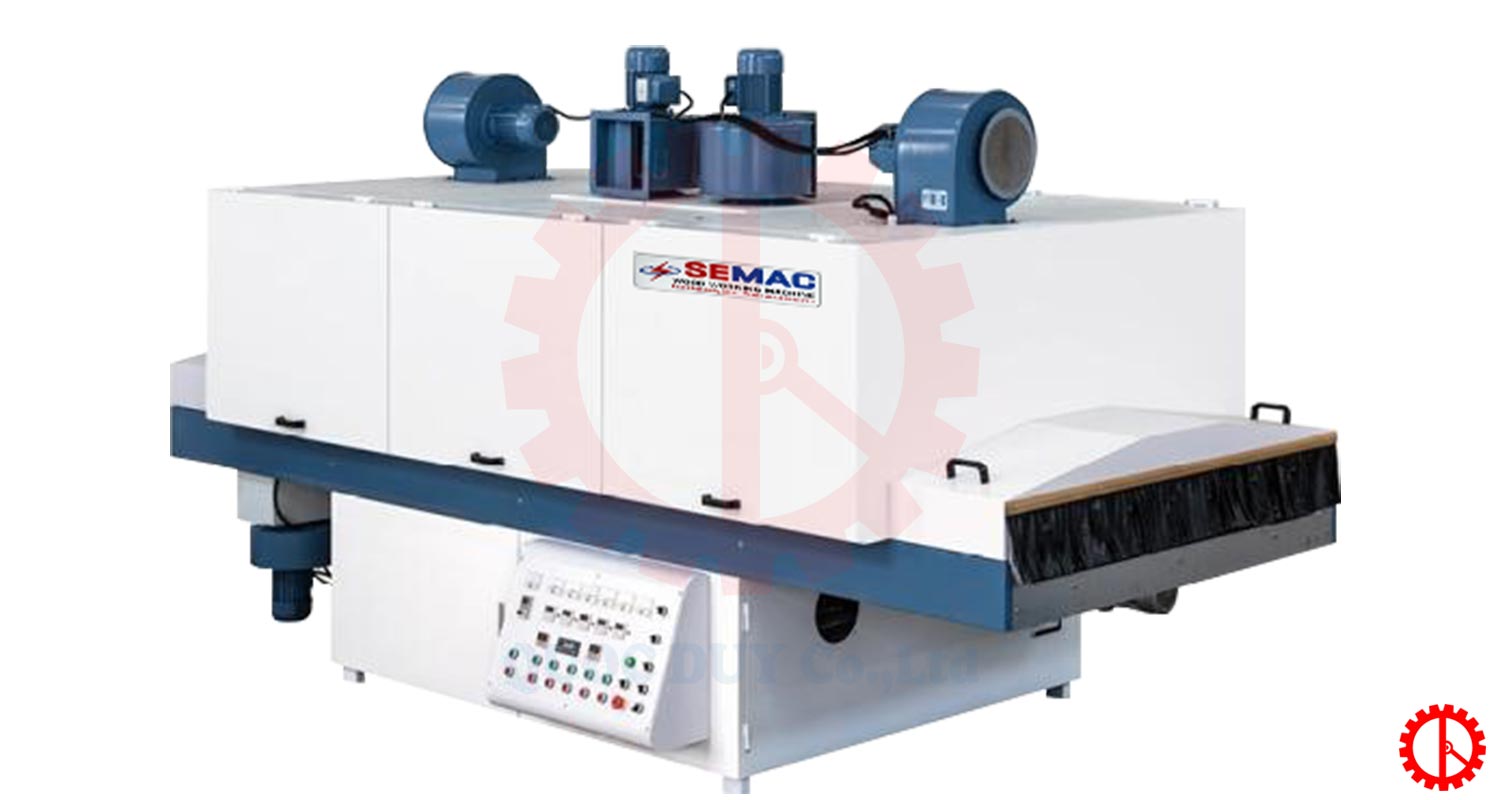

UV Dryer
Features of UV Dryer
High-Reflectivity Aluminum Alloy Reflectors: Equipped with premium aluminum alloy reflectors that bounce back up to 99% of UV light, maximizing curing efficiency and light utilization.
Heavy-Duty Power Architecture: Outfitted with high-capacity capacitors and transformers to ensure rock-solid system stability while significantly extending the operational lifespan of the UV lamps.
Dedicated Cooling System: Features a specialized cooling system that maintains the lamps at an optimal operating temperature, boosting performance and reducing energy consumption.
VFD-Driven Roller Conveyor: The roller conveyor speed is precisely managed via a variable frequency drive (VFD/inverter), effortlessly adapting to varying production speeds and workpiece thicknesses.
Integrated Safety & Temperature Controls: Engineered with a high-precision temperature controller and comprehensive UV-shielding guards to maximize operator safety and process control.
Specifications of UV Dryer
| Maximum Working Width | 1300 mm |
| Maximum Working Thickness | 125 mm |
| Feed Speed | 9 m/min |
| Total Power | 62.08 kW |
| Weight | 4000 kg |
| Machine Dimensions | 3000 × 2130 × 2310 mm |

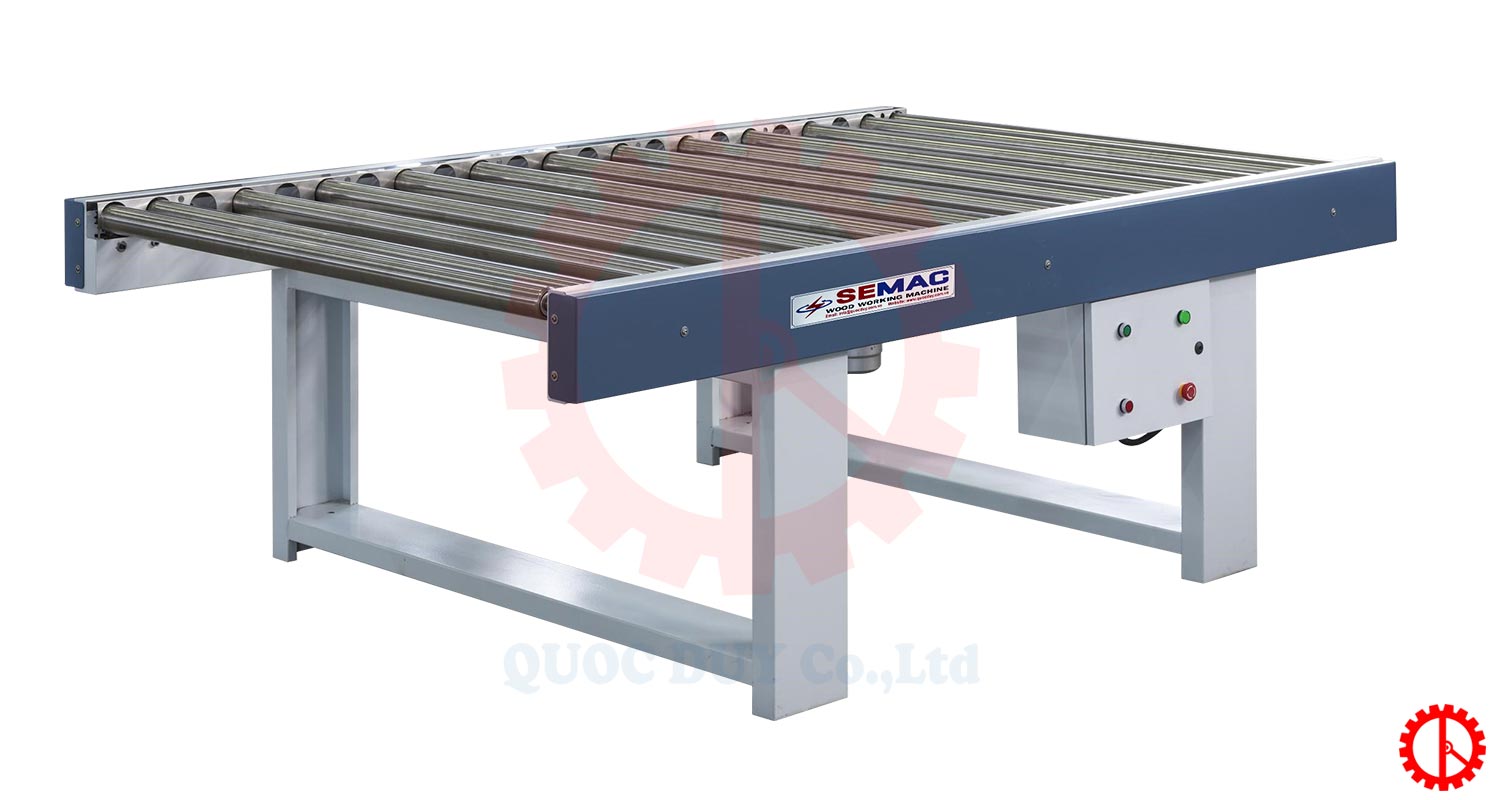

Roller Conveyor
Features of Roller Conveyor
Heavy-Duty Steel Chassis: Engineered with a robust steel frame to guarantee long-term durability and exceptional load-bearing capacity under continuous, high-volume production environments.
VFD Speed Regulation: Outfitted with a variable frequency drive (VFD/inverter) for precise speed adjustment, delivering maximum operational flexibility to seamlessly synchronize with various stages of the production line.
Specifications of Roller Conveyor
| Working Width | 1300 mm |
| Motor Power | 0.75 kW |
| Weight | 300 kg |
| Machine Dimensions | 2500 × 1960 × 1000 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
