Six side cnc drilling machine applies the most advanced wood drilling technology, completely replacing the previous manual method. Drills all 6 sides of the board effectively, with high productivity, ensuring absolute accuracy.

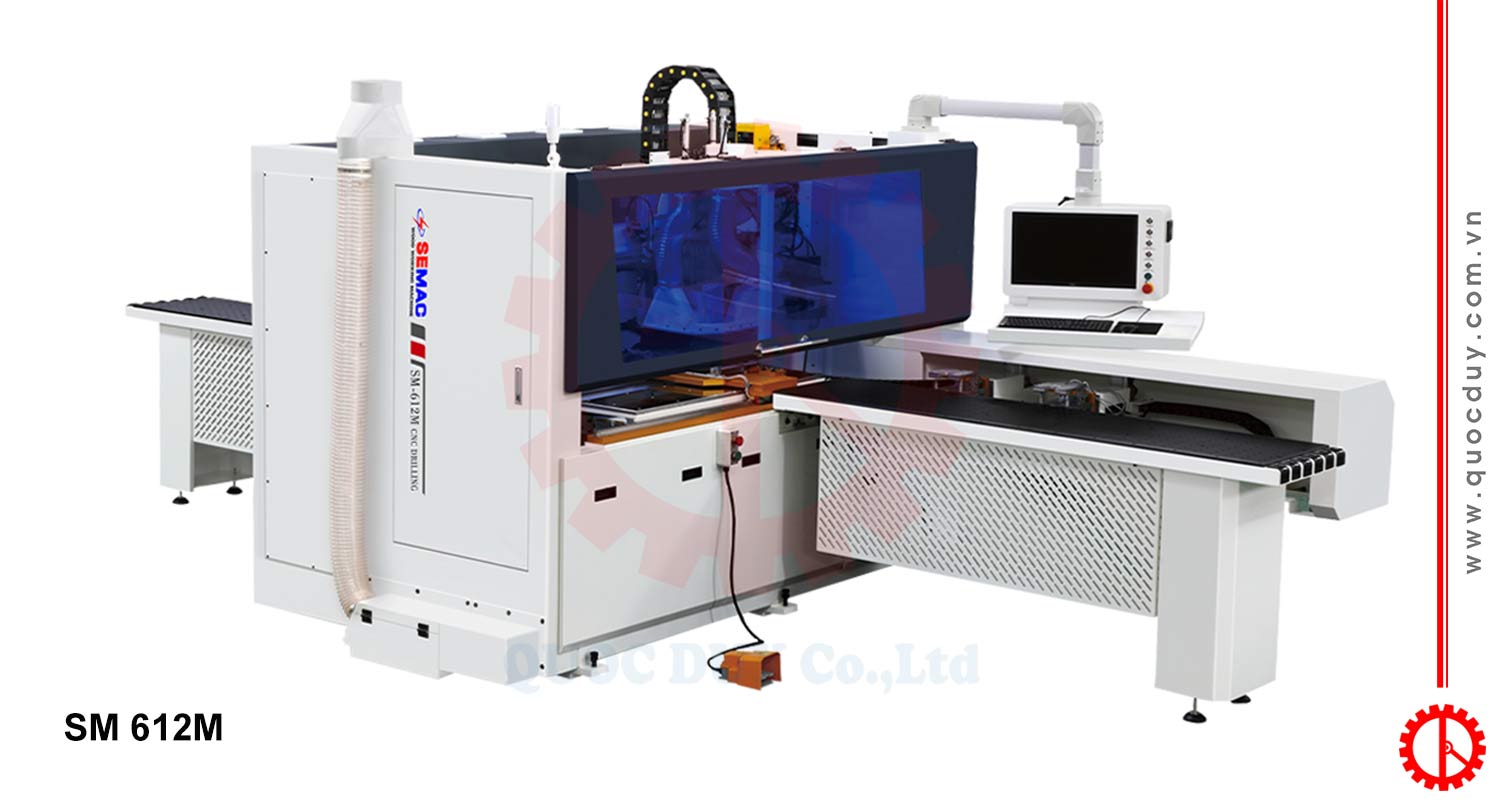

Introduce of six side cnc drilling machine
Feature of six side cnc drilling machine
- The machine is designed with a solid frame, the engine operates stably and minimizes noise.
Processing on most types of industrial wood boards today: MDF boards, MFC boards, Okal boards, … - Including upper drilling assembly, lower drilling assembly, and side horizontal drilling assembly for flexible machining capabilities.
- Syntec control system, 21″ screen, operated on a computer compatible with many design software makes the working and control process faster and simpler.
- Fast machining speed and high precision.
- The high-speed 6-sided CNC drilling machine has a system that automatically pushes the workpiece (workpiece feeding) into the working area. Thanks to that, the machining process takes place continuously, achieving high productivity.
- Equipped with an automatic board alignment system (vertical – horizontal), with a barcode scanner system with high working efficiency.
Specification of six side cnc drilling machine
| Processing size range | |
| Min. Width of work-piece | : 50 mm |
| Max. Width of work-piece | : 1200 mm |
| Max. Length of work-piece | : 2700 mm |
| Min. Length of work-piece | : 200 mm |
| Max. Thickness of work-piece | : 48 mm |
| Min. Thickness of work-piece | : 10 mm |
| Working Stoke & Max. Position speed | |
| X axis | : 5410 mm – 130 m/min |
| Y axis | : 1700 mm – 80 m/min |
| Z axis | : 140 mm – 30 m/min |
| U axis | : 5410 mm – 130 m/min |
| V axis | : 1395 mm – 80 m/min |
| W axis | : 110 mm – 30 m/min |
| A axis | : 1235 mm – 30 m/min |
| TOP Drilling unit | |
| Vertical spindles | : 9 |
| Horizontal | : 4 (X axis) + 4 (Y axis) |
| Drilling box motor speed | : 2800 rpm |
| Drilling motor power | : 2.2 Kw*2 |
| Router motor power | : 3.5 Kw |
| Spindle Speed | : 18000 rpm |
| Bottom Drilling unit | |
| Vertical spindles | : 9 |
| Drilling box motor speed | : 2800 rpm |
| Router motor power | : 3.5 Kw |
| Spindle speed | : 18000 rmp |
| Other data | |
| Working table height | : 960 mm |
| Total power | : 20.8 kw |
| Voltage | : 380V/50Hz |
| Air pressure | : 0.7 – 0.8 Mpa |
| Net weight | : 2600 kg |
| Machine size | : 5800 x 2840 x 2200 mm |
Video of six side cnc drilling machine operation
Application of high-speed 6-sided CNC drilling machine in furniture production
The 6-sided CNC drilling machine is an outstanding improvement in current CNC drilling technology. With the ability: to free milling, drilling holes, drilling locks, and door hinges,… the machine is the choice of large businesses.
The machine frame is sturdy and operates stably with high working intensity. Perform mass, accurate processing, minimizing worker costs. This is the outstanding advantage that this super product brings.
Currently, Quoc Duy provides a variety of products in wood drilling machine systems such as horizontal infrared positioning drilling machines, 6-sided high-speed CNC drilling machines, 6-sided CNC wood drilling machines, six-sided drilling and milling machining center, CNC horizontal drilling machines, and drilling machines. horizontal at both ends,…
Latest six side cnc drilling machine price
Quoc Duy has been providing woodworking machine for over 20 years, giving them a deep understanding of their customer’s needs and wants. For consulting support and a quick quote on a high-speed 6-sided CNC plank drilling machine, contact us now through:
- Email : info@quocduy.com.vn
- Hotline : 0903 600 113
- Website : www.quocduy.com.vn – www.semac.com.vn
You can also visit our factory located at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City, to personally witness the operation of the most modern machines.
