The Single Spindle CNC Router With 12 Tools delivers versatile performance with capabilities including milling, drilling, cutting, and machining door panel profiles. Equipped with an advanced LNC control system, it ensures stable operation and easy user interaction, while the high-power servo motors provide high speed and absolute precision.
Key Features of the Single Spindle CNC Router
Versatile machining: Efficiently performs milling, drilling, cutting, and processes complex profiles such as door panels.

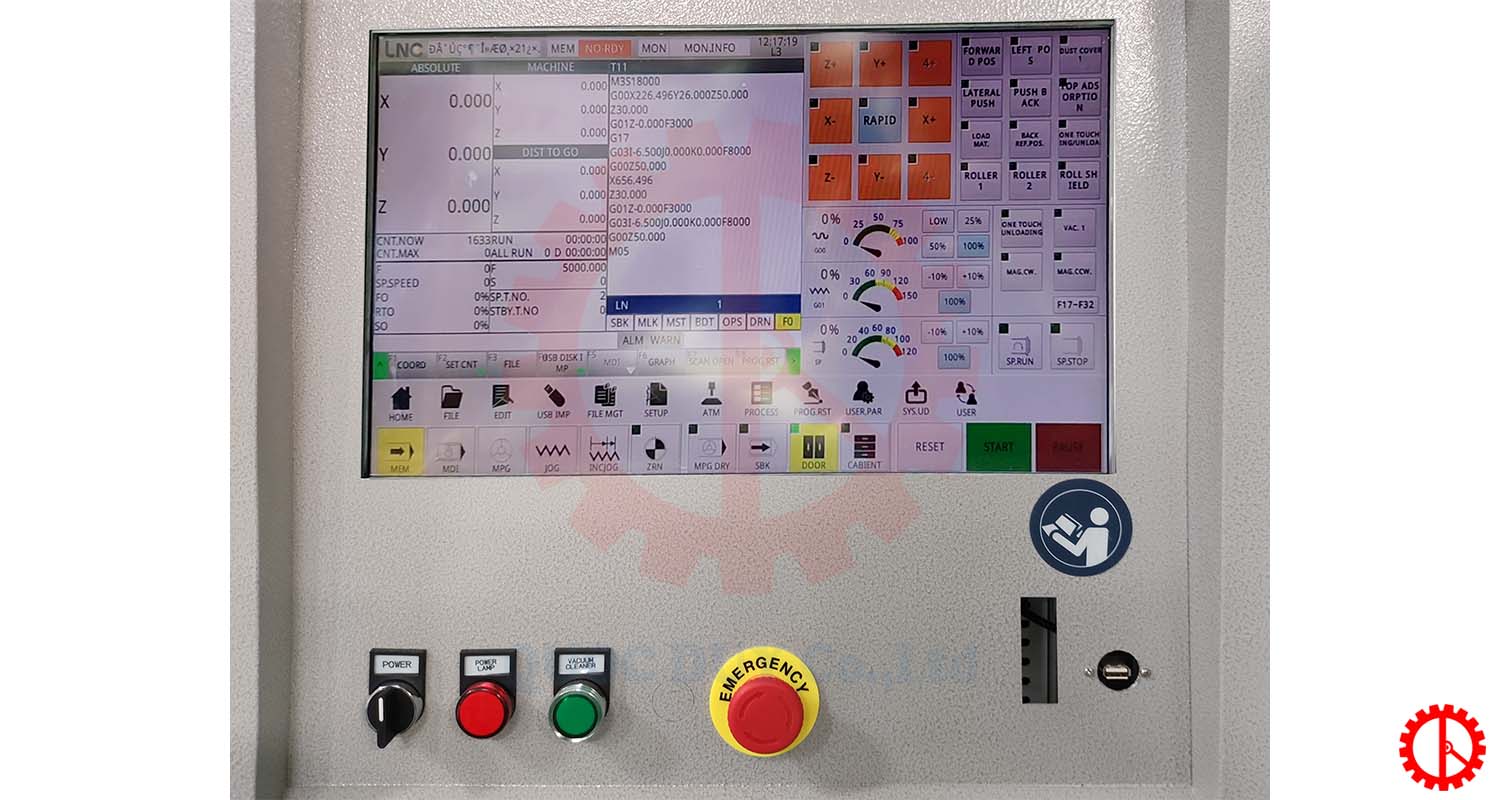

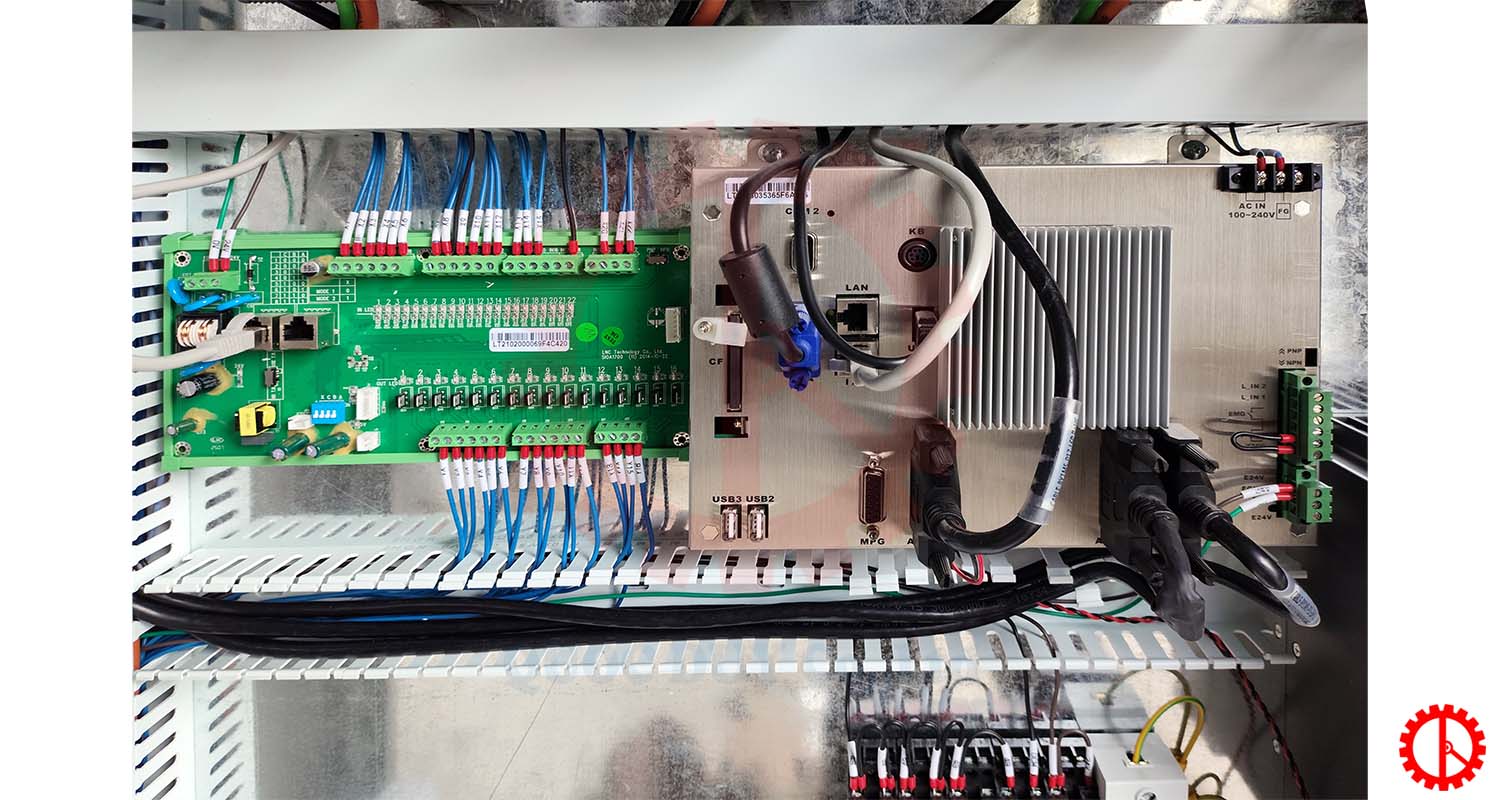

Equipped with an LNC controller for stable operation, easy handling, and high accuracy.

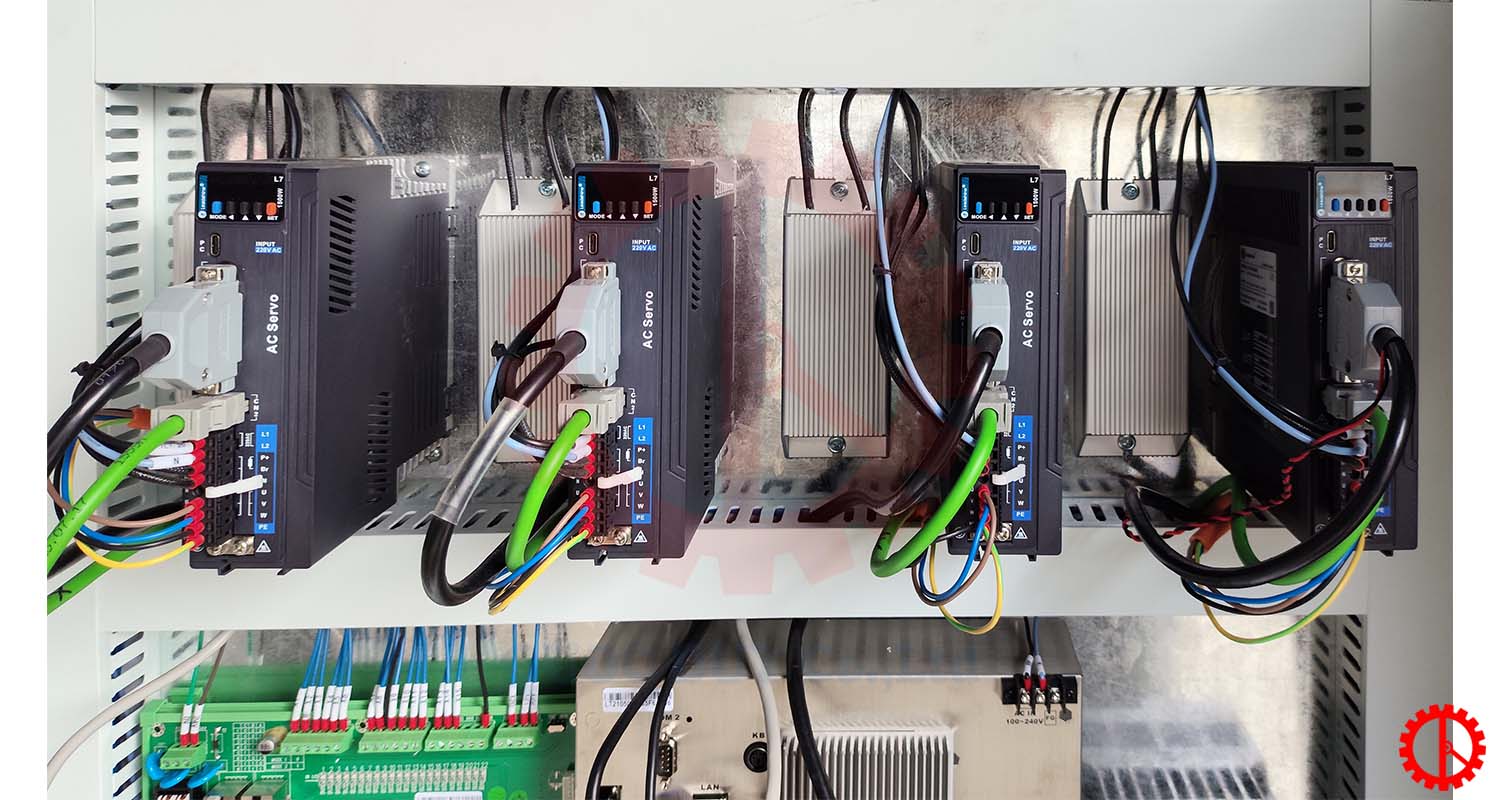

Utilizes high-power, high-speed servo motors to guarantee outstanding precision.

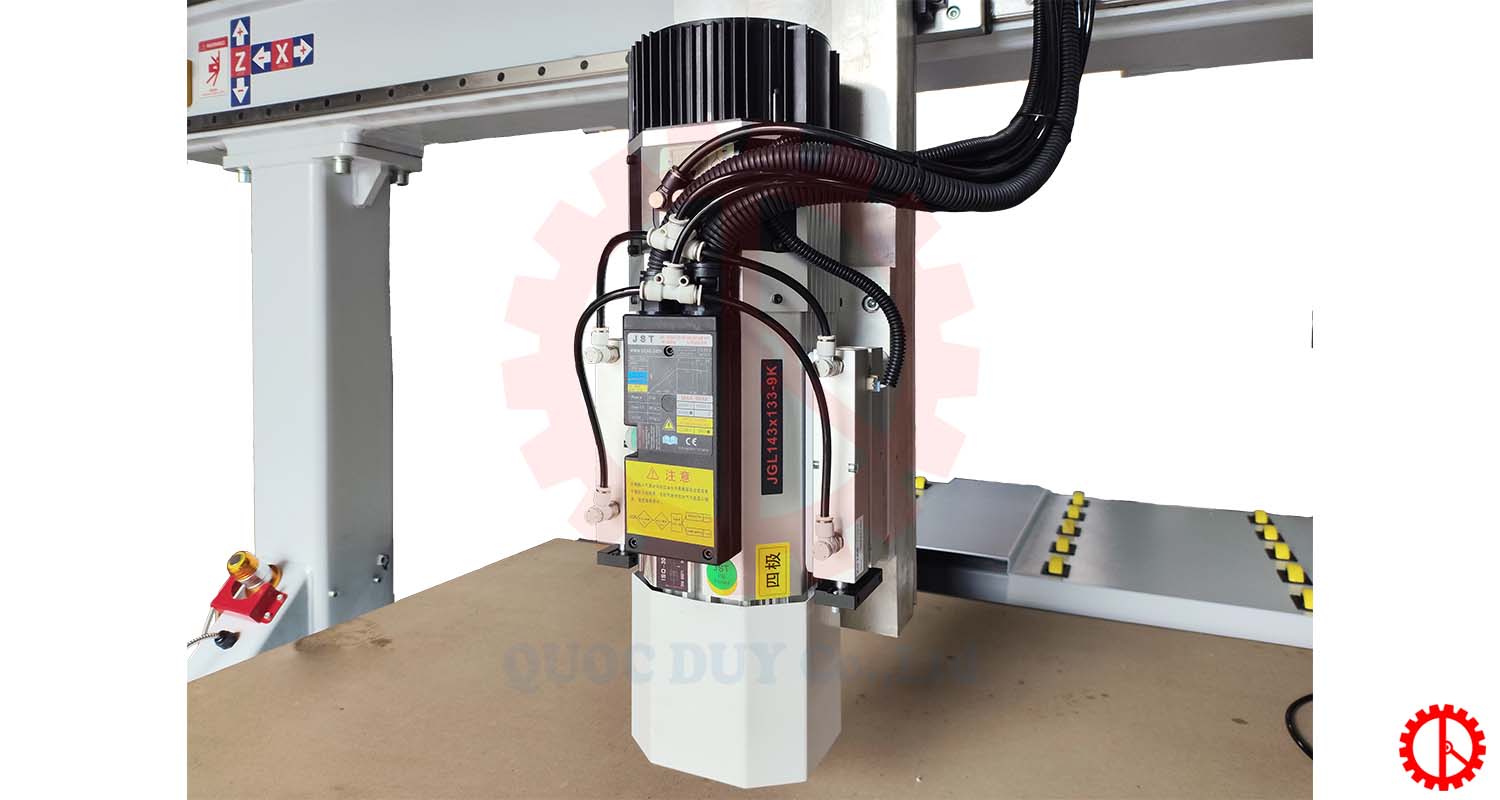

Integrates a 9kW spindle combined with automatic tool changer functionality to enhance production flexibility.
Technical Specifications
| Working dimensions | 1220 x 1220 mm |
| X-axis travel | 1785 mm |
| Y-axis travel | 2100 mm |
| Z-axis travel | 650 mm |

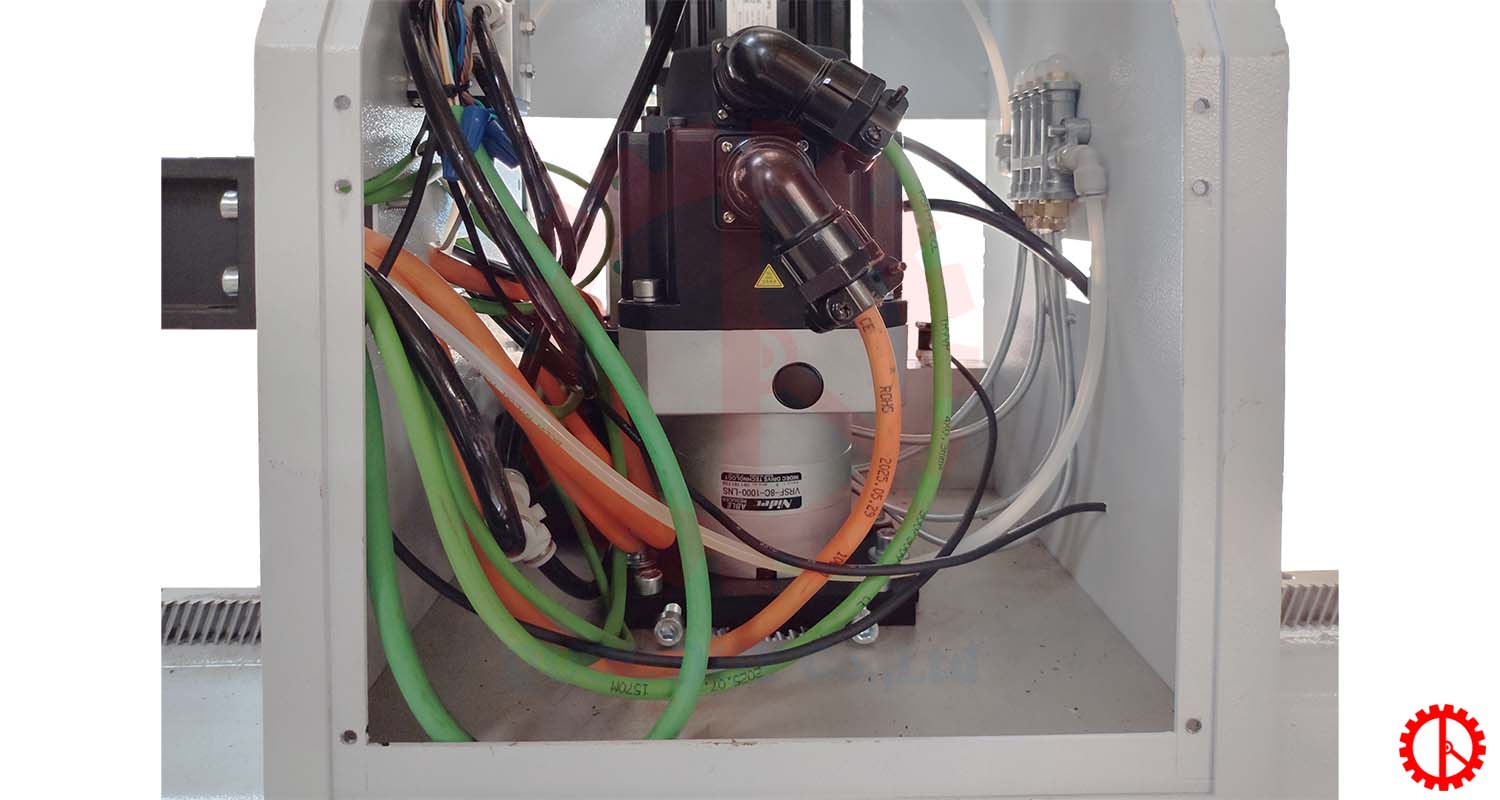

| X-axis servo motor | 1.5 kW |

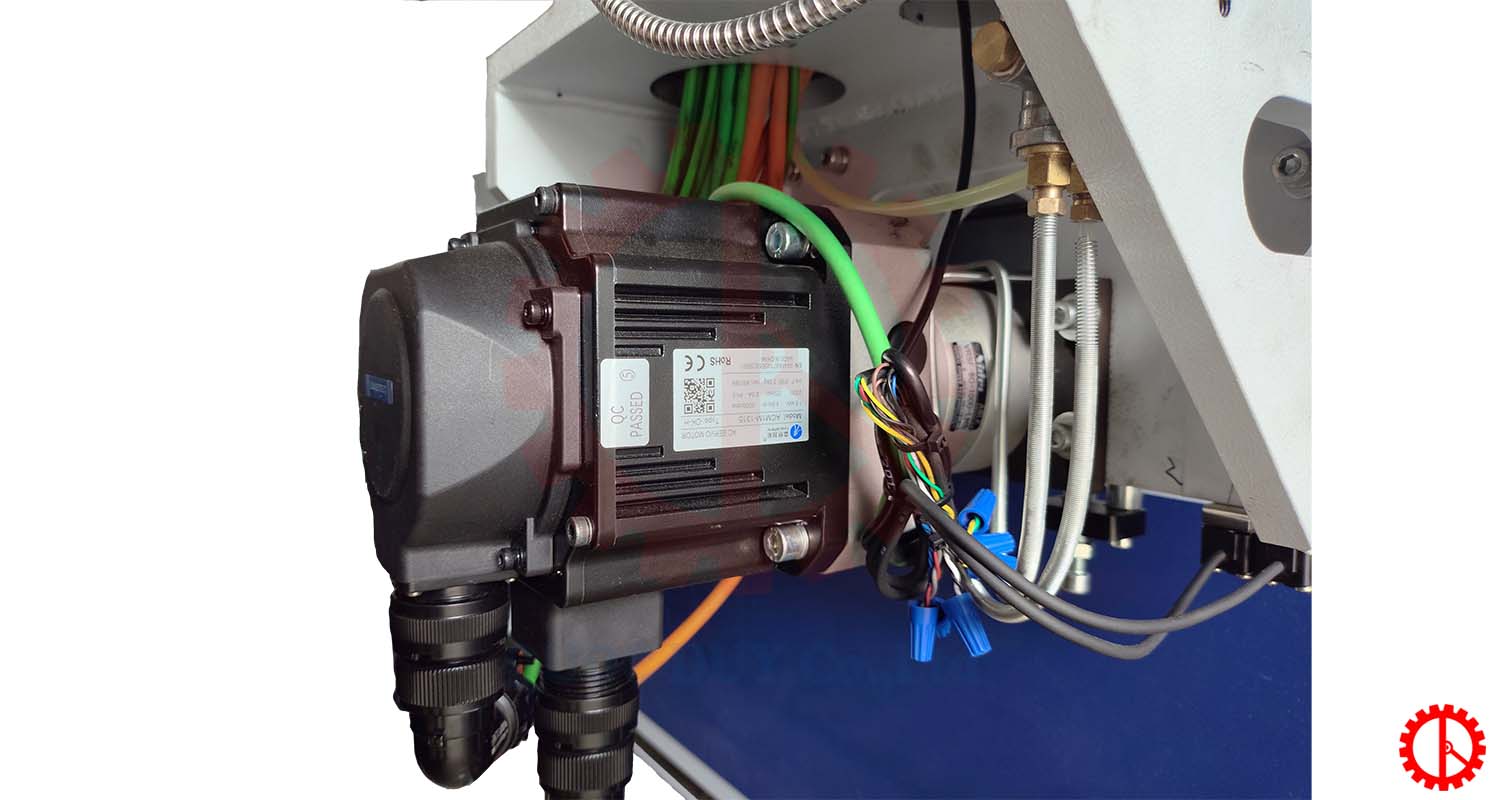

| Y-axis servo motor | 1.5 kW x 2 |

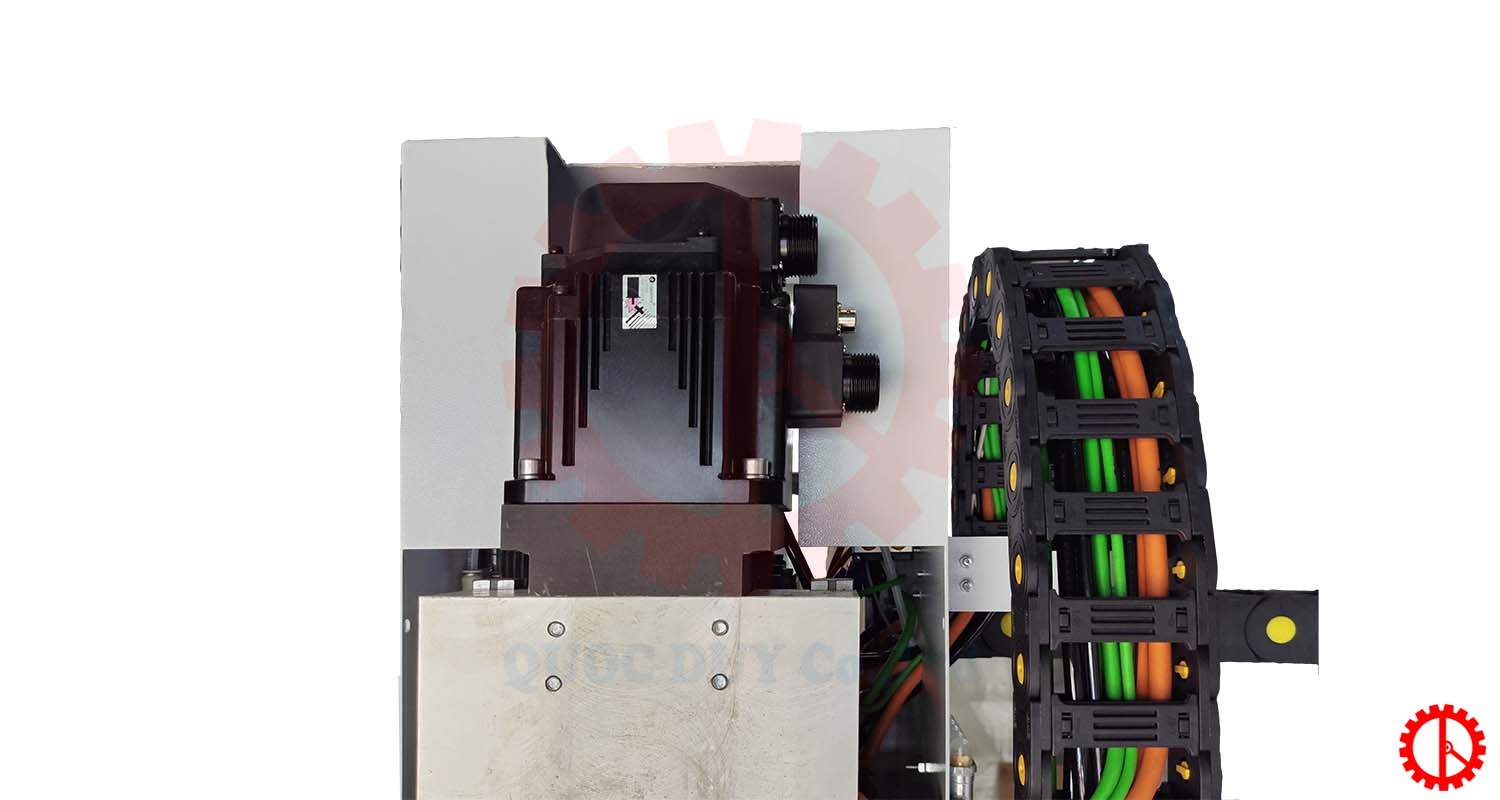

| Z-axis servo motor | 1.5 kW |
| Processing speed | 30 m/min |
| Accuracy | ±0.05 mm |
| Spindle motor | 9 kW (Automatic Tool Changer) |
| Spindle speed | 24,000 RPM |

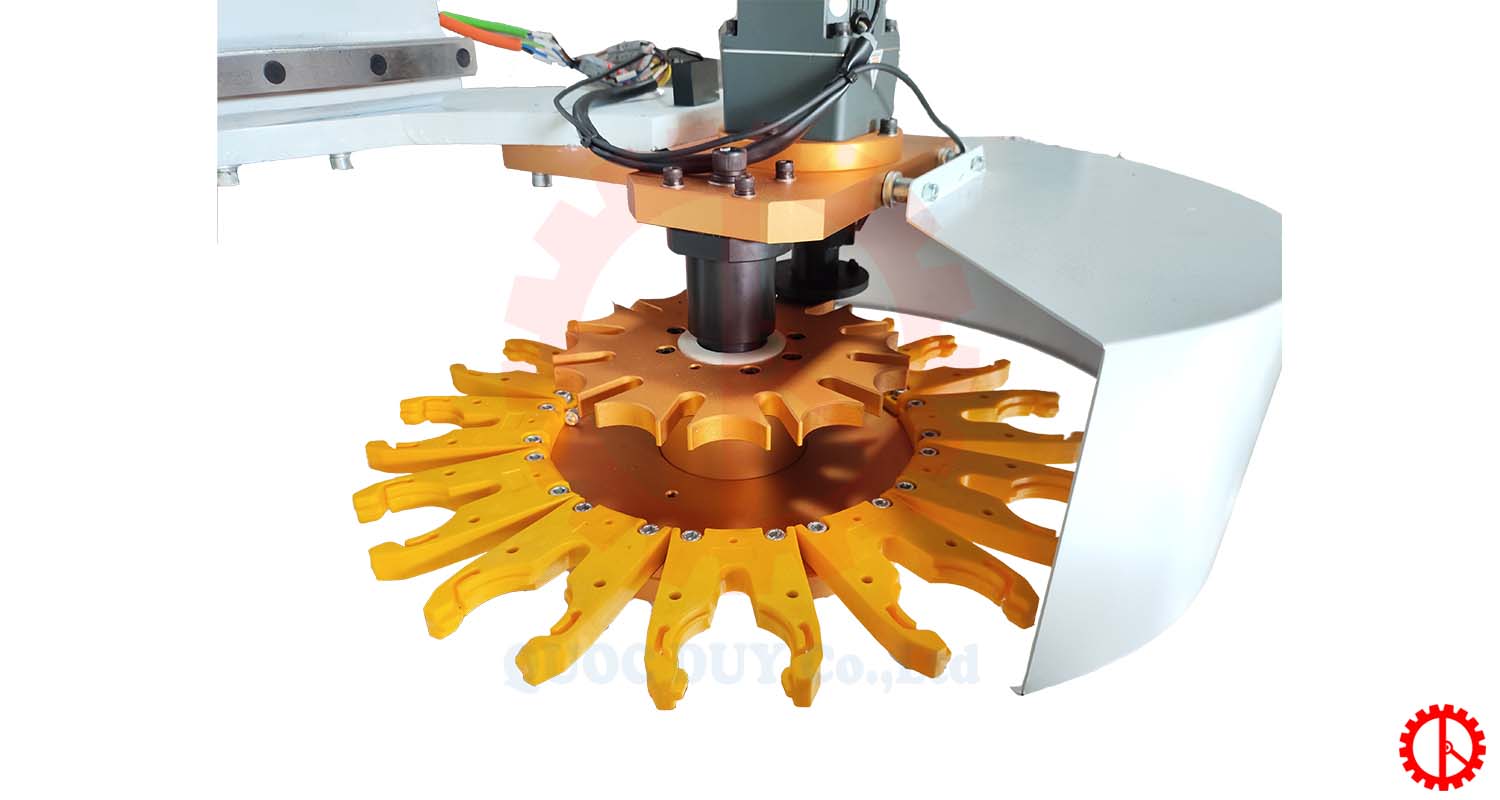

| Tool magazine | 12 tools, carousel type |

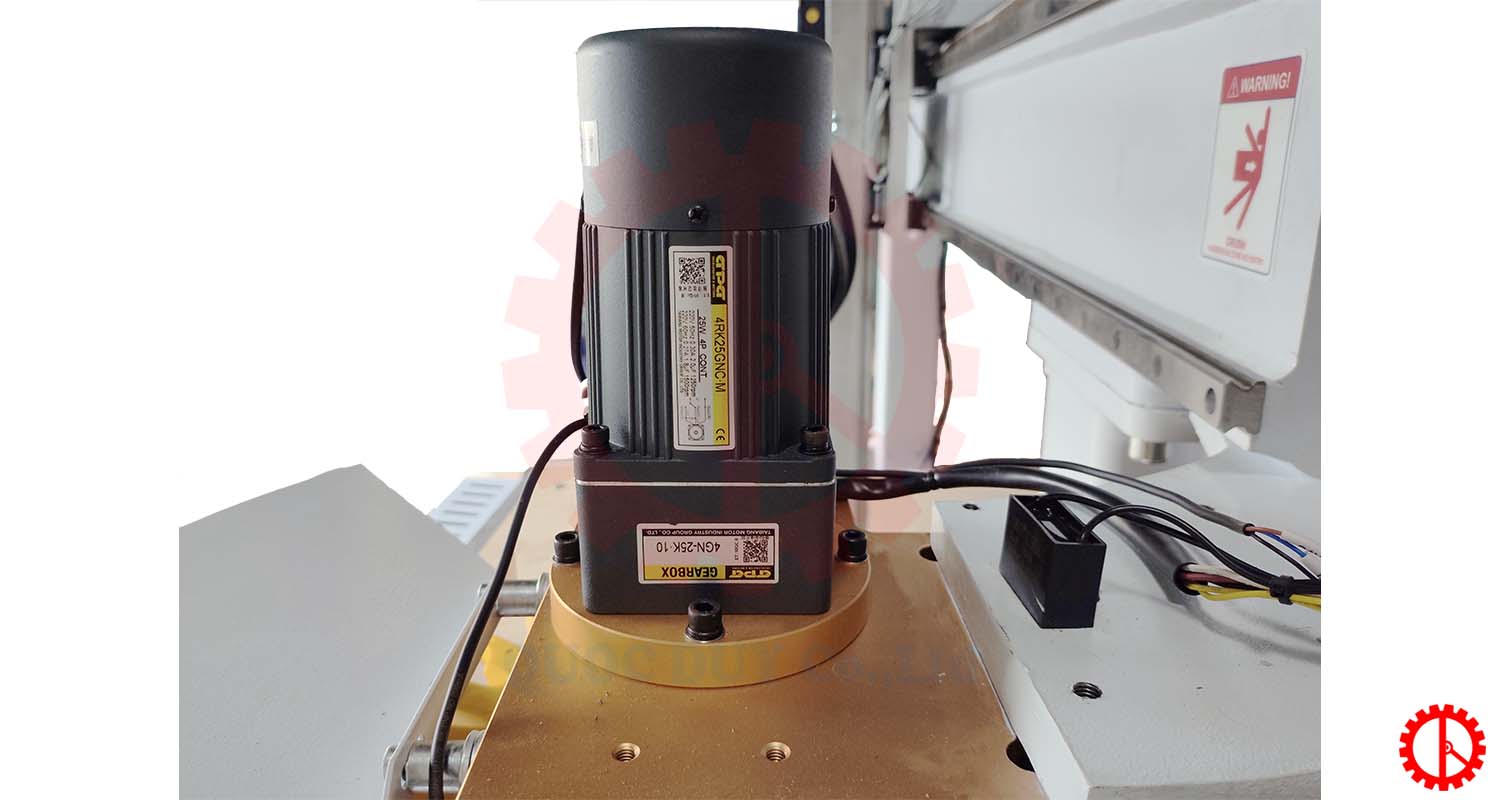

| Tool magazine rotation motor | 25W |
| Control system | LNC |
| Command code | G-code |
| Voltage | AC380V / 50Hz |

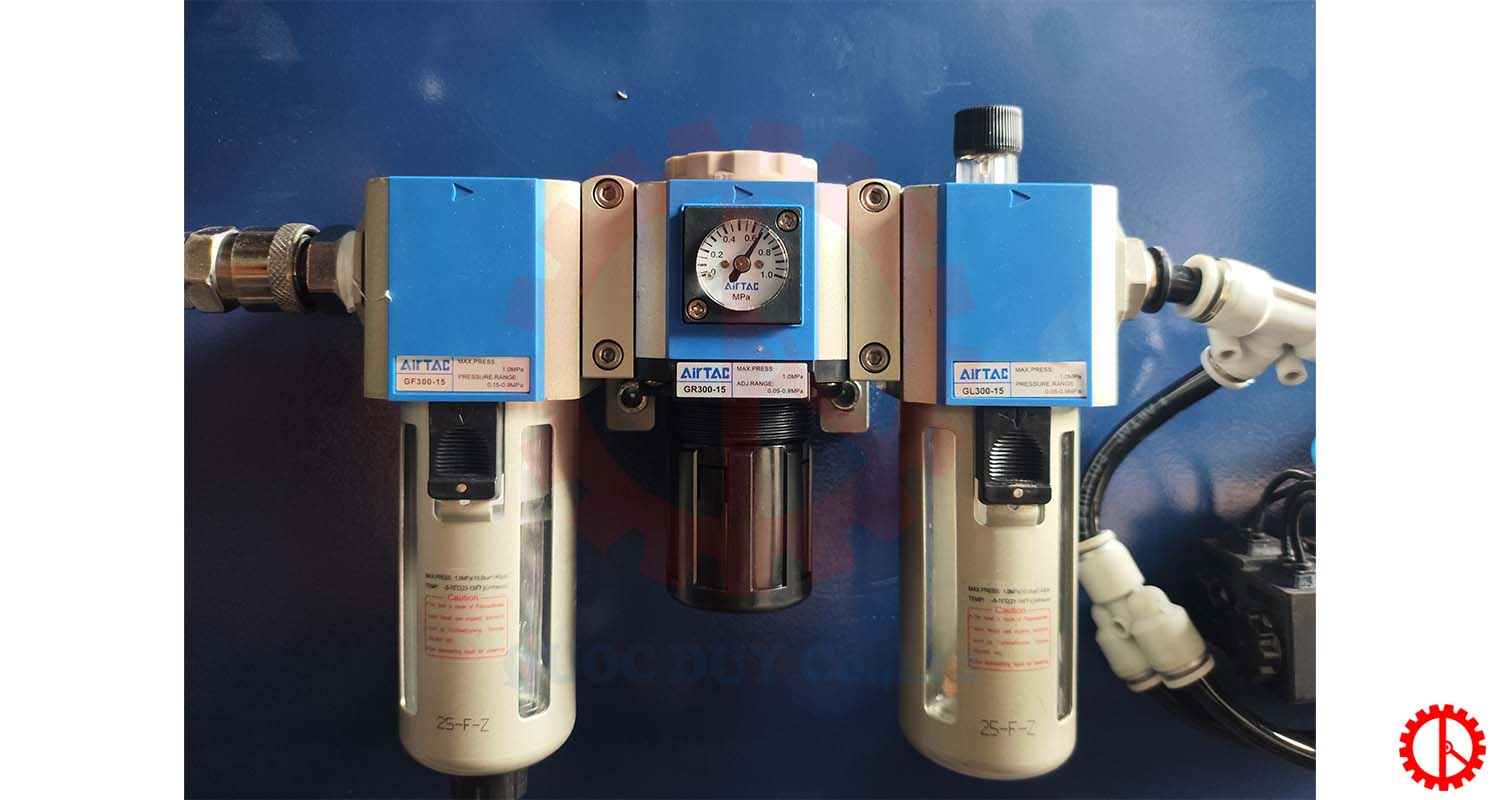

| Working pressure | 0.6 MPa |
| Dust collection pipe diameter | Ø130 mm; Ø100 mm |
| Machine weight | 1500 kg |

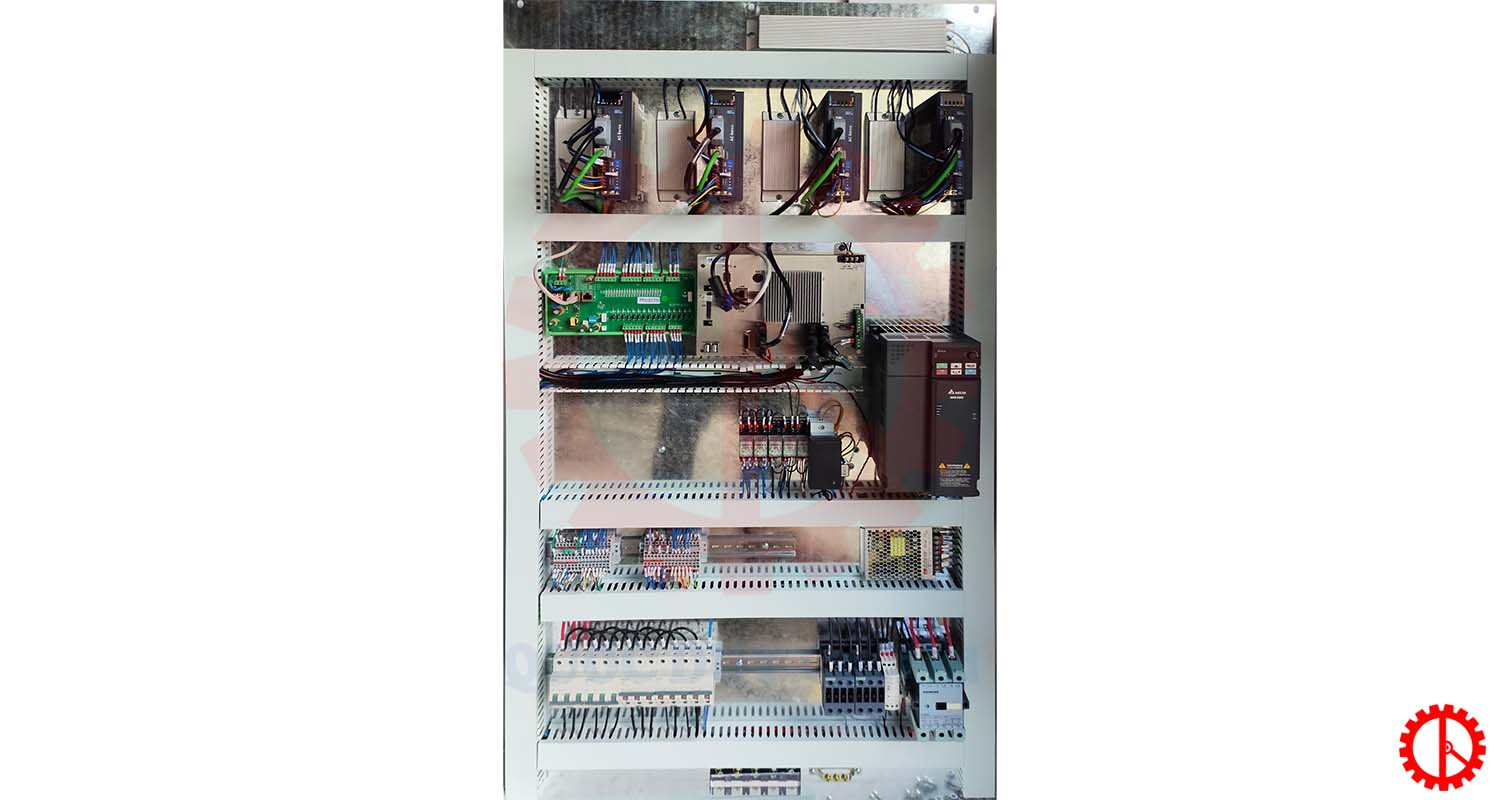

| Electrical cabinet dimensions | 1200 x 600 x 1700 mm |
| Machine dimensions | 2700 x 2650 x 2800 mm |
Note: Technical specifications, design features, and machine color are subject to change without prior notice, provided that such changes do not affect the functionality and operational performance of the machine.
Latest Price Quote for the Single Spindle CNC Router
Featuring a Z-axis travel of up to 650mm, this CNC machine flexibly processes thick workpieces such as automotive molds, solid wood blocks, or products requiring complex deep cuts, ensuring superior machining efficiency and precision. In addition to the Single Spindle CNC Router With 12 Tools, customers can explore various other CNC machine lines to satisfy diverse manufacturing demands and optimize workshop performance.
