SERVO AUTOMATIC CIRCULAR SAW BLADE SHARPENING MACHINE – MF 158S

Servo automatic circular saw blade sharpening machine – MF 158S is the ideal choice for production workshops with high demands for precision and sharpening speed. Equipped with an intelligent servo control system, the MF 158S ensures that every single saw tooth is sharpened uniformly and precisely down to the smallest detail—extending blade service life and maintaining consistent cutting quality throughout the production process.

Features of Servo automatic circular saw blade sharpening machine – MF 158S

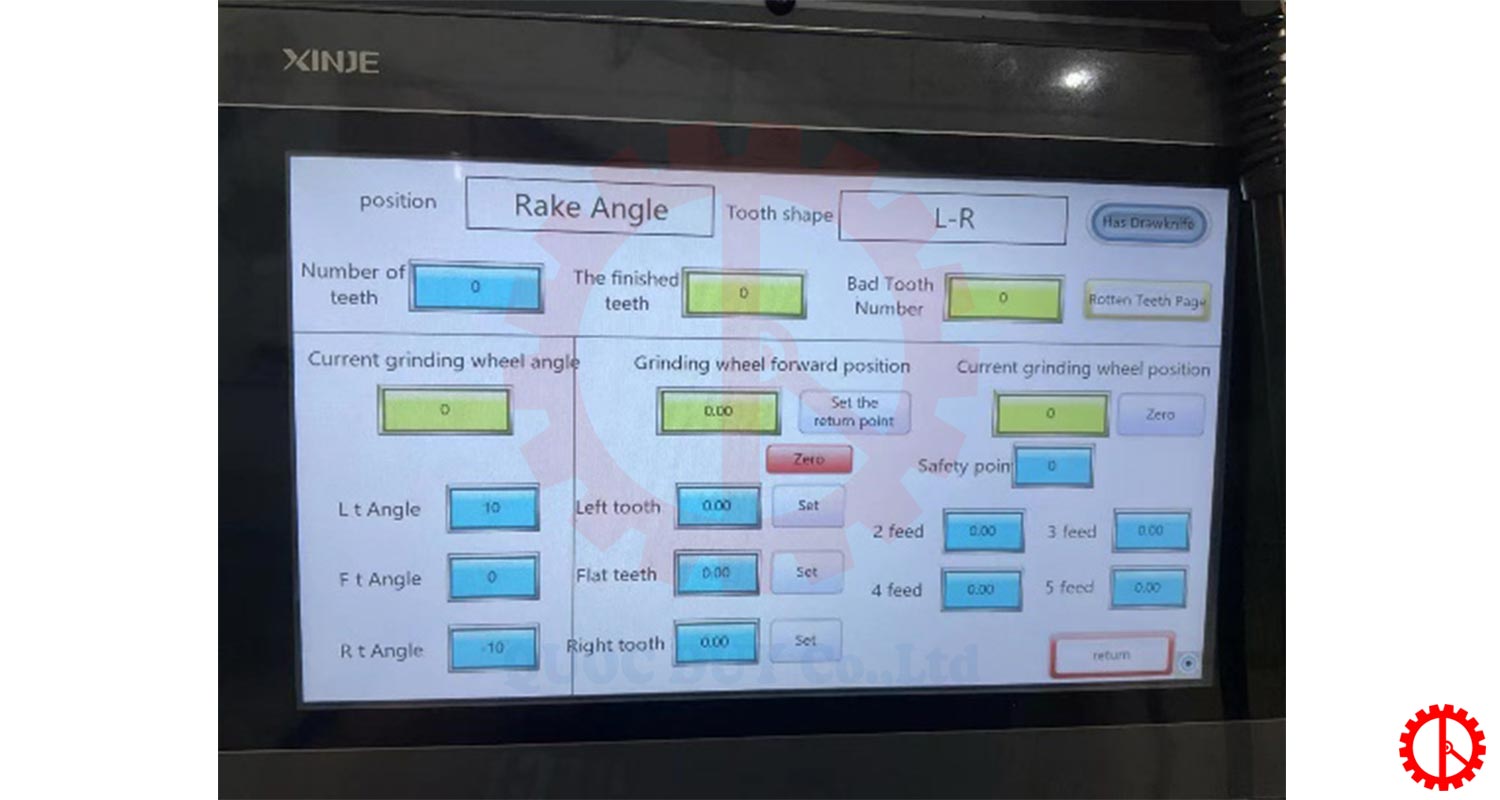

Intuitive Control Panel: Designed with an intuitive and user-friendly control interface for effortless operation.
High-Speed, High-Precision Processing: Delivers rapid machining speeds while ensuring exceptional sharpening accuracy.
Rigid Frame Construction: Engineered with a heavy-duty, robust machine frame to guarantee maximum stability during operation.

Specifications of Servo automatic circular saw blade sharpening machine – MF 158S

Working Diameter	Ø100 – Ø900 mm
Saw Blade Bore Diameter	Ø10 – Ø200 mm
Tooth Pitch	7 – 100 mm
Grinding Speed	25 Teeth/min
Grinding Angle	-8° to 90°
Total Power	4.5 kW
Grinding Wheel Speed	9000 rpm
Grinding Wheel Outer Diameter	Ø125 mm
Grinding Wheel Bore Diameter	Ø32 mm
Coolant Pump Flow Rate	25 L/min
Coolant Tank Capacity	80 L
Voltage	380V/50Hz
Machine Dimensions	1850 × 1230 × 1900 mm

Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
