Round Log Multi Rip Saw - SM MJY142-40

Round log multi rip saw SM MJY142-40 that can cut various types of wood, from soft to hard, such as birch, rubber, and pine.

Introduction of round log multi rip saw

Features of log rounding machine

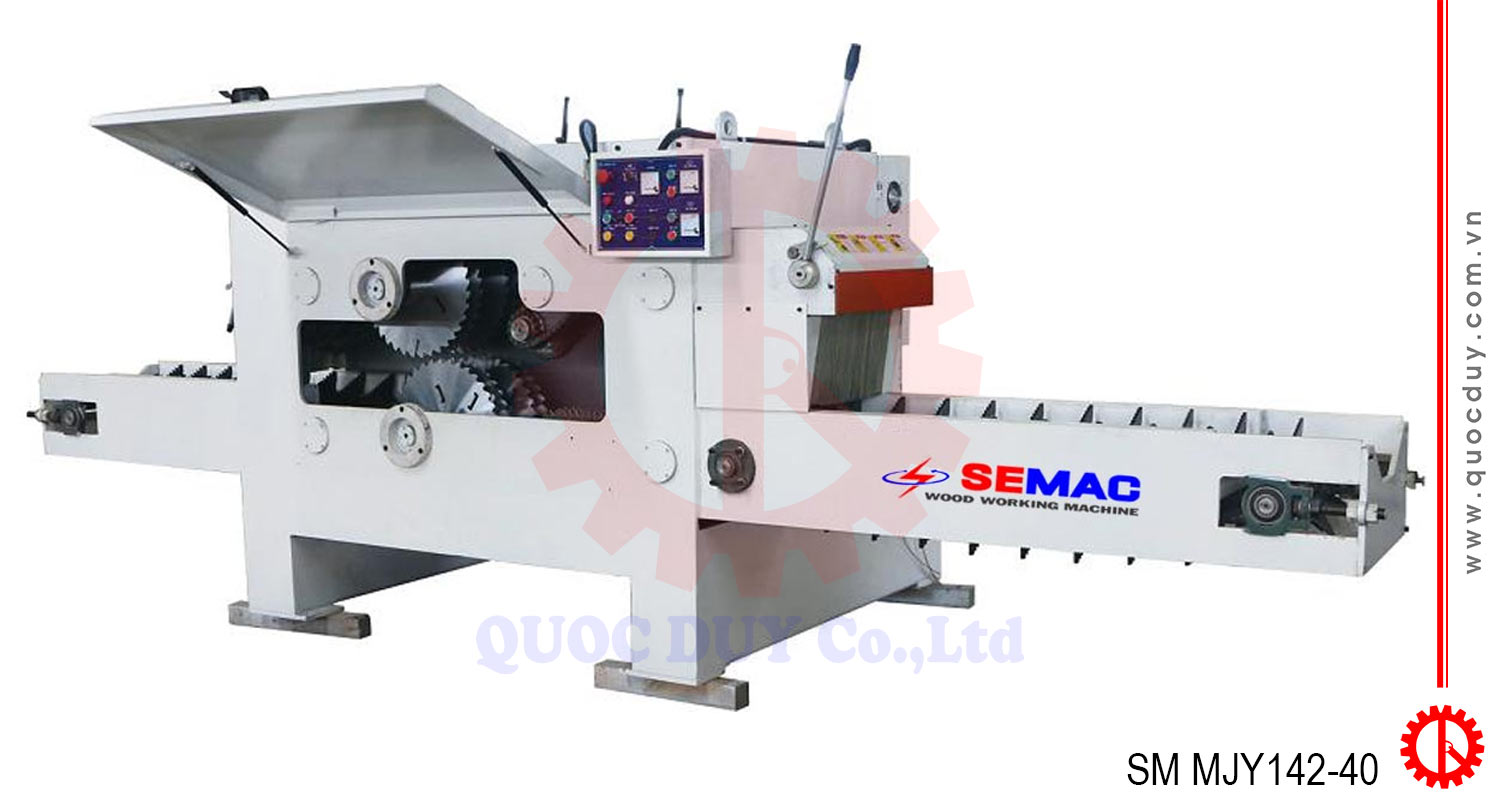

The SM MJY142-40 is a round log multi ripsaw machine manufactured by SEMAC – Quoc Duy.
This sawing machine is designed to sew round logs into smaller pieces using multiple saw blades, making the process of splitting the wood faster.
The saw blade used is specialized for cutting natural wood, ensuring fast cutting speeds and high accuracy down to millimeters.
The push-button working screen makes it easy to use and control, while the machine delivers stable and accurate cutting speeds when sawing natural round wood or large wood into smaller wooden bars with variable distances.

Specification of log rounding machine

Max. working width	: 400 mm
Min. working width	: 150 mm
Min. working length	: 1200 mm
Total power	: 133 Kw
Feeding speed	: 0 – 12 m/min
Machine size	: 5100 x 2050 x 1850 mm
Net weight	: 3500 kgs

Advantages of round log multi rip saw machine

The machine frame uses high-quality thick steel plates and is welded according to a special process, is firmly constructed, has a solid frame design, and has good load-bearing capacity.
The machine’s main shaft is made of special alloy steel, helping the machine operate smoothly, with high precision and good wear resistance.
The spindle has high flexibility and a long service life.
Anti-rebound device, V-shaped wood transfer conveyor, continuous conveying.
The machine is equipped with a saw blade cooling system, which helps reduce saw blade heat while cutting boards.

VIDEO OF OPERATION OF ROUND LOG MULTI RIP SAW MACHINE

Effective steps to saw round wood into many bars

Once the wood has been harvested, it undergoes processing and is cut into bars of the required size. The wood sawing line includes various machine lines such as the log cutting machine, multi-blade round wood sawing machine, square boxwood sawing machine, cardboard machine, and automatic billet feeding auxiliary equipment.

The process of cutting the wood into bars of the required size involves four steps.

Step 1: The long wood is cut into a standard size using a log cutter.
Step 2: The workpiece is passed through a multi-blade round wood sawing machine.
Step 3: The square boxwood is cut using a multi-blade box sawing machine.
Step 4: The straight line ripsaw sawing machine is used to remove the wood cover through ripsaw sawing.
