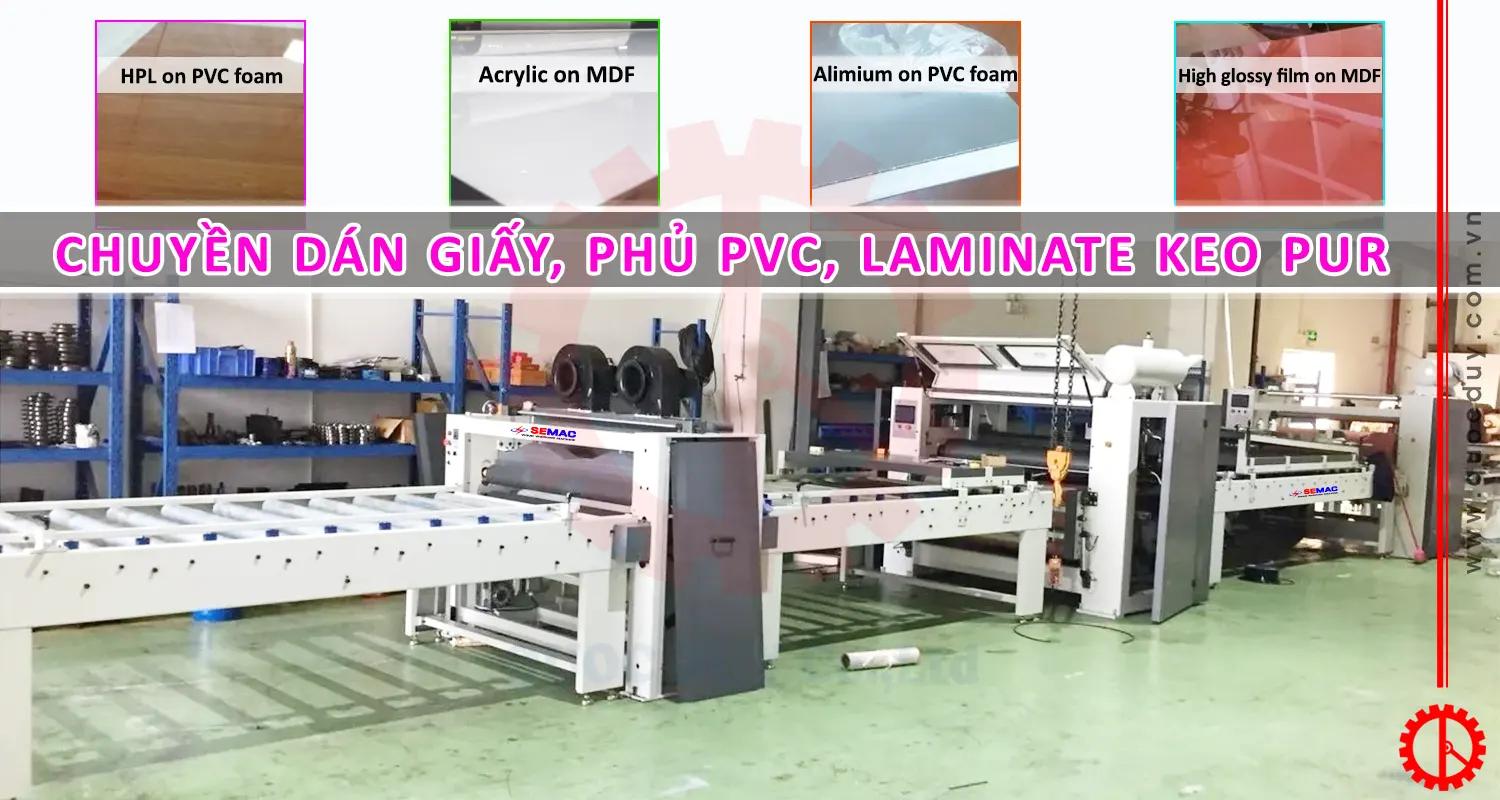

PUR laminate/pet laminating line – SMXJ H1350
Features of PUR laminate/pet laminating line
Specifications of PUR laminate/pet laminating line
| Power Supply | AC220V/50Hz |
| Heating Power | 7.5 kW |
| Rubber Hose Capacity | 20 kg (Standard Type) |
| Inner Diameter of Rubber Hose | 280 mm |
| Maximum Rotation Speed | 60 rpm |
| Inner Diameter of Rubber Nozzle | Ø8 mm |
| Working Air Pressure | 0.4 – 0.8 MPa |
| Control System | PLC + Touchscreen |
| Temperature Control Range | Ambient Temperature – 180°C |
| Heating Time | 25 min |
| Maximum Glue Injection Pressure | ≤50 kg/cm² |
| Heat Retention Function | No |
| Overheat Alarm | Yes |
| Low Temperature Alarm | Yes |
| Low Glue Level Alarm | Yes |
| Roller Stroke | Maximum 600 mm |
| Machine Weight | 250 kg |
| Dimensions | 1040 × 550 × 1250 mm |

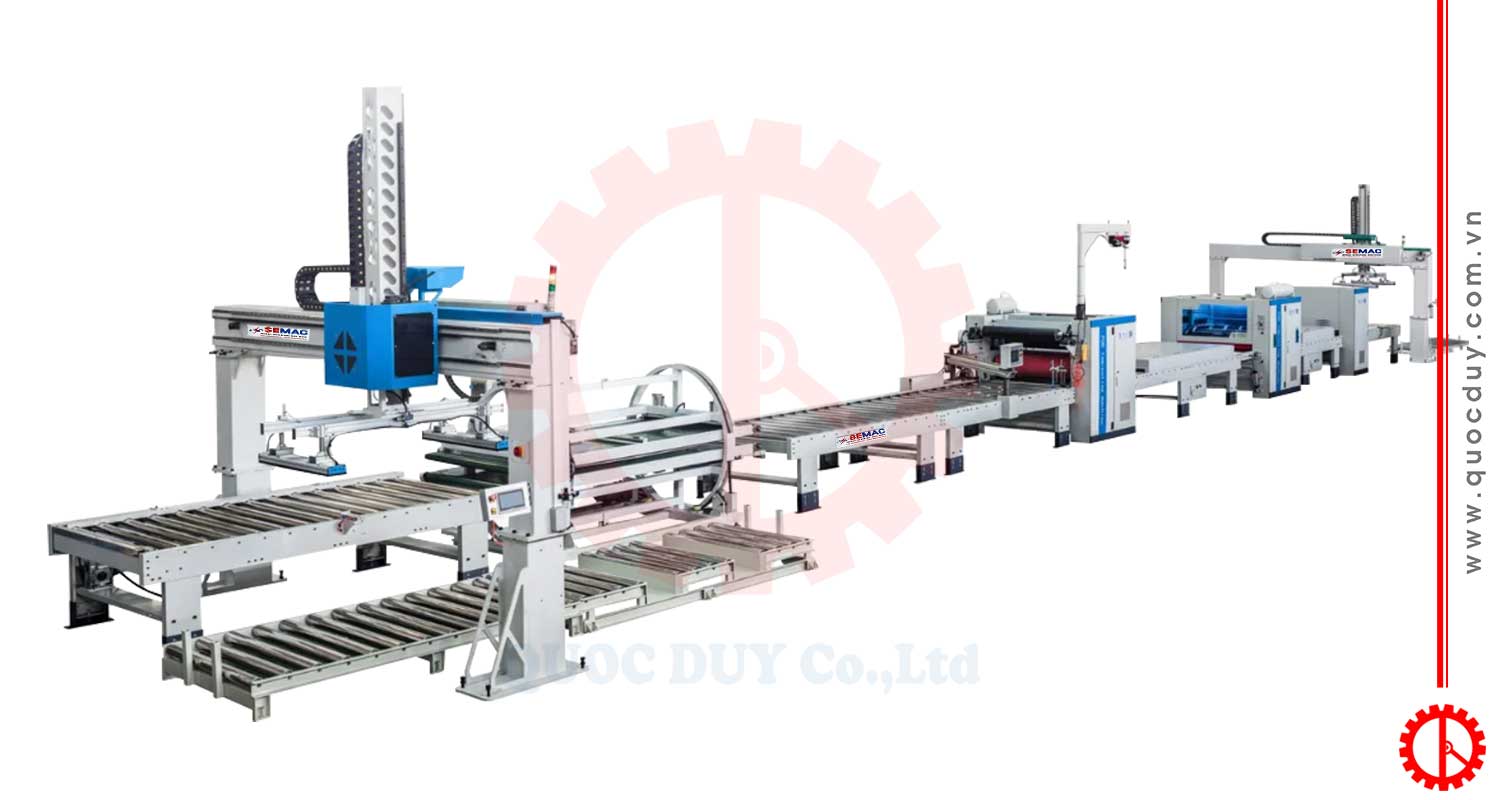

PUR laminate/pet laminating line process

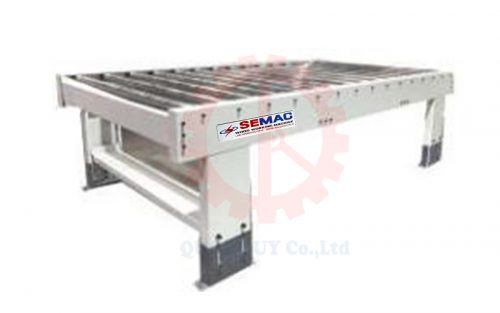

1.Conveyor
| Speed Control Method | Variable Frequency Drive (VFD) |
| Motor Power | 0.75 kW |
| Machine Weight | 400 kg |
| Roller Size | Ø80 × 1500 mm |
| Dimensions | 3000 × 1655 × 820 mm |
| Function | Automatic Centering |

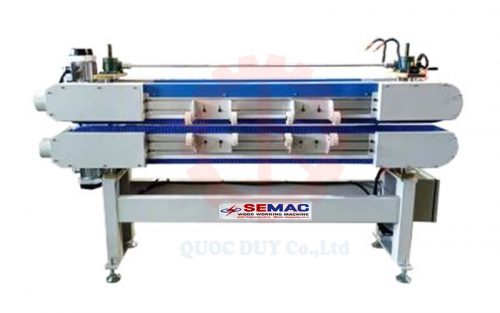

2.Dust cleaning machine
| Brush Type | Horizontal Brush, Double-Sided Cleaning |
| Power | 0.74 kW |
| Dimensions | 2100 × 1200 × 400 mm |
| Weight | 250 kg |

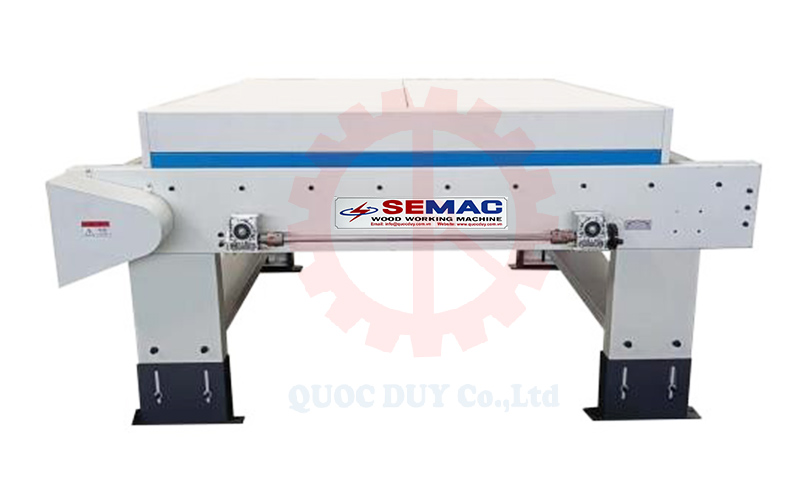

3.IR Heating Conveyor
| Conveyor Speed | 6 – 20 m/min |
| Speed Control | Variable Frequency Drive (VFD) |
| Motor Power | 3.75 kW |
| Roller Pitch | 198 mm |
| Roller Diameter | Ø80 × 1500 mm |
| Heating Method | Infrared Lamps |
| Number of Infrared Lamps | 6 |
| Conveyor Length | ≥ 500 mm |
| Dimensions | 2500 × 1655 × 1000 mm |
| Weight | 400 kg |

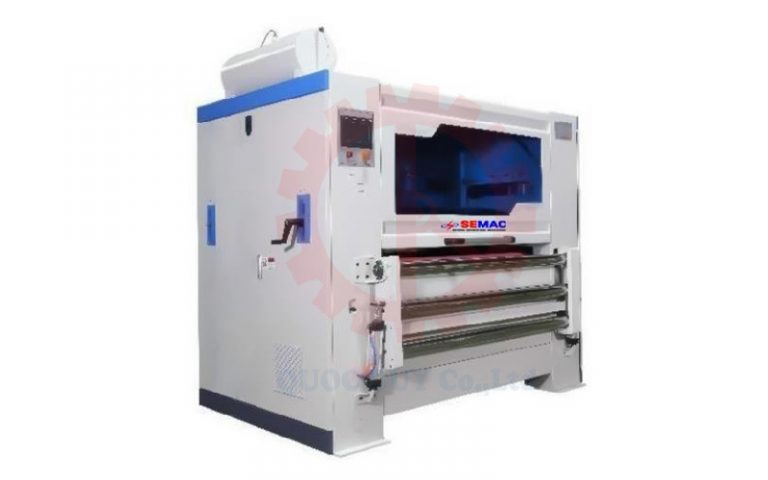

4.5-Roller Glue Spreader
| Working Speed | 6 – 20 m/min |
| Working Length | 400 – 2400 mm |
| Working Width | 1300 mm |
| Working Thickness | 0 – 50 mm |
| Roller Diameter | Ø240 mm |
| Heating Power | 12 kW |
| Heating Method | Electric Heating + Thermal Oil |
| Pressing Method | Roller Press |
| Safety Device | Emergency Stop Button |
| Control Interface | Human–Machine Interface (HMI) |
| Total | 45 kW |
| Dimensions | 2400 × 2200 × 1900 mm |
5.IR Dryer
| Conveyor Speed | 6 – 20 m/min |
| Speed Control | Variable Frequency Drive (VFD) |
| Roller Pitch | 198 mm |
| Roller Diameter | Ø80 × 1500 mm |
| Heating Method | Infrared Lamps |
| Number of Infrared Lamps | 6 |
| Minimum Workpiece Length | ≥ 500 mm |
| Dimensions | 4000 × 1655 × 1000 mm |
| Weight | 800 kg |

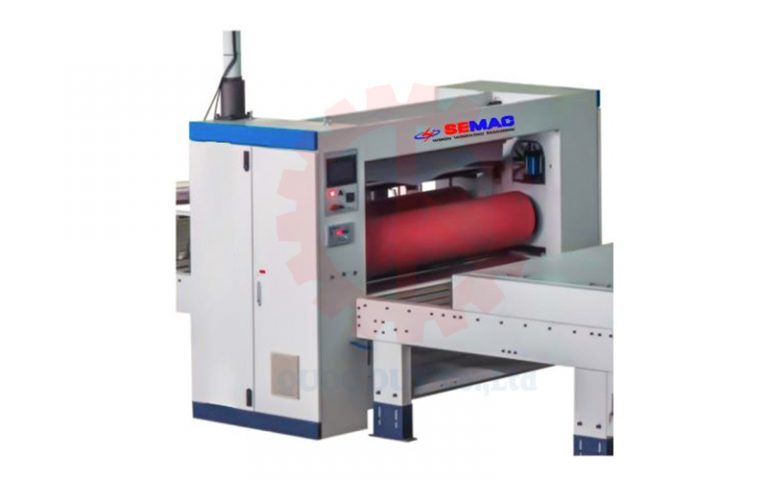

6.Paper Laminating Machine
| Working Speed | 6 – 20 m/min |
| Roller Diameter | Ø320 × 1350 mm |
| Roller Material | 1 Silicone Roller + 1 Steel Roller |
| Heating Motor | 1.5 kW |
| Heating Method | Heating Tube |
| Pressing Method | Hydraulic Press |
| Safety Device | Safety Switch |
| Dimensions | 2100 × 1000 × 1690 mm |
| Weight | 1770 kg |

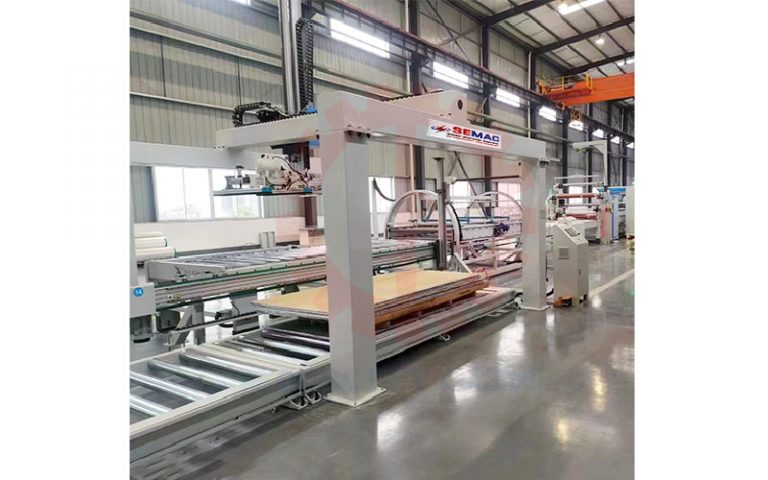

7.Workpiece Feeder
| Dimensions | 4000 × 3900 × 4800 mm |
| Capacity | ≥ 4 pcs/min |
| Maximum Load Capacity per Panel | ≤ 80 kg |
| Maximum Stacking Height (Including Pallet) | ≤ 1600 mm |
| Power | 4 kW |
| Maximum Lifting Speed | 0 – 58 m/min |
| Maximum Traveling Speed | 0 – 113 m/min |
8.Control Cabinet
| PLC Controller | Mitsubishi |
| Inverter | Taiwan Delta |
| Relay | Schneider |
| AC Contactor | Schneider |
| Electrical Wiring | Complies with European Standards |
9.PUR Glue Melter Unit
| Power Supply | AC 220V/50Hz |
| Heating Power | 7.5 kW |
| Rubber Hose Capacity | 20 kg (Standard Type) |
| Inner Diameter of Rubber Hose | 280 mm |
| Maximum Rotation Speed | 60 rpm |
| Inner Diameter of Glue Nozzle | Ø8 mm |
| Working Air Pressure | 0.4 – 0.8 MPa |
| Control System | PLC + Touchscreen |
| Temperature Control Range | Ambient Temperature – 180°C |
| Heating Time | 25 min |
| Maximum Glue Injection Pressure | ≤ 50 kg/cm² |
| Heat Retention Function | No |
| Overheat Alarm | Yes |
| Low Temperature Alarm | Yes |
| Low Glue Level Alarm | Yes |
| Roller Stroke | Maximum 600 mm |
| Weight | 250 kg |
| Dimensions | 1040 × 550 × 1250 mm |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities.
