Pass through keyhole hinge machining center is a multi-purpose drilling machine with a total of 6 axes for processing keyholes, slots, and hinges to help save time and improve productivity.
Introducing the CNC hinge lock drilling machine
Features of CNC door hinge lock drilling machine

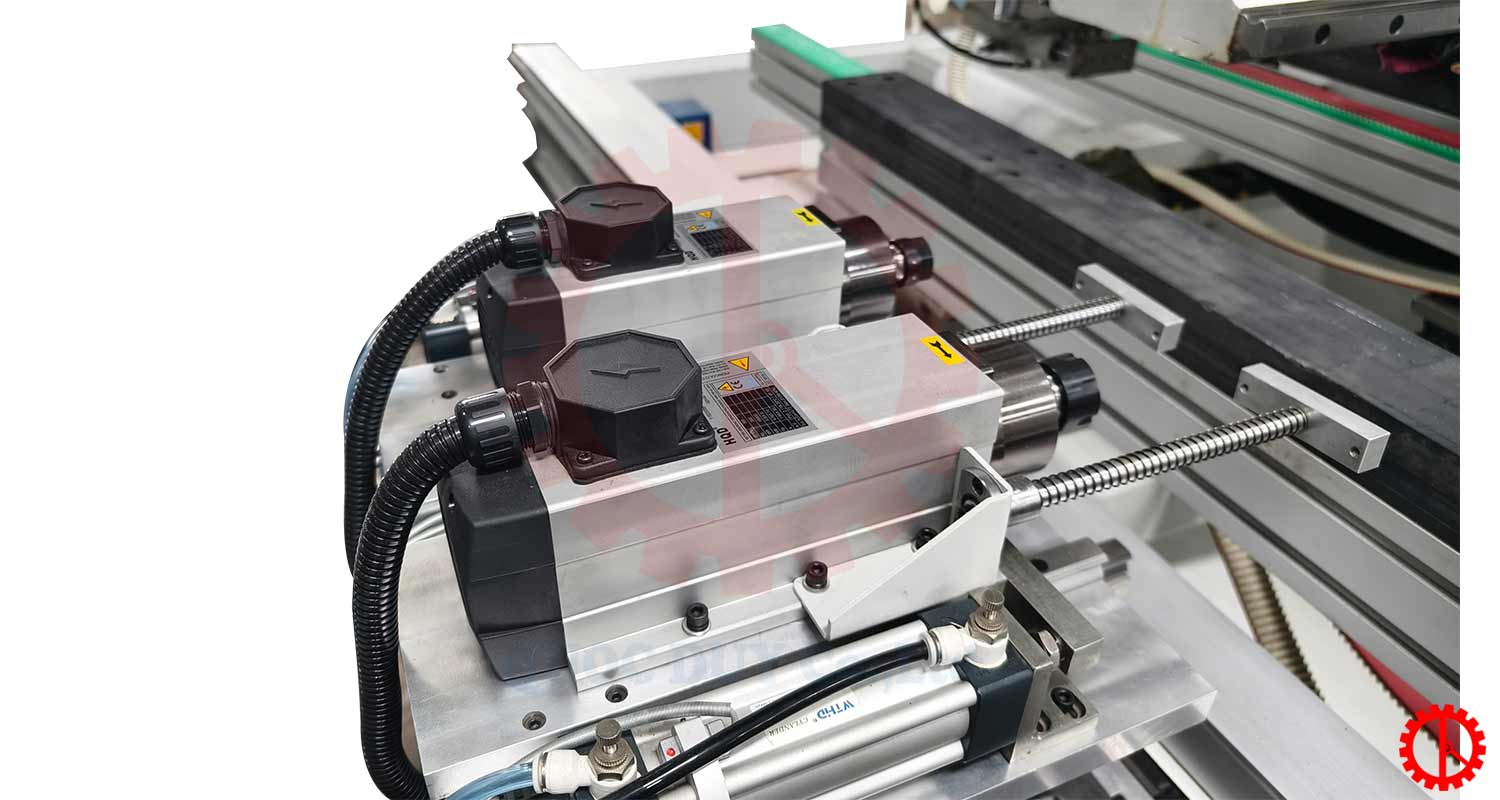

- The door lock and hinge drilling machine has a total of 7 machining motor, processing key holes, door hinge lock slots, and door hinges are also processed at the same time, saving time and improving productivity.

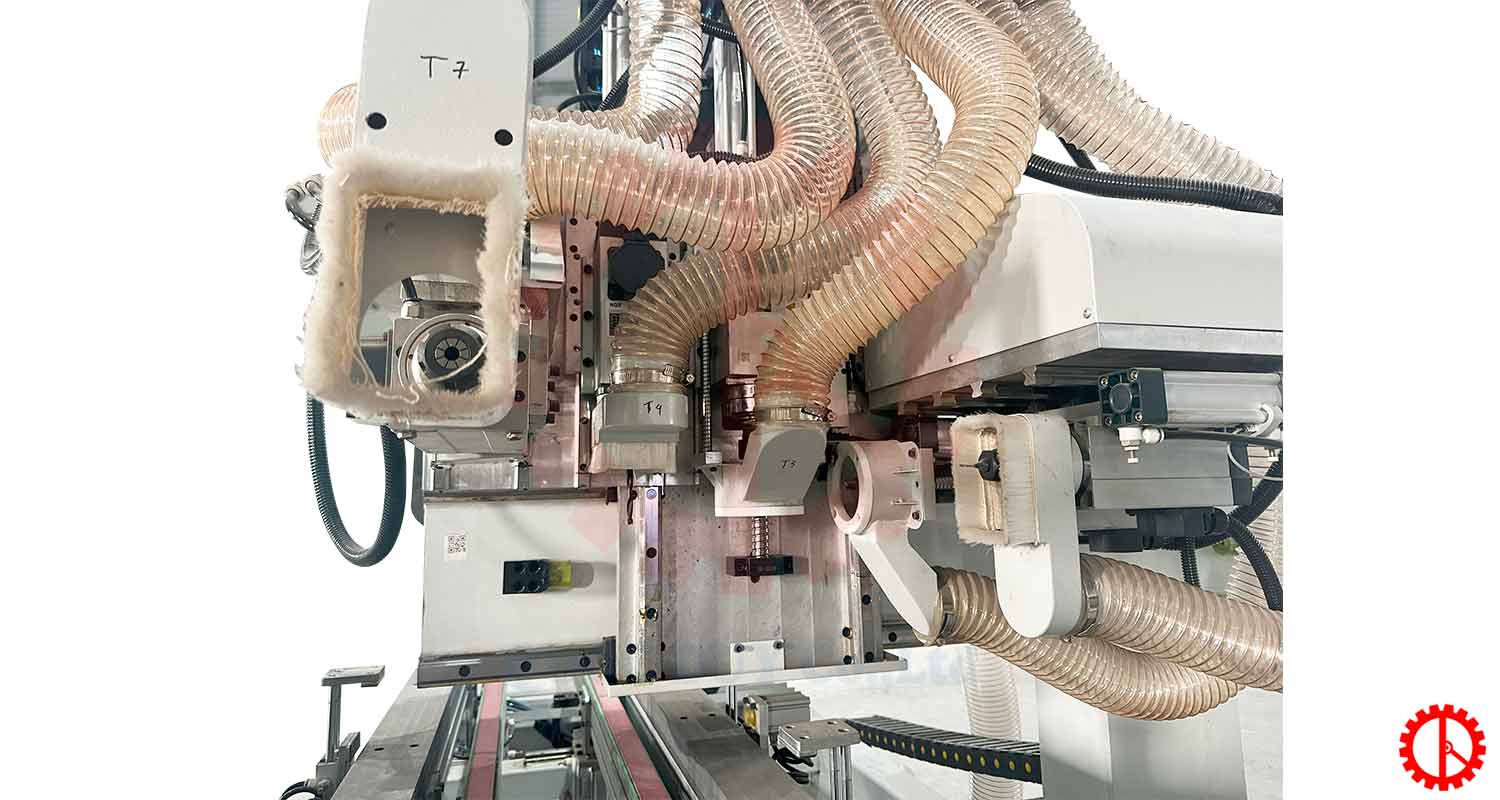

- Capable of machining 5 surfaces of the panel, optimizing workflow and increasing productivity.
- High-power motors enable fast processing speed and ensure high precision in finished products.

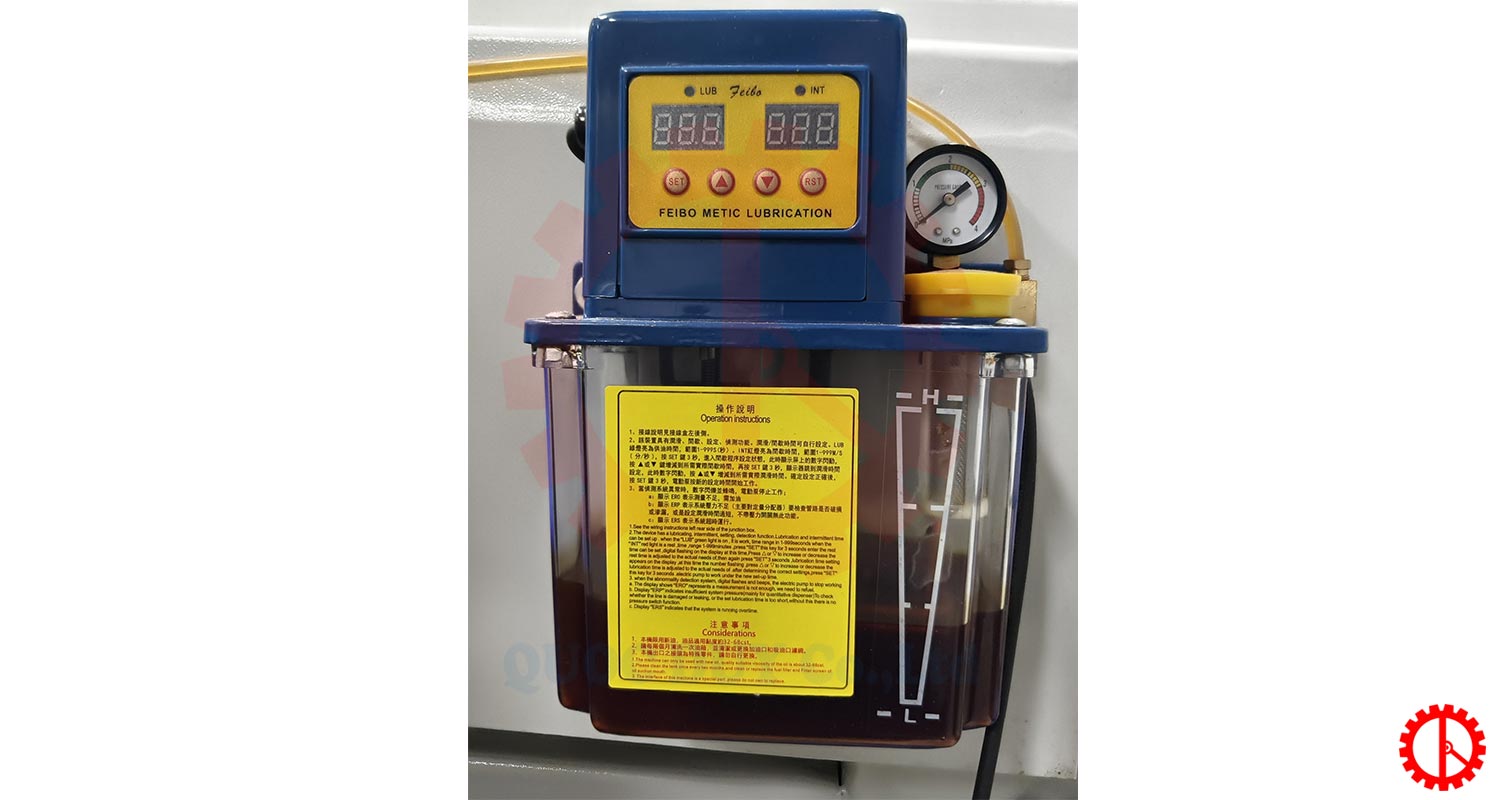

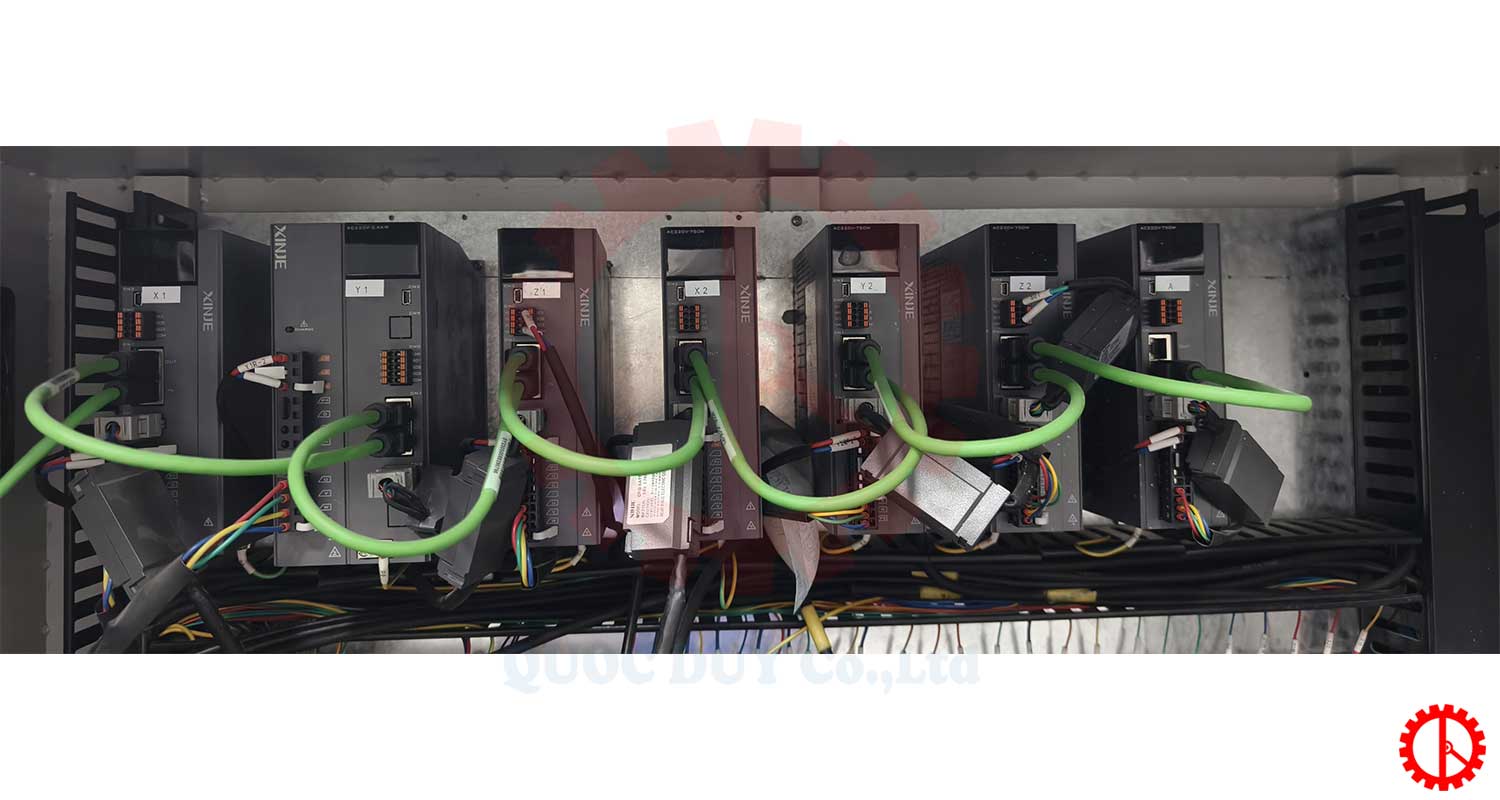

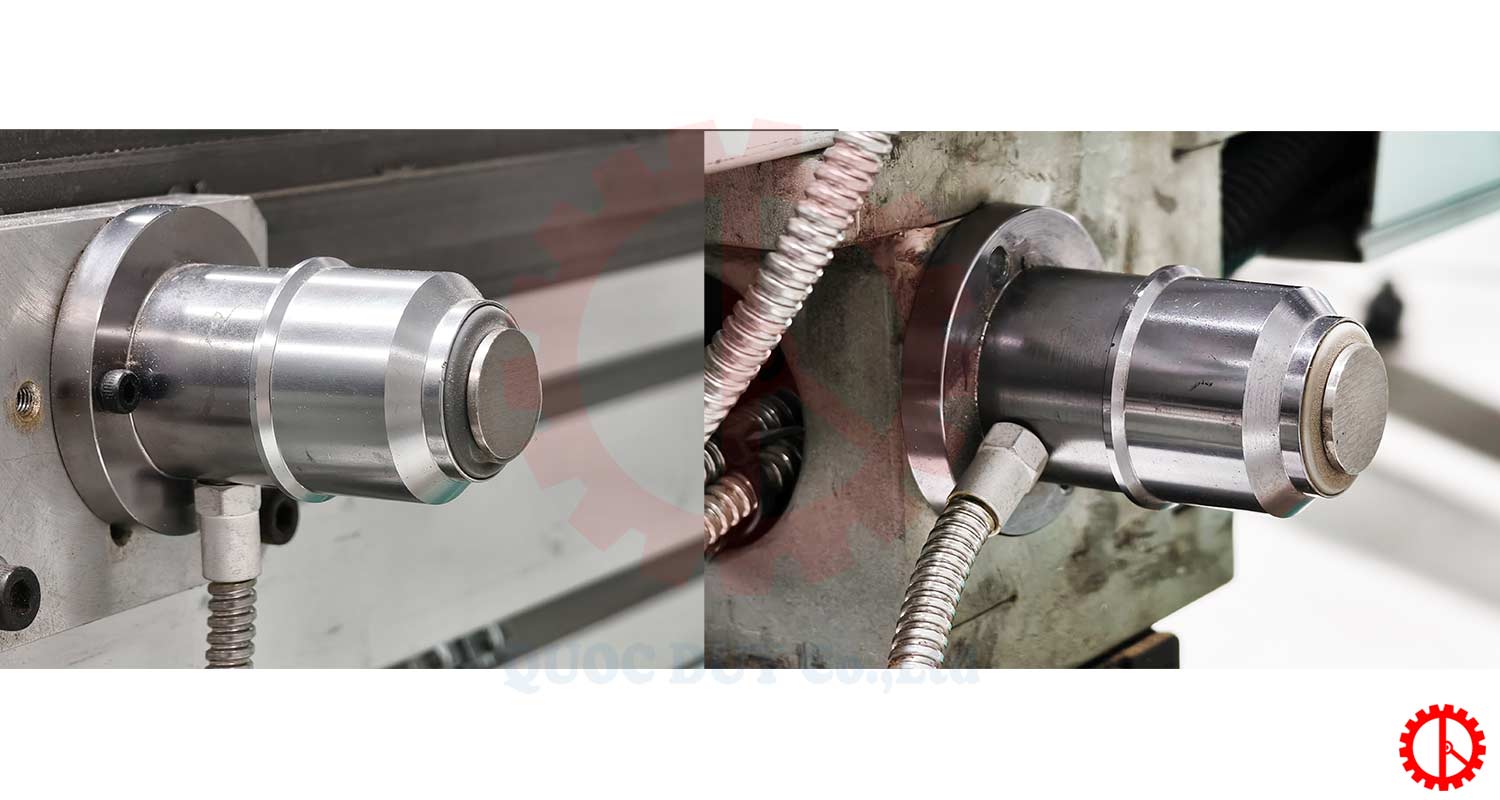

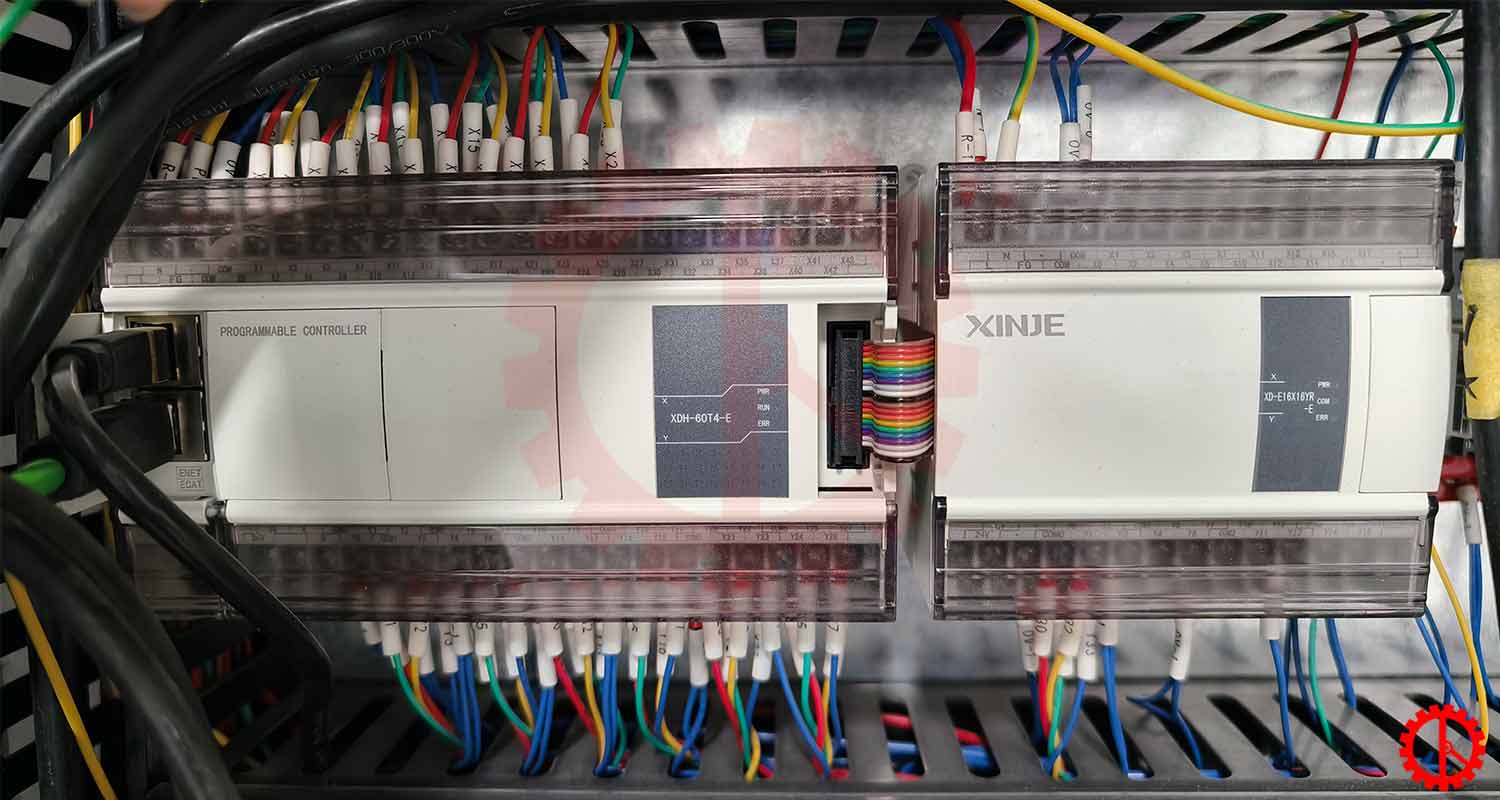

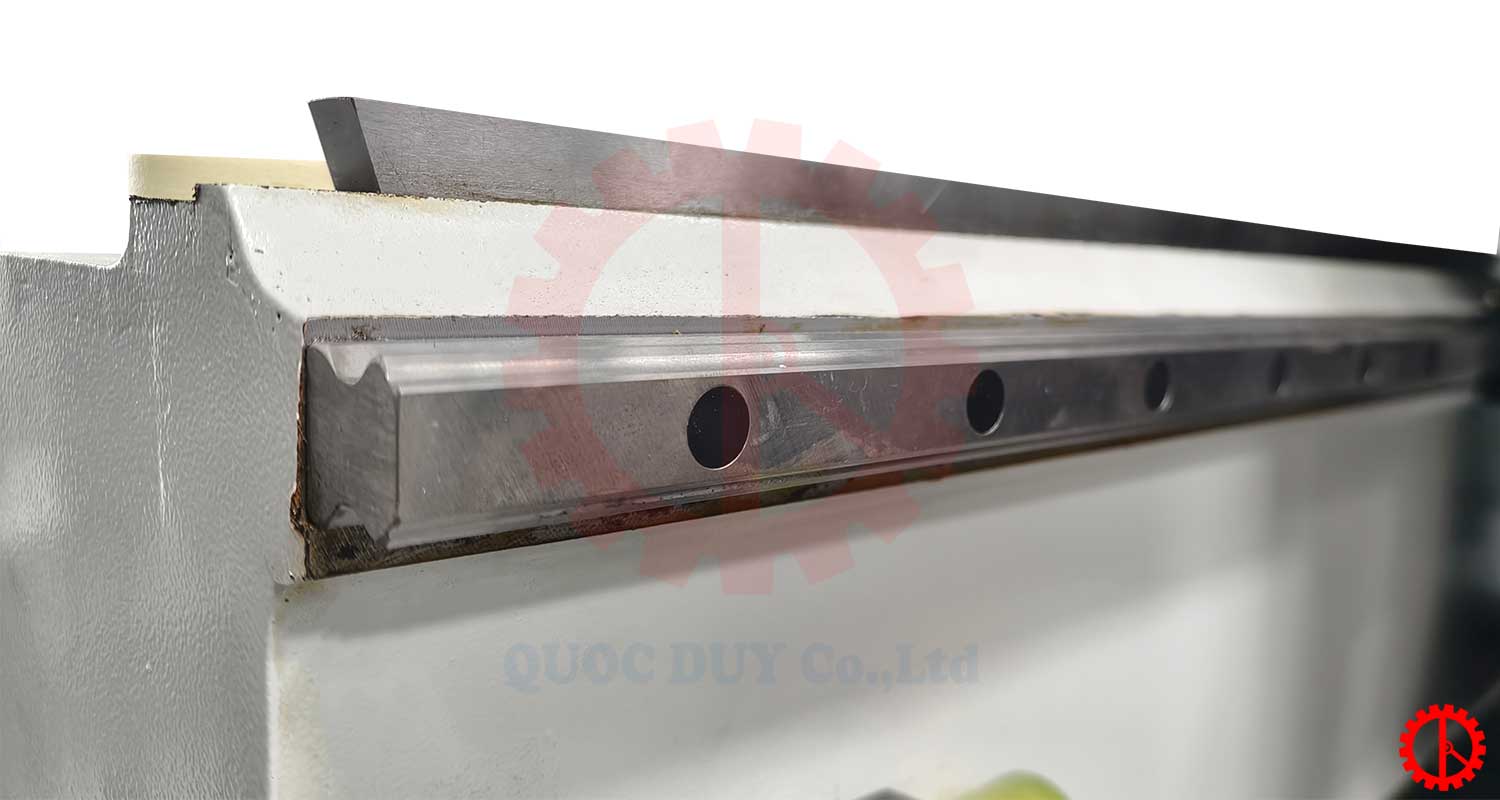

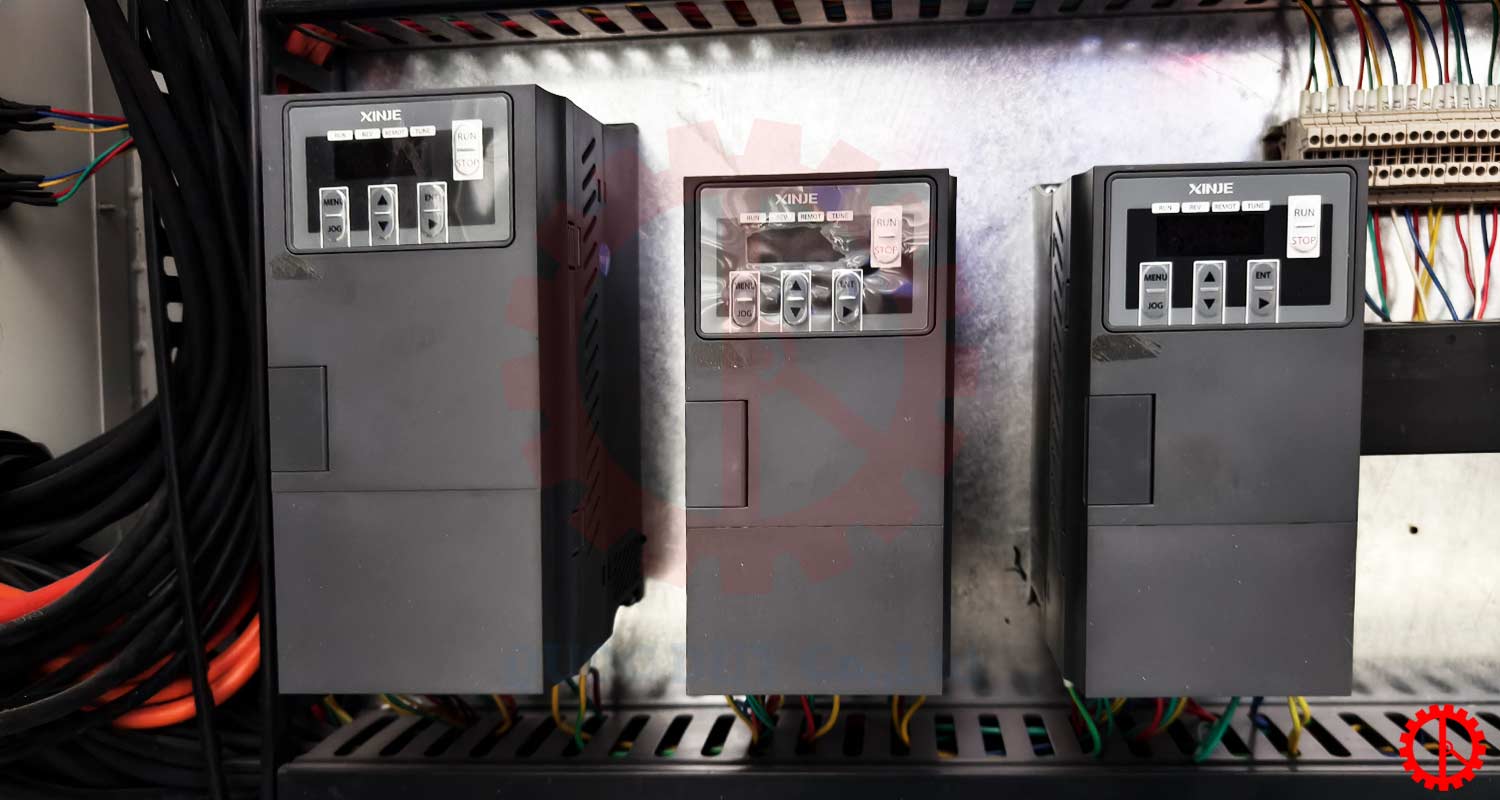

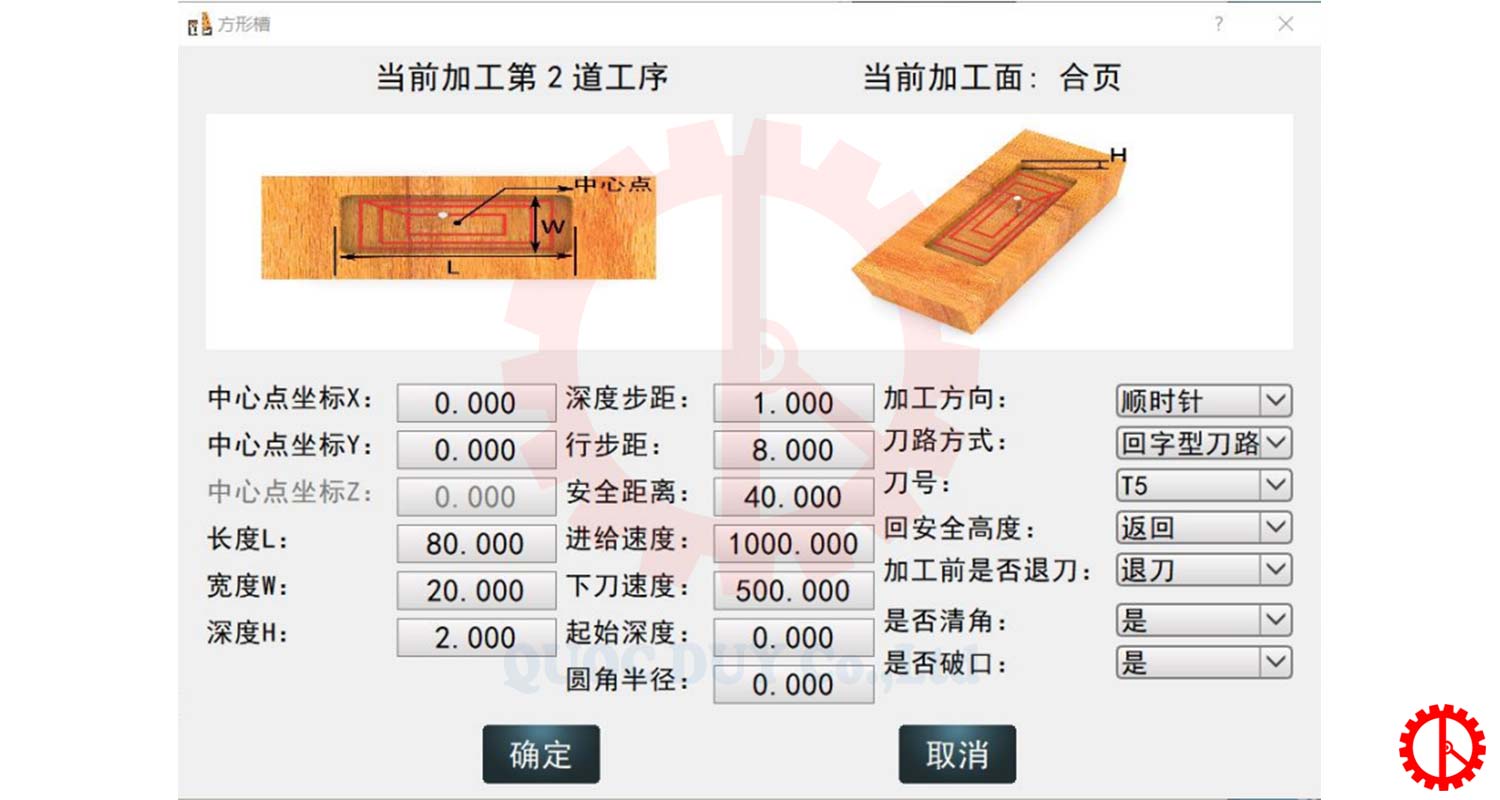

- Driver, PLC, inverter: XINJE.

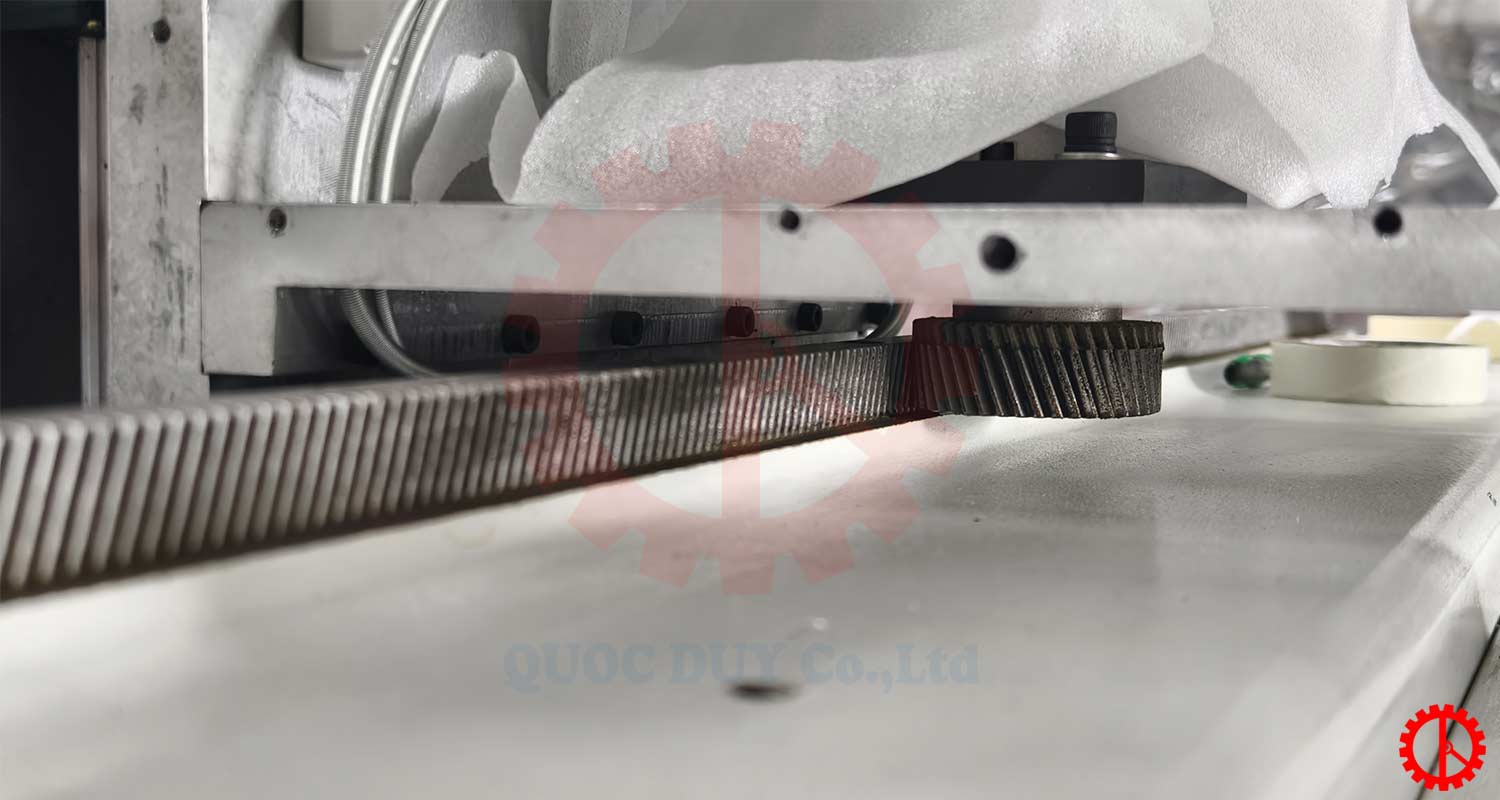

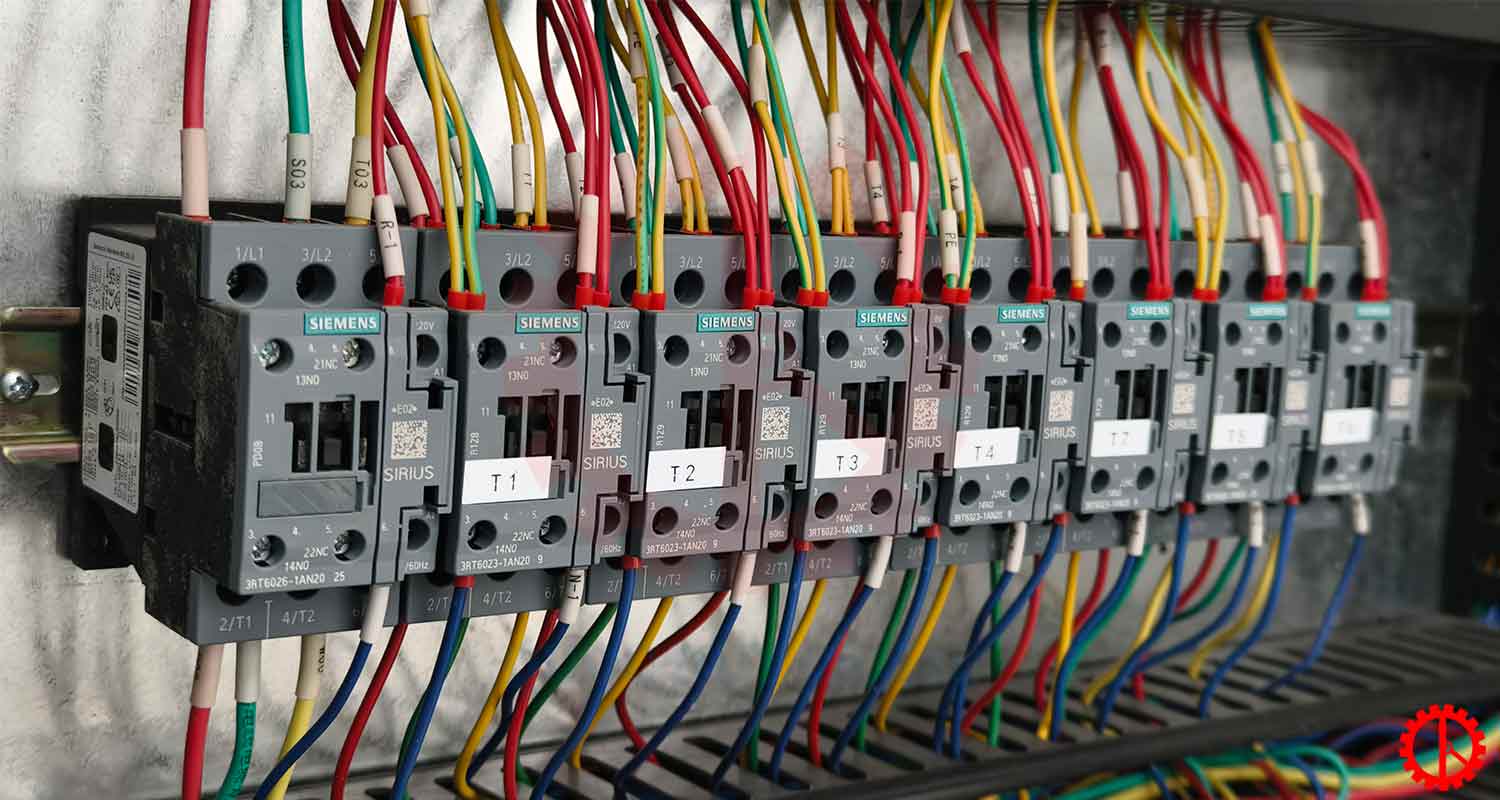

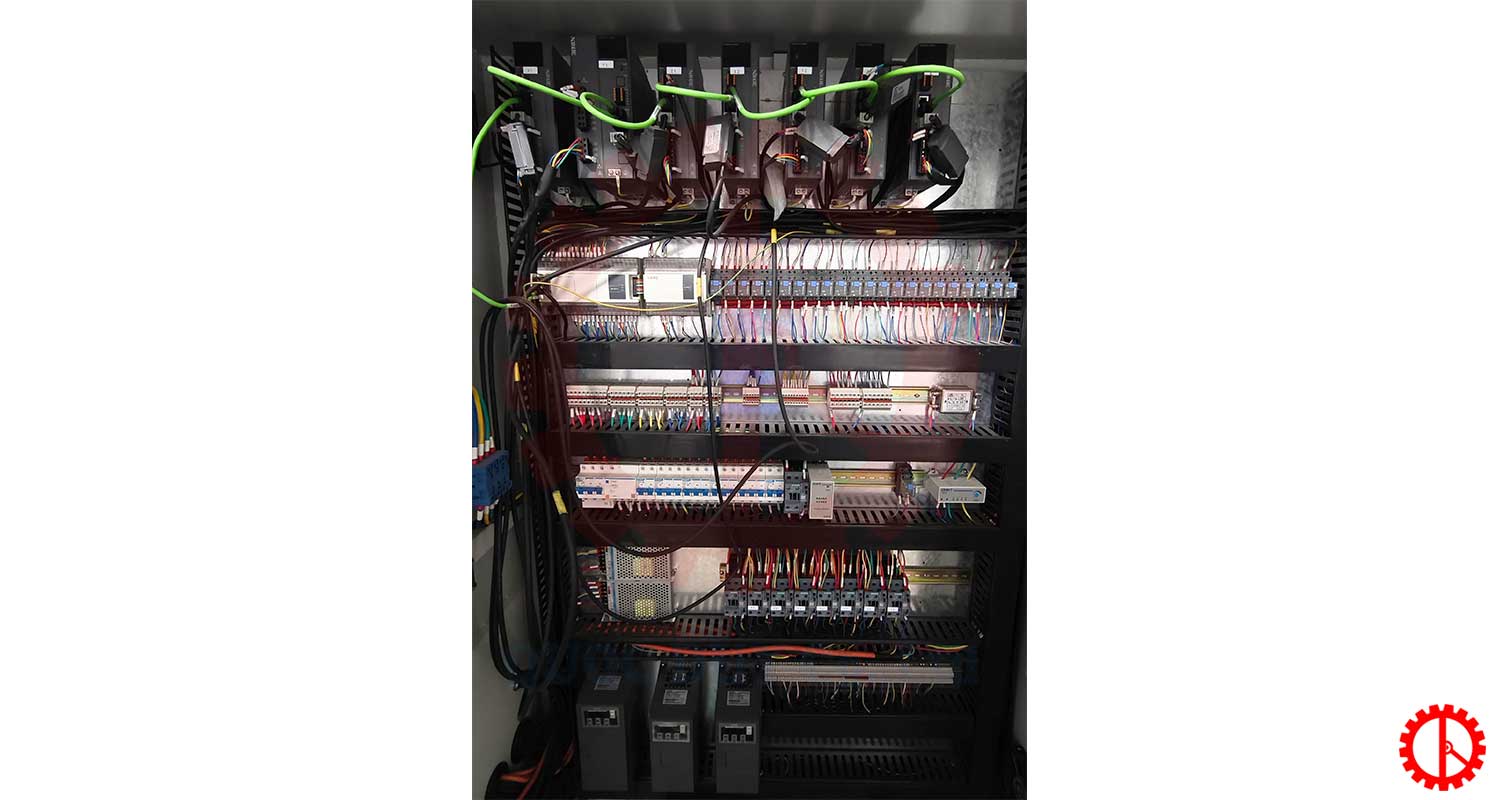

- Electrical components: SIEMENS, CHINT.
Specifications of pass through keyhole hinge machining center
| Maximum door length | : 2440 mm |
| Door width | : 1100 mm |
| Door thickness | : 30–80 mm |
| Axisstroke | : 1140 mm |
| X1 axis stroke | : 4025 mm |
| Y1 axis stroke | : 290 mm |
| Z1 axis stroke | : 100 mm |
| X2 axis stroke | : 4020 mm |
| Y2 axis stroke | : 125 mm |
| Z2 axis stroke | : 490 – 1110 mm |
| Lock drilling motor 1 | : 4.5 kW, 18,000 rpm |
| Lock drilling motor 2 | : 2.2 kW, 18,000 rpm |
| Lock drilling motor 3 | : 4.5 kW, 18,000 rpm |
| Lock drilling motor 4 | : 2.2 kW, 18,000 rpm |
| Side grooving motor | : 3.5 kW, 18,000 rpm |
| Hinge drilling motor | : 3.5 kW, 2.2 kW – 18,000 rpm |
| X axis servo motor | : 1.5 kW |
| Y axis servo motor | : 2.3 kW |
| Z axis servo motor | : 1.5 kW |
| Hinge group lifting motor | : 0.75 kW |
| Hinge group forward/backward movement motor | : 0.75 kW |
| Hinge group inward/outward movement motor | : 0.75 kW |
| Conveyor width adjustment motor | : 0.75 kW |
| Conveyor motor | : 0.75 kW × 2 |

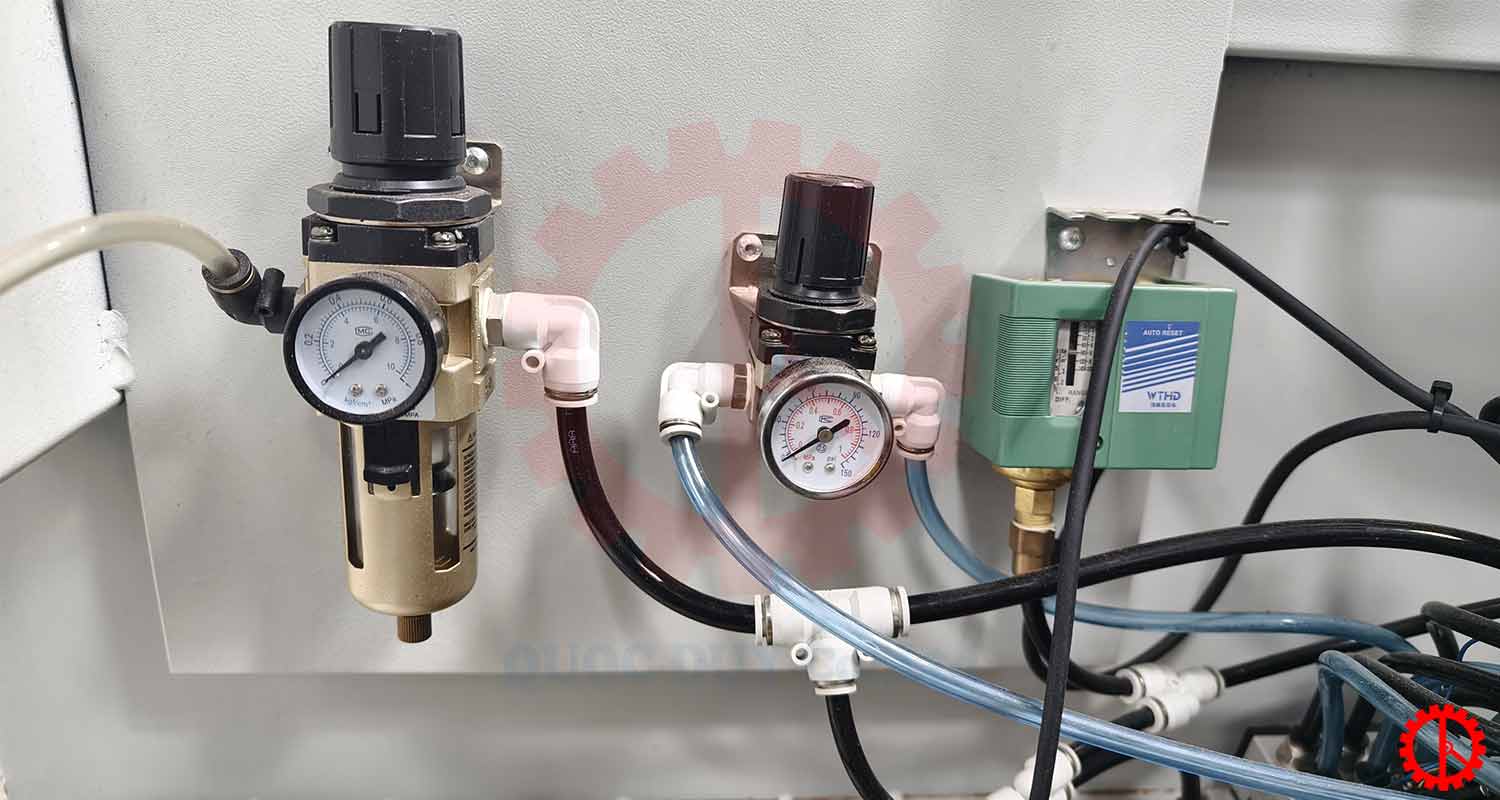

| Air pressure | : 0.6 – 0.8 MPa |
| Voltage | : 380V / 50Hz |
| Dust extraction port size | : 150 mm × 3 pcs |
| Machine dimensions | : 4800 × 2600 × 2500 mm |
| Electrical cabinet dimensions | : 1750 × 1100 × 500 mm |
| Control panel dimensions | : 1550 × 550 × 500 mm |
Note: Specifications, design features and colors of the machine are subject to change without prior notice, but will not affect the function and operation of the machine.
