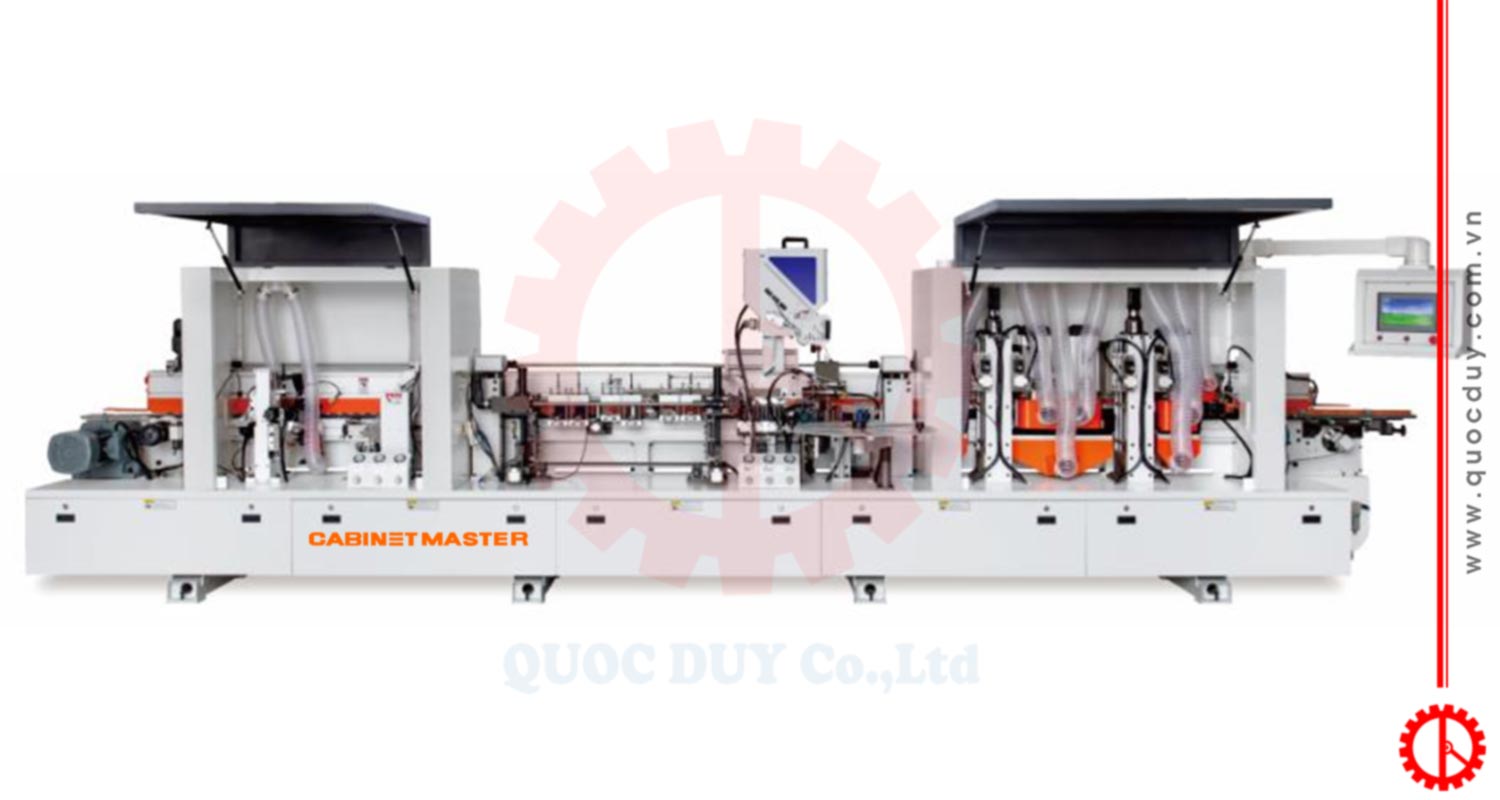

MOTHER- CHILD DOOR EDGE BANDING MACHINE - CB 588S

Features of Mother – Child Doors Edge Banding Machine

The edge banding machine for mother-and-child doors is fully automatic, capable of processing mother-and-child doors, soundproof doors, and flush doors simultaneously.
Equipped with a large touchscreen interface, functions can be selected via touch operation and switched automatically. Processing speed reaches up to 10 m/min.
Milling height is automatically adjusted by servo, reducing errors caused by manual adjustment.
Milling width is manually adjusted with position display, ensuring simple operation.
All components use premium brands, combined with in-house developed technology and assembly, ensuring precision, stable operation, and strict quality control.

Functions of Mother – Child Doors Edge Banding Machine

Pre-milling
Straight edge milling
Profile milling
Glue application
Straight edge pressing
Profile edge pressing
End trimming
Top and bottom trimming
Polishing

Technical Specifications of Mother – Child Doors Edge Banding Machine

Processing thickness	: 35–60 mm
Edge band thickness	: 0.4–0.6 mm
Edge band width	: Panel thickness + L-groove depth + 10 mm
Minimum panel size	: 300 x 200 mm
Feeding speed	: 10 m/min
Total power	: 49 kW
Dust extraction ports	: Ø100 × 10 pcs
Compressed air	: ≥ 0.6 MPa
Voltage	: 380V
Machine dimensions	: 7270 × 1100 × 1600 mm

Note: Technical specifications, design features, and machine colors may change without prior notice, but will not affect the machine’s functions and performance.
