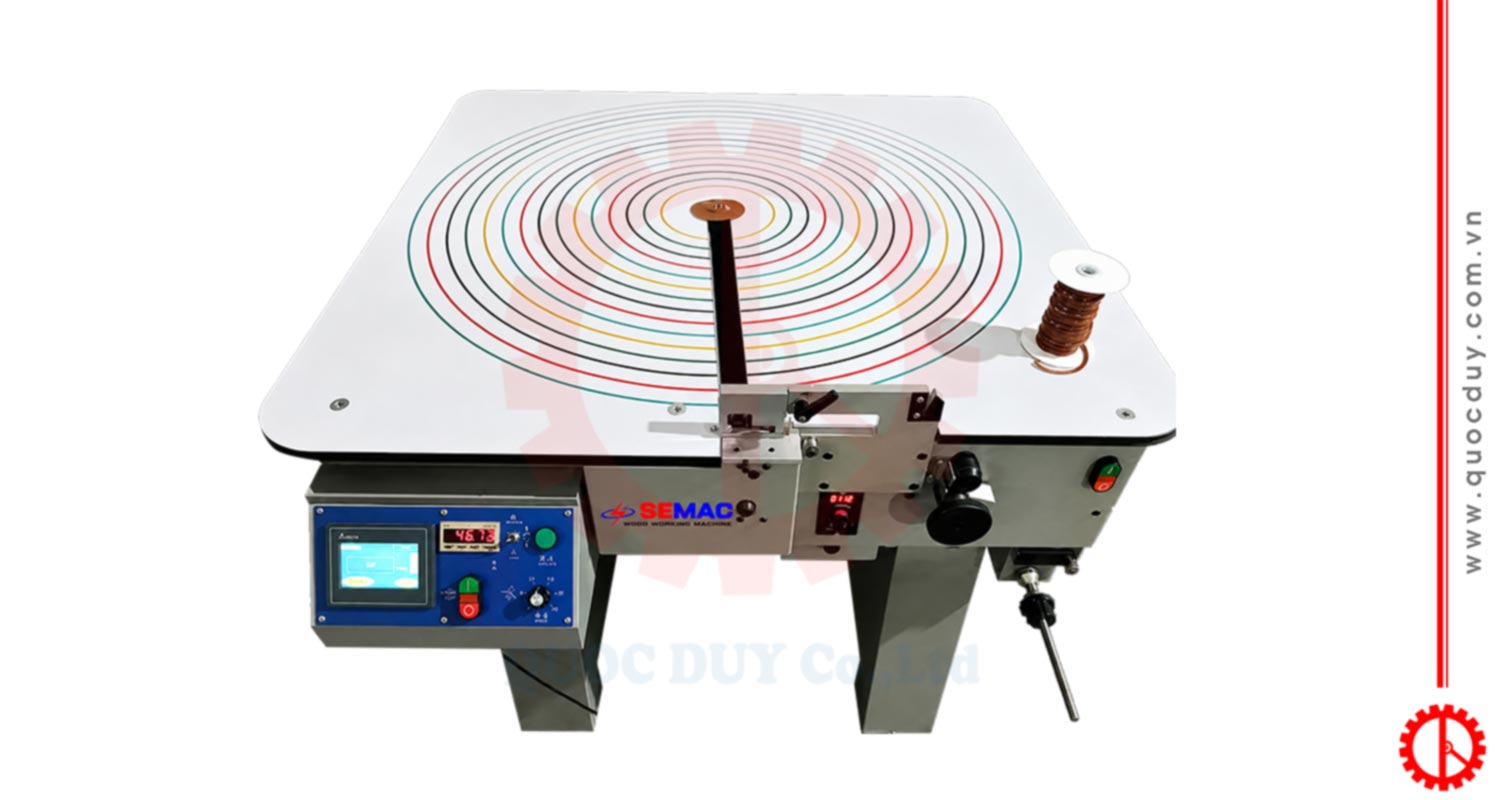

Leather strip cutting machine (optional automatic strip winding) – TOP 831/TOP 831R is engineered to slit large or full-hide leather sheets, maximizing raw material utilization and minimizing waste. The machine is capable of cutting continuous leather strips up to tens of meters in length.
Features of Leather strip cutting machine (optional automatic strip winding)
User-Friendly Operation: Slitting width is programmed directly via an intuitive HMI touchscreen display, completely eliminating manual gear changes.
Versatile Slitting Capabilities: Cuts leather strips to any custom width and accommodates all leather thicknesses to meet diverse processing requirements.
Dual Blade System & Floating Mechanism: Equipped with both rotary and straight knife holders, combined with an advanced Floating System, making it ideal for processing both soft and rigid leather.
Integrated Length Counter: Features a built-in strip length counter for convenient output tracking and real-time production monitoring.
High-Speed Processing: Delivers high-speed operation, reaching maximum processing speeds of up to 200 m/min.
High Precision: Engineered for superior accuracy with a tight allowable tolerance of ±0.1 mm.
Specifications of Leather strip cutting machine (optional automatic strip winding)
| Specification | TOP 831 | TOP 831R |
| Machine Dimensions (Packed) | 1320 × 1220 × 1300 mm | 1320 × 1220 × 1300 mm |
| Power Supply | 220 V | 220 V |
| Working Size | 1200 × 1200 mm | 1200 × 1200 mm |
| Power | 1 kW | 1 kW |
| Working Speed | 0 – 200 m/min | 0 – 200 m/min |
| Machine Weight | 200 kg | 200 kg |

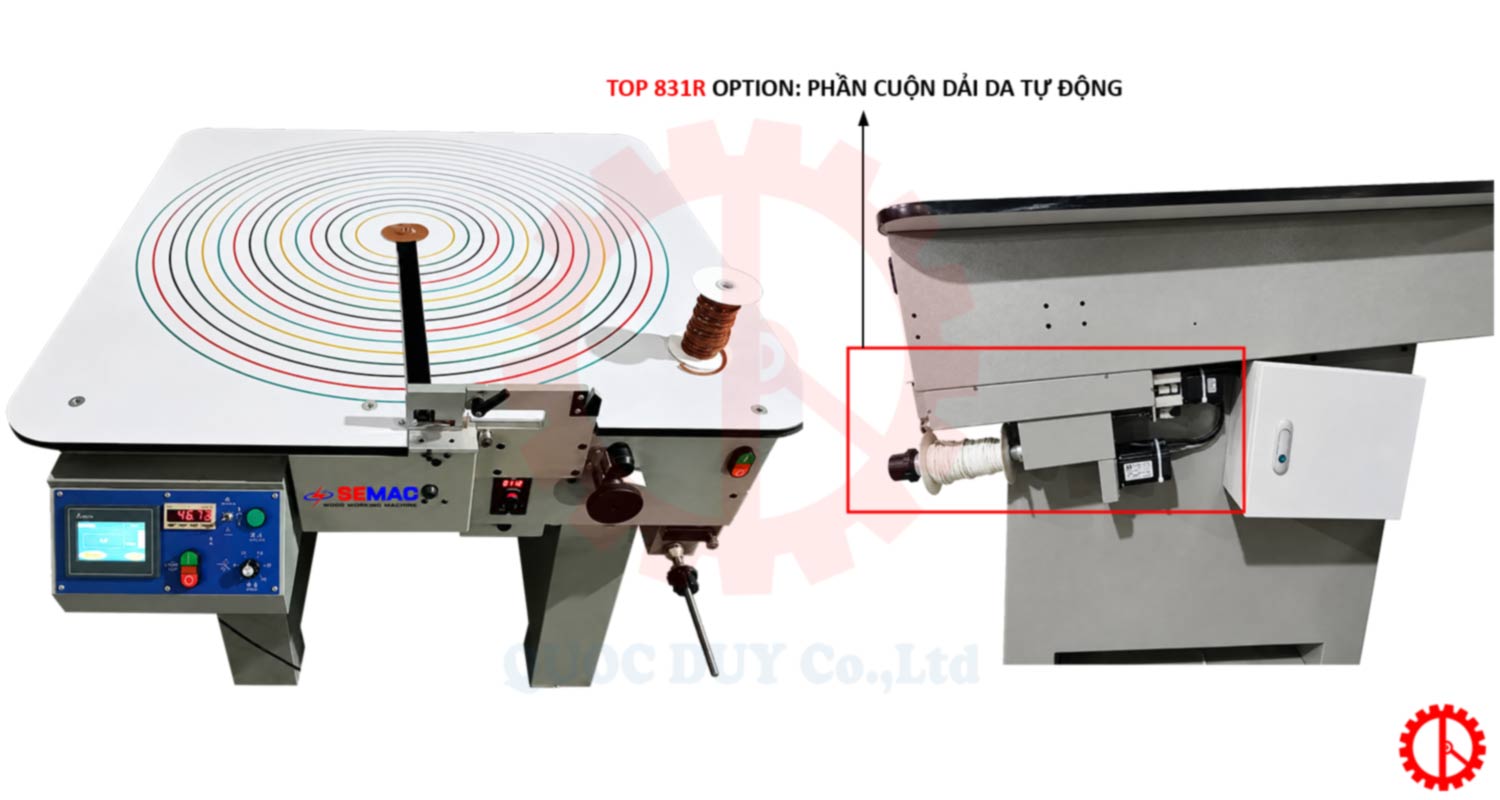

| Automatic Leather Strip Rolling Function | Not Equipped | Equipped |
Note: Technical specifications, design features, and machine colors are subject to change without prior notice. However, such changes will not affect the machine’s functionality, performance, or operating capabilities
