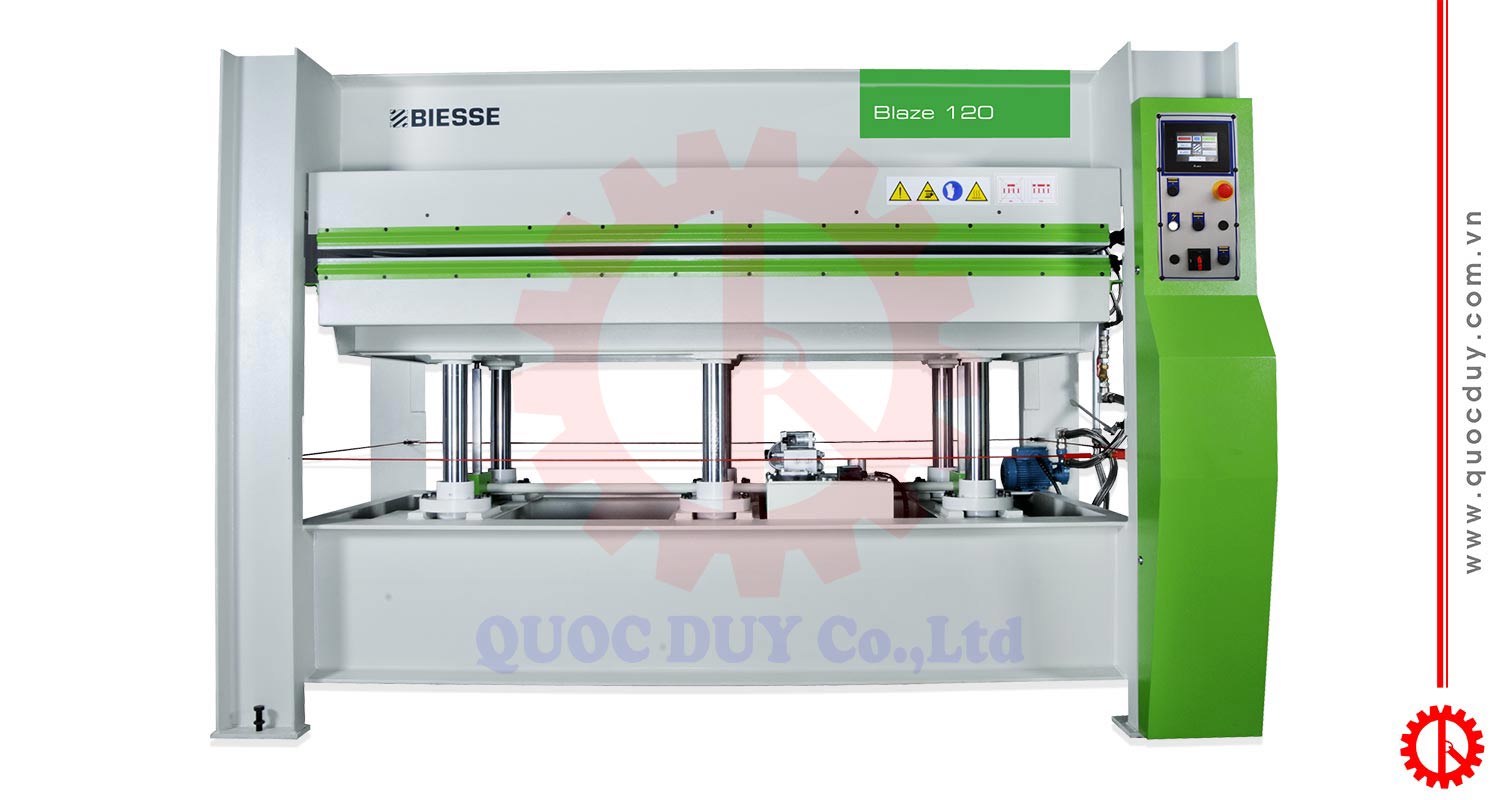

INTRODUCTION OF HYDRAULIC HOT PRESS BIESSE
Features of vertical hydraulic press

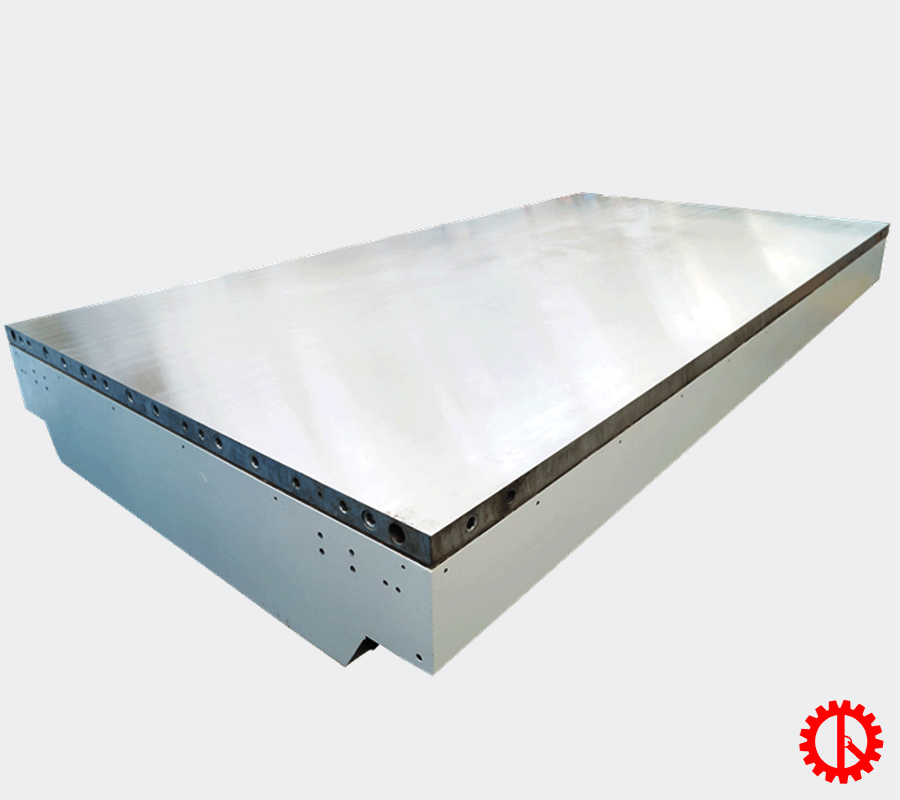

- The solid steel platens on this machine have holes that allow circulation of hot thermic oil. This guarantees perfect gluing. The platens are ground to ensure perfect flatness and easy maintenance, which prevents glue from spilling. If needed, ground and polished pressing surfaces can be provided for special applications.

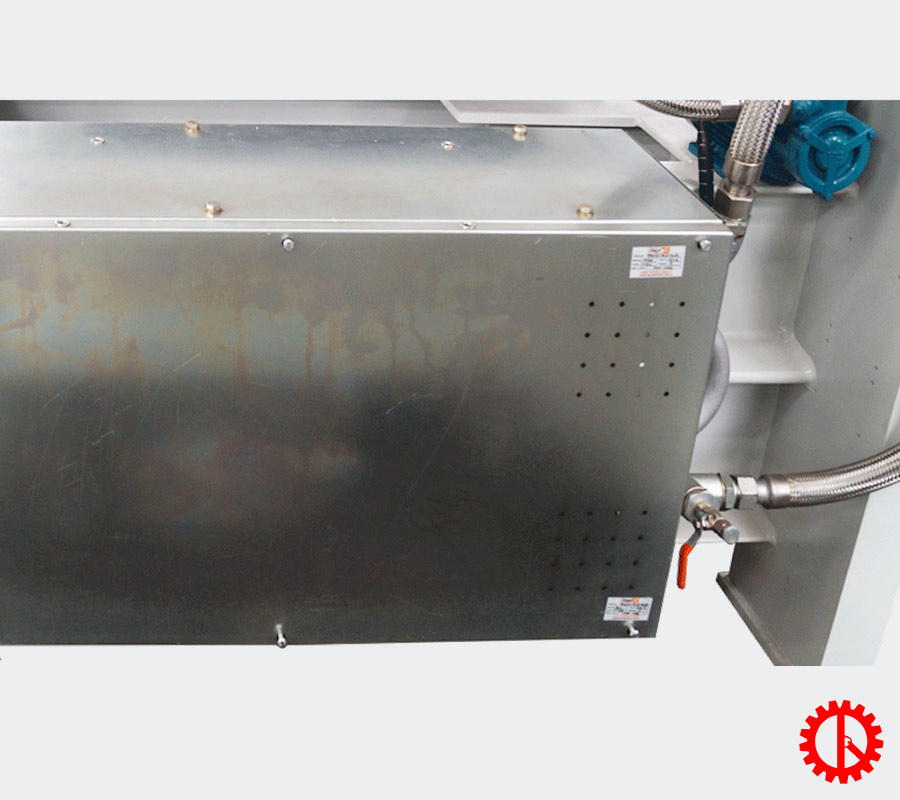

- The thermic oil heating technology is ideal for activating the glue for perfect gluing.

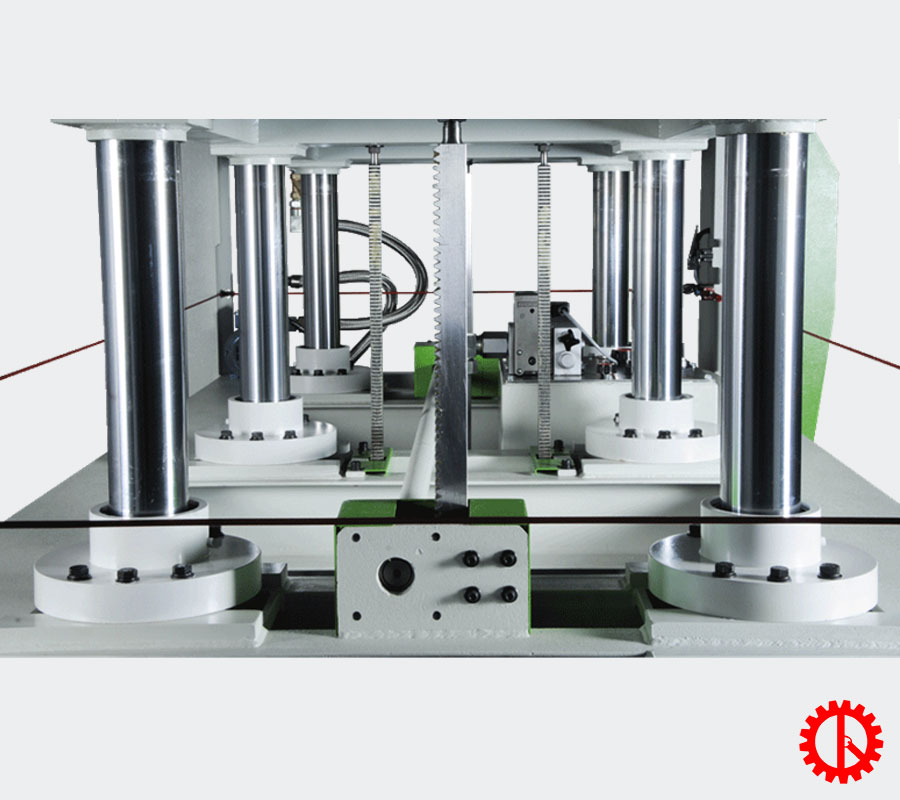

- This machine has six cylinders with a double rack and pinion arrangement, two lengthwise and two widthwise. The cylinders have synchronized lifting movement.

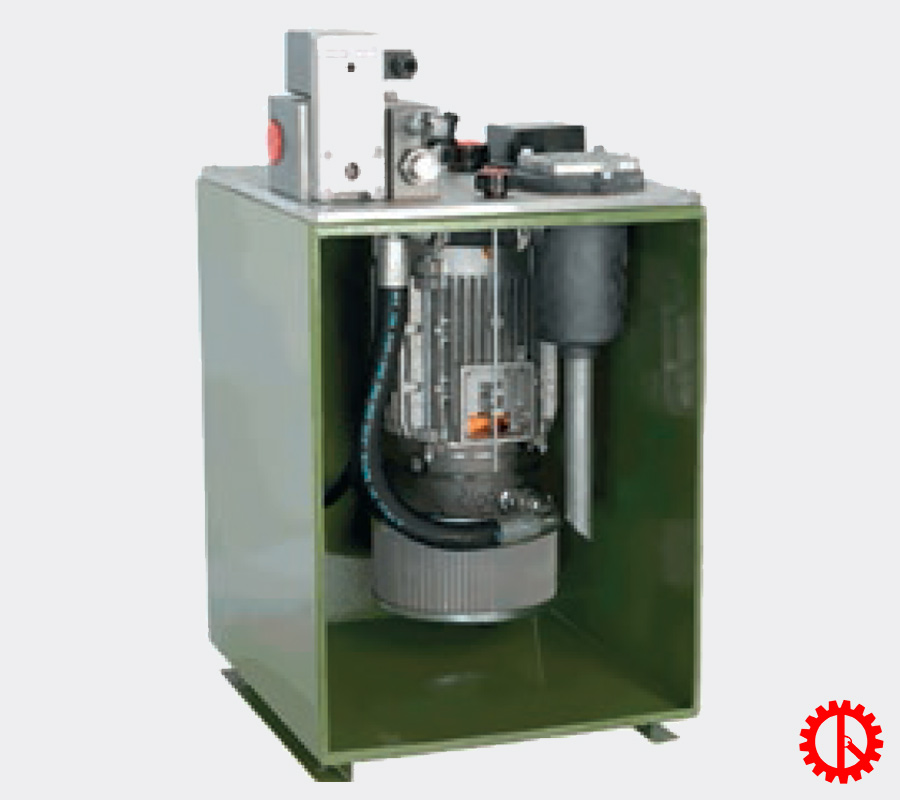

- The hydraulic unit is mounted securely in the middle of the lower part of the press, which removes any possibility of damage to the motor, pump, and other aggregates.

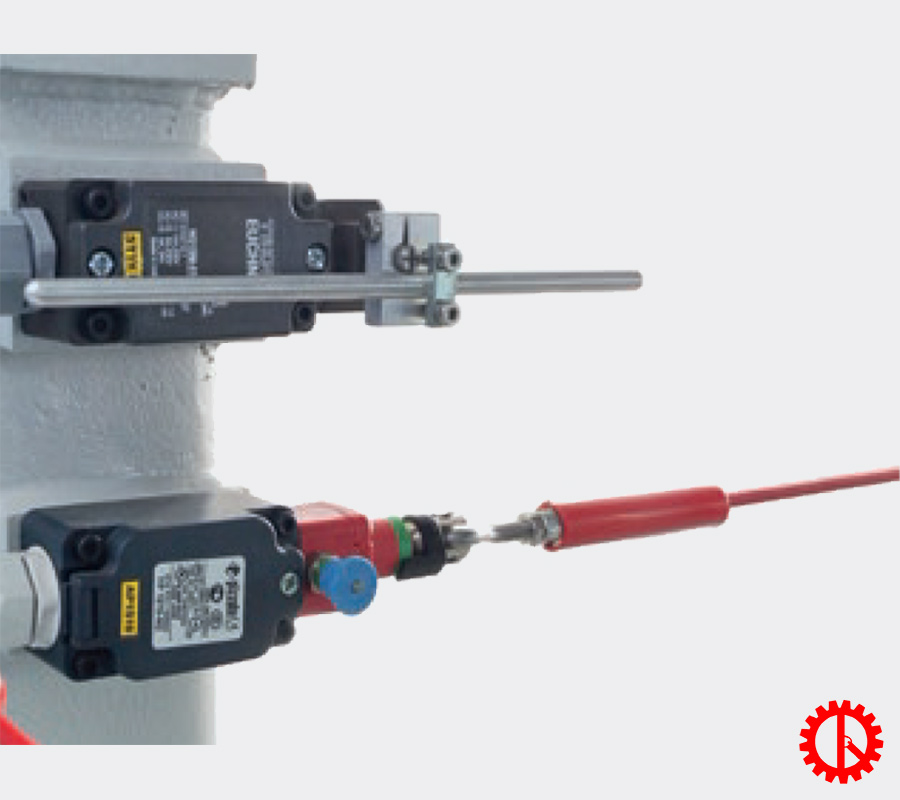

- To ensure added safety for the operator, the machine has an emergency safety rope all around the periphery.

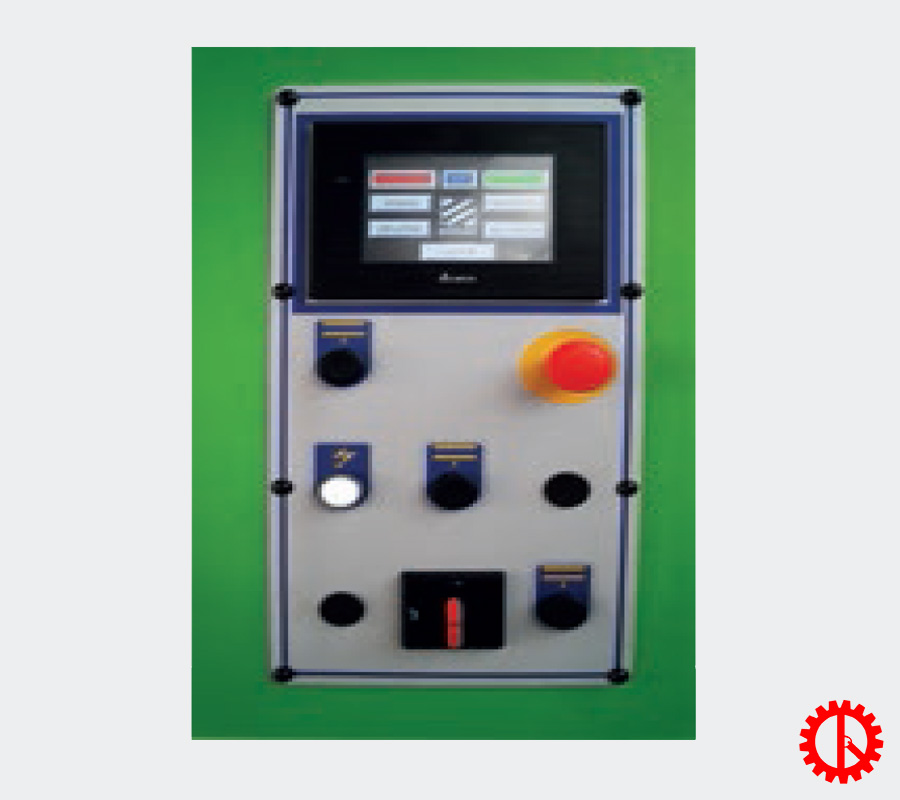

- The machine also has a 5.6” PLC Touch screen for easy setting and quick monitoring of the functions.
Structure of hydraulic hot press for plywood
Specifications of hot hydraulic press
| 2 Platens | 3 Platens | |
| Top and Bottom Solid Steel Platens | 2500 x 1300 mm | |
| Effective working area | 2460 x 1240 mm | |
| Pressing Cylinders | 6 | |
| Ram Diameter | 85 mm | |
| Ram Stroke | 385 mm | |
| Distance between Platens | 385 mm | 170 mm |
| Maximum Total Thrust | 120 Tons | |
| Heating Medium | Thermic Oil | |
| Overall Dimension | 4250 x 2800 x 1670 mm | |
| Gross Weight | 5400 kgs | 6300 kgs |
| Maximum thermic oil temperature | 120° C | |
| Power Rating | 21 kw | 5 kw |
LATEST HYDRAULIC HOT PRESS BIESSE PRICE
LATEST HYDRAULIC HOT PRESS BIESSE PRICE
If you are interested in purchasing a BIESSE hot press equipment and want a quick and accurate price list, you can contact Quoc Duy directly for more information.
- You can be reached through our 24/7 hotline for consultation and quote support at 0903 600 113
- You can also visit our location at 401 To Ngoc Van, Thanh Xuan Ward, District 12, Ho Chi Minh City to see the machine in action.
- Additionally, you can reach us via email at info@quocduy.com.vn or check out the website at www.quocduy.com.vn – www.semac.com.vn to stay updated on our latest products.
Quoc Duy specializes in providing high-quality woodworking machines at competitive prices and is always ready to assist you.
