High speed edge banding machine K 800
INTRODUCTION OF HIGH SPEED EDGE BANDING MACHINE
Features of high speed edge banding machine
BLOWER FOR PANEL CLEANING
Optimum glue adhesion with the cleaning of the machined surface

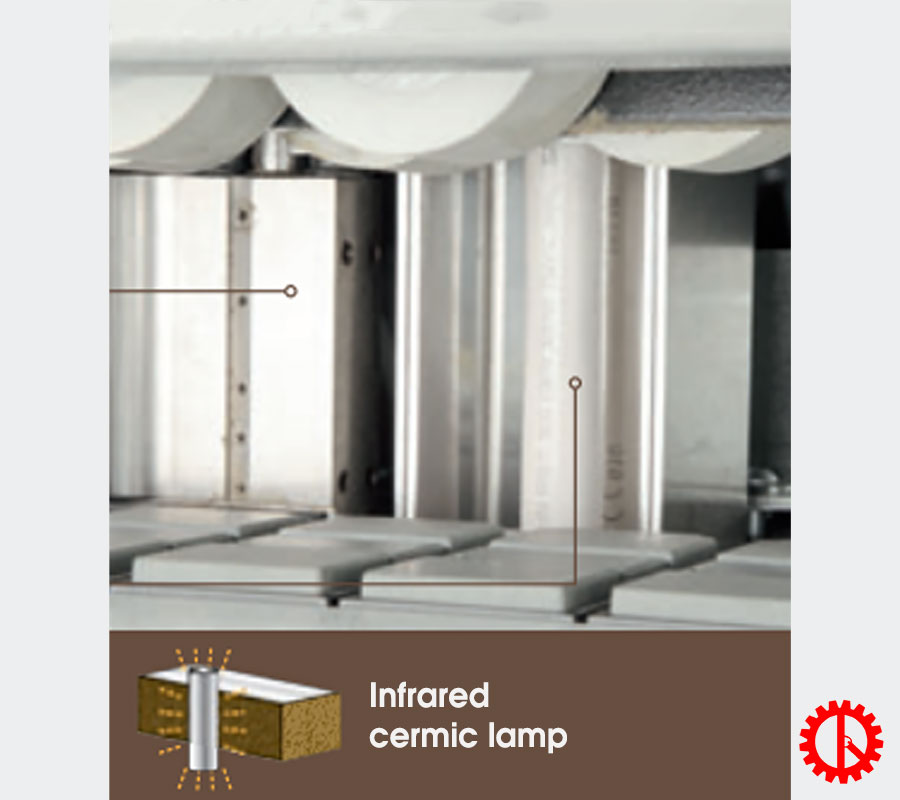

INFRARED CERAMIC LAMP (OPT)
Improved glue adhesion due to heating of the surface to be glued

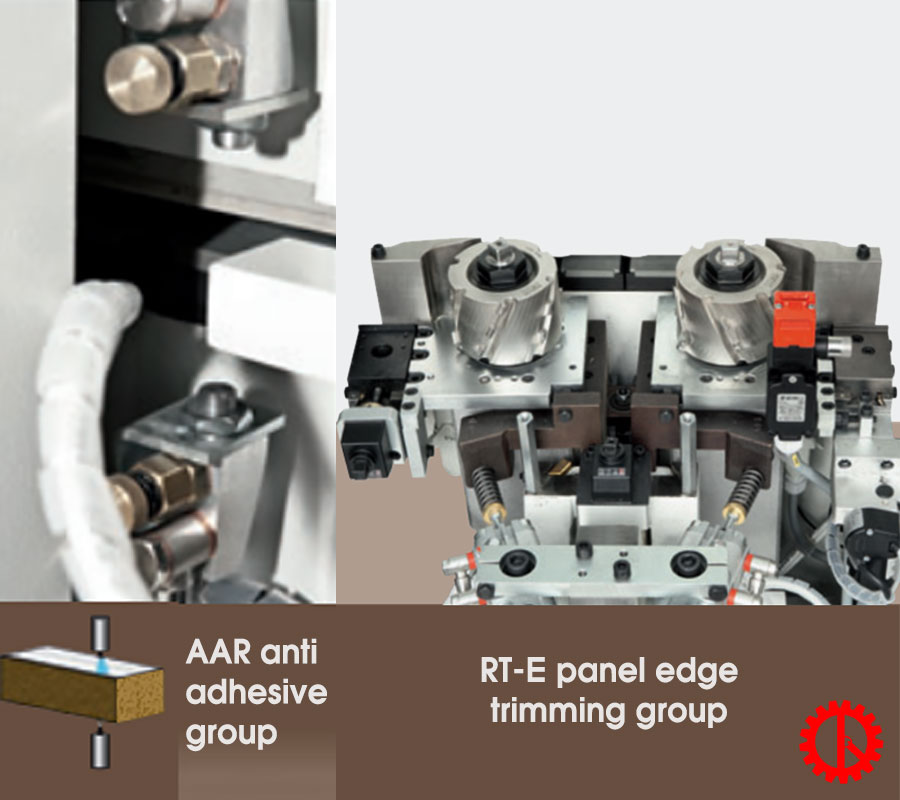

AAR ANTI-ADHESIVE GROUP (OPT)
It ensures the highest finishing quality by preventing the glue sticking to the upper and lower panel surfaces
RT-E PANEL EDGE TRIMMING GROUP
– Provides a perfect surface for gluing the edge
– ED SYSTEM high efficiency exhaust outlets
– Constant removal on the entire panel length with the copying devices kit (opt)

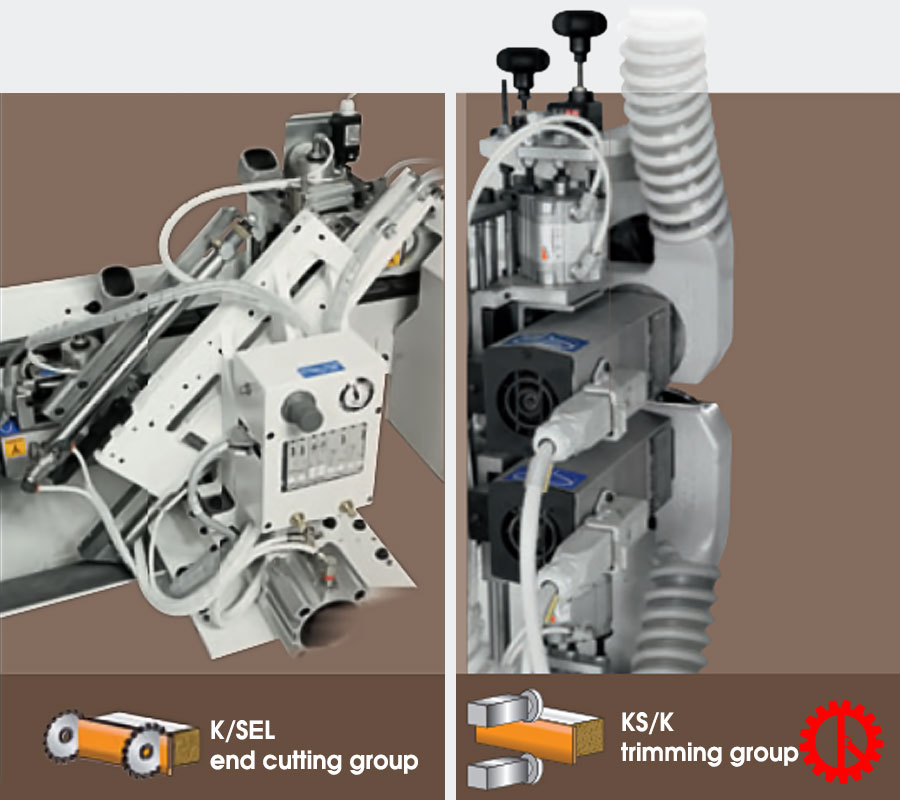

K/SEL END CUTTING GROUP
– The best finishing quality thanks to the motors sliding on two independent guides
– Rapid set-up between straight and angled cutting with the automatic independent tilting of the motors (opt)
– Horizontal movement of the group in order to leave an exceeding edge that ensures an optimum finish of the Round group (opt)
RS/K IN-LINE TRIMMING GROUP
– For the trimming of a solid wood edging or the removal of the exceeding edge thus providing the following chamfering operation
– ED SYSTEM high efficiency exhaust outlets

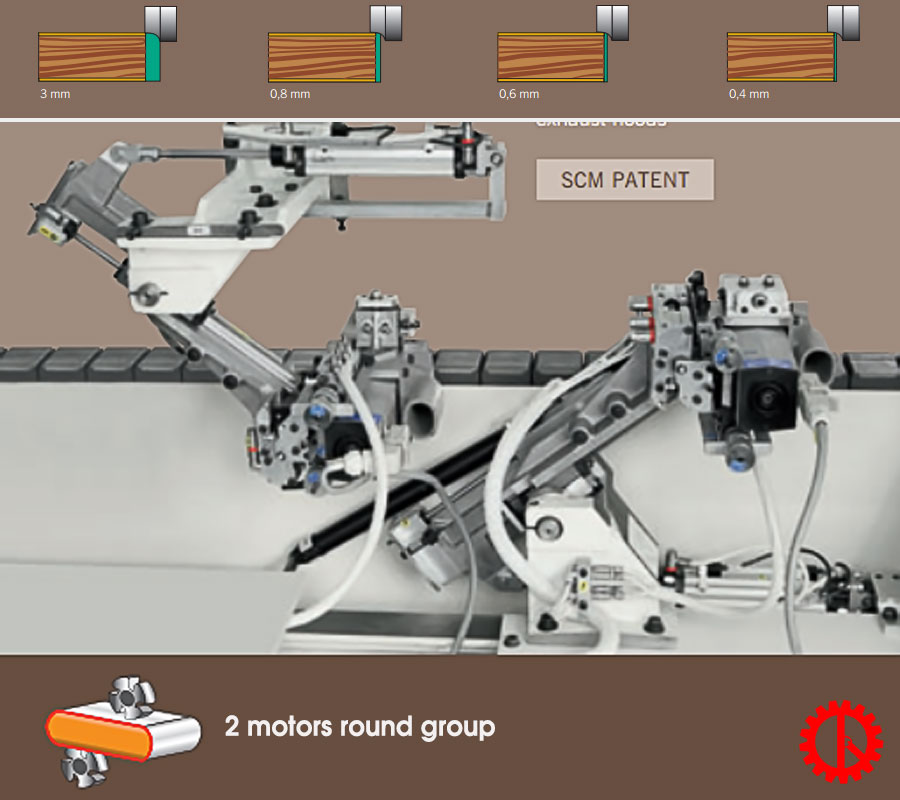

2 MOTORS ROUND GROUP
– Perfect rounding and trimming of straight, chamfered and post formed panels
– Rounding angles with 16 m/min track speed
– ED-SYSTEM high efficiency exhaust hoods

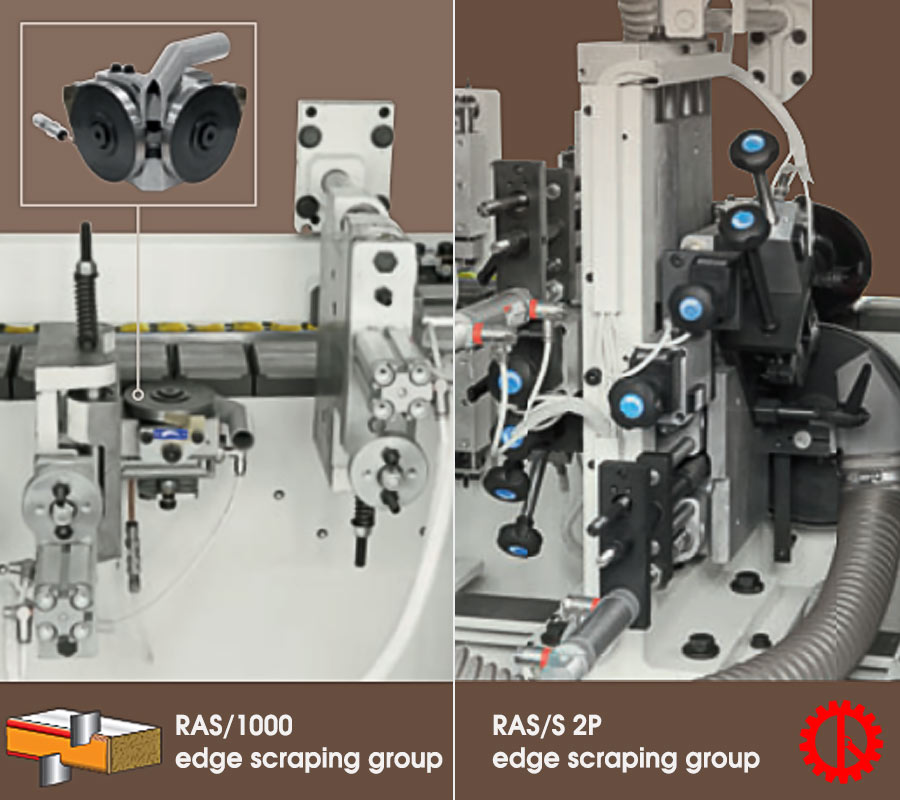

RAS/1000 EDGE SCRAPING GROUP (OPT)
– Rapid and easy work changeover of the radius edge thanks to the substitution of the cutter-head, complete with rotating copying discs
– For the finishing of the PVC/ABS radius edge
– The group is complete with extraction hood with suitable container with filter for long chips
RAS/S 2P EDGE SCRAPING GROUP (OPT)
– Automatic work changeover of the radius edge through the two tool pneumatic positions
– For the finishing of the PVC/ABS radius edge
– The group is complete with large dimensioned extraction hood with suitable container with filter for long chips

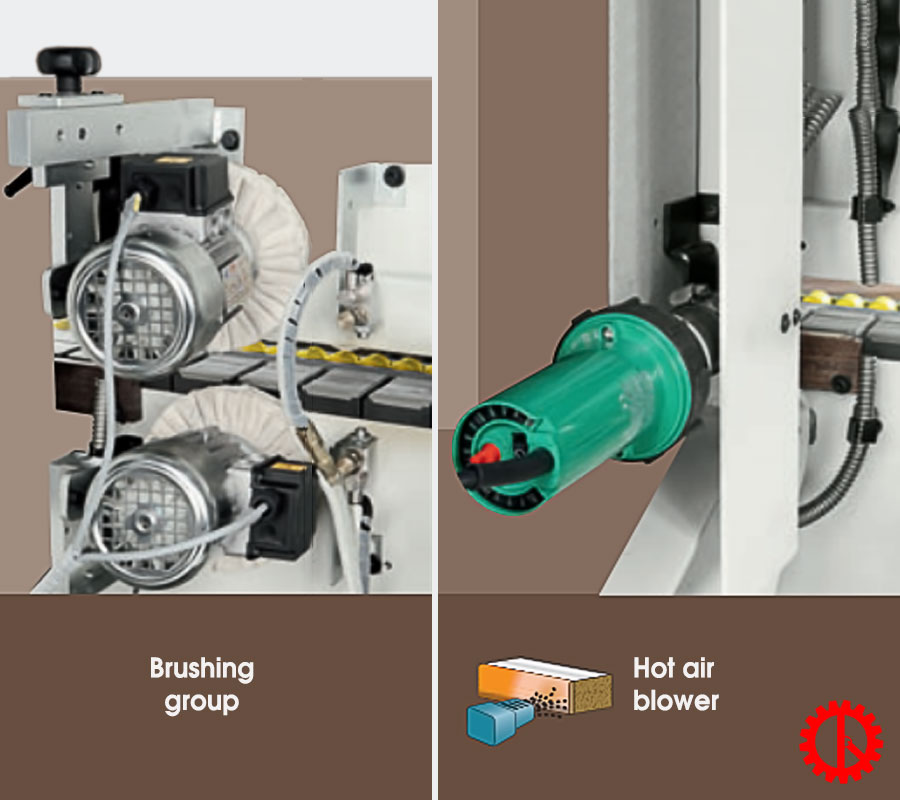

SPN BRUSHING GROUP (OPT)
Allows panel cleaning and polishing Easy adjustment with the hand wheel supplied with the group
SPRAY-MIST DEVICE FOR EDGE FINISHING (OPT)
It improves the panel cleaning and the polishing of the PVC/ABS edge
HOT AIR BLOWER FOR PVC/ABS EDGES (OPT)
It reactivates the colour of the PVC/ABS edges
OPERATION VIDEO OF HIGH SPEED EDGE BANDING MACHINE
Specifications of high speed edge banding machine
| Panel thickness | 0.4 – 8 mm (12mm opt) |
| Edge thickness | 8 – 60 mm |
| Feed speed | 12 – 18 m/min |
| Min. panels length | 140 mm |
