The High-Speed Automatic Feeding 5 Spindles 4-Sided Planer is designed to simultaneously plane, profile, and process all four sides of a wooden workpiece in a single pass, shortening machining time, increasing production speed, and ensuring high accuracy. With an automatic feeding mechanism, powerful motors, and an optimized spindle system, the machine operates smoothly, reduces vibration, saves costs, and produces uniformly flat wood surfaces, ready for subsequent finishing steps.
Features of The High-Speed Automatic Feeding 5 Spindles 4-Sided Planer
Optimized 5-Spindle Configuration: The spindles are logically arranged (Top, 2 Bottom, Left, Right), allowing the machine to plane all four sides in one pass, significantly shortening production time while ensuring absolute precision.
High Feeding Speed: The machine has a feeding speed of up to $60 text{ m/min}$, suitable for large-scale production lines, helping the workshop complete order deadlines faster.

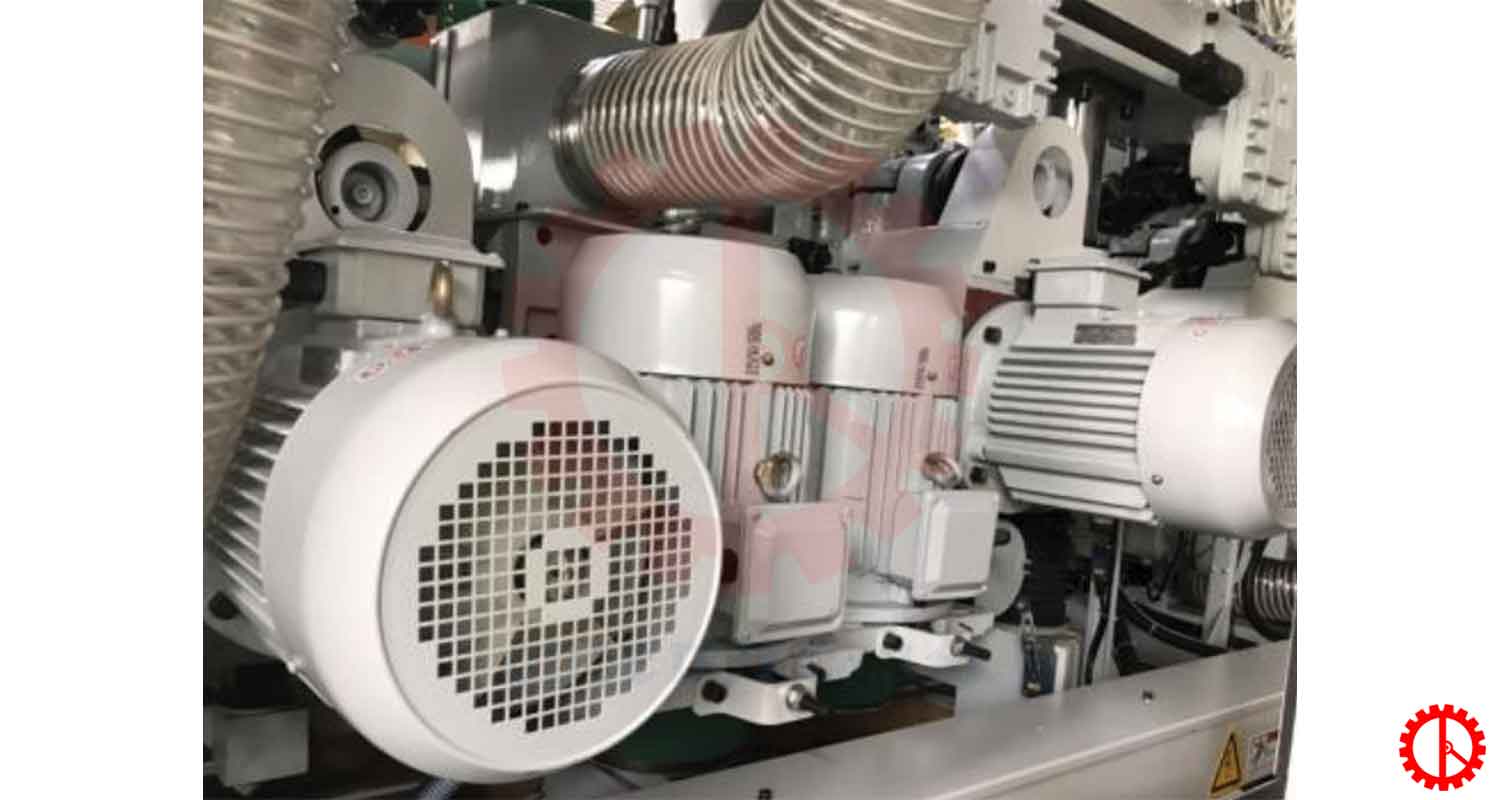

Powerful & Stable: Equipped with an $11 text{ kW}$ Siemens motor (typically for the main head) combined with an optimized spindle system, which reduces vibration, maintains uniform cutting force, and ensures high planing efficiency even with large or hard wood.
User-Friendly Control: The control panel is scientifically arranged, allowing easy adjustment of spindle speed, feeding speed, and spindle height.
Material Saving: Sharp planer blades ensure a smooth cut without scratching the wood, minimizing material loss and significantly saving on subsequent painting and sanding costs.

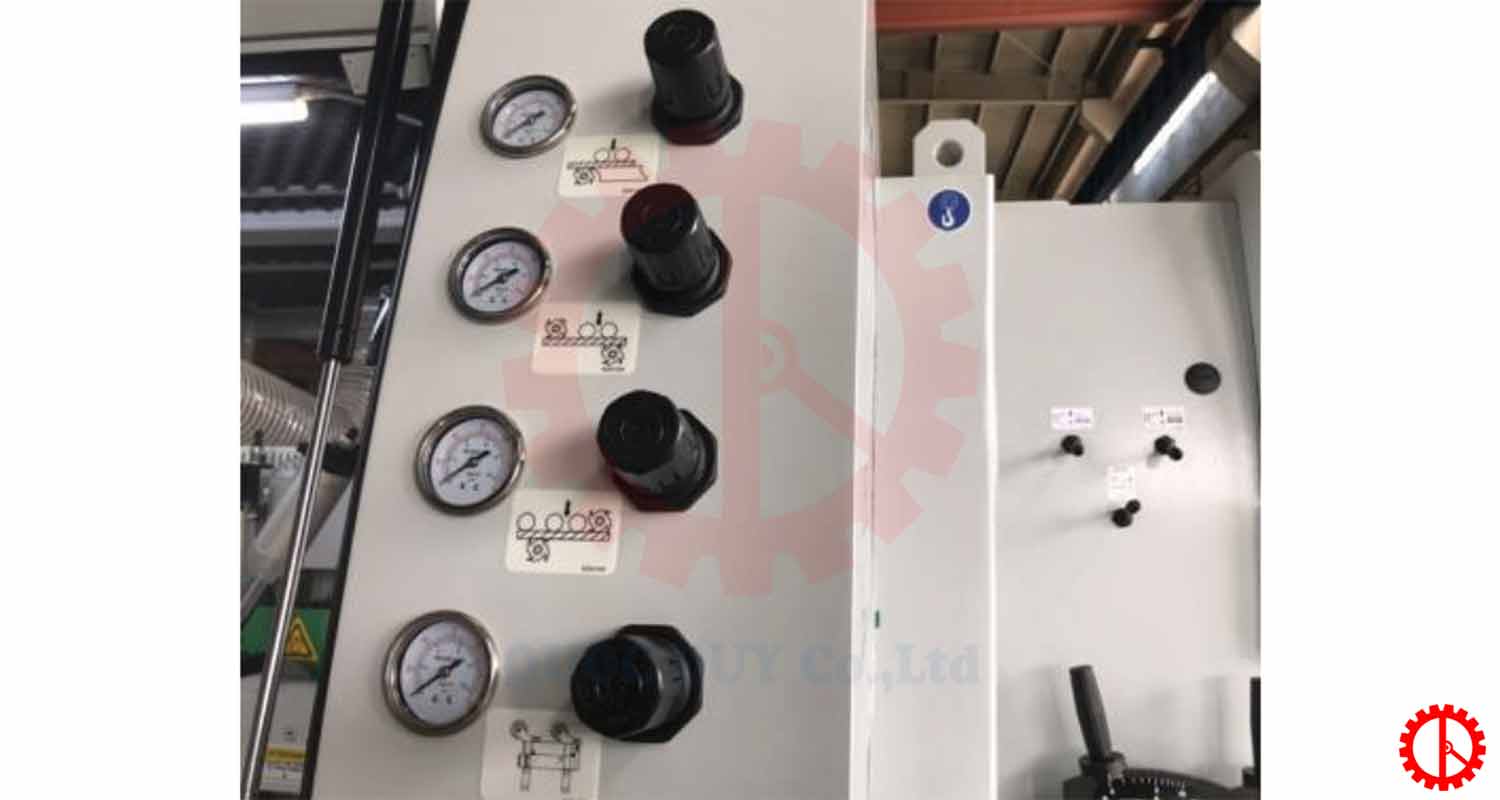

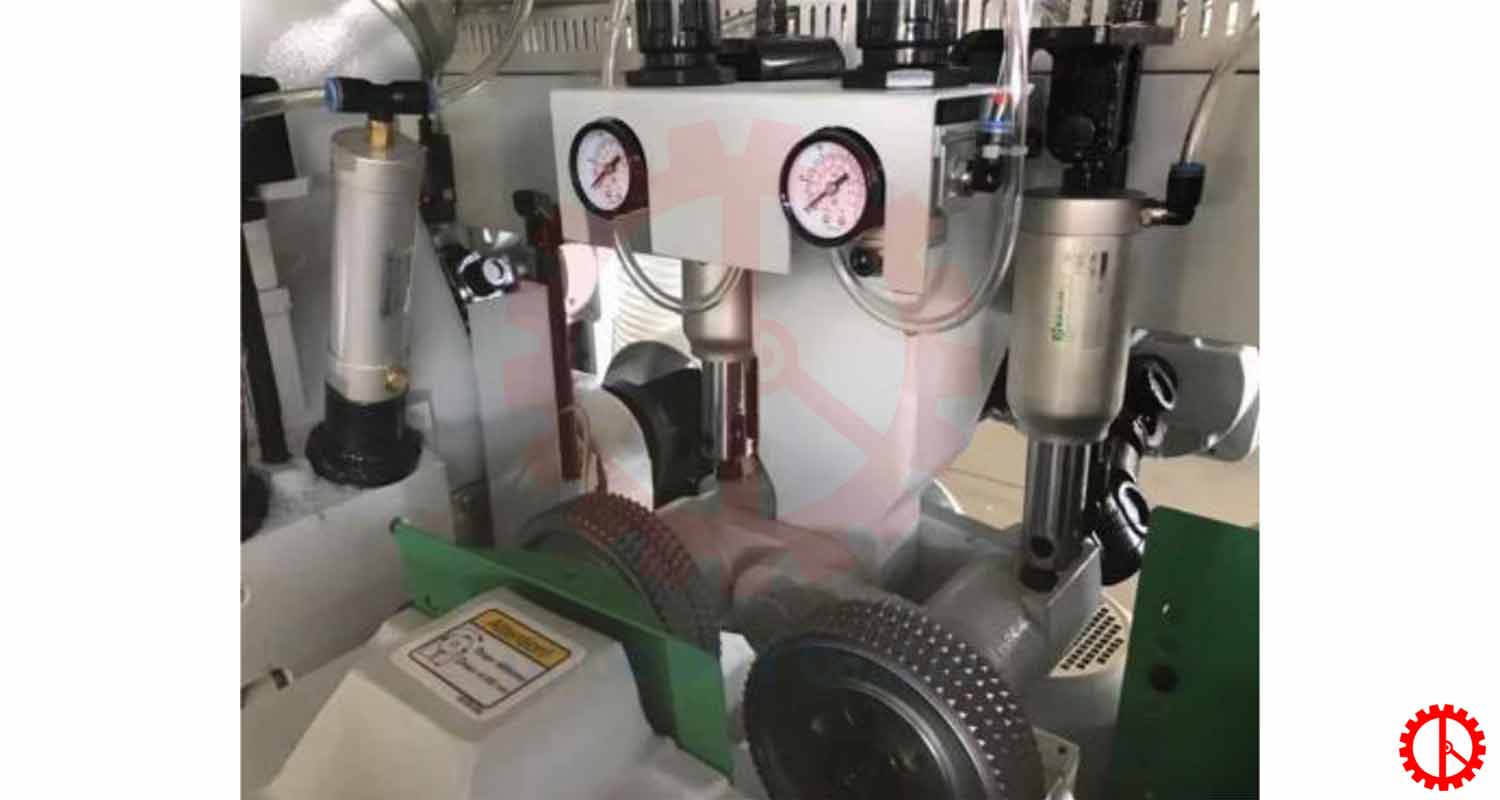

Safety & Maintenance: Integrates an automatic oil pump, pneumatic workpiece pressing cylinder system, $text{O}150 text{ mm}$ dust extraction ports, and sturdy protective covers, extending machine lifespan and maintaining a safe and clean working environment.
Durable Construction: The robust steel frame structure with an anti-rust electrostatic paint finish ensures the machine operates stably for many years while maintaining high precision.
High-Speed Automatic Feeding 5 Spindles 4-Sided Planer Technical Specifications
| Working width | : 20 – 230mm |
| Working thickness | : 8 – 160mm |
| Spindle QTY | : 5 |
| Spindle rotation speed | |
| 1st bottom spindle | : 6000 rpm |
| Right spindle | : 8000 rpm |
| Left spindle | : 8000 rpm |
| Top spindle | : 8000 rpm |
| 2nd bottom spindle | : 8000 rpm |
| Cutting diameter | |
| 1st bottom spindle | : Ø110 ~ Ø145mm |
| Right spindle | : Ø110 ~ Ø200mm |
| Left spindle | : Ø110 ~ Ø200mm |
| Top spindle | : Ø110 ~ Ø200mm |
| 2nd bottom spindle | : Ø110 ~ Ø200mm |
| Dia of shaft | : Ø50mm |
| Motor power | |
| 1st bottom spindle | : 11kW |
| Right spindle | : 11kW |
| Left spindle | : 11kW |
| Top spindle | : 11kW |
| 2nd bottom spindle | : 11kW |
| Feed | : 5.5kW |
| Feed beam lift | : 0.75kW |
| Total motor power | : 63.5kW |
| Feeding speed | : 12– 60 m/min |
| Top pressure roller diameter (OD/ID) | : Ø140/Ø35mm |
| Dust suction pipe diameter | : Ø150mm |
Note: Technical specifications, design features, and machine color are subject to change without prior notice, but this will not affect the machine’s functionality and operating capabilities.
Enhance Productivity with the High-Speed 4-Sided Planer with Automatic Feeding:
The Quoc Duy High-Speed 4-Sided Planer with 5 Spindles is the ideal solution to help woodworking shops increase productivity, optimize product quality, and save materials. With precise cuts, stable operation, and maximum material saving capability, every machine is carefully inspected and calibrated by our team of engineers before handover, ensuring smooth operation right from the first run.
